3D Massage Chair
(With Air Pressure)
USER MANUAL
Many thanks for purchasing our massage items. Before using this machine, please read this manual carefully to make sure fully understand the exact method of use, especially the points for attention. Please keep this manual carefully for your reference!
Functions
- NECK PART:
1. Four kneading heads working by reverse&forward.
2. It’s the adjustable height for met different heights people. - BACK PART:
1. Kneading & Tapping together work
2. Up & down massage full-back
3. Can be fixed massage for Higher back, Lower back for your choice - HIP PART:
Three vibration intensities supply comfortable vibration on the butt& thigh - LEG PART:
Five angles to adjust the different positions for relaxing your leg. - It’s a collapsible chair for the package, no need to assemble it, Once you get it can be used directly.
- 15 mins time-limited.
- With 5 pcs airbags supplies pressure for the back part & hip part
- Especially pressure in the Mid-part of hip

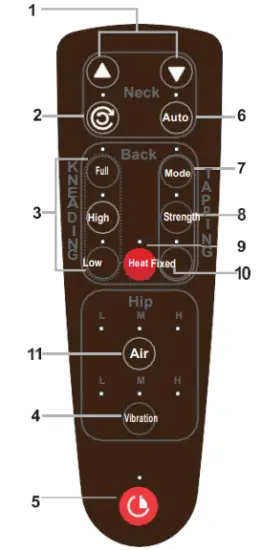

Controller
- Neck Massage Adjustment
Adjust your desired neck massage level. - 3D Neck Massage Programme
Change the direction of kneading heads. - Back Zone Selection
Select your desired back massage area (FULL, UPPER, LOWER). - Vibration Massage
To relax your buttocks and thighs. - Power ON/OFF
Switch ON or OFF the machine. - Auto Programme
Press this button by starting working automatically. - Tapping, Kneading & Rolling Massage
Provides 3 different massage techniques to relieve sore muscles. - Massage Intensity
Select your desired massage intensity levels. - Heat Therapy
Improve metabolism rate. - Spot Massage
A unique feature that allows you to manually focus on the desired area of your body - Air Pressure Massage
System Total 9 built-in airbags from back to waist, buttocks, and thighs position to provide a relaxing massage.
How to operate
- Open the packing, place the massage chair in a flat place& open
- Connect the DC with the adaptor
- Connect the adaptor with the power
- Press the button on the controller to start working.
Notes
| Before use | • Please read carefully the instruction before use. |
| Practice | • Working 20 minutes every day at the beginning stage and more time step by step; do not exceed 20 minutes for safety. • Could place one folded towel or blanket on the back in case of too strong massage pressure. |
| Longer Life | • Please let the machine rest for 20 minutes after 40 minutes of operation to ensure of longer life for the machine. |
| After Use | • Please turn off the power and then pull out the plug after usage; please do pull the plug from the socket and do not pull the wire. |
| Place to put | • Please do not operate the massager where with much dust, oil crust, fog. • Please do not put the massager near to electric appliance. • Please do not put the massager where under direct sunshine • Please do not use the massager where with much humidity ( like in hot springs, swimming pools, bathrooms, etc ). • Please do not use the massager outdoor. • Please do not operate the massager where with fog and lack of oxygen. |
| Suitable for the crowd | • Those who feel uncomfortable, have been an operation, or be injured in the back, or neck, please consult with a doctor before using. • Do not use within one hour after lunch/dinner. • For the following people please use the massager after consulting with a doctor or specialist : a) with cancer b）heart disease • pay much attention when the massager is running, especially for patients or those without the ability of operation. • You are suggested to wear baggy clothes when using the massager; Do not use it nakedly which might cause hurt to your skin; Too thick or thin clothes or those with a collar, belt or other hard objects should also be avoided because they might affect massage effects. • Prohibit using for kids and those pregnant women |
FAQ
Phenomenon | How to check | How to Sanas |
| Sounds like a squeak, ping, click, | Sound is caused by the motor; normal; no need to check | N/A |
| Noise during massager | Has it been working for a long time or continuing? | Please turn off the power and be rest for over one hour |
| Feeling hot on the surface | Has the working time exceeded the time limit | Please operate within the time limit |
| No working or stop suddenly during running | 1. Power off 2. Temperature protection device | 1. insert the plug and turn on the power 2. tum off power and be rest for over one hour |
Please Coast Rabe distributor if no use after the above handling | ||
DANGER
To reduce the risk of electric shock
- Always unplug the appliance from the electrical out letinnediately after use and before cleaning.
- Never use pins or other metallic fasteners with this appliance.
- Keep dry-Do not operate in water or moist condition.
Specifications
| Product Name | 3D Massage Chair |
| Model No. | A000014 |
| Voltage | 12V 5A |
| Rated Power | 60 W |
| Time-Limited | 15 min |
| Product Size | 130 X 66.5 X 92cm |
| N.W. | 22 KG |
| G.W. | 23 KG |
CAUTION
- TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER, THERE ARE NO SERVICEABLE PARTS INSIDE.
- TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS ITEM TO RAIN OR MOISTURE.
The lightning flash with the arriw-head symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the use to the presence of important operating and maintenance (servicing)instructions in the literature accompanying the unit
ASSEMBLY INSTRUCTIONS

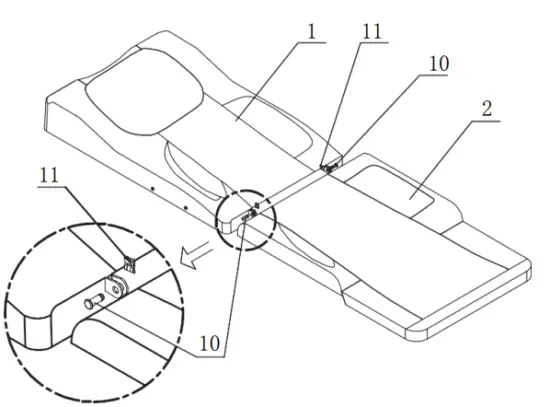

STEP1
| No. | Description | Qty |
| 1 | Chair Back | 1 pc |
| 2 | Chair Cushion | 1 pc |
| 10 | Coupling shaft | 2 pcs |
| 11 | Spring piece | 2 pcs |

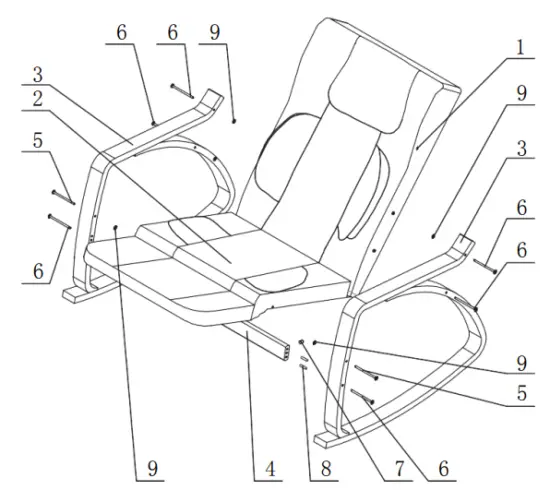

STEP2
| No | Description | Qty |
| 1 | Chair Back | 1 pc |
| 2 | Chair Cushion | 1 pc |
| 3 | Armrest | 2 pcs |
| 4 | Connecting boards | 1 pc |
| 5 | crew bolt M6 X 105mm | 2 pcs |
| 6 | Screw bolt M6 X 95mm | 6 pcs |
| 7 | Screw nut M6 | 2 pcs |
| 8 | Wooden pin | 4 pcs |
| 9 | Gasket | 6 pcs |
