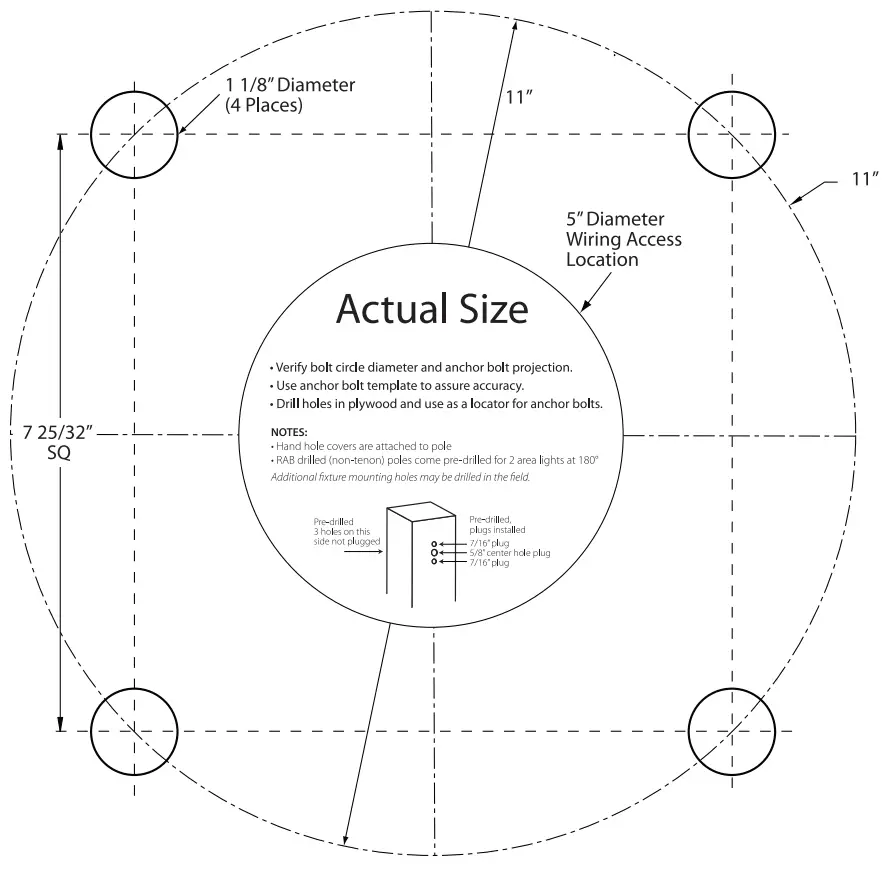

ANCHOR BOLT TEMPLATE 5″ SQUARE
73662-RAB
73662-RAB 5 Inch Square Anchor Bolt Template
DRILLED TOP

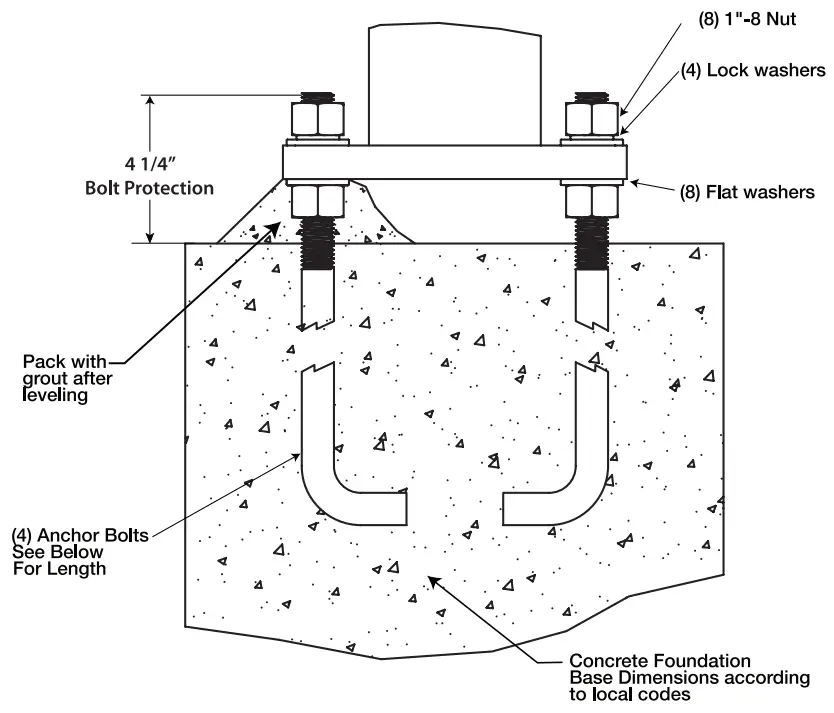

ANCHOR BOLT KIT: BOLT5-8
with 36″ anchor bolts fits these MB poles
PS5-07-20D2
PS5-07-25D2
PS5-07-30D2
BASE COVER KIT: BCK-S5 (for electrician)
(1) 2pc steel base cover, bronze
(4) 1/411- 20 black base cover screws
(1) 5″ pole cap CAT# PCAPS (for use with drilled poles)
TENON TOP
ANCHOR BOLT KIT: BOLT5-8
with 36″ anchor bolts fits these RAB poles
PS5-07-20WT
PS5-07-25WT
PS5-07-30WT
BASE COVER: BC5 (no cap)
©2021 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
rablighting.com
888 722-1000
