Quick Installation Guide
Model: POE400

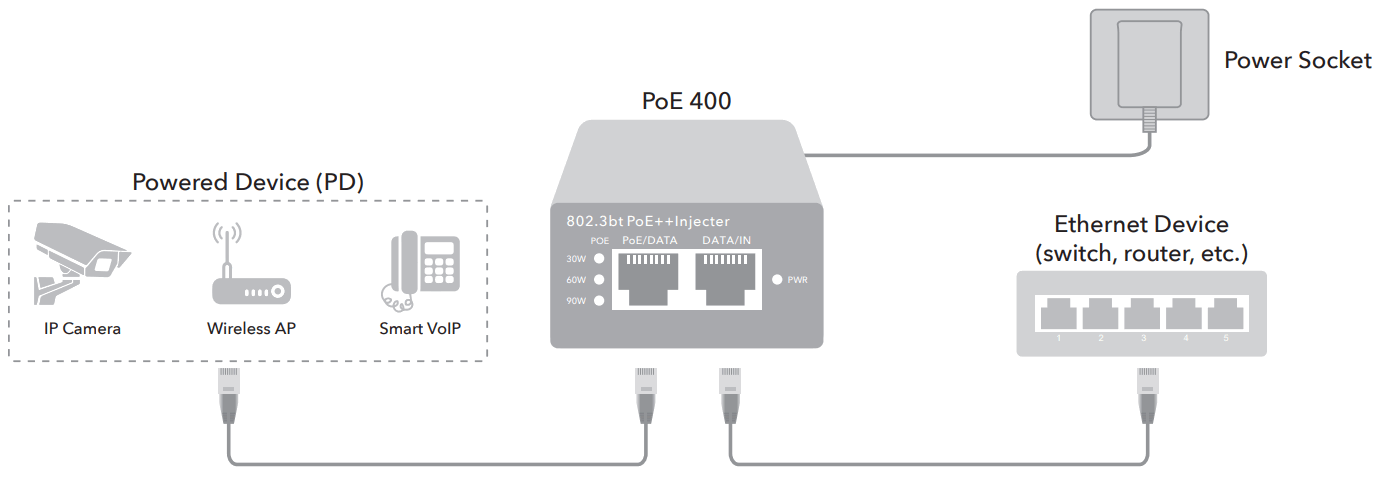

Hardware Connection

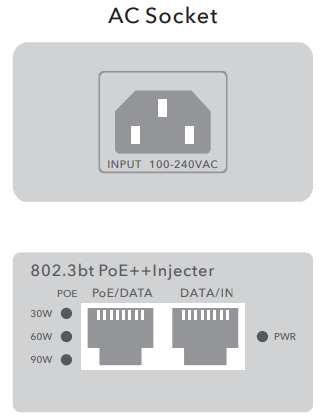

Physical Appearance
LED and Interface Explanation
| PWR | PoE injector got 100-240V power input |
| 30W | When the PoE output power is 0<P≤30W, LED lights up |
| 60W | When the PoE output power is 30<P≤60W, LED lights up |
| 90w | When the PoE output power is 60<P≤90W, LED lights up |
| AC Socket | Connect with AC cable |
| PoE/DATA | Connect to the camera with UTP cable CAT5E or CAT6 supply power |
| DATA/IN | Connect to the Ethernet device with CAT5E or CAT6 UTP cable to transmit data. |
Specifications
| Model | POE400 |
| Output Voltage | 56VDC |
| PoE Power | 90W max |
| Standard | IEEE 802.3af (15.4W)/at (30W)/bt (90W) |
| Pin Polarity | 1/2(-)3/6(+),4/5(+)7/8(-) |
| Data Rates | 10/100/1000Mbps |
| Input Power Requirements | IAC Input Voltage: 100 to 240 Vac |
| AC Input Current: 1A 100-240 Vac | |
| AC Frequency: 50 to 60 Hz | |
| Dimensions | 178.5mm x 80mm x 46mm |
| Indicators | System indicator: AC Power |
| User Indicator: Channel Power | |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Protection | Over current protection |
| Over load protection | |
| Over voltage protection | |
| Anti-interference protection | |
| Environmental Conditions | Operating Temperature: 0 to 45℃ |
| Maximum 80%, Non-condensing | |
| Storage Temperature:-20 to 70℃ |
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
EU declaration of conformity
Cudy hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.The original EU declaration of conformity may be found at http://www.cudy.com/
For support and warranty, please visit: http://www.cudy.com/.
Specifications are subject to change without notice. Cudy is a registered trademark of Shenzhen Cudy Technologies Co., Ltd.
Other brands and product names are trademarks or registered trademarks of their respective holders.
Copyright©2020 Shenzhen Cudy Technology Co., Ltd.
All rights reserved.
EU Address: Otto esser 2c, 65451 Kelsterbach, Germany
