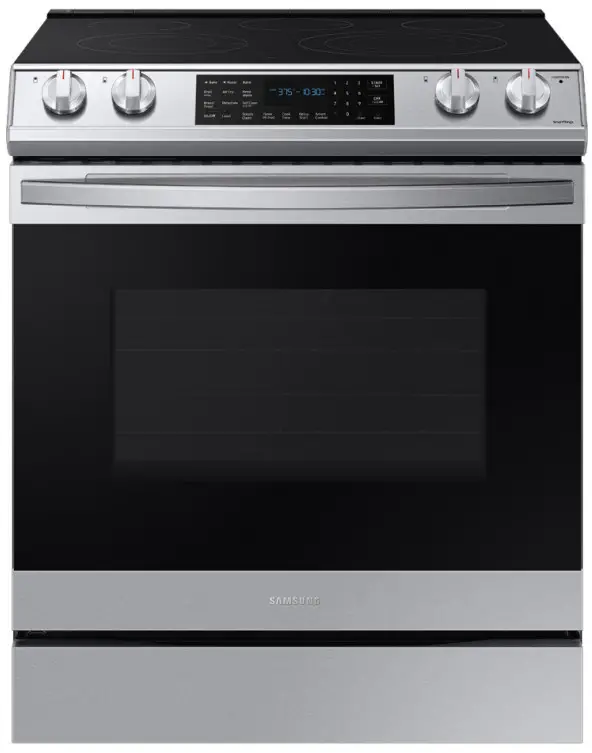

Samsung Ne63t8511ss Front Control Slide-in Electric Range With Air Fry User Manual

Samsung Front Control Slide-In Electric Range with Air Fry
NE63T8511SS
6.3 cu. ft. Capacity

Signature Features

Air Fry

• A healthier way to prepare your favorite fried foods right in your oven with little to no oil.
  * No preheating required. Air Fry tray included.
  * As compared to deep frying.

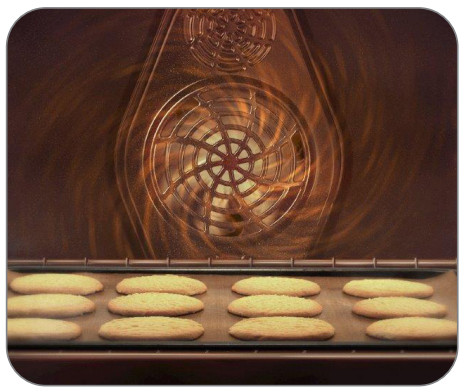

Convection+

• Powerful Convection+ saves you time by cooking food fast and more evenly.
  Perfect for baking and roasting.

Fingerprint Resistant Finish

• Fingerprint resistant for an everyday beautiful finish.

Available Colors

	Fingerprint Resistant Stainless Steel (shown)
	Fingerprint Resistant Black Stainless Steel

Bespoke Finish

White Glass

Air Fry	Convection+

Features

• Air Fry, Tray Included
• Convection+
• Fingerprint Resistant Finish
• Large Oven Capacity – 6.3 cu. ft.
• Rapid Boil™ – 3300 W Element
• Glass Touch Controls
• Ready2Fit™ Guarantee
• Storage Drawer
• Flexible Cooktop:
  Five Element Cooktop
  – One Triple Element (6″/9″/12″)
  – One Dual Element (6″/9″)
  – Two Single Elements (6″)
  – Warming Center

Convenience

• Wi-Fi
• Voice Control
• Convection+
• Self & Steam Clean
• Hidden Bake Element
• Child Safety Lock
• Delay Start
• Auto Oven Light
• Kitchen Timer
• Sabbath Mode

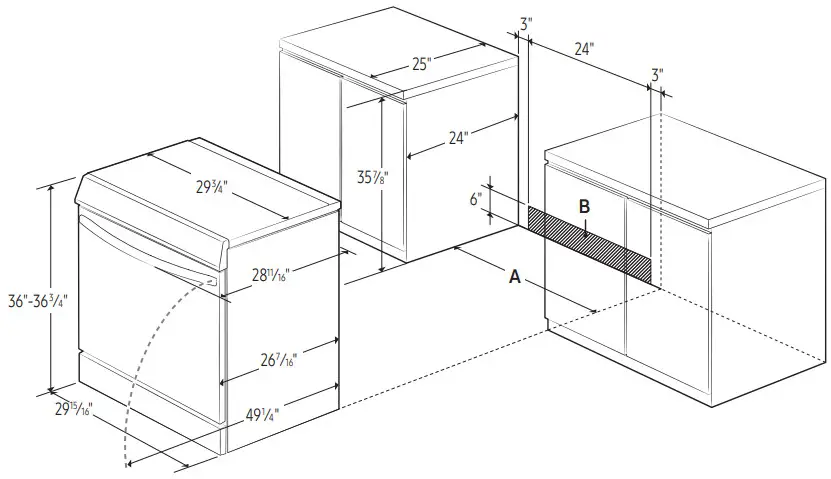

Installation Specifications

A: Cabinet opening min 30″
B: Acceptable electrical outlet area
IMPORTANT: If your cabinets are over 36 3⁄4″ high, you must install this range on a hard, heat-resistant support that raises the surface of the range so that it is about even with the countertop.

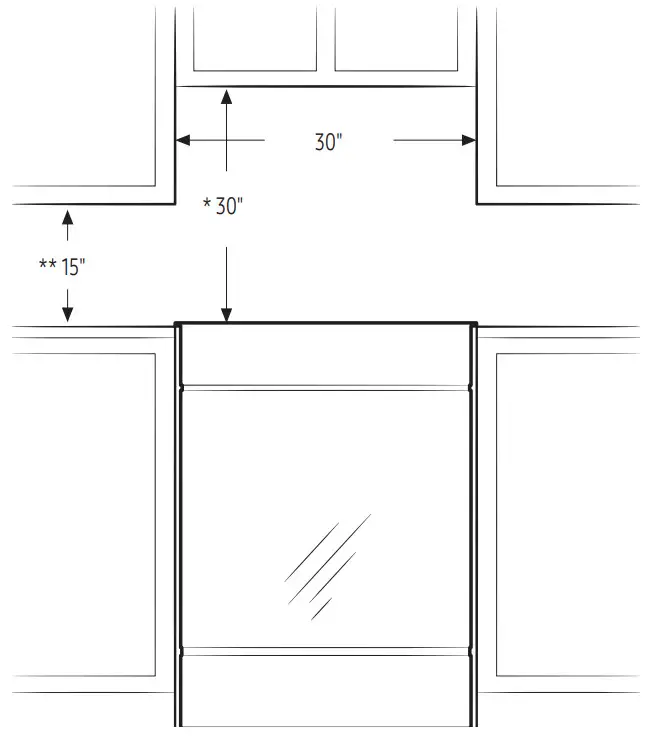

* 30″ minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet; or 24″ minimum when the bottom of the wood or metal cabinet is protected by not less than ¼” of flame retardant millboard covered with not less than no.28 MSG sheet steel, 0.015″ stainless steel, 0.024″ aluminum, or 0.020″ copper.
** 15″ minimum between the countertop and the adjacent cabinet bottom.
IMPORTANT: Consult with Installation Manual for detailed instructions before installing. All ranges must be installed with the Anti-Tip device that is included.
Power Source
240V/208V/60 Hz/40A
Electric Cooktop

• Right Front: 6″/9″/12″ Triple Element, 3000 W
• Left Front: 6″/9″ Dual Element, Rapid Boil™ 3300 W
• Right Rear: 6″, 1200 W
• Left Rear: 6″, 1200 W
• Center: 7″, Warming Center

Oven

• Capacity: 6.3 cu. ft.
• Convection Element/Heater
• Convection Bake
• Convection Roast
• Bake
• Air Fry
• Bread Proof
• Dehydrate

Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Oven Interior Dimensions: 24 13/16″ x 22 7/16″ x 19 3/4″
Outside Net Dimensions: 29 15/16″ x 36-36 3/4″ (Adjustable) x 28 11/16″
Weight: 174 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 33 1/16″ x 41 3/4″ x 30 5/16″
Weight: 194 lbs

Bespoke Finish

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2022 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
