Samsung Front Control Slide-in Electric Range With Air Fry [ne63t8511ss] User Manual

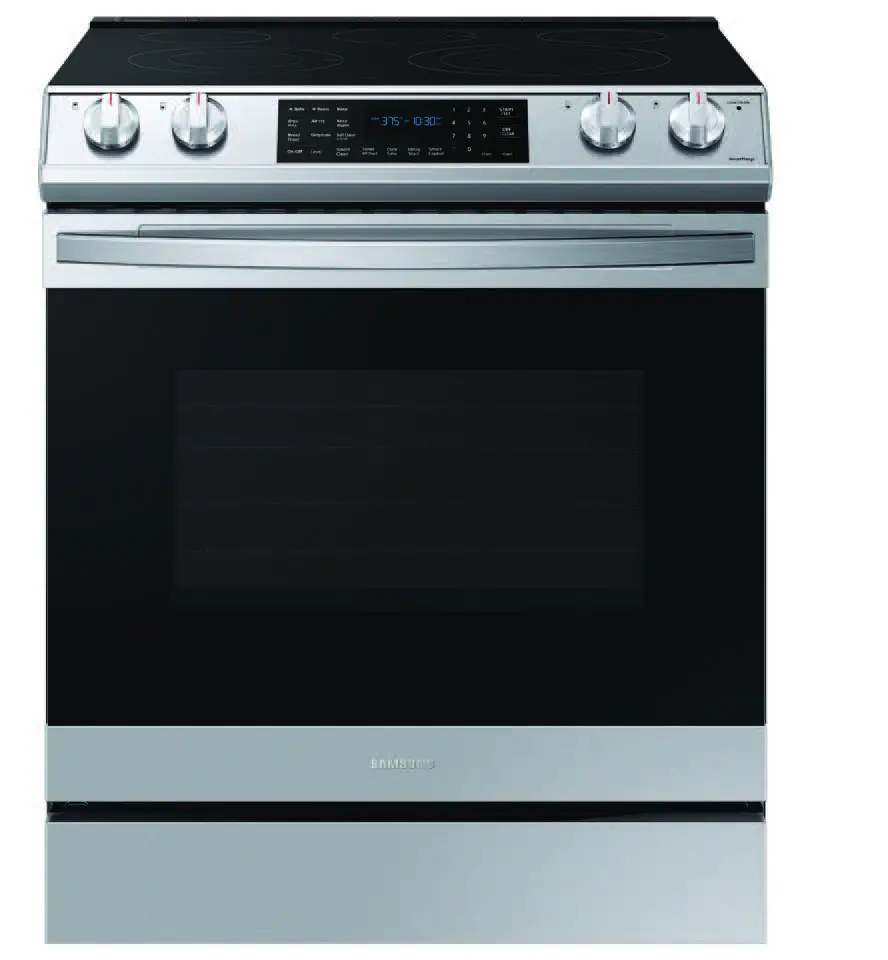

Samsung Front Control Slide-In Electric Range with Air Fry 6.3 cu. ft. Capacity

NE63T8511SS

Signature Features

Air Fry

• Cooking just got healthier with new Air Fry mode.* Using little to no oil, you can quickly prepare your favorite fried foods right in your oven.
  *Air Fry tray included.

Convection

• Powerful convection saves you time by cooking food faster and more evenly. Perfect for baking and roasting.

Fingerprint Resistant Finish

• Fingerprint-resistant smudge-free fi nish for an everyday beautiful appearance.

Available Colors

• Fingerprint Resistant Stainless Steel (shown)
• Fingerprint Resistant Black Stainless Steel
• Fingerprint Resistant Tuscan Stainless Steel

Features

• Air Fry
• Convection
• Fingerprint Resistant Finish
• Large Oven Capacity – 6.3 cu. ft.
• Rapid Boil™ – 3300W Element
• Glass Touch Controls
• Ready2Fit™ Guarantee
• Storage Drawer
• Flexible Cooktop:
  Five Element Cooktop
  – One Triple Element (6″/9″/12″)
  – One Dual Element (6″/9″)
  – Two Single Elements (6″)
  – Warming Center

Convenience

• Wi-Fi Connectivity
• Voice Enabled
• Convection Auto Conversion
• Steam + Self Clean
• Hidden Bake Element
• Child Safety Lock
• Delay Start
• Auto Oven Light
• Kitchen Timer
• Sabbath Mode

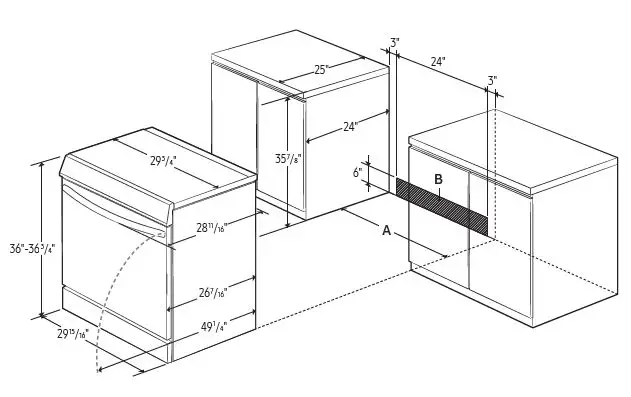

Installation Specifications

A: Cabinet opening min 30″
B: Acceptable electrical outlet area

IMPORTANT: If your cabinets are over 363⁄4″ high, you must install this range
on a hard, heat-resistant support that raises the surface of the range so that
it is about even with the countertop.

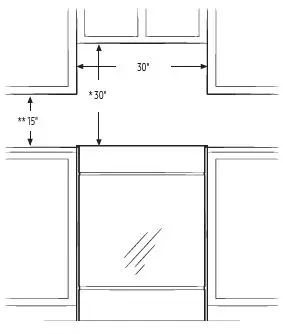

* 30″ minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet; or 24″ minimum when the bottom of the wood or metal cabinet is protected by not less than ¼” of flame retardant millboard covered with not less than no.28 MSG sheet steel, 0.015″ stainless steel, 0.024″ aluminum, or 0.020″ copper.

** 15″ minimum between the countertop and the adjacent cabinet bottom.

IMPORTANT: Consult with Installation Manual for detailed instructions before installing. All ranges must be installed with the Anti-Tip device that is included.

Power Source

240V/208V/60 Hz/40A

Electric Cooktop

• Right Front: 6″/9″/12″ Triple Element, 3000W
• Left Front: 6″/9″ Dual Element, Rapid Boil™ 3300W
• Right Rear: 6″, 1200W
• Left Rear: 6″, 1200W
• Center: 7″, Warming Center

Oven

• Capacity: 6.3 cu. ft.
• Convection Element/Heater
• Convection Bake
• Convection Roast
• Bake
• Variable Broil: Low/High
• Dehydrate
• Breadproof

Warranty

One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)

Oven Interior Dimensions: 2413/16″ x 227/16″ x 193/4″
Outside Net Dimensions: 2915/16″ x 36-363/4″ (Adjustable) x 2811/16″
Weight: 174 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 331/16″ x 413/4″ x 305/16″
Weight: 194 lbs

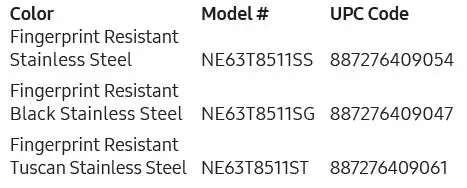

Color and UCP Code

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

©2020 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
