Miele PFD102I120V Professional Series 24 Inch Panel Ready Built-In Full Console Dishwasher Instruction Manual

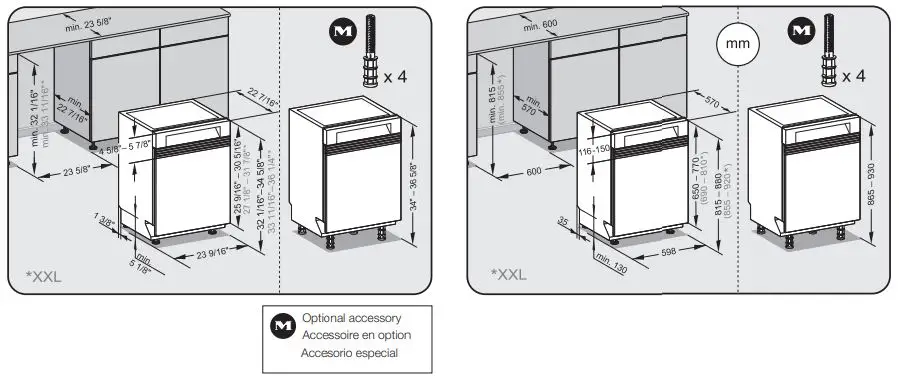

Installation diagram for built-in dishwashers
To prevent accidents and machine damage read the Operating / Installation and Important Safety Instructions before installation or use.
See Operating Instructions.
Risk of damage or fire hazard.

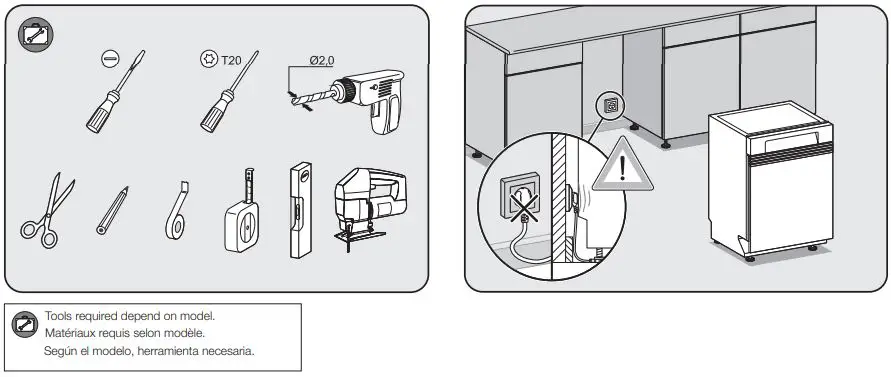

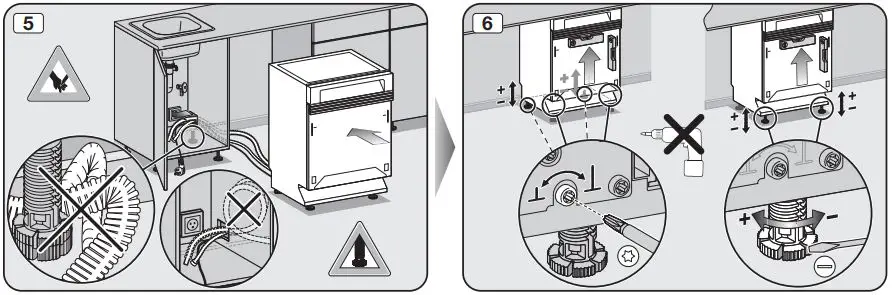

Do not use a cordless screwdriver, risk of damage.
Screw the feet in before moving the dishwasher.
Warning, cutting hazard.

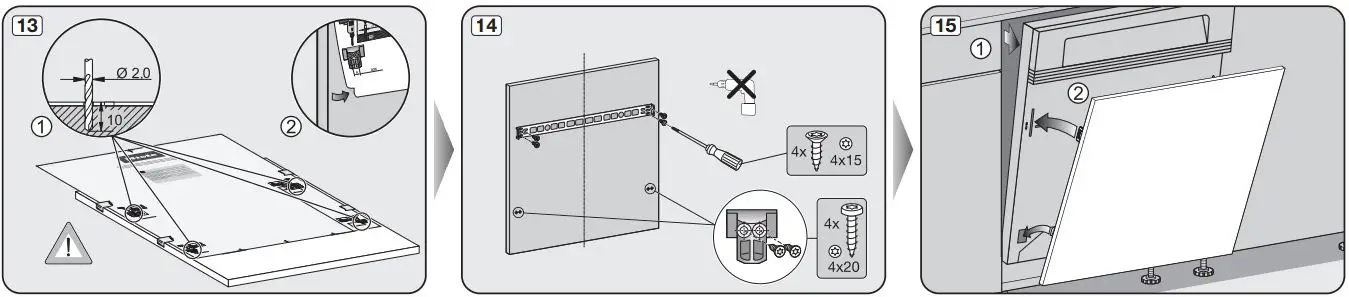

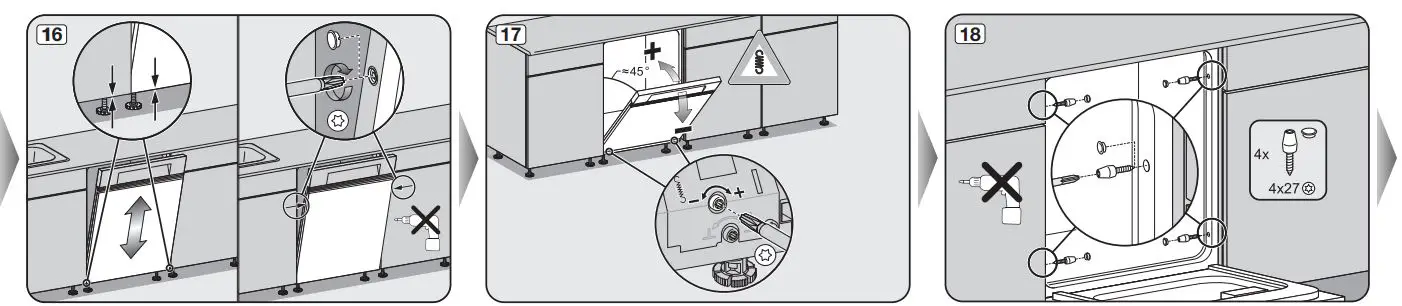

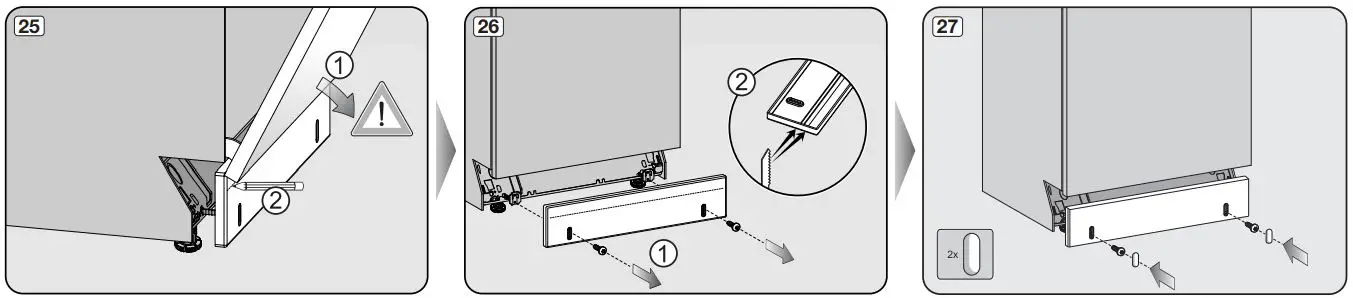

The door springs must be set equally on both sides after securing the front panel to the door.

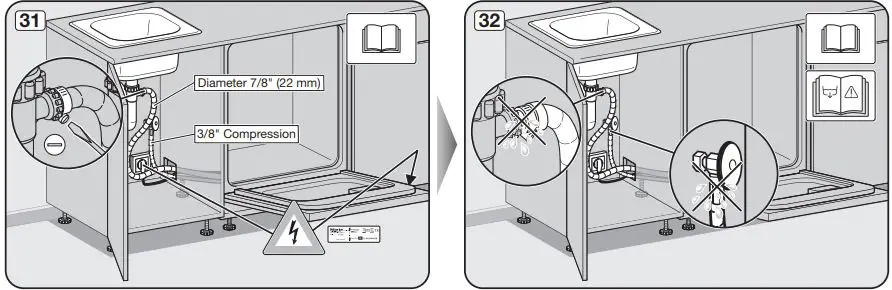

Raising the water drain hose
If the on-site drainage connection is situated lower than the guide path for the lower basket rollers in the open door, the water drain hose must be raised above this level with a bend in it.

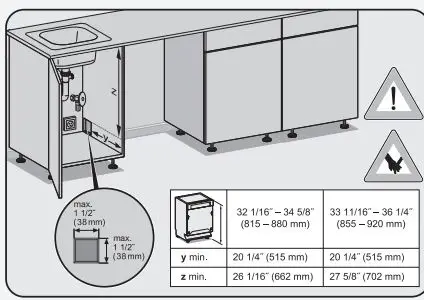

⚠ Sharp edges can damage the power cord and the hoses.
- If the dividing panel inside your cabinet is made from wood, use sandpaper to round off the edges of the cut-out.
- If the dividing panel inside your cabinet is made from metal, you will need to order suitable edge protection from Miele Service.
