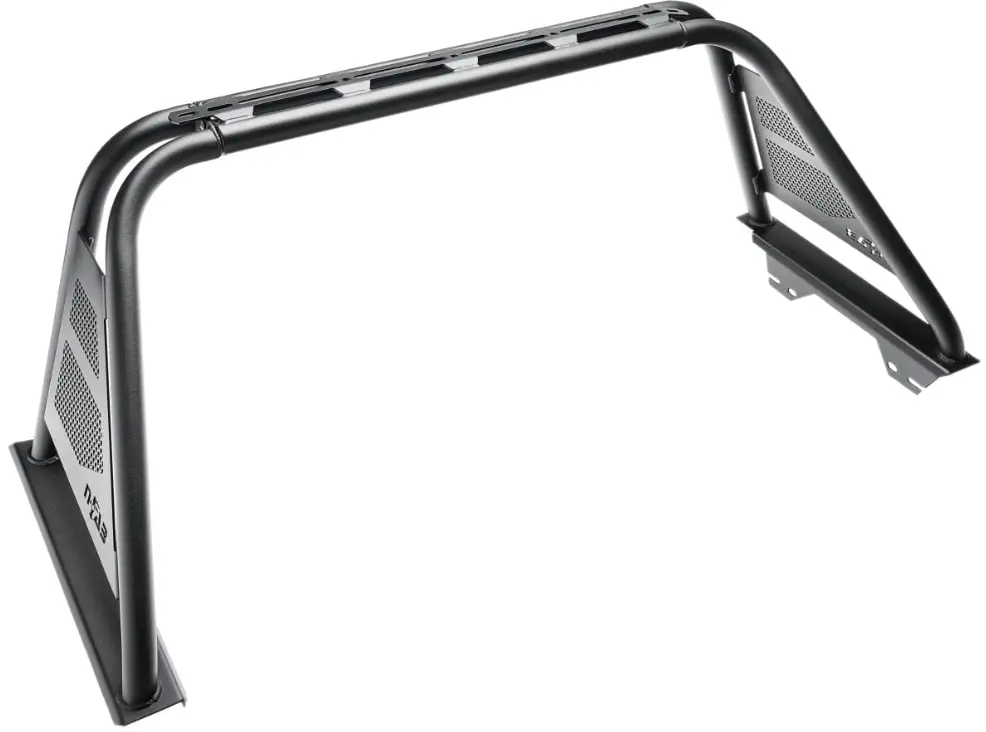

n-FAB J19BR-RLT Sports Bar
| HARDWARE HWKT- 11808X | ||
| CARB- 09609 | 3/8”X1” CARRIAGE BOLT | 4 |
| FLNT- 00664 | 3/8” FLANGED NUT | 4 |
| BHCS- 11852 | M8X12MM BUTTON HEAD | 6 |
| FW- 11854 | M8 FLAT WASHER | 6 |
| CHNT- 11810 | M8 THREADED CHANNEL NUT | 6 |
| PARTS INCLUDED | QTY |
| CENTER LIGHT MOUNT ASSEMBLY | 1 |
| DRIVER SIDE ASSEMBLY | 1 |
| PASSENGER SIDE ASSEMBLY | 1 |
ASSEMBLY

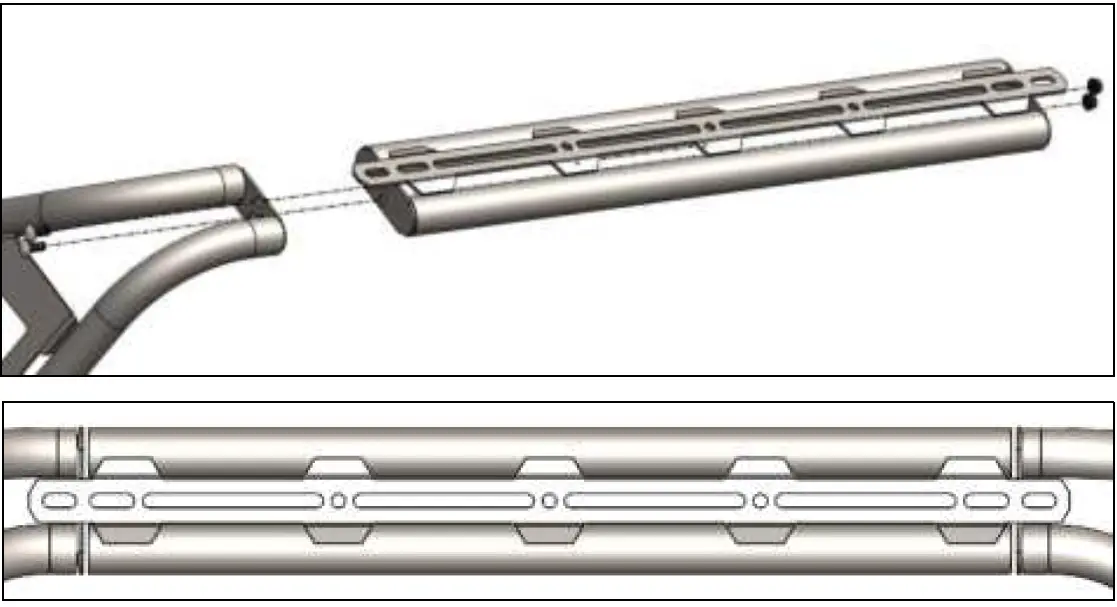

Step 1: Attach the Center section to the driver and passenger side assemblies using the supplied 3/8” x 1” carriage bolt (x4) and 3/8” fanged nut (x4) and leave finger tight for now.
NOTE: Begin with the upper bolt and nut first to have easier access to the lower fasteners.

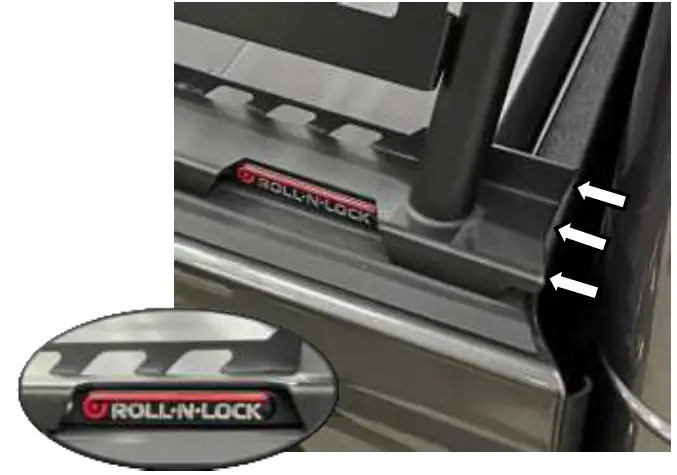

Step 2: With additional help, carefully place Sport Bar onto bed rails aligning edge with the plastic cap on both sides with the “ROLL-N-LOCK” logo centered in the cut out.

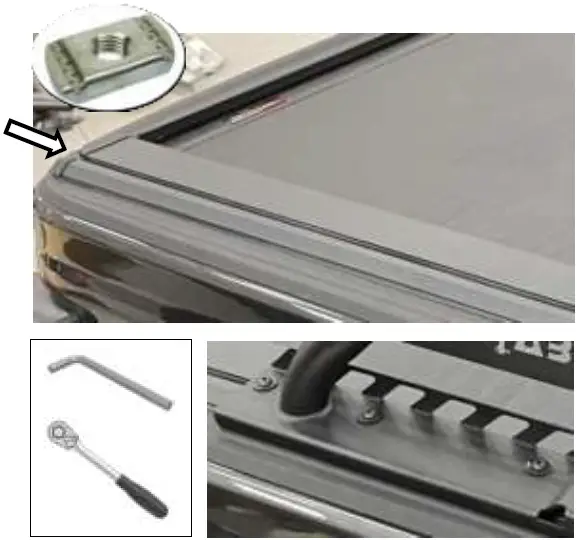

Step 3: Slide (x6) threaded cha nnel nu ts throug h rear o pening o f the T- slotted b ed rail and align with the mounting holes in the Spo rt Bar.
Step 4: Fasten using the supplied M8 x12mm button head bolts and washers. (7-10 ft/lbs torque)

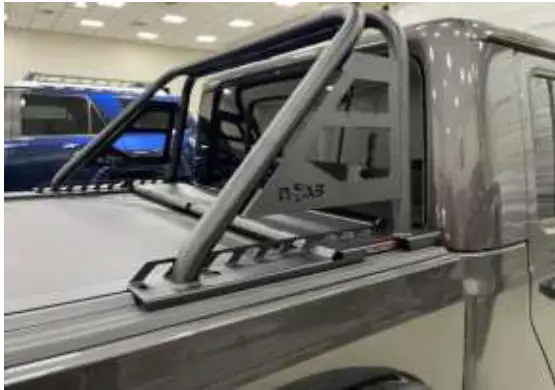

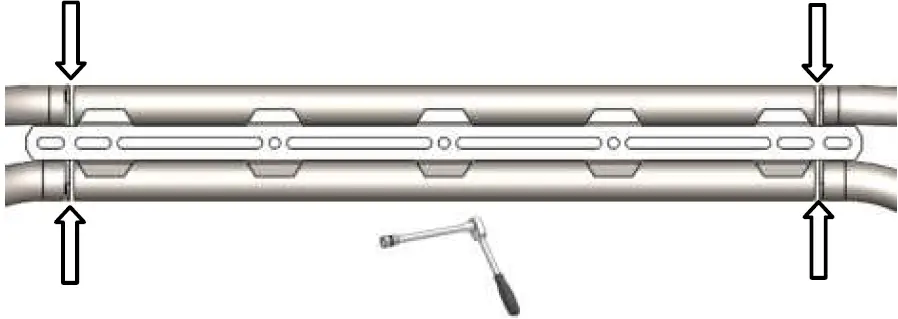

Step 5: Fully tighten (x4) carriage bolts in the center section.
- Periodical check all fasteners for tightness.
