QUICK START GUIDE
Model: ZU881

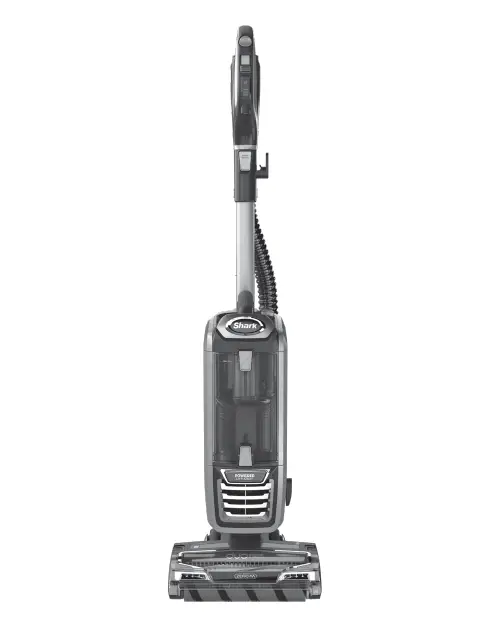

This article contains the Quick Start Guide for the ZU880 Series Shark® Powered Lift-Away® DuoClean®. This supports the following product SKUs ZU881 and ZU881BRN.
Use this Quick Start Guide to learn about your new vacuum’s great features.
Register your vacuum at registeryourshark.com
For additional parts and accessories, visit sharkaccessories.com
WHAT’S INSIDE:
A. Handle
B. Hose
C. Vacuum Pod
D. Wand
E. Motorized Floor Nozzle
F. Pet Multi-Tool
G. 12″ Crevice Tool

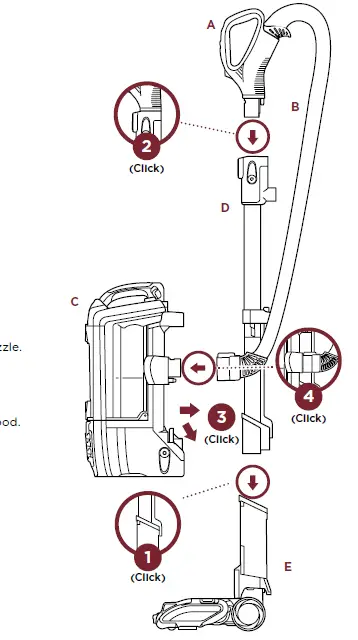

1. Insert wand into floor nozzle.
2. Insert handle into wand.
3. Place pod onto wand. Slide down to connect.
4. Press hose into back of pod.
ASSEMBLY
For complete instructions, see the enclosed Owner’s Guide.
For additional parts and accessories, visit sharkaccessories.com
VERSATILE FLOOR-TO-CEILING CLEANING

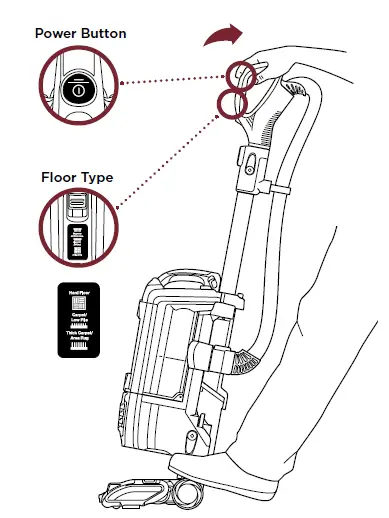

UPRIGHT MODE
Use for carpet and hard-floor cleaning
Place foot on floor nozzle and tilt handle back.
Choose appropriate floor setting and press power button.

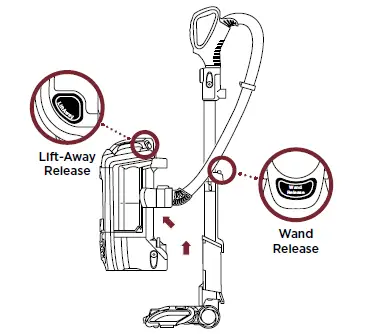

POWERED LIFT-AWAY® MODE
Use for portable cleaning on stairs or above-floor areas
Press Lift-Away Release button to lift pod off floor nozzle. You are now ready to clean those hard-to-reach places.

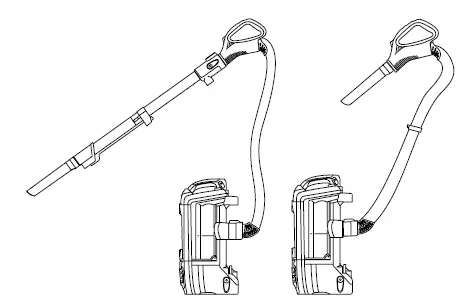

ABOVE-FLOOR CLEANING IN LIFT-AWAY MODE

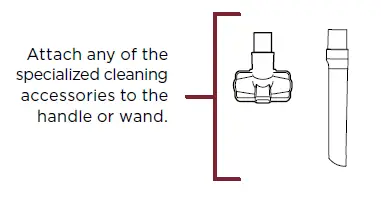

Attach desired cleaning accessory to wand or handle.
MAINTENANCE

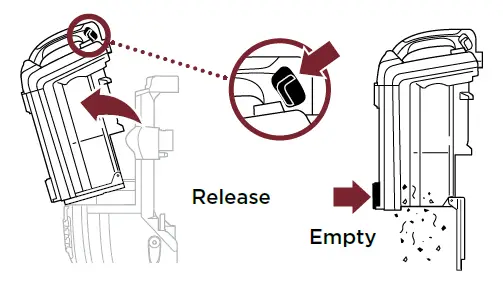

Empty dust cup after each use
Filter Maintenance
To keep suction strong, rinse the filters with water only and allow them to air-dry completely before reinstalling them. Tap loosedirt from filters asneeded between washes.
See enclosed Owner’s Guide for complete details on removing and cleaning filters.
Zero-M Technology
The Zero-M Self-Cleaning Brushroll delivers nonstop hair removal. To clear any blockages,
see instructions below.

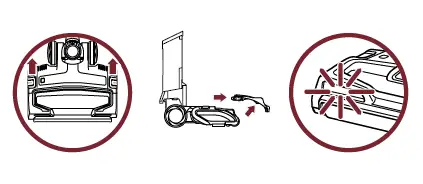

Cleaning the Brushroll
1. To open the brushroll garage, slide both release buttons on the floor nozzle away from you, towards the back of the nozzle, then lift off the lid.
2. Clear away any objects or debris.
3. To close the brushroll garage, insert the 3 tabs on top of the lid into the 3 slots in the nozzle, then push down on both sides of the lid until it clicks securely into place. If the Brushroll Indicator Light isn’t green and the headlights are flashing, check again that both sides of the lid are locked in place.
Brushroll Maintenance
Carefully remove any debris that may be impeding the brushroll.

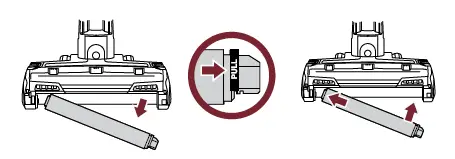

Cleaning the Soft Roller
Lift out the Soft Roller by pulling the tab on the right side. Clear away any debris, then slide the Soft Roller back into place.
Checking the Nozzle for Blockages
Tilt the neck of the nozzle back to straighten the airway, then remove any blockages.
For questions or to register your product, visit us online at sharkclean.com
©2019 SharkNinja Operating LLC. DUOCLEAN, LIFT-AWAY, POWERED LIFT-AWAY, ZERO-M and SHARK are registered trademarks of SharkNinja Operating LLC.
ZU881_QSG_REV_Mv3
