Shark Duoclean Powered Lift-away Upright Vacuum Instructions

DuoClean®
Powered Lift-Away® with Anti Hair Wrap Brush-Roll
Upright Vacuum

PZ1000UK Series
INSTRUCTIONS

THANK YOU for purchasing the Shark® Duo Clean® Powered Lift-Away® with Anti Hair Wrap Brush-Roll Upright Vacuum

https://sharkclean.co.uk/register-guarantee/

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.

REGISTER YOUR PURCHASE
TO BENEFIT FROM YOUR PRODUCT’S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:
sharkclean.co.uk/register-guarantee
+44 (0)800 862 0453
Scan QR code using a mobile device

Please note, products purchased directly from Shark are automatically registered.
Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee the information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION
Model Number: ———————————————————–
Serial Number: ————————————————————
Date Code: —————————————————————–
Date of Purchase (Keep receipt): ————————————–
Store of Purchase: ——————————————————–
TECHNICAL SPECIFICATIONS

PLEASE READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark DuoClean® Powered Lift-Away® with Anti Hair Wrap  Brush-Roll Upright Vacuum.
If you have any questions, please call the customer service line on 0800 862 0453.

This marking indicates that this product should not be disposed of with other household wastes throughout the UK. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

IF YOU HAVE DELICATE OR WOOL CARPETS, PARTICULARLY LOOP PILES, PLEASE TRY THE VACUUM ON A HIDDEN AREA FIRST  TO ENSURE THE SPINNING BRUSH-ROLLS DO NOT DAMAGE OR UNPICK CARPET FIBRES.

WARNING
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

WARNING: Children should be supervised to ensure that they do not play with the appliance.

GENERAL WARNINGS

1. Your vacuum cleaner consists of a motorized nozzle, wand, hose, and/ or vacuum pod. This device contains electrical connections, electrical wiring, and moving parts that potentially present a risk to the user.
2. Use only identical replacement parts.
3. Carefully observe and follow the instructions provided below to avoid improper use of the appliance. DO NOT use the vacuum for any purpose other than those described in this manual.
4. Before use, carefully inspect all parts for any damage. DO NOT use if any parts are damaged.
5. The use of an extension cord is NOT recommended.
6. CAUTION: This vacuum cleaner contains electrical connections. This vacuum contains no serviceable parts.
   USE WARNINGS
7. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
8. DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow it to be used as a toy. Close supervision is necessary when used near children.
   CLEANING AND USE
9. Always turn off the vacuum cleaner before connecting or disconnecting any motorized nozzles or other accessories.
10. DO NOT handle plug or vacuum cleaner with wet hands.
11. DO NOT use without filters in place.
12. Only use Shark branded filters and accessories. Damage caused by the use of non-Shark parts may not be covered by your guarantee.
13. DO NOT damage the power cord:
    a) DO NOT pull or carry a vacuum cleaner by the cord or use the cord as a handle.
    b)DO NOT unplug by pulling on the cord. Grasp the plug, not the cord.
    c)DO NOT run the vacuum cleaner over the power cord, close a door on the cord, pull the cord around sharp corners, or leave the cord near heated surfaces.
14. DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
15. DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorized floor nozzle become blocked, turn the vacuum cleaner off and unplug from the electrical socket. Remove all obstructions before you plug in and turn on the unit again.
16. Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
17. DO NOT use if the vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
    SAVE THESE INSTRUCTIONS
    READ ALL INSTRUCTIONS BEFORE USE
18. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
19. Use extra care when cleaning on stairs.
20. DO NOT leave the vacuum cleaner unattended while plugged in.
21. When powered on, keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibers.
22. DO NOT place vacuum cleaners on unstable surfaces such as chairs or tables.
23. DO NOT use to pick up:
    a) Liquids
    b) Large objects
    c)Hard or sharp objects (glass, nails, screws, or coins)
    d) Large quantities of dust (drywall dust, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
    e)Smoking or burning objects (hot coals, cigarette butts, or matches)
    f) Flammable or combustible materials (lighter fluid, petrol, or kerosene)
    g)Toxic materials (chlorine bleach, ammonia, or drain cleaner)
24. DO NOT use in the following areas:
    a) Poorly lit areas
    b) Wet or damp surfaces
    c) Outdoor areas
    d) Spaces that are enclosed and may contain explosive or toxic fumes or vapors (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust) Turn off all controls before plugging in or unplugging the vacuum.
25. Unplug from the electrical socket when not in use and before any maintenance or cleaning.
26. To clean: Wipe down the unit with water only. Washing with cleaning chemicals could damage the unit.
27. During cleaning or routine maintenance, DO NOT cut anything other than hair, fibers, or string wrapped around the brush-roll.
28. Allow all filters to air-dry completely before replacing them in the vacuum to prevent liquid from being drawn into electrical parts.
29. Make sure the dust cap and all filters are in place after routine maintenance.
30. Secure the power cord around the two cord hooks during storage.

GETTING TO KNOW YOUR SHARK® DUOCLEAN® POWERED LIFT-AWAY®WITH ANTI-HAIR WRAP BRUSH-ROLL UPRIGHT  VACUUM

WELCOME!
Congratulations on your purchase. Use this instruction manual to learn about your new vacuum’s great features. From assembly to use to maintenance, you will find it all in here.

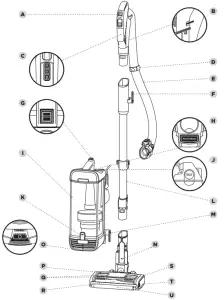

MAIN UNIT

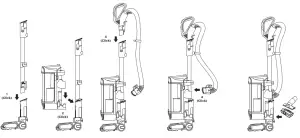

ASSEMBLY

1. Place motorized Nozzle on the floor and insert Wand, pressing it in until it clicks securely into place.
2. Place Pod onto the wand and slide down to connect.
3. Insert Handle into the wand, pressing it in until it clicks securely into place.
4. Connect Hose to the back of the pod, pressing it in until it clicks securely into place.
5. The store included accessories on the Accessory Posts on the pod.
   IMPORTANT: For proper operation, ensure all connections are securely clicked into place.

POWER CORD

For cord access, rotate the upper hook down and remove the cord.

OPERATING THE VACUUM

SETTINGS

Press the power button to turn on the vacuum.
Please note the brush-rolls will not spin until you have stepped on the floor nozzle and tilted the handle back.

Thick Carpet & Area Rug Cleaning
Slide the surface switch to the top position to select Thick Carpet/Area Rug.

Carpet & Low Pile Cleaning
Slide the surface switch to the middle position to select Carpet/Low Pile to increase the speed of the brush-rolls and to help remove stuck-on dust and debris.

Hard Floor Cleaning
Slide the surface switch to the bottom position to select Hard Floor.

NOTE: Try using Hard Floor mode for low pile area rugs.

BRUSH-ROLL INDICATOR LIGHT

WHAT DOES THE BRUSH-ROLL INDICATOR LIGHT MEAN?

Solid Green: The brush-rolls are spinning and working as they should.
Solid Red: There is a jam in the brush-roll area. Turn off the vacuum and unplug it, then remove any blockages in the nozzle.
Flashing Red: The motorized floor nozzle is overheating. Turn off the vacuum, unplug it, and
remove any blockages. Let the vacuum cool down for at least 60 minutes before restarting. See the Troubleshooting section for more information.

CLEANING MODES

To engage brush-rolls, step on the floor nozzle and tilt the handle back.

Press the Handle Release latch to detach the handle from the wand.

Press the Wand Release button to detach the wand from the pod.

Press the Powered Lift-Away® button to detach the pod from the floor nozzle.

With the pod removed, press the Wand Release button to detach the wand from the floor nozzle.

NOTE: All accessories are compatible with both the wand and the handle.

EMPTYING THE DUST CUP

IMPORTANT: Unplug the cord before performing any maintenance.
NOTE: Empty the dust cup when or before the debris reaches the max fill line.

To remove Dust Cup, press the release button on top of the pod. Tilt the dust cup away from the wand, then lift to remove.

To empty the debris into the bin, press the lower release button, and the bottom of the dust cup will drop open.

To remove collected debris from Lint Screen, press the top release buttons on either side of the handle and lift the handle to access the screen.

To reinstall, place the bottom of the dust cup into the pod and then tilt until it clicks into place.

CLEANING AND REPLACING THE FILTERS

CLEANING FILTERS

Regularly wash, dry, and replace the filters to maintain your vacuum’s suction power.
To prevent damage from cleaning chemicals, rinse filters with cold water only. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electric parts.

IMPORTANT: DO NOT use soap when cleaning the filters.

CLEAN PRE-MOTOR FILTERS EVERY MONTH Remove Dust Cup, then lift out Filters.

CLEAN POST-MOTOR FILTER EVERY YEAR

Lie unit flat on the floor so you can see the post-motor filter underneath. With the dust cup removed, press the button on the filter housing and pull forward.  Remove the post-motor filter by pressing the black tab until it clicks and is released from the unit. To reinstall, insert the filter into the unit by clicking into place and re-attaching the filter housing.

NOTE: The pre-motor filters should be replaced every 2.5 years. The post-motor filter should be replaced every 3 years.

MAINTENANCE

NOZZLE MAINTENANCE

ANTI-HAIR WRAP BRUSH-ROLL
If any hair is wrapped around the brush-roll, continue vacuuming using Carpet/Low Pile mode
on a bare floor surface, a low-pile carpet, or a small area rug. This will allow the Anti Hair Wrap
brush-roll to remove the hair wrap and send it to the dust cup.
If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brush-roll.
If some fibers remain wrapped around the brush-roll after continued use, clear them from the brush-roll.

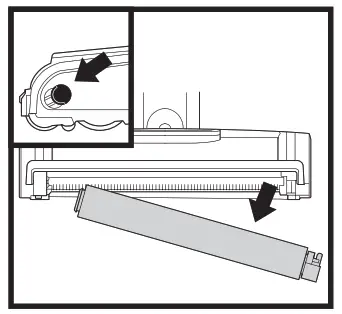

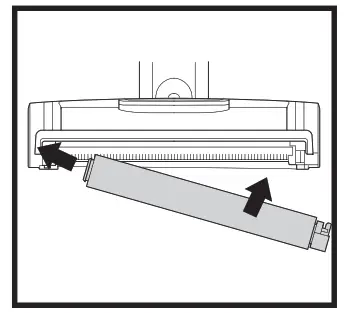

CLEANING THE SOFT ROLLER

Slide the Soft Roller access button forward to release the Soft Roller.

Hand washes the Soft Roller as needed.
Use only water, and allow it to air-dry completely for at least 24 hours. Reinsert the Soft Roller in the front of the nozzle until it clicks into place.

CHECKING FOR BLOCKAGES

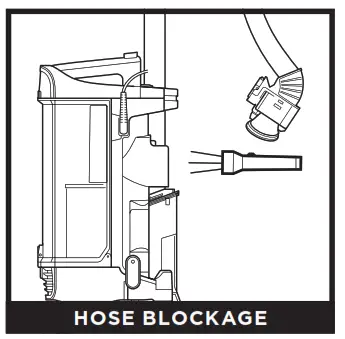

Detach the hose from the vacuum pod, and check the hose and opening on the back of the pod for blockages.

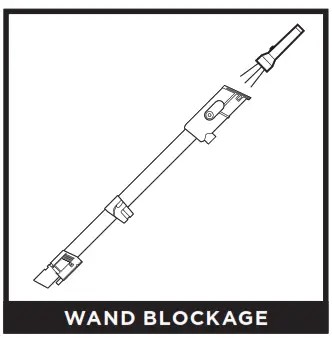

Detach wand from floor nozzle and handle, and check both ends for blockages.

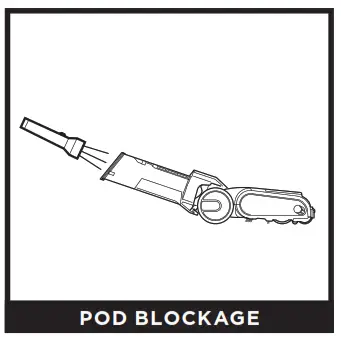

Detach wand from floor nozzle, tilt nozzle neck back, and check to open for blockages

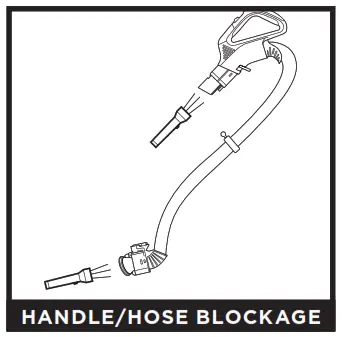

Detach the handle from the wand and the hose from the vacuum pod, and check openings for blockages.

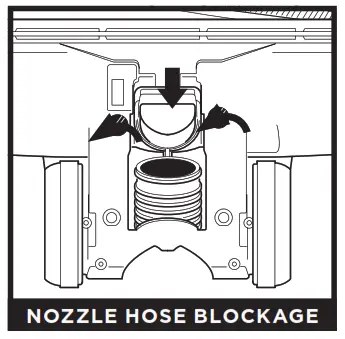

To access the nozzle hose, open the locks on the bottom of the nozzle. With a coin, turn the locks counterclockwise, then lift the cover and clear any blockages.

NOTE: Torch not included

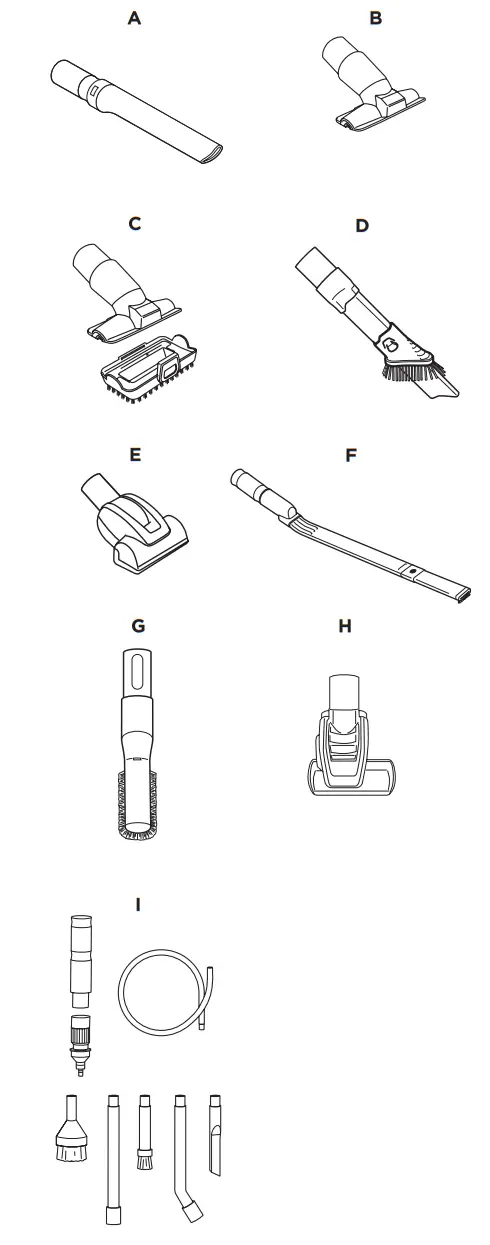

AVAILABLE ACCESSORIES

NOTE: Not all accessories come with all units. For a list of the accessories included with this model, see the top inside flap of the box. To order additional accessories, visit sharkclean.co.uk.

A Crevice Tool
This slender tool offers extended reach access corners, kickboards and skirting boards, tight spaces, and ceilings.
B Upholstery Tool
Picks up hair, dust, and large debris from mattresses, sofas, curtains, lampshades, and other delicate upholstered fabrics.
C Multi-Surface Tool
A single convertible tool. Use the stiff bristle brush to clean stuck-on debris, or take off the bristles to reveal an upholstery tool perfect for removing stubborn pet hair and large piles of debris.
D Duster Crevice Tool
Two cleaning tools in one. The crevice tool gives you extended reach to clean in tight spaces, while the soft brush is ideal for dusting delicate surfaces.
E Pet Power Brush
The turbine brush loosens and removes pet hair is ideal for removing debris from stairs, and powerfully deep-cleans dander out of upholstery and other surfaces.
F Under-Appliance Wand
Clean under and behind hard-to-move appliances and furniture with this adjustable tool. Flip the extension piece over to clean the underside of appliances.
G Anti-Allergen Dust Brush
This brush features nylon fiber bristles specifically designed for removing fine dust and allergen particles from the most delicate surfaces.
H Anti Hair Wrap Pet Power Brush
Tackles pet hair and ground-in dirt from carpeted stairs and upholstery, while actively removing hair wrap as it cleans.
I Home & Car Detail Kit
Deep-clean your car or hard-to-reach areas in your home. Micro-sized tools let you clean around delicate objects and access the tightest spaces like car vents and computer keyboards.

TROUBLESHOOTING

The vacuum is not picking up debris. No suction.
(Refer to Maintenance section for more information.)

• Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting them in the vacuum.
• Dust cup may be full; empty dust cup.
• Check hose, hose connections, nozzle, and accessories for blockages; clear blockages if required.
• Remove any string, carpet fibers, or hair that may be wrapped around the brush-rolls.

Vacuum lifts area rug.

• Turn off the unit to disengage the brush-rolls. Move the switch to Hard Floor setting to turn on the slower brush-roll speed, which is optimal for bare floors and area rugs.
• Suction is powerful. Take care when vacuuming area rugs or rugs with delicately sewn edges.

Brush-roll/soft roller does not spin.

• If a brush-roll Indicator light on the floor nozzle turns red, the brush-roll and/or soft roller have stopped spinning. Immediately turn off and unplug the vacuum. Disconnect the nozzle and remove a blockage, then reconnect and turn the vacuum back on.
• Once the blockage is removed, with the power on, step on the floor nozzle and tilt the handle back, The brush-rolls should then spin and cleaning can resume.

Vacuum turns off on its own or brush-roll Indicator Light flashes red.

• This vacuum is equipped with a motor-protective thermostat. If your vacuum overheats, the thermostat will automatically turn the suction motor off. Perform the following steps to restart the thermostat:

1. Turn the vacuum off and unplug it.
2. Empty dust cup and clean filters (see cleaning filters section).
3. Check for blockages in hose, accessories, and inlet openings.
4. Allow the unit to cool for a minimum of 60 minutes.
5. Plugin vacuum and turn it on.

• If the hose is not fully connected to the pod, it can cause a poor electrical connection and the hose can come loose, turning the vacuum off.

1. Turn the vacuum off and unplug it.
2. Empty dust cup and clean filters.
3. Check for blockages in hose, accessories, and inlet openings.
4. Remove the cord from the cord hook so the hose latch can be seen and engaged.
5. Ensure you hear an audible click at all connection points:
   a. Where hose meets back of pod (may require additional force; push and pull on hose to ensure the latch is fully engaged)
   b. Where wand plugs into floor nozzle
   c. Where handle plugs into a wand
6. Plugin vacuum and turn it on.

Note: If the vacuum still does not start, visit sharkclean.co.uk/customer-care or contact customer service on 0800 862 0453.

FIVE (5)YEAR LIMITED GUARANTEE

When a consumer buys a product in the UK, they get the benefit of legal rights relating to the quality of the product (your “statutory rights”). You can enforce these rights against your retailer. However, at Shark® we are so confident about the quality of our products that we give you an additional manufacturer’s warranty of up to five years upon registration with Shark. Offer valid only in the United Kingdom and the Republic of Ireland. These terms and conditions relate to our manufacturer’s guarantee only – your statutory rights are unaffected. The conditions below describe the prerequisites and scope of our guarantee.

Shark ®Guarantees
A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration – and reflects how much confidence the manufacturer has in its product and manufacturing quality. Every Shark machine comes with free parts and a labor guarantee. Our customer service helpline (0800 862 0453) is open from 9.00 am to 6.00 pm Monday – Friday. It’s free to call, and you’ll be put straight through to a Shark representative. You’ll also find online support at sharkclean.co.uk

How do I register my extended Shark®guarantee?
If you have purchased your vacuum directly from sharkclean.co.uk your extended guarantee is registered automatically. You can also register your guarantee online within 28 days of purchase. To save time, you’ll need the following information about your machine:

• The date you purchased the machine (receipt or delivery note)
• Model Number

IMPORTANT

• Both the 1 year and the extended 4 years guarantee will only cover your product from the date of purchase.
•  Please keep your receipt at all times. Should you need to use your extended guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your ability to claim against your guarantee.

What are the benefits of registering my free Shark® guarantee?
When you register your guarantee we’ll have your details to hand if we ever need to get in touch. You can also receive tips and advice on how to get the best out of your Shark vacuum and hear the latest news about new Shark® technology and launches.
If you register your guarantee online, you’ll get instant confirmation that we’ve received your details.

How long are new Shark® machines guaranteed for?
Our confidence in our design and quality control means that your new Shark vacuum cleaner is guaranteed for a total of five years (1 year plus an extended guarantee of 4 years).

What is covered by the free Shark® guarantee?
At Shark’s discretion repair or replacement of your Shark machine, including all parts and labor. A Shark guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark® guarantee?

• Blockages – For details of how to unblock your vacuum cleaner, please refer to the Operating Manual.
• Normal wear and tear such as brush bar, fuse, belt, etc.
• Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation, or handling of the vacuum cleaner which is not in accordance with the Shark Operating Manual supplied with your machine.
• Use of the vacuum cleaner for anything other than normal domestic household purposes.
• Use of parts not assembled or installed in accordance with the operating instructions.
• Use of parts and accessories which are not Shark Genuine Components.
• Faulty installation (except where installed by Shark).
• Repairs or alterations carried out by parties other than Shark or its agents.

What happens when my guarantee runs out?
Shark does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case, please contact our Freephone customer service helpline and ask about our out of guarantee program,
on 0800 862 0453.

Where can I buy genuine Shark® spares and accessories?
Shark spares and accessories are developed by the same engineers who developed your Shark vacuum. You’ll find a full range of accessories, spares, and replacement parts for all Shark machines at sharkclean.co.uk Only use Shark branded filters and accessories. Damage caused by the use of non-Shark parts may not be covered by your guarantee.

sharkclean.co.uk

Illustrations may differ from the actual products. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.
DUOCLEAN, POWERED LIFT-AWAY and SHARK are registered trademarks SharkNinja Operating LLC.

	@sharkcleaninguk
	@sharkcleanuk
	@sharkcleanuk

© 2021 SharkNinja Operating LLC.
PZ1000UK_Series_IB_MP_210223_Mv1
PRINTED IN CHINA
