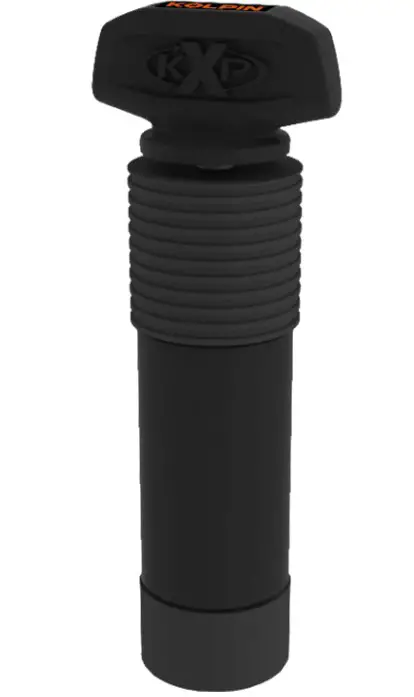

KOLPIN 53504 Polaris Lock and Ride UTV Anchor Kit Instruction Manual

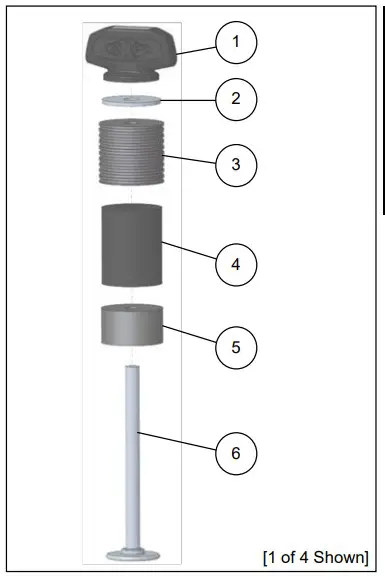

KIT CONTENTS
| REF | QTY | PART DESCRIPTION |
| 1 | 4 | T-Knob |
| 2 | 4 | Washer |
| 3 | 4 | Upper Rubber Bushing |
| 4 | 4 | Plastic Spacer |
| 5 | 4 | Lower Rubber Bushing |
| 6 | 4 | Threaded Post |
BEFORE YOU BEGIN
- Verify all parts and tools are accounted for. If parts are missing, do not return to the store. Please contact Kolpin customer service de- partment at (877) 956-5746 or (763) 478-5800 or email customer- [email protected].
- Follow all steps correctly and in the sequence Keep these instructions for future reference or for informational re- quests.
- To facilitate installation, make sure that your vehicle is clean and free of of debris
ACCESSORY MOUNTING INSTRUCTIONS

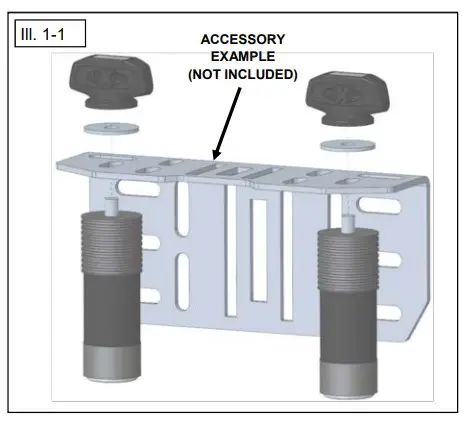

- Remove T-Knob and Washer and insert Threaded Post into the mounting hole of the accessory being mounted. See Illustration 1-1.
- Lightly tighten the T-Knob until the Rubber Bush- ings begin to expand. See Illustration 1-2
- Insert into Lock & Ride hole(s) on your vehicle. See Illustration 1-3.
- With accessory pressed evenly against vehicle Lock & Ride holes, tighten the T-Knob(s) until they’re firmly holding the accessory in place. See Illustration 1-4.
- Once accessory is fully assembled, re-check and tighten T-Knobs as
USE AND CARE INFORMATION:
- Check the accessory mounts frequently and retighten if
- When this accessory becomes dirty, rinse thoroughly with cool water to remove loose dirt, then wipe with a clean cloth or
- Never use petroleum solvents such as gasoline, thinner, benzene, acid or alkaline .
ONE YEAR LIMITED WARRANTY
For the period of one (1) year from the purchase date, Kolpin will replace for the original purchaser, free of charge, any part or parts found upon examination by Kolpin to be defective in material, workmanship, or both. All transportation costs incurred submitting product to Kolpin for warranty consideration must be borne by the purchaser. If Kolpin determines that the product must be returned to the factory for credit, please call 1-877-956-5746 for a Return Merchandise Authorization (RMA) number and shipping instructions. This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper maintenance, normal wear, or other causes beyond the manufacturer’s control. In order to protect you and your ATV, certain parts of the accessory system and/or hard-ware are designed to fail when the equipment is over-stressed. Parts that are lost due to loosening and improper maintenance are not covered under warranty. This warranty does not cover removal or reinstallation labor fees of the accessory system and related compo-nents. Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification.
Kolpin Outdoors, Inc.
Telephone: (763)-478-5800
Toll Free: (877)-956-5746
Fax Number: (800)-245-7569
Email: [email protected] www.kolpin.com
