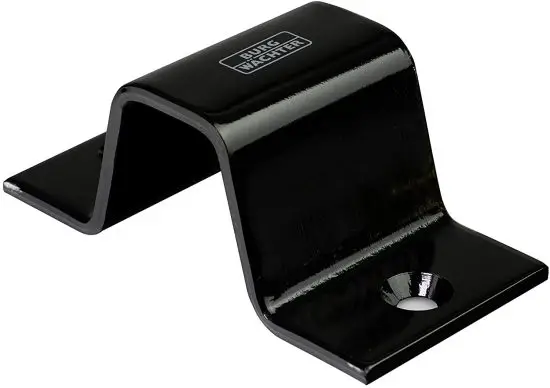

BURG WACHTER SA 1280 Ground Anchor
Installation Instructions
- Using the anchor plate as a template drill 2 pilot holes using a 10mm 0 drill bit.
- Remove plate and re-drill the two holes with a 16mm 0 concrete bit to a depth of 85 – 90mm.
- Remove the threaded bolts from the two anchor fixings. Place the bolts through the holes in the anchor plate and hand tighten into the anchor fixings.
- Insert the two anchor fixings into the prepared holes.
- Holding the plate firmly against the wall or floor tighten the bolts, using a hexagonal head tool.
- Once fitted and checked the two steel balls can be hammered into the heads of the bolts. This makes it resistant to attack and unbolting.
