Visiontrack Vt3500-ai Cost Effective Camera Device User Manual

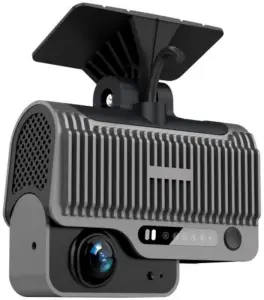

Visiontrack VT3500-AI Cost Effective Camera Device

Product Overview

VT3500-AI is a cost-effective device specially developed for remote video and driving safety monitoring of trucks. Its features are shown below:

• Imbed ADAS & Cabin camera, all in one AI product
• Abundant modules including 3G/4G, Wi-Fi, G-Sensor
• Support GPS positioning, real-time recording of vehicle track for analysis
• Dual TF card recordings, support up to 256GB each
• Remote Monitoring and Recording
• Special file system to ensure recording data security and protect personal privacy
• Industrial design, aluminum alloy shell and massive heat sink for good heat dissipation
• The product supports 720P or 1080P HD resolution recording The device is able to intelligently recognize forward vehicles, lanes and traffic scenarios via the ADAS camera. Therefore, it effectively forecasts driving risks, like too close following distance, forward collision and lane departure by referring to the vehicle operating
• The product intelligently recognizes driver distraction, fatigued driving, phone calling and smoking via the DSM camera. It effectively reduces fatigue-induced traffic accidents by referring to the vehicle operating T
• he product uploads the alarm event and related video evidence to the cloud platform, offers real-time alarm and keeps on-site evidence to help restore the truth
• Support OBD power supply
• Support 100Hz G-sensor ingestion

Specifications

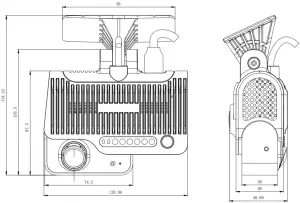

Dimension(mm)

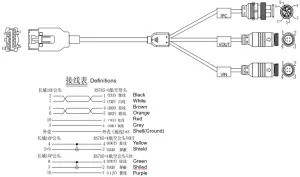

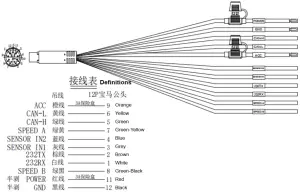

Definitions of Cable

(1) Power output

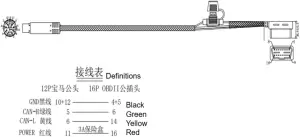

(2) OBD

(3) Video Output

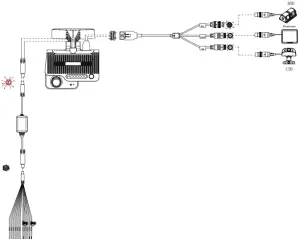

System Diagrams

(1) ACC

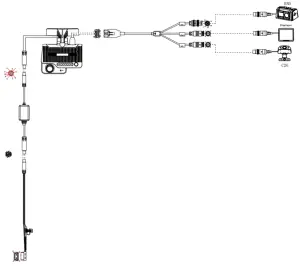

(2) OBD

Warning:
This device complies witb Part 15 of the FCC Rules. Operation is subject to the following two conditions: ( I) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and folJlDd to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, 1nay cause hannful interference to radio comtnunications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/fV technician for hcl.p.
NOTE: This device and its aotenna(s) 1nust not be co-located or operation in conjunction with any other antenna or transmitter

RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with 1nini1num distance of 20cm the radiator your body. This device and its antenna(s) 1nust not be co-located or operation in conjunction with any other antenna or transmitter

Caution:

1. Max operation temperature: 40 degree C. Min operation temperature: -10 degree C.
2. This product can be used in UK. This device can be used in UK.
3. Products can be sold in UK Declaration of conformity Trimble Transportation declares that Micro system with Mobile Digital Video Recorder is in compliance with the essential requirements and other relevant provisions of Directive SI 2017/1206.
4. This product can be used in EU member states. This device can be used in European Union.
5. Products can be sold in all EU countries Declaration of conformity Trimble Transportation declares that Micro system with Mobile Digital Video Recorder is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
6. This equipment should be installed and operated with minimum distance of 20cm the radiator your body.
   Applicant: VISIONTRACK LIMITED
