Wisenet Ai Cameras User Guide

QUICK GUIDE

About Hanwha Techwin Europe
Hanwha Techwin is a global leader in developing and manufacturing video surveillance solutions. With over 40 years of expertise and background gained in developing precision engineering, optical engineering, and image processing equipment, we supply an extensive range of open platform CCTV cameras that incorporate specialist analytics software suitable for small to enterprise solutions. Wisenet Products
The Wisenet Range

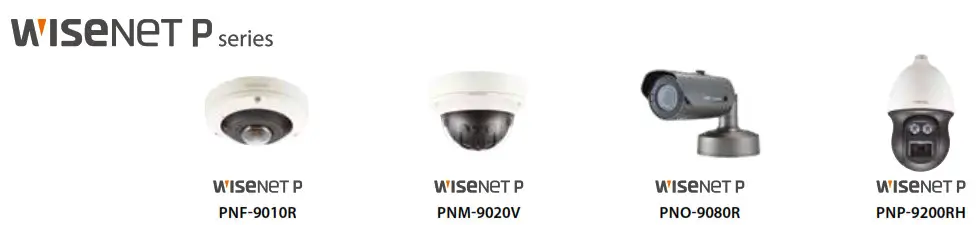

	Premium top of the range 4K Ultra HD

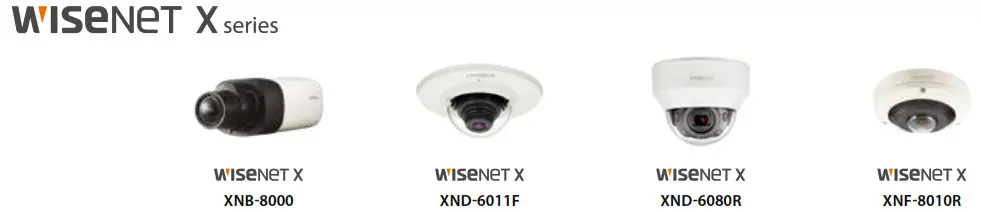

	eXtreme performance high end with analytics
	Quality entry-level IP network cameras
	Analogue High Definition (1080p)

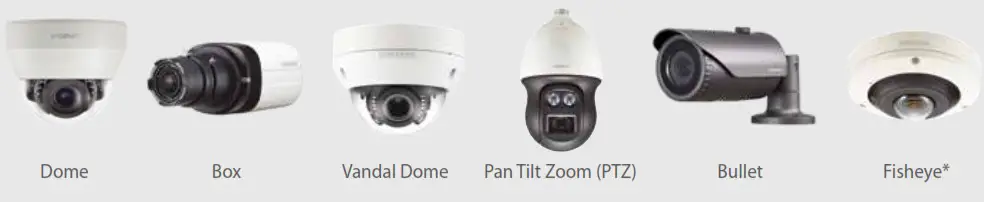

All ranges are available in the forms below:

Why Choose Wisenet?

• We make our own proprietary chipset and lenses offering the best in class image processing technology
• We lower the ‘Total Cost of Ownership’ by offering the lowest failure rates in the industry
• Our wide range of innovative features built into the Wisenet cameras/camera integration with multiple on-board 3rd party analytics applications
• Our unique video compression technology called WiseStream II can reduce data by up to 99% when combined with H.265 compression. WiseStream is available on Wisenet Q, P, and X series cameras.
• The huge processing power of the open platform chipsets at the heart of Wisenet cameras
• Offering a 5-year warranty to our STEP Partners

Description	5M Network Box Camera	2M Network Dome Camera	2M Network IR Dome Camera	6M Sensor Fisheye Camera
Lens	N/A – lens not included	Built-in 2.8mm fixed lens	2.8 ~ 12mm (4.3x) motorized varifocal lens	1.6mm fixed lens
Infrared	No	No	Yes	Yes
Backlight Compensation	WDR (120dB)	WDR (150dB)	WDR (150dB)	WDR (120dB)
Internal / External	Internal	Internal	Internal	Internal
Power	Max.8.5W (PoE)	Max.4.7W, PoE / 12V DC	Max. 10W (PoE)	Max. 12W (PoE)

Description	2M 12x Network PTZ Dome Camera	2M 37x Network IR PTZ Dome Camera	2M Vandal-Resistant Network IR Dome Camera	2M Vandal-Resistant Network Dome Camera
Lens	5.2 ~ 62.4mm (12x) optical zoom, 32x digital zoom	6 ~ 222mm (37x), 16x digital zoom	2.8 ~ 12mm (4.3x) motorized varifocal len	5.2 ~ 62.4mm (Optical 12X) Optical Lens
Infrared	No	No	Yes	No
Backlight Compensation	WDR (150dB)	WDR (120dB)	WDR (150dB)	WDR (150dB)
Internal / External	External	External	External	External
Power	Max. 12W (PoE)	Max. 60W (24AV AC)	Max.12.95W (PoE)	Max. 7.8W (PoE)

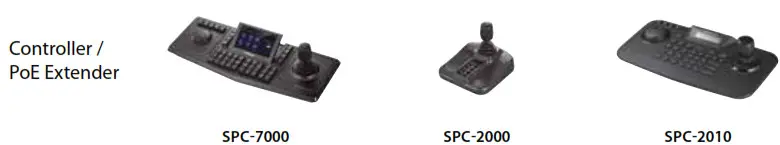

Controller/PoE Extenders

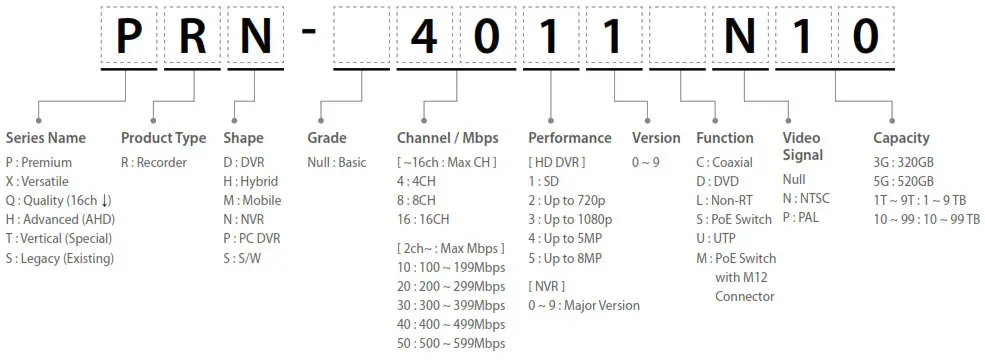

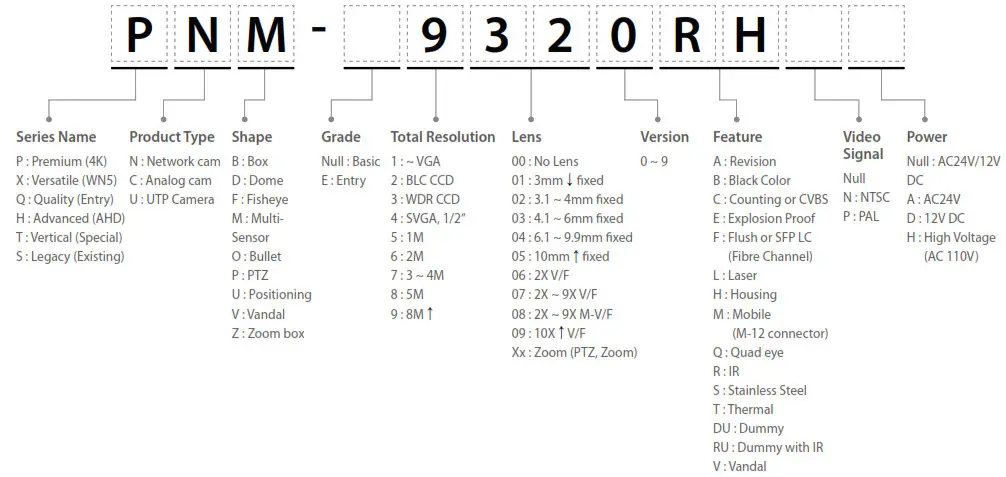

Product naming guide

Camera

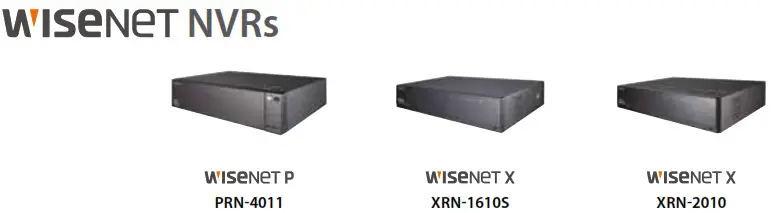

Recorder

Wisenet WAVE

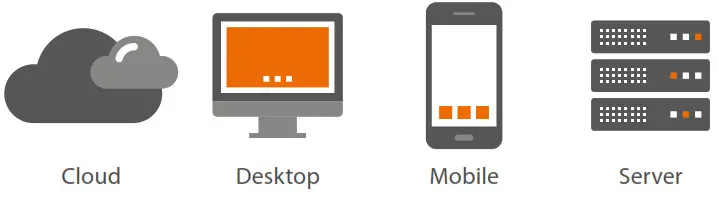

An operating system to suit your needs

Wisenet WAVE has applications for all major operating systems so our users re not limited by what device or operating system they choose to use on their desktops, mobile devices, rack mount servers, or even low-powered embedded devices. chose a solution that suits your business needs; Cloud – Desktop- Mobile – Server.
Wisenet WAVE has full SUNAPI 2.0 integration for WISENET cameras and recorders.
Our new WiseNet Wave VMS is the perfect partner for middle to large-scale projects due to its intuitive user interface.
Open Video Platform
The most intuitive, easy to use and powerful VMS

•  Drag and drop interface for intuitive video management
• Video wall and completely customizable layouts
• Full support for Hanwha Techwin advanced analytics and events
• ONVIF support for 3rd party cameras and encoders
•  API integrations for 3rd party Access and Storage systems

Hanwha Techwin specific features

NVR monitoring, search & playback; and deep camera integration with:

• H.265
• Wisestream
• All triggering Events including sound classification, loitering and queue management
• Simple focus setting
• Multi-directional camera support
• Hallway view
• HTTPS
• Time Settings
• Camera profile / Image configuration
• PTZ preset sync

Wisenet Traffic Management Solution

ANPR & Safe City Cloud
ANPR enabled X series cameras & Safe City Cloud solution

• Comprehensive ANPR edge camera solution
• More than 95% recognition accuracy in any environment or condition.
• Guaranteed for vehicles at a maximum speed of 80 kmph.
• Reliably detects number plates from all European countries.
• Complete monitoring from Cloud application
• Specific reactions for listed cars (black/white list)
• Get notified on listed vehicle appearance
• Live monitoring
• Parking lots management
• Identify frequent visitors and know their profile
• Traffic density
• Average traffic speeds across day, week, month
• Density, speeding, traffic-jam visualization
• Plate switching, trespassing
• Bus lane monitoring
• Street parking violations

Wisenet Automatic Incident Detection Solution

Roadway & Tunnel Monitoring

• Complete AID edge system in X series camera
• Reliable detection of incidents and events in traffic flow on critical infrastructures such as roads, highways, tunnels, and intersections.
• Intelligent Solution for Traffic Event Detection
• Stopped Vehicle
• Slowdown and Congestion/Queue
• Wrong-Way Driver
• Pedestrian
• Smoke / Low Visibility
• Traffic data collection for statistical purpose
• Vehicle Counting and Classification
• Traffic Density
• Average Speed
• Origin/Destination Matrix

Wisenet Retail Intelligence Solution

From small convenience store to superstore

People Counting

• Hourly / Weekly reports
• Performance
• Customer patterns
• Visitor breakdowns
• Occupancy
• Dwell time
• POS Integration
• Lost Opportunity

Heat Mapping

• Dwell time estimates
• Hot spots
• Regional time occupancy
• Customer Estimat

Queue Management

•  Wait time periods
• Busy periods
• Open / close check out alerts
• Site efficiency

Live Dashboard Reports with server software

• Argus – for smaller installations
• Calculus – up to 16 cameras per server

Notes

_________________________________

Hanwha Techwin Europe
Heriot House, Heriot Road, Chertsey, Surrey,
KT16 9DT, United Kingdom
Tel : +44.1932.57.8100 Fax : +44.1932.57.8101
www.hanwha-security.eu
