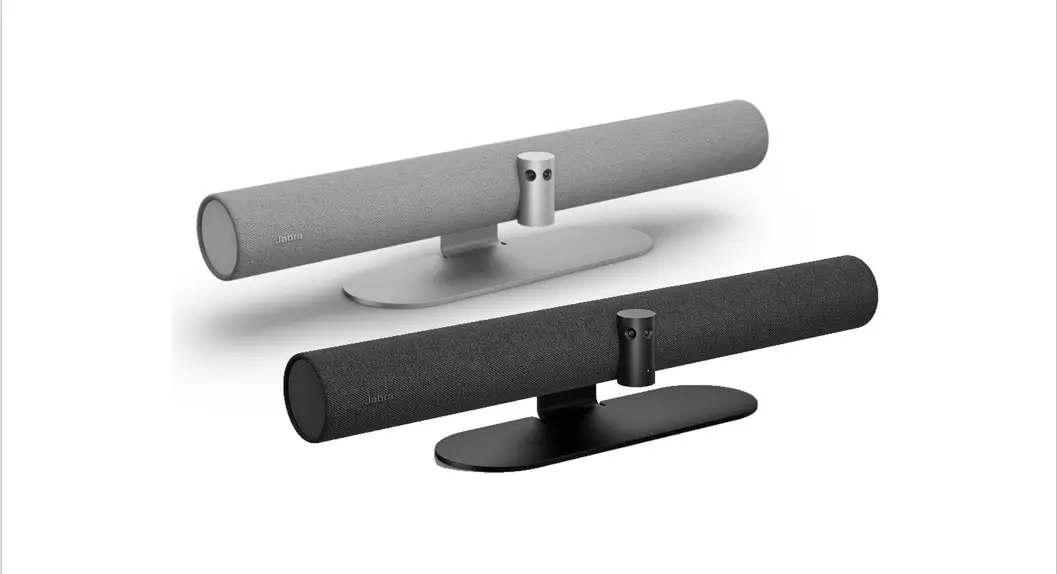

VC460 Intelligent 4K Video Bar
Product Information:
The Videobar is an Intelligent 4K All-in-one Video Bar designed
for video conferencing and communication purposes. It provides
high-quality video and audio capabilities in a compact and
easy-to-use device. This user manual, version 1.0, contains
important information on the operation, installation, and
maintenance of the Videobar.
Overview:
The Intelligent 4K All-in-one Video Bar is a versatile device
that combines a camera, microphone, and speaker in one unit. It is
designed to deliver exceptional video and audio performance for
professional meetings and conferences.
Graphic Symbols:
This manual uses graphic symbols to provide additional
information:
- i: This symbol indicates that the words are
clarification or supplement to the article. - Attention: This symbol indicates that
negligence of the instructions may lead to mishandling that may
cause injury or property damage.
Precautions:
Before using the Videobar, please take note of the following
precautions:
- Do not expose the product to rain or moisture to avoid damage
to the camera. - To prevent the risk of electric shock, only qualified
technicians should handle installation and maintenance. - Ensure that the product is used within the specified
temperature, humidity, and power supply specifications. - Clean the camera with a soft dry cloth. If heavily soiled, use
diluted neutral detergent and avoid solvents that may damage the
surface.
Electrical Safety:
Installation and use of this product must comply with local
electrical safety standards to ensure safe operation.
Transportation:
Avoid subjecting the Videobar to stress, vibration, or moisture
during transportation, storage, installation, and operation.
Installation:
Follow these guidelines for proper installation of the
Videobar:
- Do not rotate the camera head violently to prevent mechanical
failure. - Place the product on a stable desktop or horizontal surface. Do
not install it obliquely to avoid displaying inclined images. - Ensure there are no obstacles within the rotation range of the
holder. - Do not power on the Videobar before completing the installation
process.
Note: Unauthorized modification or dismantling
of the camera may void any warranty or support provided by the
manufacturer.
Magnetic Interference:
Electromagnetic fields at specific frequencies may affect the
video image. The Videobar is classified as Class A and may cause
radio interference in household applications. Appropriate measures
should be taken to minimize interference.
FCC Statement:
This device complies with part 15 of the FCC Rules. It should
not cause harmful interference and must accept any interference
received, including interference that may cause undesired
operation.
Warning: Any changes or modifications not
approved by the responsible party may void the user’s authority to
operate the equipment.
Radiation Exposure Statement: The Videobar
complies with FCC radiation exposure limits. It should be installed
and operated with a minimum distance of 20 cm between the radiator
and the user’s body.
Please refer to this user manual for detailed instructions on
using and maintaining the Intelligent 4K All-in-one Video Bar.
Videobar
Intelligent 4K All-in-one Video Bar
User Manual V1.0
Intelligent 4K All-in-one Video Bar User Manual
Preface
This manual is to ensure that the user can use the product properly and avoid danger while operating. Before using this product, please read the user manual carefully and keep it properly for future reference
Overview:
This manual describes the operation of Intelligent 4K All-in-one Video Bar.
Graphic Symbols
Description of graphic symbols used in this manual
Symbols
Description
This symbol indicates that the words are clarification or supplement to this article.
This symbol indicates that negligence of the instructions may lead to mishandling that may cause injury or property damage.
This symbol indicates a risk that may result in damage to this machine or documents. Follow the instructions to avoid property damage.
i
Intelligent 4K All-in-one Video Bar User Manual
Attention
This manual introduces functions, installations and operations for this product in details. Please read this manual carefully before installation and use.
Precautions:
This product can only be used in the specified conditions in order to avoid any damage to the camera: 1 Do not expose the product to rain or moisture. 2 To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians. 3 Do not use the product beyond the specified temperature, humidity or power supply
specifications. 4 Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with
diluted neutral detergent; do not use any type of solvents, which may damage the surface.
Electrical Safety:
Installation and use of this product must strictly comply with local electrical safety standards.
Transportation:
Avoid any stress, vibration, or moisture during transportation, storage, installation and operation
Installation:
1 Do not rotate the camera head violently, otherwise it may cause mechanical failure; 2 This product should be placed on a stable desktop or other horizontal surface. Do not
install the product obliquely, otherwise it may display inclined image; 3 Ensure there are no obstacles within rotation range of the holder. 4 Do not power on before completely installation.
Do Not Dismantle Camera
We are not responsible for any unauthorized modification or dismantling.
Magnetic Interference
Electromagnetic fields at specific frequencies may affect the video image. This product is Class A. It may cause radio interference in household application. Appropriate measure is required.
ii
Intelligent 4K All-in-one Video Bar User Manual
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help
Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
iii
Intelligent 4K All-in-one Video Bar User Manual
– English: ” This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” – French:” Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil nedoit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectriquesubi, même si le brouillage est susceptible d’en compromettre le fonctionnement.” Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et compliance d’acquérir les informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. The minimum distance from body to use the device is 20cm.
iv
Intelligent 4K All-in-one Video Bar User Manual
Contents
1. Quick Start……………………………………………………………………………………………………6 1.1 Interfaces ………………………………………………………………………………………………6 1.2 Device Startup………………………………………………………………………………………..6 1.2.1 Power on………………………………………………………………………………………..6 1.2.2 Statue Indicator Light ……………………………………………………………………….6 1.3 Video Output ………………………………………………………………………………………….7 1.4 Audio Input …………………………………………………………………………………………….7 1.5 Audio Output ………………………………………………………………………………………….7
2. Product Overview ………………………………………………………………………………………….8 2.1 Product Introduction ………………………………………………………………………………..8 2.1.1 Dimension………………………………………………………………………………………8 2.1.2 Supplied Accessory …………………………………………………………………………8 2.2 Product Features…………………………………………………………………………………….9 2.3 Technical Specification …………………………………………………………………………..10
3. How to Use ……………………………………………………………………………………………………..13 3.1 Remote Control …………………………………………………………………………………….13 3.2 Menu Setting ………………………………………………………………………………………..14 3.2.1 Main Menu ……………………………………………………………………………………14
4. Maintenance and Troubleshooting………………………………………………………………………20 4.1 Maintenance…………………………………………………………………………………………20 4.2 Troubleshooting…………………………………………………………………………………….20
v
Intelligent 4K All-in-one Video Bar User Manual
1. Quick Start
1.1 Interfaces
Interfaces
USB
USB audio video in out, type C
HDMI
HDMI video output
LINE IN
Audio linear input
LINE OUT 3.5mm linear output
Extension Mic RJ45 extension mic
Power jacket HEC3800 power socket(DC12V), input AC110V-AC220V, output DC12V/2A
1.2 Device Startup
1.2.1 Power on
Connect device to power socket with DC12V power adapter.
1.2.2 Statue Indicator Light
Green lights continuously run left to right Blinking Blue Lights Lights Turn Blue and Stay 3S
Solid Green Light
Blinking Green Light Solid Red Light Green Indicator Light On/Off Partial Light Turn Green
Boot initialization in progress
In Bluetooth pairing mode
Bluetooth pairing finished
Working statue When turn off Auto-framing&Voice tracking, all light turn green When turn on Auto-framing&Voice tracking, partial light turn green Standby statue(Device on without video) Microphone Muted Volume up/down
Partial light turns green according to the voice source
6
Intelligent 4K All-in-one Video Bar User Manual
1.3 Video Output
1. USBConnect device to Pcs through USB cable, and open the video software to select device to output. 2. HDMIConnect device to monitor through HDMI cable, and then select the correct input source on the monitor to output.
1.4 Audio Input
1. Built-in audioIt is default that the device pick up voice through built-in mics 2. Audio input through 3.5mm linear audio cableConnect to external pickup through 3.5mm audio cable (When connecting to external pickup, audio in automatically switch into external pickup.)
1.5 Audio Output
1. Built-in speaker: It is default that device output voice through built-in speaker. 2. Audio output through 3.5mm linear audio cableConnect to external speaker through 3.5mm audio cable (When connecting to external speaker, audio out automatically switch into external speaker.)
7
Intelligent 4K All-in-one Video Bar User Manual
2. Product Overview
2.1 Product Introduction
2.1.1 Dimension
2-1 Dimension
2.1.2 Supplied Accessory
When you unpack your box, please check that all the supplied accessories are included.
Items
Quantity
Supplied Optional
All-in-one video bar
1
USB cable
1
Remote control
1
Quick start guide
1
Power adapter
1
8
Intelligent 4K All-in-one Video Bar User Manual
2.2 Product Features
With all-in-one design, this device has 4K UHD camera, microphone array, high fidelity speaker and electric privacy cover. Boasting powerful functions like face recognition, voice localization, voice tracking, and intelligent noise reduction, this product could automatically adjust the image size according to the number of participants to present the optimal frame. It can also detect the speaker position in real time and lock the target while having a close-up, which allows users to have hands-free operation. This device has 6 array microphone composed of MEMS microphones, and it can also be matched with external cascading microphone and advanced 3A audio algorithm, you will have an exceptional full-duplex communication experience.
Integrated Design: Built in 4K UHD camera, microphone array, high fidelity speaker and electric privacy cover Ultra HD: This device adopts 8 M high quality CMOS image sensor, able to capture 4K ultra HD image to present
true-to-life image, bringing excellent image resolution and clarity. Distortion-less Wide Angle Lens: 120° wide angle with no distortion lens allows every participant is on the frame
with no need to adjust the camera. Automatic Privacy Cover: Privacy cover will automatically close to ensure the privacy security. Microphone Array: Built in 6 array microphone enable speaker can be tracked in real time. THIS DEVICE break the
distance limitation to provide virtual meeting as if you are there. Built in Speaker: Built in dual 10W high quality studio speaker, ensuring every participant can hear and be heard
clearly. Audio Processing: The audio processing algorithm adopts high-fidelity 48K audio sampling rate, lossless audio
transmission technology, supports AEC, AGC, ANS processing, bringing high-quality calls of 6 meters full duplex; Auto Framing: Built in face detection algorithm, automatically detect participant and provide optimal framing. Bluetooth 5.0: Connect mobile phone and other devices through Bluetooth to be used as Bluetooth speaker and
microphone. Low Noise and High SNR: Low noise CMOS ensure the ultra SNR of image. The advanced 2D, 3D noise reduction
technology further reduce the noise while ensuring the image clarity. Powerful Compatibility: Compatible with Windows7, windows10, Mac OS 10.10 or higher system, applicable to
major cloud-based video conference platforms.
9
Intelligent 4K All-in-one Video Bar User Manual
2.3 Technical Specification
Lens Sensor
FOV
120°D /106°H/ 72°V
Iris
F2.0
Focal Length
1.89mm
Digital Zoom
10X
High quality CMOS sensor, effective pixel 8 million, 16:9
Minimum Illumination
0.5Lux
DNR
2D3D
Camera
Video Format
Focus
Auto/Manual
BLC
On/Off
Exposure
Parameter can be adjusted, and AE(Auto Exposure) is available
Video Adjustment
Brightness, sharpness, saturation, contrast, white balance, gain, anti-flicker, low brightness compensation and other parameters can be adjusted
SNR
50dB
HDMI4KP30,1080P60 compatible downward USB4KP30,1080P60 compatible downward
Audio
Video Compression Format
Privacy Cover
Microphone
MJPEG, YUY2, H.264, H.265, NV12
Automatic privacy cover will close when no image output and open when there are image output.
Microphon e
6 X MEMS Microphones
10
Intelligent 4K All-in-one Video Bar User Manual
Speaker
AI Function Remote Control
Audio Processing Group Framing Speaker Tracking Remote Control USB HDMI
Physical Interfaces
LINE IN
LINE OUT Expansion Mic Interface Power Interface
Pickup Distance
6 meters
Frequency Response
120 Hz16 kHz
Speaker
Built in dual speaker
Voltage
2*10W
Output Voice Pressure
80±3 dB 1.0M/1.0W
Frequency Response
100 Hz-20 KHz
AEC, AGC, ANS
Automatically adjust the screen size according to the number of participants to present the best framing
Track each speaker in real time, and ensure that the speaker is in the center of the screen.
Infrared remote control
USB3.0 audio video output interfaceType C Support UVC1.1, UAC1.0 and higher
HDMI video output interface HDMI also compatible with HDMI2.0 standard
3.5mm audio line input interface (when an external pickup is connected, the audio input is automatically switched to the external pickup)
3.5mm line output, can be connected to external speakers (when connecting to external speakers, the audio output will automatically switch to external speakers)
RJ45 interface, able to connect to expansion microphone.
HEC3800 power socket (DC12V), input AC110V-AC220V output DC12V/2.5A
11
Intelligent 4K All-in-one Video Bar User Manual
Indicator Bluetooth Compatibility Power Supply Method
Working Condition
Installation Method
Bar-shaped Indicator
Bluetooth 5.0
Available System
Storage Temperature Storage Humidity Working Temperature Working Humidity Environment
Walling Mount
Desktop Installed on Monitor
While displaying the working status, it can also be lit where the speaker’s voice comes from. Can be connected to a mobile phone or other device via Bluetooth as a Bluetooth microphone and speaker Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Supply power through power adapter
-10+70
20%95%
-10+50
20%80% Indoor Comes with walling mount bracket. While mounting, the camera need to be as close to the wall as possible. Comes with desktop mounting bracket
Bracket for monitor installation(optional)
12
Intelligent 4K All-in-one Video Bar User Manual
3. How to Use
3.1 Remote Control
Number 1 2 3 4 5 6 7
Function Description Bluetooth
Auto Framing & Voice Tracking Menu HOME
Up, down, left, right Answer call
Microphone muted
13
Intelligent 4K All-in-one Video Bar User Manual
8
Reject the incoming call
9
Volume up/down
10 Set/call out preset #1 (Long press 3 sec to set preset, short press to call out preset)
11 Set/call out preset #2 (Long press 3 sec to set preset, short press to call out preset)
12
Zoom in/out
3.2 Menu Setting
3.2.1 Main Menu
Press menu key on remote control, and use arrow to point item to be selected.
MENU
Language
English
Setup
Exposure
Color
Noise Reduction
Video Format
Verion
Restore Default
[]Select [ ]Change Value14
Intelligent 4K All-in-one Video Bar User Manual
1) Language Move arrow to (Language), and press to change the option 2) Setting Move arrow to (Setting), and pressHOMEto enter the exposure interface.
Setup
Image Style
Default
Auto Framing
Close
Auto Framing Sen
Medium
Voice Location
Close
Locatiom Sen
Medium
Max Framing
5X
Locate Mode
Smart Mode
Prompt Info
Close
Menu Mirror
Close
Transfers Mode
BULK
[]Select [ ]Change ValueImage StyleDefault/standard/clear/bright/soft Auto Framing: On/off Auto Framing Sen: high/medium/low Max Framing: 3X/5X/10X
15
Intelligent 4K All-in-one Video Bar User Manual
Voice Tracking: on/off Voice Tracking Sen: high/medium/low Locate Mode: Smart mode/pan mode/movie mode/discussion mode Prompt Info: On/off Menu Mirror: On/off Transfers Mode: Bulk/synchronization
3) Exposure Move arrow to (exposure), pressHOMEto enter exposure interface.
EXPOSURE
Mode
Auto
EV
OFF
BLC
OFF
Flicker
50Hz
G.Limit
6
DRC
4
[]Select [ ]Change ValueExposure mode: Auto/manual/shutter priority/bright priority Exposure Compensation(EV): On/off Compensation Level: -7 7( only available in EV mode on)
16
Intelligent 4K All-in-one Video Bar User Manual
BLC: On/off ( only available in auto mode)
Anti-Flicker: 50Hz, 60Hz, off (only available in auto, iris priority, bright priority mode)
Gain Limit: 0 15(only available in auto, iris priority, bright priority mode)
Dynamic Range: 1 8, off
Shutter Priority: 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1000, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000(only available in manual, and shutter priority mode)
Bright: 0 23 (only available in bright priority)
4) Color Move arrow to (color), and pressHOMEto enter color page.
COLOR
WB Mode
Auto
RG Tuning
0
RW Tuning
0
Saturation
100%
Hue
4
AWB Sensitivity
High
[]Select [ ]Change ValueWB ModeAuto/manual/onepush/specified temperature
RG Tuning -1010
Saturation 0127 Blue Tuning -1010
17
Intelligent 4K All-in-one Video Bar User Manual
AWB SensitivityHigh/medium/low(only available in auto mode)
Hue08
5) Image Move arrow to (image), and pressHOMEto enter image page.
Brightness
7
Contrast
7
Sharpness
5
Flip-H
OFF
Flip-V
OFF
B&W-Mode
Color
Gamma
Default
Low-Light Mode
Close
[]Select [ ]Change ValueBrightness014
Flip-HOn/off
GammaDefault, 0.34, 0.39, 0.47, 0.50
Contrast014 Flip-VOn/off Low-Light ModeOn/off
Sharpness015 B&W-ModeColor/B&W
6) Noise Reduction
Move arrow to (Noise Reduction), and pressHOMEto enter Noise Reduction page.
18
Intelligent 4K All-in-one Video Bar User Manual
NOISE REDUCTION
NR-2D
OFF
NR-3D
4
[]Select [ ]Change Value2D NRAuto, manual 17
3DNROff, 18
7) Version Move arrow to (version)
VERSION Camcra Version 1.0.0 2020-12-16 Audio Version 1.0.0 2022-5-19
8) Restore Default
Move arrow to (restore default), and pressHOMEto enter RESTORE DEFAULT page.
19
Intelligent 4K All-in-one Video Bar User Manual
RESTORE DEFAULT
Restore Default?
NO
Restore default: Yes/no (color style and video format cannot be restored)
4. Maintenance and Troubleshooting
4.1 Maintenance
1If the camera will not be used for a long time, please turn off the power switch. 2Use a soft cloth or lotion-free tissue to clean the camera body. 3Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent. Do not use any type of solvent or harsh detergent, which may damage the surface.
4.2 Troubleshooting
1No image a. Check whether the power cord is connected, voltage is OK, POWER lamp is lit. b. Check whether the camera can “self-test” after startup c. Check that the rotary dial on rear work normally d. Check that the HDMI cable is connected correctly 2Image is shaky or vibrating. Check that the video output, video monitor cable work normally. 3Remote controller does not control the camera a. Check that the batter of remote control is placed properly and full of power b. Check that the working statue of the device is normal
20
Intelligent 4K All-in-one Video Bar User Manual
c. Check whether the menu has been exited. Only after exiting the menu, the remote control can work normally; if the webpage outputs an image, the menu will not be displayed, then the menu will automatically exit and remote control can work on camera after 30 seconds without any operation
21
Copyright Notice
The entire contents of this manual, whose copyright belongs to our company may not be cloned, copied or translated in any way without the explicit permission of the company. Product specifications and information referred to in this document are for reference only and as such are subject to updating at any time without prior notice
