Vivo Universal Soundbar Speaker Tv Mount Instruction Manual (+ PDF)

Universal Soundbar Speaker TV Mount
Instruction Manual

SKU: MOUNT-SPSB3

Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product.

https://vivo-us.com/products/mount-spsb3

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

[email protected]
www.vivo-us.com
Chat live with an agent!
309-278-5303

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by an improper mounting, incorrect assembly or inappropriate use.

WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Contents hide

1 PACKAGE CONTENTS

2 TOOLS NEEDED

3 ASSEMBLY STEPS

4 Documents / Resources

4.1 References

5 Related Posts

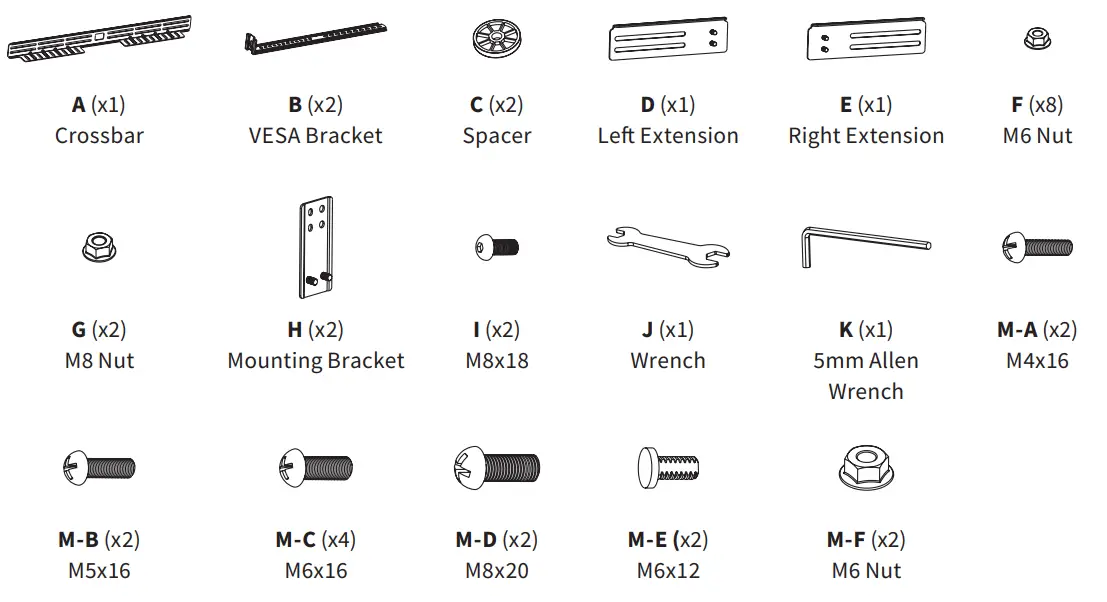

PACKAGE CONTENTS

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

TOOLS NEEDED

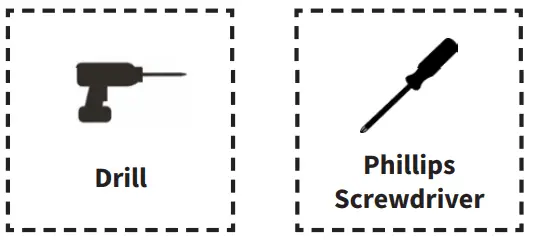

DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.

ASSEMBLY STEPS

STEP 1

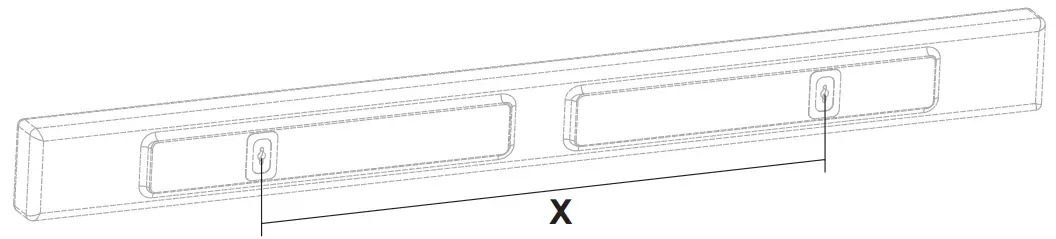

Measure the distance between mounting holes on your soundbar.

STEP 2

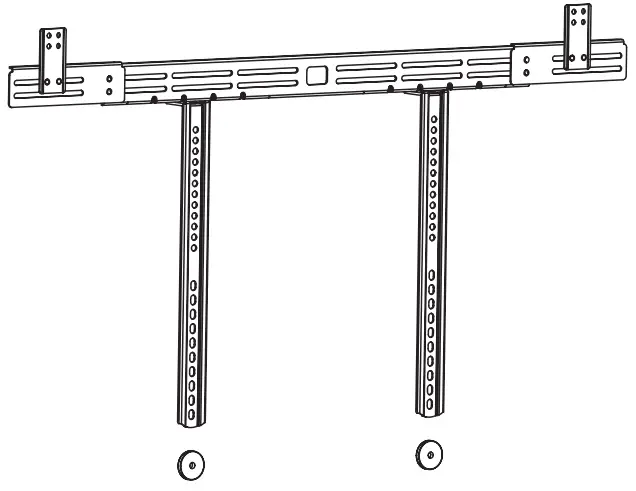

If the soundbar mounting hole distance is greater than the width of the crossbar (A), attach left and right extensions (D, E) to the ends of the crossbar using M6 nuts (F). Attach mounting brackets (H) to extensions at the correct spacing to match the soundbar using M6 nuts. Tighten using a wrench (J).

STEP 3

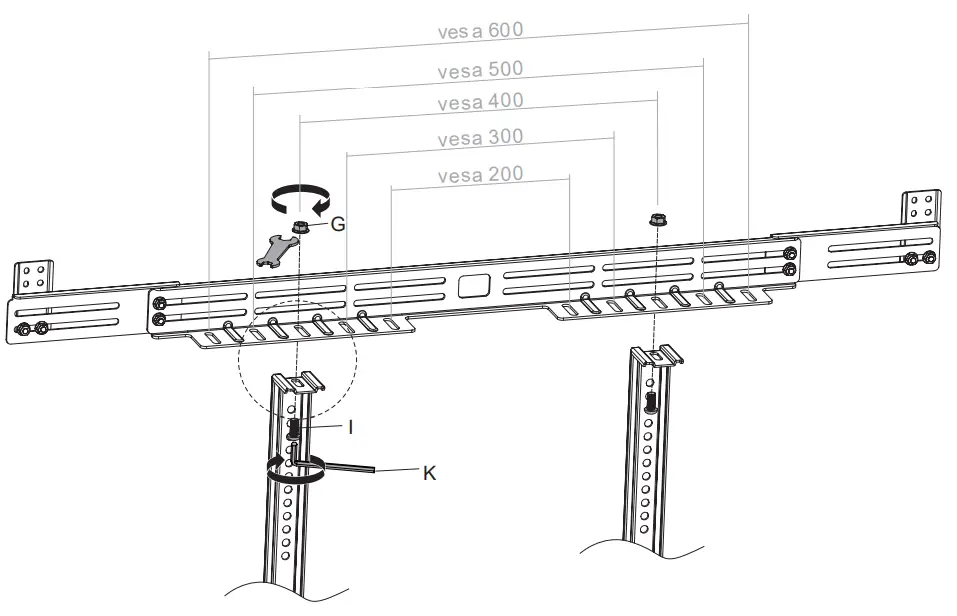

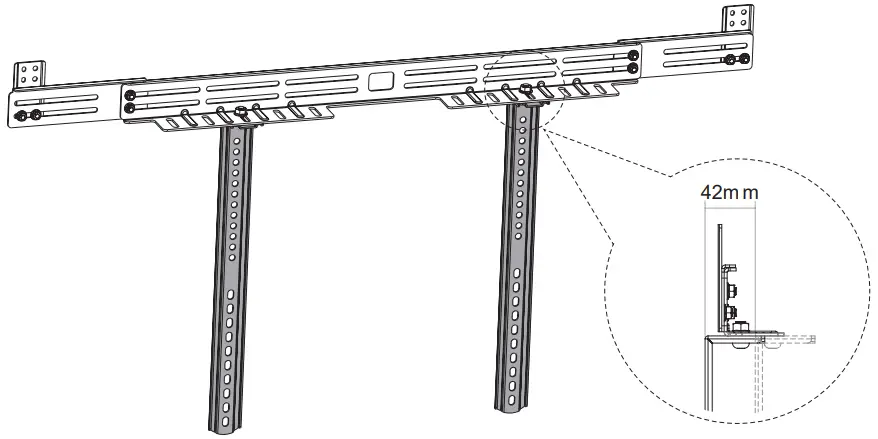

Attach VESA brackets (B) to the crossbar at the correct spacing to match TV mounting holes using M8 nuts (G) and M8x18 bolts (I) and tighten with the wrench (J) and Allen wrench (K).

STEP 4

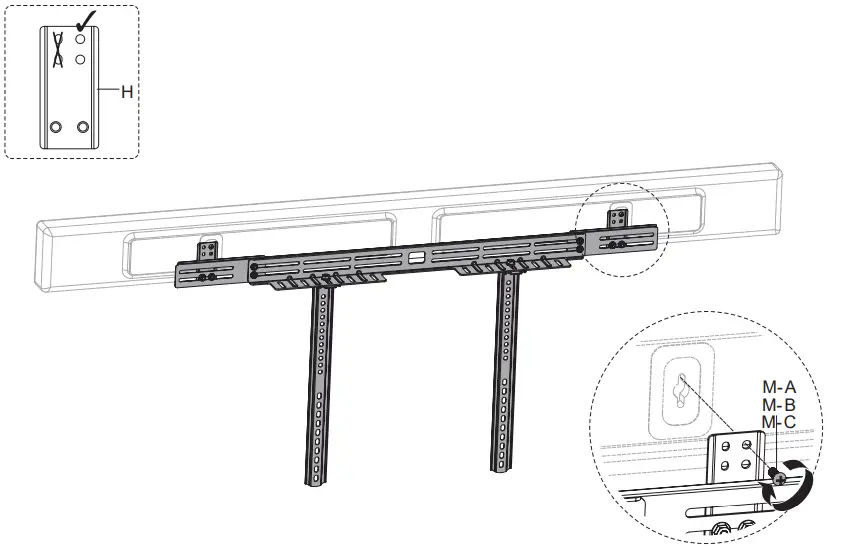

Mount soundbar to the assembled bracket using screws (M-A, M-B, M-C) as shown.

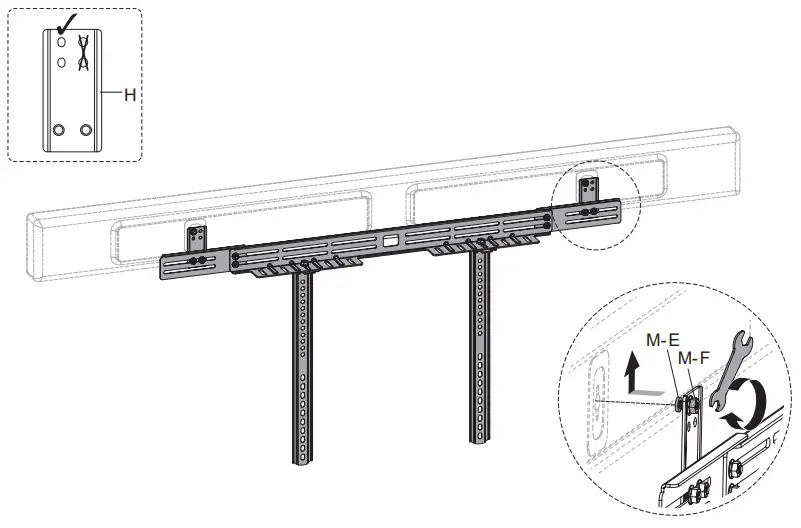

If your soundbar uses slots for mounting, loosely install M6x12 screws (M-E) to the assembled bracket with M6 nuts (M-F). Insert screw heads fully into slots of the soundbar, and tighten nuts with the wrench.

STEP 5
OPTION A: Free Standing TV

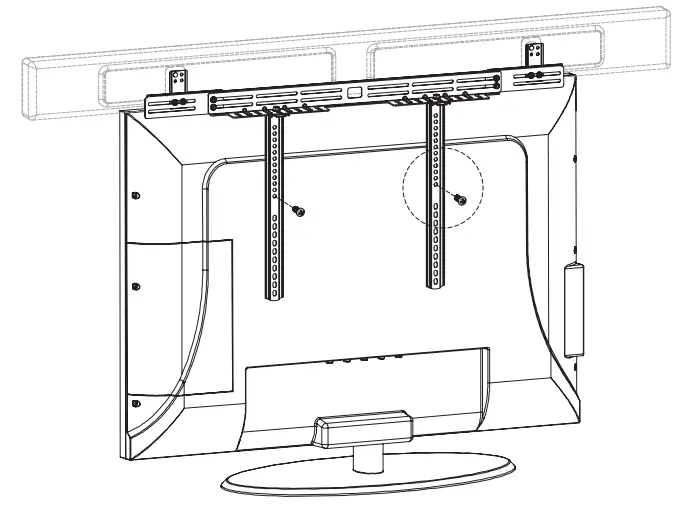

For free-standing TV, mount soundbar above TV using bolts (M-C, M-D) in top two VESA mounting holes on the back of the TV.

OPTION B: Wall Mounted TV

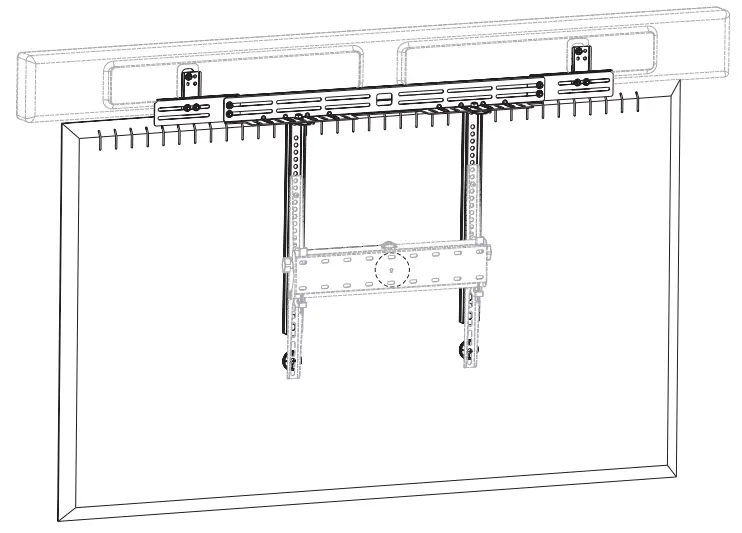

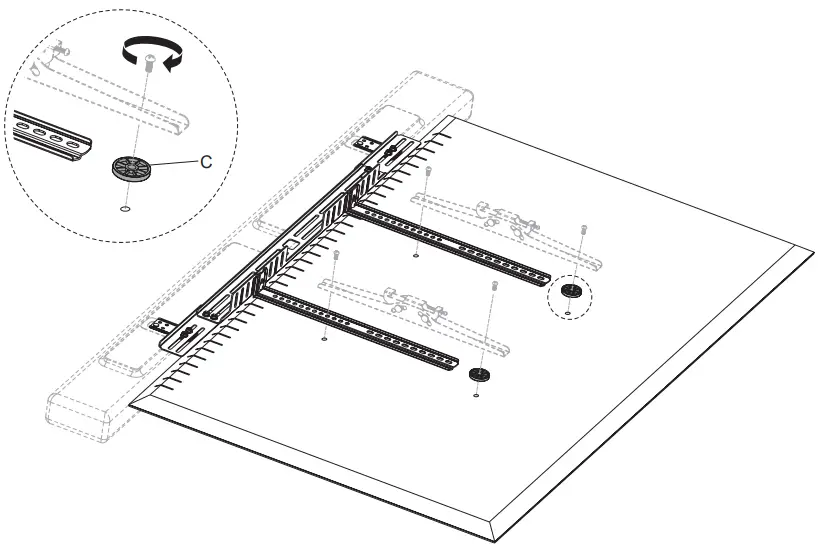

For wall mounting, set the TV face down on a flat surface. Place soundbar with bracket over/under the TV with mounting holes in bracket aligned with holes in TV. Place spacers (C) over other two holes in the TV, then attach VESA bracket(s) from your wall mount to the TV with soundbar using the hardware included with your wall mount.

Attach TV with soundbar and VESA brackets to your wall mount.
