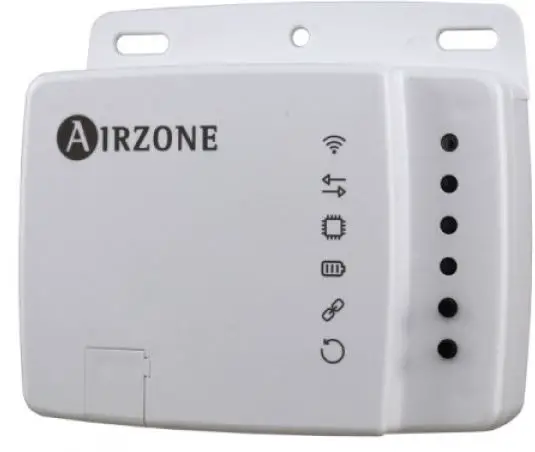

AIRZONE AZAI6WSCPA0 Aidoo WiFi Control Compatible with Panasonic
AIDOO PANASONIC RAC WI-FI CONTROLLER
Device to manage and integrate units remotely from the Cloud. Online control with the “Airzone Cloud” App (available for iOS and Android). Wireless Wi-Fi connection. Externally powered by the indoor unit.
Features:
- Control of the parameters of the unit.
- Communication errors detection.
- Temperature and operating mode time schedules.
- Multi-user and multi-session.
- Port for integration via Modbus protocol.
For further information about our products, go to airzonecontrol.com
TECHNICAL SPECS
Connection to indoor unit
| Type of power supply | Vdc |
| V max | 18 V |
| I max | 137.5 mA |
| V in | 12 – 16 V |
| Consumption | 0.85 W |
| Type of cable | Conector Aaa Aaa connector Conector Aaa |
| Wire length /
| 2.5 m (8.2 ft) |
WI-FI Communication
| Protocol | WI-FI – CERTIFIED TM 802.11b/g/n (802.11n up to 150 Mbps) |
| Model / | ESP-WROOM-32 |
| Communication frequency | 2.4 GHz |
| Maximum power – Antenna power | 20 dBm |
| Sensitivity | – 97 dBm |
| IP address / | DHCP |
Bluetooth Communication
| Protocol | Bluetooth v4.2 BR/EDR and BLE specification |
| Clase Bluetooth / Bluetooth class / Classe Bluetooth | Class-1, class-2 and class-3 transmitter |
RS-485 Port
| Shielded twisted pair | 2 x 0.22 + 2 x 0.5 mm2 (AWG 23 – 2 wired + AWG 20 – 2 wired) |
| /Communi- cation protocol | RS-485 Par – 19200 bps |
Operating temperatures
| Storage / | – 20 … 70 ºC (- 4 … 158 ºF) |
| Operation /
| 0 … 45 ºC (32 … 113 ºF) |
| Operating humidity rango /
| 5 … 90 % (non-condensing) |
Mechanical aspects
| Protection class /
| IP 41 |
| Weight | 130 g (0.29 lb) |
