COMMSCOPE TDUX-35-INT TDUX Inflatable Cable Duct Seal

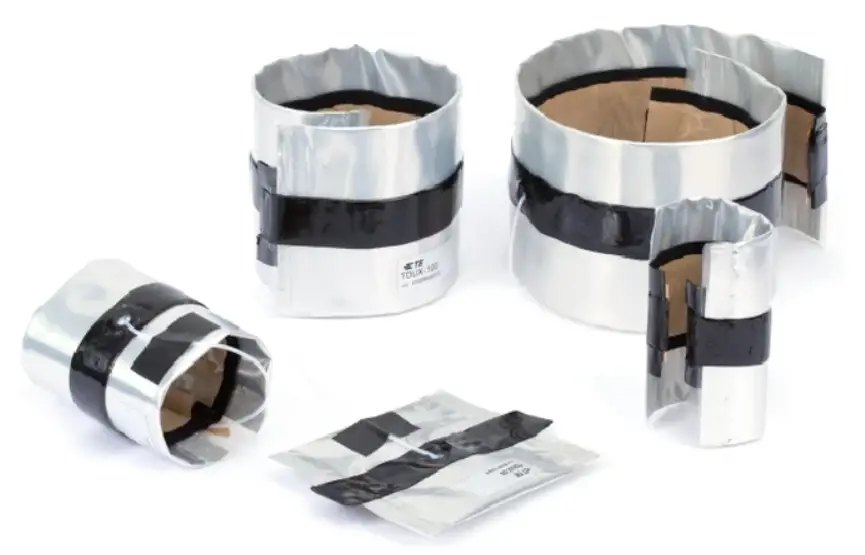

TDUX – Inflatable Duct Seal, size 35
- Flexible and reliable wraparound inflatable sealing system for cables
- Fast and easy to install or remove, even when water is flowing out of the duct Independent of duct or cable ovality
- Water and airtight up to 50 kPa (7 psi)
- Environmentaly friendly, non-toxic and resistant to chemicals
Product Classification
- Regional Availability: EMEA
- Product Type: Cable duct seal
- Product Series: TDUX
- Ordering Note: When sealing more than two cables in a duct, seperate orderable TDUX-CL clips are to be used
Dimensions
Width: 120 mm | 4.724 in
Length: 155 mm | 6.102 in
Cable Diameter, maximum: 25 mm | 0.984 in
Cable Diameter, minimum: 12 mm | 0.472 in
Conduit Inner Diameter, maximum: 35 mm | 1.378 in
Conduit Inner Diameter, minimum: 25 mm | 0.984 in

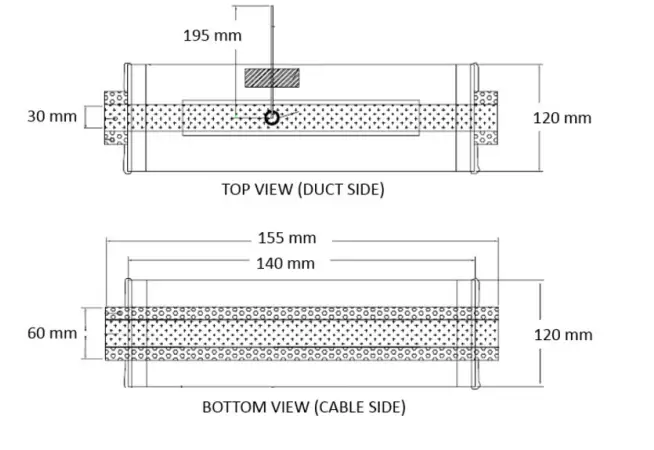

Dimension Drawing
258512-000 | TDUX-35-INT
Environmental Specifications
Installation temperature: -5 °C to +40 °C (+23 °F to +104 °F)
Packaging and Weights
Included: Inflatable bladder with sealing mechanism
Packaging quantity: 10
Regulatory Compliance/Certifications
Agency Classification
- CHINA-ROHS: Below maximum concentration value
- REACH-SVHC: Compliant as per SVHC revision on www.commscope.com/ProductCompliance
- ROHS: Compliant
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: October 3, 2021
CommScope | now meets next
