006305-000 | TDUX-150-INT
TDUX – Inflatable Duct Seal, size 150
- Flexible and reliable wraparound inflatable sealing system for cables
- Fast and easy to install or remove, even when water is flowing out of the duct
- Independent of duct or cable ovality
- Water and airtight up to 50 kPa (7 psi)
- Environmentally friendly, non-toxic, and resistant to chemicals
Product Classification
| Regional Availability | Australia/New Zealand | Latin America | North America |
| Product Type | Cable duct seal |
| Product Series | TAUX |
| Ordering Note | When sealing more than two cables in a duct, separate orderable TDUX-CL clips are to be used |
Dimensions
| Width | 120 mm | 4.724 in |
| Length | 667 mm | 26.26 in |
| Cable Diameter, maximum | 114.3 mm | 4.5 in |
| Cable Diameter, minimum | 101.6 mm | 4 in |
| Conduit Inner Diameter, maximum | 152.4 mm | 6 in |
| Conduit Inner Diameter, minimum | 139.7 mm | 5.5 in |

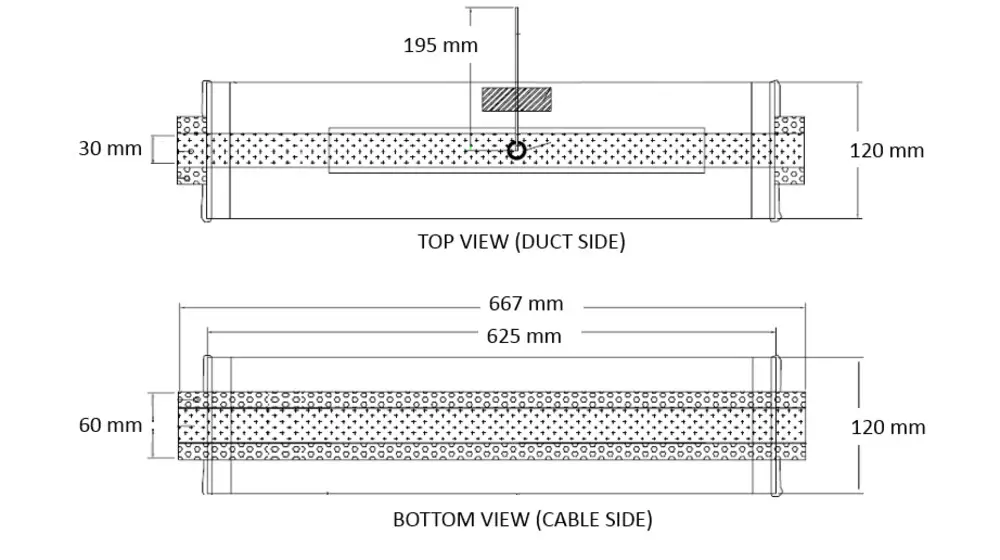

Dimension Drawing
Environmental Specifications
Installation temperature -5 °C to +40 °C (+23 °F to +104 °F)
Packaging and Weights
Included Inflatable bladder with sealing mechanism
Packaging quantity 10
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: June 30, 2022
