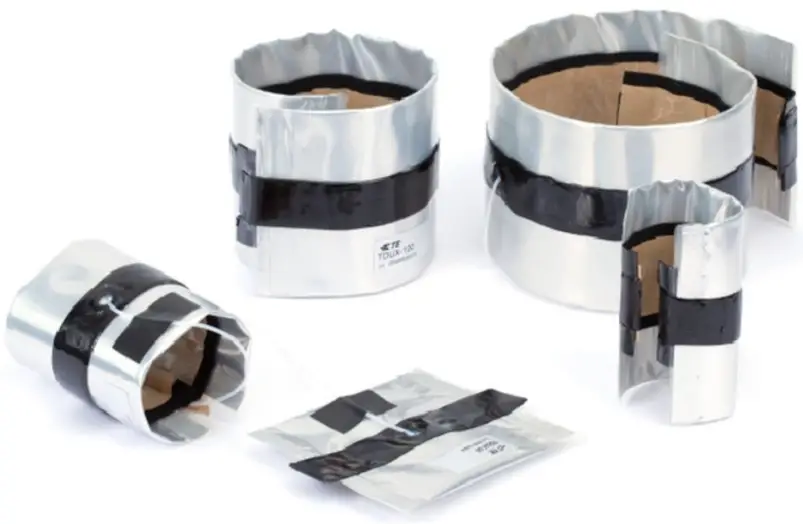

TDUX – Inflatable Duct Seal, size 125
Instruction Manual
451696-000 | TDUX-125-INT
TDUX – Inflatable Duct Seal, size 125
- Flexible and reliable wraparound inflatable sealing system for cables
- Fast and easy to install or remove, even when water is flowing out of the duct
- Independent of duct or cable ovality
- Water and airtight up to 50 kPa (7 psi)
- Environmentally friendly, non-toxic, and resistant to chemicals
Product Classification
| Regional Availability | EMEA |
| Product Type | Cable duct seal |
| Product Series | TDUX |
| Ordering Note | When sealing more than two cables in a duct, separate orderable TDUX-CL clips are to be used |
Dimensions
| Width | 120 mm | 4.724 in |
| Length | 567 mm | 22.323 in |
| Cable Diameter, maximum | 103 mm | 4.055 in |
| Cable Diameter, minimum | 83 mm | 3.268 in |
| Conduit Inner Diameter, maximum | 125 mm | 4.921 in |
| Conduit Inner Diameter, minimum | 110 mm | 4.331 in |
Dimension Drawing
Environmental Specifications
| Installation temperature | -5 °C to +40 °C (+23 °F to +104 °F) |
| Packaging and Weights | |
| Included | Inflatable bladder with a sealing mechanism |
| Packaging quantity | 10 |
Regulatory Compliance/Certifications
| Agency | Classification |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS  | Compliant |
©2021 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice.
See www.commscope.com for the most current information.
Revised: July 28, 2021
