air WHOLESALERS Uniflex Tradeflex R1.0 Flexible Ducting
Product Information
Tradeflex Insulated Flexible Duct
Tradeflex is a flexible duct designed for installers who require a less rigid flexible duct. It is compliant with all the requirements of Australian Standard AS 4254 and is available insulated to RM0.6 and RM1.0. Tradeflex is constructed in Australia to Australian standards and is available in two thermal ratings RM0.6 and RM1.0. The insulation complies with the Australian Standard (AS) 4859.1.

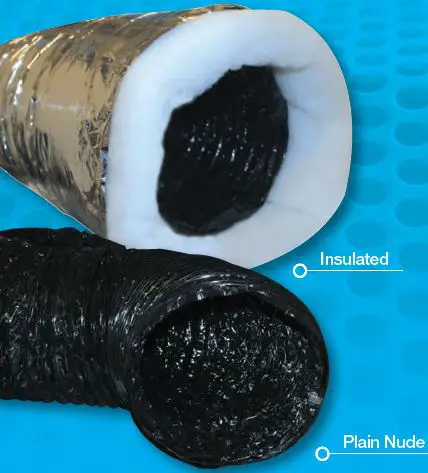

Construction of Tradeflex Ducts
The Tradeflex ducts consist of three layers – an inner core, insulation, and an outer jacket.
Inner Core (Plain Nude)
The inner core of Tradeflex plain nude is manufactured from two layers of high-grade clear polyester bonded together with fire-rated resin encapsulating copper-coated spring steel wire.
Insulation
The Tradeflex duct is thermally insulated with a polyester fiber blanket to achieve a nominal thermal rating of either RM0.6 or RM1.0. The insulation complies with the Australian Standard (AS) 4859.1.
Outer Jacket
The outer jacket on Tradeflex is manufactured from one layer of clear and one layer of metallized PET material that is bonded together with fire-resistant resin.
Technical Specifications
| Metric Size (mm) | Imperial Size () | Length/Type | Compliance/Test Reports |
|---|---|---|---|
| 150 | 6 | 6m Length/Plain Nude | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 |
| 200 | 8 | 6m Length/RM0.6 Insulated | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 |
| 250 | 10 | 6m Length/RM1.0 Insulated | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 |
| 300 | 12 | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 | |
| 350 | 14 | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 | |
| 400 | 16 | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 | |
| 450 | 18 | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 | |
| 500 | 20 | Complies with AS-4254, AS-1530 part 3, and AS-4859.1 |
Product Usage Instructions
Tradeflex ducts can be used in various applications that require flexible ducting. It is mainly used in air conditioning and ventilation systems. The insulated Tradeflex ducts are suitable for use in both residential and commercial installations.
When installing Tradeflex ducts, ensure that it is installed in accordance with the manufacturer’s instructions and the relevant Australian Standards. The ducts should be installed in a manner that prevents kinking and crushing, as this can reduce airflow and increase noise levels.
The insulated Tradeflex ducts are available in different sizes to suit different applications. It is important to choose the correct size to ensure optimal performance. If in doubt, consult a qualified installer or engineer.
A flexible duct the “Trade” uses.
TRADEFLEX has been designed for the installer that has an application that requires less rigid flexible duct.
Compliant to all requirements of Australian Standard AS 4254.
Available Insulated to RM0.6 and RM1.0.
Other features of Tradeflex duct include
- Built in Australia to Australian Standards
- Available in two thermal ratings RM0.6 and RM1.0
- Insulation complies with Australian Standard (AS) 4859.1
- Full 10 year product replacement warranty
- Operating temperature range -10°C to +80°C
Construction of Tradeflex ducts
- INNER CORE (Plain Nude)
TRADEFLEX plain nude is manufactured from two layers of high grade clear polyester bonded together with fire rated resin encapsulating copper coated spring steel wire. - INSULATION
TRADEFLEX is thermally insulated with a polyester fibre blanket to achieve a nominal thermal rating of either RM0.6 or RM1.0. - OUTER JACKET
The outer jacket on TRADEFLEX is manufactured from one layer of clear and one layer of metallised PET material that is bonded together with fire resistant resin.
Product TECHNICAL SPECIFICATIONS
| Metric Size (mm) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Imperial Size (”) | 6” | 8” | 10” | 12” | 14” | 16” | 18” | 20” |
| 6m Length / Plain Nude | • | • | • | • | • | • | • | • |
| 6m Length / RM0.6 Insulated | • | • | • | • | • | • | • | • |
| 6m Length / RM1.0 Insulated | • | • | • | • | • | • | • | • |
Compliance – Test Reports TRADEFLEX has been tested to, or complies with the following standards.
| Tests Passed | Complies |
| Australian Standard (AS)-4254 | Yes |
| Australian Standard (AS)-1530 part 3 | Yes |
| Thermal Standard (AS)-4859.1 | Yes |
