AD50S2PS1FA Slim Ducted
User Guide
Slim Ducted, 5kW
White

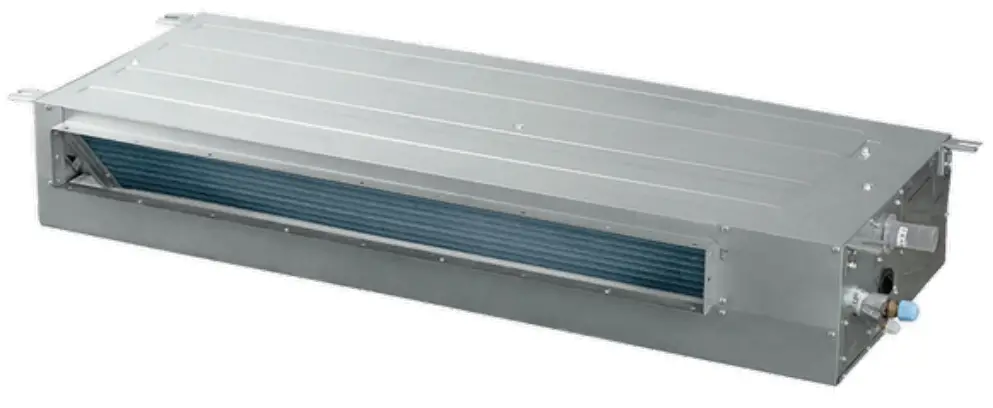

AD50S2PS1FA Slim Ducted
Discreet appearance, this slim ducted indoor unit is part of our Super Match range and can be paired with a universal multi-head outdoor unit.
- UV Protect in Health mode helps to kills airborne pathogens, with antibacterial and anti-viral rates above 91%*
- Optional Wi-Fi accessory for remote control using the SmartHQ™ app
- High-efficiency DC fan motor
- Optional panel kit with air supply and intake grille
DIMENSIONS
| Height | 185 mm |
| Width | 1170 mm |
| Depth | 420 mm |
FEATURES & BENEFITS
Slim design
For a minimal design solution, this indoor unit fits discreetly into your interior. With a slim profile, it is also ideal for installation in shallow ceiling cavities, such as between floors in multistorey buildings.
UV Protect sterilisation
UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.*
Control from anywhere
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
Comfort in all conditions
Control the humidity level inside using the Dry function. By removing excess moisture in the air, you can create a comfortable and healthy environment that feels cooler – all while using less energy than Cool mode.
Efficient DC motor
DC fan motors are renowned for using less energy than a standard AC motor. They are also highly adjustable for better airflow and static pressure tuning to suit your nstallation.
Peace of mind
Moisture from the air is collected during normal operation. This indoor unit has a condensate pump with built-in fail-safe switch for reliable moisture removal in confined spaces.
Central controller
With an optional central controller, you can easily control individual or connected units, and schedule air conditioning to turn on and off automatically.
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 5.0kW |
| Heating capacity (kW) | 5.5kW |
Features
| 24 Hour timer | • |
| Blue fin coils | • |
| Optional panel | P1B-1210IA/D |
| Standard controller | YR-E17A (wired) |
| Wi-Fi controller compatible | • |
Installation
| Liquid line | 6.35mm |
| Suction line | 9.7mm |
Performance
| Airflow | 900m3/h |
| R32 Refrigerant | • |
| Sound power | 54dBA |
| Sound pressure SPL (indoor) | 36 / 34 / 32dBA |
Power Requirements
| Power phase | Single |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 420 mm |
| Height | 185 mm |
| Net weight | 22kg mm |
| Width | 1170 mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51638 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
