QUICK REFERENCE GUIDE > AD105S2SM5FA
Ducted, Low Profile, 10.5kW
White

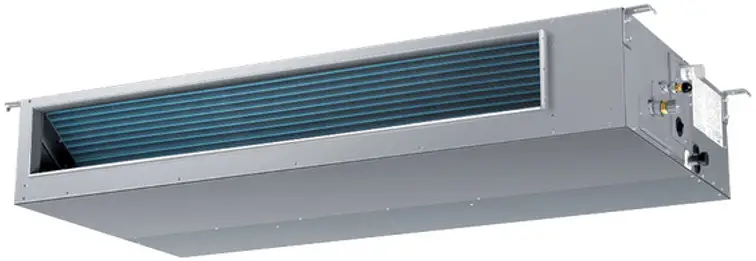

AD105S2SM5FA Low Profile Ducted
Low Profile Ducted systems offer total heating and cooling to multiple rooms, with a slim indoor unit hidden in the ceiling and discreet vents.
DIMENSIONS
| Height | 248mm |
| Width | 1500mm |
| Depth | 700mm |
SPECIFICATIONS
| Accessories | |
| Central controller | Optional |
| IR Controller | Optional |
| Capacity | |
| Cooling capacity (kW) | 10kW |
| Heating capacity (kW) | 10.5kW |
| Consumption | |
| COP | 3.15 |
| EER | 3.44 |
| Features | |
| 24 Hour timer | • |
| Auto restart | • |
| Blue fin coils | • |
| Condensate pump | • |
| DRED (Demand Response) ready | • |
| MEPS approved | • |
| Motor type | DC motor |
| Self diagnostics | • |
| Sleep mode | • |
| Standard controller | YR-E17 |
| Wi-Fi controller compatible | • |
| Installation | |
| Corresponding outdoor unit | 1UH105N1ERG |
| Performance | |
| Airflow | 555l/s |
| R410a refrigerant | • |
| Self cleaning evaporator | • |
| Sound power | 60dBA |
| Sound pressure | 44dBA |
| Working temperature cooling | -15 to 50 C |
| Working temperature heating | -20 to 24 C |
| Power requirements | |
| Power supply | 220-240vac |
| Supply frequency | 50Hz |
| Product dimensions | |
| Depth | 700mm |
| Height | 248mm |
| Net weight | 62kg |
| Outdoor unit depth | 370mm |
| Outdoor unit height | 965mm |
| Outdoor unit width | 950mm |
| Width | 1500mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51491 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available.? 2020 Haier Inc. All rights reserved.
