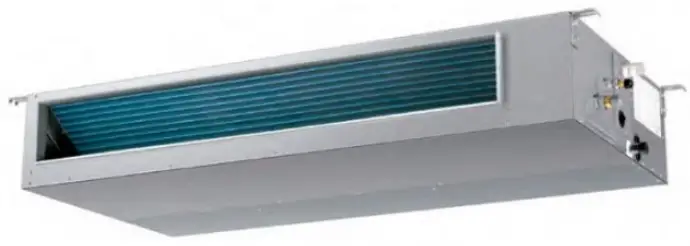

ADH140M1ERG 14.0 kW Ducted Low Profile
User Guide
ADH140M1ERG 14.0 kW Ducted Low Profile
DIMENSIONS
| Height | 250 mm |
| Width | 1500 mm |
| Depth | 700 mm |
SPECIFICATIONS
| Accessories | |
| Central controller | Optional |
| IR Controller | Optional |
| Capacity | |
| Cooling capacity (kW) | 13.4 kW |
| Heating capacity (kW) | 15 kW |
| Consumption | |
| COP | 3.5 |
| EER | 3.3 |
| Features | |
| 24 Hour timer | • |
| Auto restart | • |
| Blue fin coils | • |
| Condensate pump | • |
| DC inverter | 180° sine wave |
| DRED (Demand Response) ready | • |
| MEPS approved | • |
| Motor type | DC motor |
| Self diagnostics | • |
| Sensor panel | PB-950 MB |
| Sleep mode | • |
| Standard controller | YR-E17 |
| Standard panel | PB-950 KB |
| Wi-Fi controller compatible | • |
| Performance | |
| Airflow | 690l/s |
| DC inverter | 180° sine wave |
| Self cleaning evaporator | • |
| Sound power | 64 dBA |
| Sound pressure | 41 dBA |
| Power Requirements | |
| Power supply | 220-240 vac |
| Supply frequency | 50/60Hz |
| Product dimensions | |
| Depth | 700 mm |
| Height | 250 mm |
| Net weight | 52 kg mm |
| Width | 1500 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51085 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
