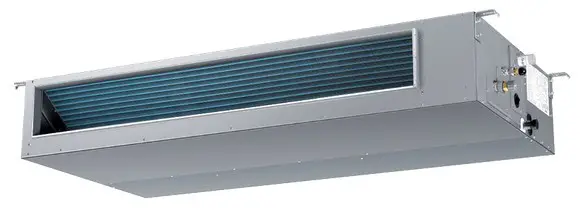

QUICK REFERENCE GUIDE > AD105S2SM5FA
Ducted, Low Profile, 10.5kW
Ducted White
DIMENSIONS
| Height | 248 mm |
| Width | 1500 mm |
| Depth | 700 mm |
SPECIFICATIONS
| Accessories | |
| Central controller | Optional |
| IR Controller | Optional |
| Capacity | |
| Cooling capacity (kW) | 10kW |
| Heating capacity (kW) | 10.5kW |
| Consumption | |
| COP | 3.15 |
| EER | 3.44 |
| Features | |
| 24 Hour timer | • |
| Auto restart | • |
| Blue fin coils | • |
| Condensate pump | • |
| DC inverter | 180° sine wave |
| DRED (Demand Response) ready | • |
| MEPS approved | • |
| Motor type | DC motor |
| Self diagnostics | • |
| Sleep mode | • |
| Standard controller | YR-E17 |
| Wi-Fi controller compatible | • |
| Installation | |
| Corresponding outdoor unit | 1UH105N1ERG |
| Performance | |
| Airflow | 555l/s |
| DC inverter | 180° sine wave |
| R410a refrigerant | • |
| Self cleaning evaporator | • |
| Sound power | 60dBA |
| Sound pressure | 44dBA |
| Working temperature cooling | -15 to 50 C |
| Working temperature heating | -20 to 24 C |
| Power Requirements | |
| Power supply | 220-240vac |
| Supply frequency | 50Hz |
| Product dimensions | |
| Depth | 700 mm |
| Height | 248 mm |
| Net weight | 62kg mm |
| Outdoor unit depth | 370 mm |
| Outdoor unit height | 965 mm |
| Outdoor unit width | 950 mm |
| Width | 1500 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51491 |
Other product downloads available at haier.com
User Guide Service & Warranty Product Brochure Installation Guide Installation Guide (Outdoor Unit) Installation Guide (WiFi)
