Low Profile Ducted, 10kW
Ducted White

Haier AD100S2SM7FA SET Low Profile Ducted 10kW-

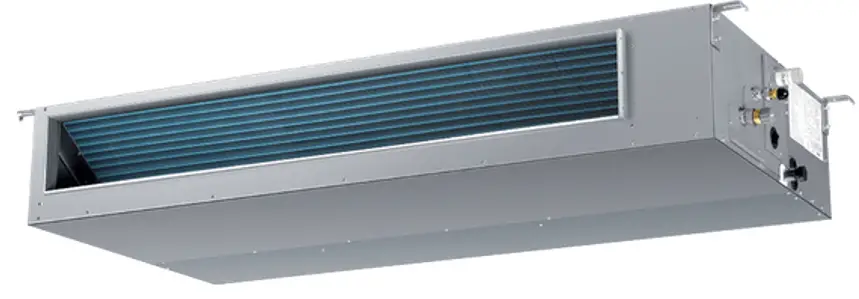

AD100S2SM7FA-SET Low Profile Ducted 10kW

Low Profile Ducted systems offer total heating and cooling to multiple rooms, with a slim indoor unit hidden in the ceiling and discreet vents.

  • Precise temperature control, with an operational range from -20°C to 50°C
  • Slim design for installation in shallow ceiling cavities, such as in multistorey buildings
  • Remote control using the SmartHQ™ app when the optional Wi-Fi accessory is installed
  • Blue Fin coating on the outdoor condenser helps to prevent environmental corrosion

FEATURES & BENEFITS

Comfort in all conditions
Control the humidity level inside using the Dry function. By removing excess moisture in the air, you can create a comfortable and healthy environment that feels cooler – all while using less energy than Cool mode.
Control from anywhere
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
Efficient and effective
The DC fan motor is more energy efficient than a standard AC motor and it is also highly adjustable. This means you can adjust the static pressure and airflow for optimal performance to suit your layout.
Flexible installation
The low-profile design of this unit is ideal for installation in shallow ceiling cavities, such as between floors in multistorey buildings. The panel system also allows for easy conversion between rear or bottom return air installation.
Peace of mind
Moisture from the air is collected during normal operation. The Low Profile Ducted indoor unit has a condensate pump with built-in fail-safe switch for reliable moisture draining in confined spaces.
Central controller
With an optional central controller, you can control individual or connected units from a simple-to-use display. Schedule your air conditioning to turn on to create the perfect environment just before you wake up, or switch off at the end of the workday.

SPECIFICATIONS

Capacity

Cooling capacity (kW)10.0kW
Heating capacity (kW)10.8kW
Consumption
COP3.44
EER3.15
HSPF-RES (Hot/Average/Cold)3.690 / 3.397 / 3.019
HSPFCOM (Hot/Average/Cold)3.681 / 3.496 / 3.191
TCSPF-COM (Hot/Average/Cold)4.350 / 4.383 / 4.652
TCSPF-RES (Hot/Average/Cold)4.074 / 3.767 / 3.864
Features
24 Hour timer
Auto restart
Blue fin coils
Condensate pump
DC inverter
DRED (Demand Response) ready
Dry mode
MEPS approved
Refrigerant factory charge2.3
Self diagnostics
SmartAir2 WiFi adaptorOptional
SmartHQ WiFi controlOptional
Standard controllerOptional
Voice control via Google Home or
Installation
Indoor unit modelAD100S2SM7FA
Indoor unit weight52kg
Liquid linePipe size 9.52
Maximum pipe run50
Outdoor unit model1U100S2SN5FA
Outdoor unit weight82kg
Suction linePipe size 15.88
Performance
Airflow555L/S
DC inverter
R32 Refrigerant
Sound power SWL (outdoor)68dBA
Sound pressure SPL (indoor)44 / 40 / 37dBA
Sound pressure SPL (outdoor)52dBA
Power Requirements
Power phase1
Supply frequency50Hz
Supply voltage230V
Product dimensions
Indoor unit depth700 mm
Indoor unit height248 mm
Indoor unit width1500 mm
Outdoor unit depth370 mm
Outdoor unit height965 mm
Outdoor unit width950 mm
Warranty
Parts and labour5 years
SKU51583

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
