3112 A Detachable Trailer Hitch
Instruction Manual
INFORMATION | MANUALS | SERVICE
3KS
685 479_C | 10/2014
Please ensure that these instructions are read and fully understood before commencing installation. Contents of these kits and their fitting manuals are subject to alteration without notice.

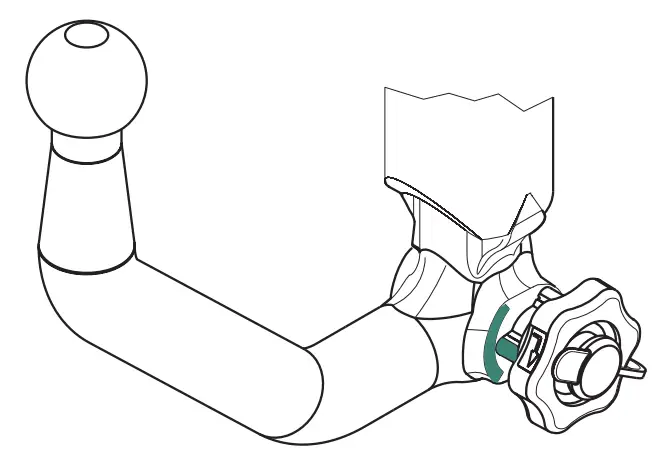

Detachable Trailer Hitch

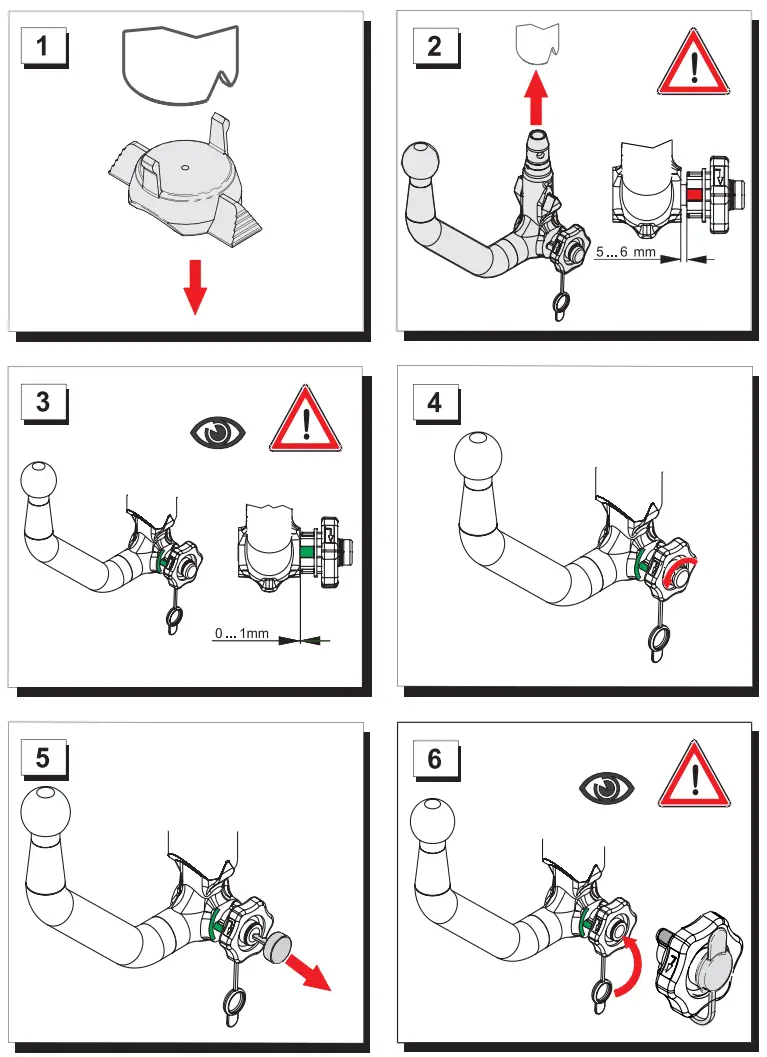

- After inserting the ball rod (2), make sure there is no gap between the hand wheel and the ball rod (3).

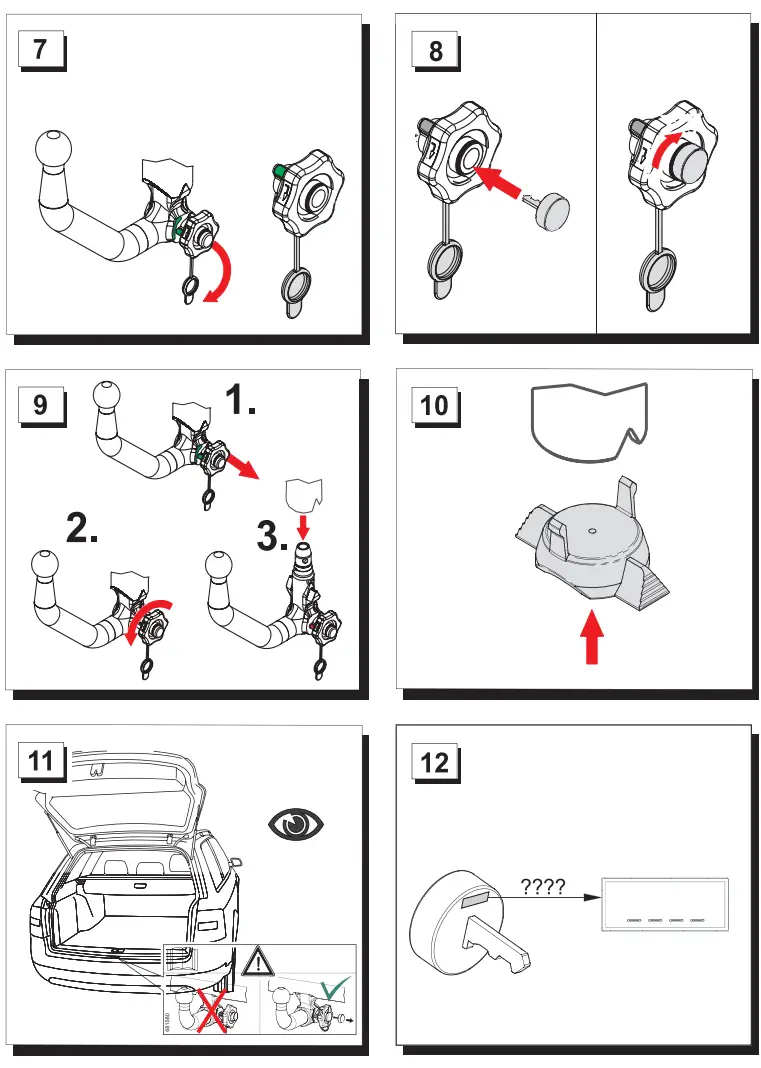

- Before driving with the trailer, check to ensure that it is hitched securely – remove the key (4)+(5) and cover the lock (6).
- Keep the ball rod and receiving sleeve clean.
- Fasten removed ball rod in the vehicle and close receiving sleeve (10).
- All repairs to the hitch must be performed by the manufacturer.
