ZYXEL GS1200-5HP v2/GS1200-8HP v2 User Guide

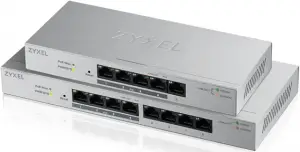

The Zyxel GS1200-5HP v2/GS1200-8HP v2 is equipped with 5 or 8 Gigabit ports includes 4 PoE ports compliance with IEEE 802.3at and automatically detect and supply power up to 60W total PoE budget.

However, the Zyxel GS1200-5HP v2/GS1200-8HP v2 is more than just a typical PoE switch. It comes with an easy-to-use web configuration to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simple control functions for office network management.

60 Watts of total output on 4 Gigabit PoE ports
Link aggregation increases bandwidth between 2 Ethernet ports
Quality of Service for better traffic control
Multicast IGMP snooping v1/v2 and v3 compatible for streaming applications
Virtual LAN for enhanced network security
Easy web management
Advanced energy-savings at work

Contents hide

1 Benefits

1.1 Smart PoE+ 802.3af/802.3at support

1.2 Quality of Service

3 Standard Compliance

4 Features

5 Certification

6 Package Contents

7 Application Diagram

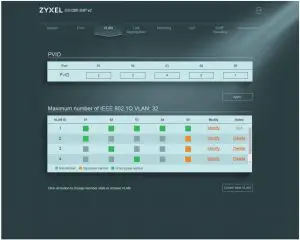

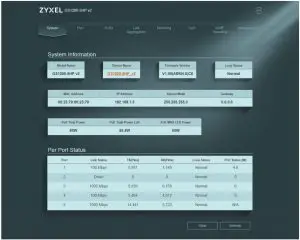

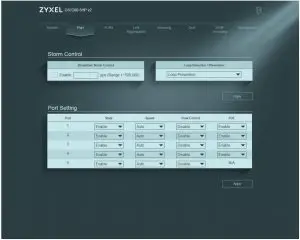

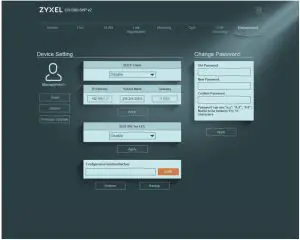

8 Easy Web-based Management Interface

9 Documents / Resources

9.1 References

10 Related Posts

Benefits

Smart PoE+ 802.3af/802.3at support

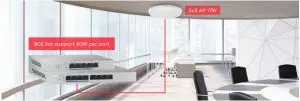

The GS1200 series supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.

Quality of Service

Port-based Quality of Service for better voice and video traffic control. Optimizing access bandwidth on the network.

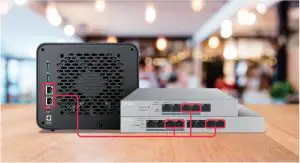

Link aggregation

Increases bigger bandwidth between 2 Ethernet ports to support aggregated uplink/downlink traffic.

VLAN

Segregating network into small groups for enhanced network security and efficiency

IGMP snooping

Optimizing network efficiency on multicast traffic delivery without the need of an extra multicast router.

Specifications

Model		GS1200-5HP v2	GS1200-8HP v2
Product name		5-Port GbE Web Managed PoE Switch	8-Port GbE Web Managed PoE Switch
Port Density
Total port count		5	8
1000BASE-T		1	4
1000BASE-T PoE		4	4
Performance
Switching capacity		10 Gbps	16 Gbps
Packet buffer		128 KB	192 KB
MAC address		2K	4K
Jumbo frame		9 KB	9 KB
LED
Power		Yes	Yes
Per port		Yes	Yes
PoE power status		Yes (Max)	Yes (Max)
Power
Input voltage		55 V / 1.3 A	55 V / 1.3 A
Power supply		External	External
Maximum power consumption (watt)		72	72
PoE power budget (watt)		60	60
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	193 x 84 x 26/7.60 x 3.31 x 1.02	240 x 105 x 26/9.45 x 4.13 x 1.02
	Weight (g/lb.)	392/0.86	584/1.29
Packing	Dimensions (WxDxH)(mm/in.)	210 x 132 x 78/8.26 x 5.20 x 3.07	256 x 132 x 78/10.08 x 5.20 x 3.07
	Weight (g/lb.)	950/2.10	1,153/2.54
Environmental Specifications
Operating environment	Temperature	0°C to 40°C/32°F to 104°F	0°C to 40°C/32°F to 104°F
	Humidity	10% to 90% (non-condensing)	10% to 90% (non-condensing)
Storage environment	Temperature	-40°C to 70°C/-40°F to 158°F	-40°C to 70°C/-40°F to 158°F
	Humidity	10% to 90% (non-condensing)	10% to 90% (non-condensing)

Standard Compliance

IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.3ab 1000BASE-T Ethernet
IEEE 802.3az EEE support
IEEE 802.3x flow control
IEEE 802.3z 1000BASE-X
IEEE 802.1p CoS
IEEE 802.3af PoE
IEEE 802.3at PoE Plus (30W per port)
Auto MDI/MDI-X
IEEE 802.1Q VLAN tagging

Features

Web-based management
System password
VLAN (Port supported)
- GS1200-5HP v2: 5 ports
- GS1200-8HP v2: 8 ports
Port-based QoS
802.1p CoS
Broadcast storm control
Loop detection/prevention
DHCP client
Link aggregation
- GS1200-5HP v2: one LAG (Port 3&4)
- GS1200-8HP v2: two LAGs (Port 3&4, Port 7&8)
Port mirroring
Weighted Round Robin (WRR) priority QoS
IGMP snooping v1/v2/and v3 compatible
Supported multicast groups: 128
Firmware update
