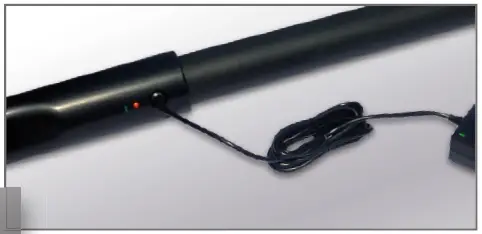

Plug Charger into Control Unit to check charge status (fully charged = LED off) and recharge batteries (LED on).

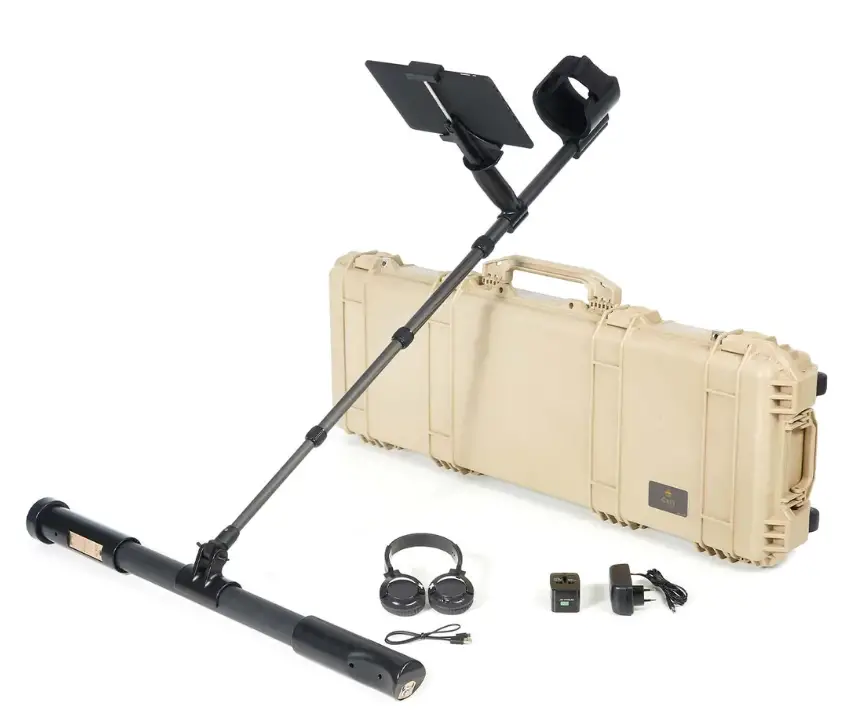

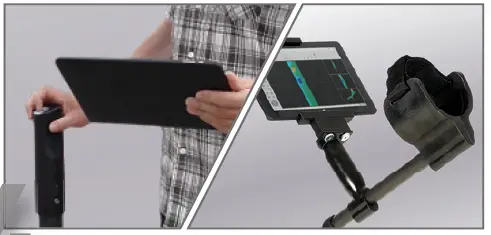

Power on Probe. Hold Probe vertically in your hand OR clamp Probe horizontally to Telescopic Rod.
Install software, setup Bluetooth and connect notebook with Probe (see DATA TRANSFER).
Probe vertical: Operation via Probe or notebook.
1. Probe horizontal: Operation only via notebook.

LIVE SOUND

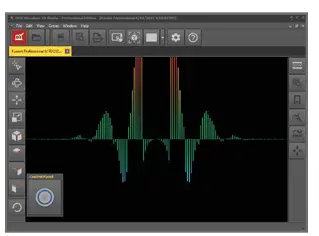

Acoustic and visual magnetic field measurement to detect metal objects near the surface.

3D GROUND SCAN

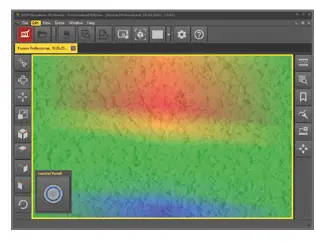

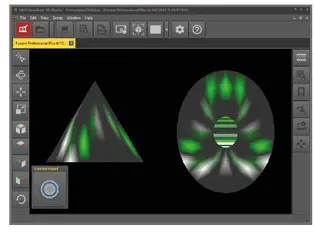

Ground measurement with 3D visualization for detailed analysis on the notebook. Probe vertical or horizontal.

LIVE SCAN (horizontal)

Fast detection of objects in random scan direction (scan can not be saved). Probe in horizontal orientation.

LIVE SCAN (vertical)

Fast detection of anomalies in random scan direction (scan can not be saved). Probe in vertical orientation.

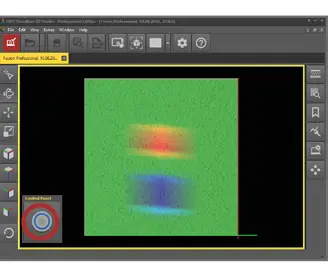

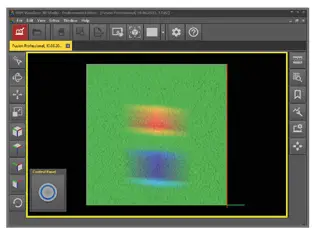

Open Visualizer 3D Studio, start import and configure 3D Ground Scan:

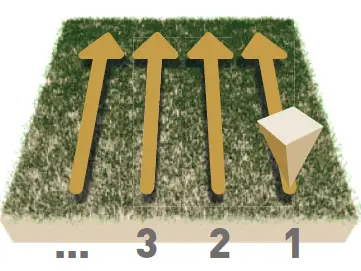

Start at bottom right of the scan field.

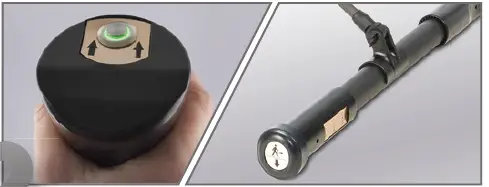

Press the Trigger Button at the probe or in Visualizer 3D Studio to start scanning.
Scan the line. The measurement of the line will end automatically.

Walk all scan lines at the same speed. Keep the probe straight and avoid pivoting or swinging.

SOFTWARE INSTALLATION

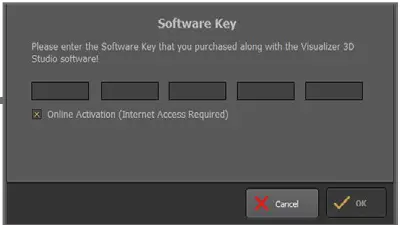

SOFTWARE ACTIVATION

DATA TRANSFER

Open Visualizer 3D Studio and start Import:

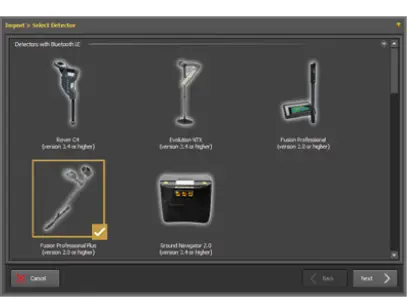

Select Fusion Professional Plus (version 2.0 or higher) and enter scan parameters in dialogs.
Perform measurement with Fusion Professional Plus. After finishing, save file on notebook.
