Smartphone Holder
for 1/4″ connection thread
INSTRUCTION MANUAL
GENE RAL WARNINGS
DANGER OF MATERIAL DAMAGE!
Only use this product as an accessory on devices with the appropriate technical requirements.
When installing, make sure to secure the clamps well to avoid dropping your smartphone.
The manufacturer accepts no liability for damage to the device itself or to alternative devices (optics, smartphones, etc.) caused by improper handling.

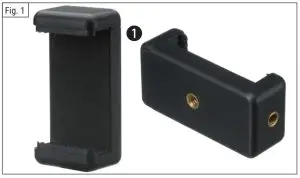

SCOPE OF DELIVERY (Fig. 1 )
Smartphone holder (1 pc.)

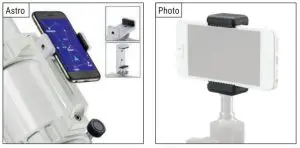

ASSEMBLY EXAMPLES
TECHNICAL DATA
Designation Mounting type:
Smartphone Adaptor horizontally or vertically via 1/4″ female thread on devices with corresponding 1/4″ male thread (e.g. photo tripod, telescope device, or similar)
GENERAL ASSEMBLY INSTRUCTIONS
Check whether the technical requirements for mounting this accessory on the desired device are met.
Before assembly, remove all accessories from the packaging and check for completeness.
ASSEMBLY

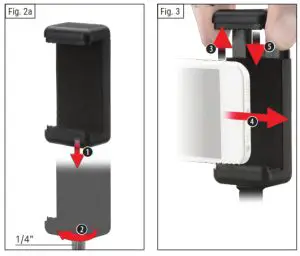

- (Fig. 2 + 2a) Place holder in the desired position on existing base with 1/4″ thread (1) and screw on (2).
- ( Fig. 3) Pull out the clamp (3), push in the smartphone 1) (4), and retract the clamp (5).
Contact
Bresser GmbH
Gutenbergstr. 2
46414 Rhede – Germany
@BresserEurope
1) Smartphone not included. / Errors and technical changes excepted. / Manual_Smartphone-Holder-Messier_en_BRESSER_v012021a
