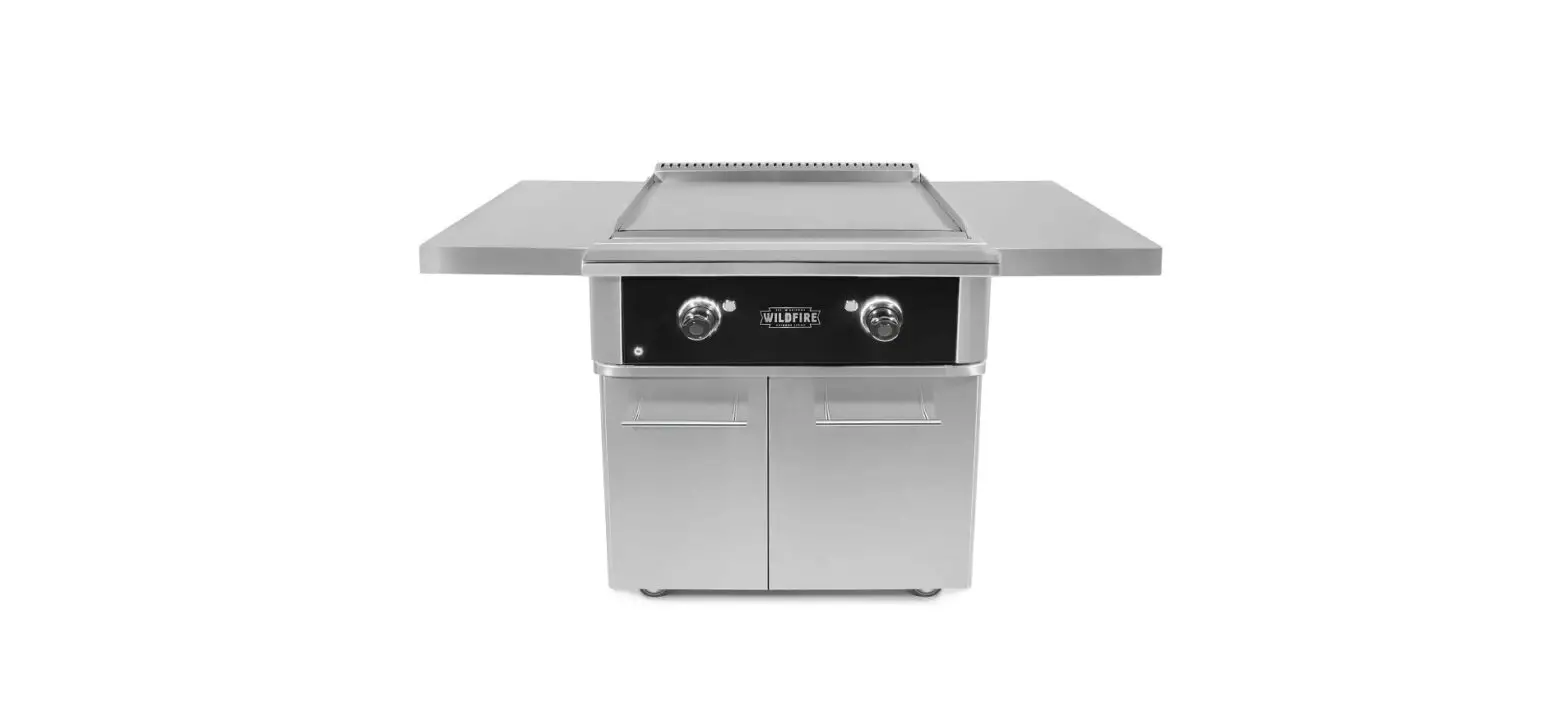

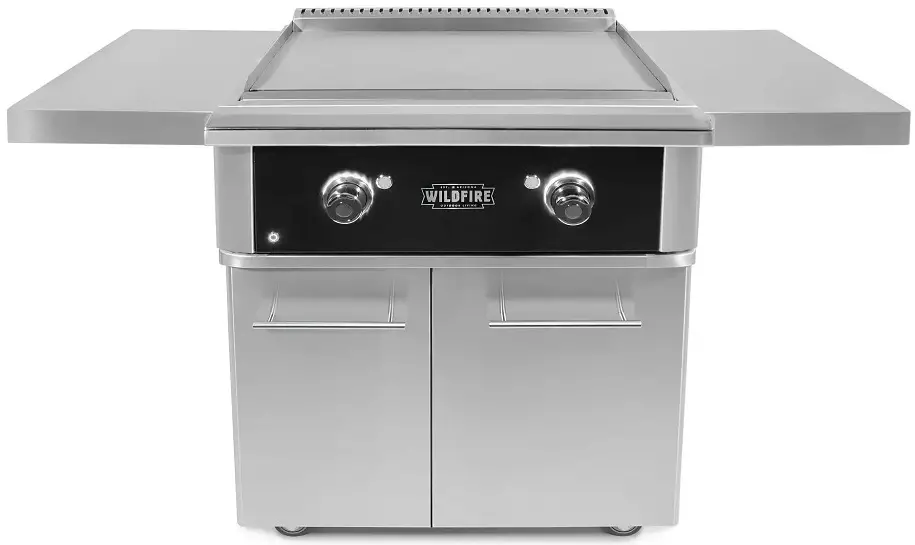

WILDFIRE WF-CART30-CG 30-Inch Griddle Cart
WF-CART30-CG – Parts List
| Griddle Cart Parts Listing | |||
| No. | Name | Qty | |
| 1 | Left and Right Side Shelf | 2 | |
| 2 | Cable Holder | 1 | |
| 3 | Left Side Shelf Bracket | 2 | |
| 4 | Right Side Shelf Bracket | 2 | |
| 5 | Left Side Plate Fixture | 2 | |
| 6 | Right Side Plate Fixture | 2 | |
| 7 | Partition Panel | 1 | |
| 8 | Rear Panel | 1 | |
| 9 | Left Side Panel | 1 | |
| 10 | Middle Panel | 1 | |
| 11 | Left Rails | 2 | |
| 12 | Right Rails | 2 | |
| Griddle Cart Parts Listing | |||
| 13 | Right Side Panel | 1 | |
| 14 | Bottom Shelf | 1 | |
| 15 | Handles Screws | 4 | |
| 16 | Access Door Handle | 2 | |
| 17 | Front Supporting Bar | 1 | |
| 18 | Left Side Drawer | 1 | |
| 19 | Right Side Drawer (Tank Holder) | 1 | |
| 20 | Cart Wheels | 4 | |
| 21 | Wheel Fixture (Left Side) | 2 | |
| 22 | Wheel Fixture (Right Side) | 2 | |
| 23 | Wheel Reinforcing Plate (Left Side) | 2 | |
| 24 | Wheel Reinforcing Plate (Right Side) | 2 | |

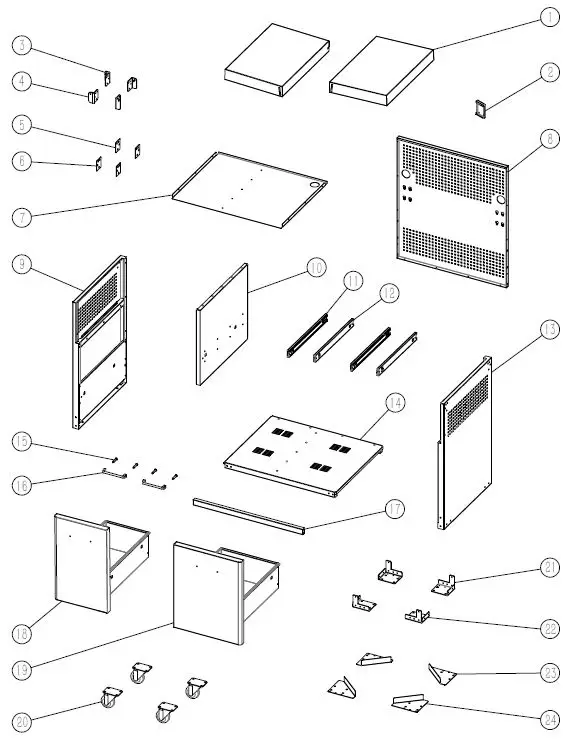

WF-CART30-CG – Exploded Parts View
Assembling
WF-CART30-CG

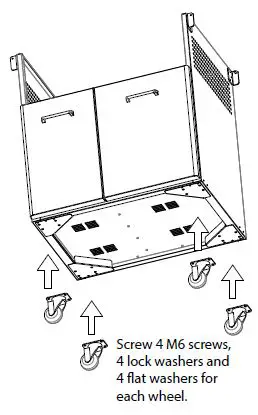

STEP 1
Attach wheels to cart. Wheels with brakes in the front.

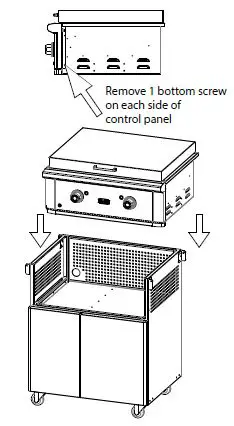

STEP 2
Place head in cart.

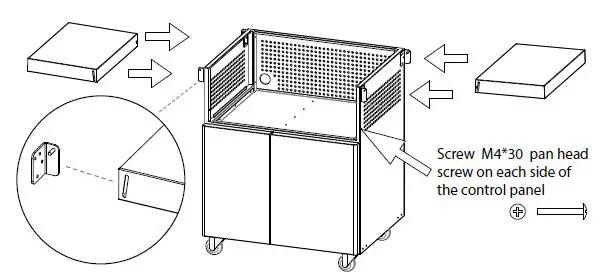

STEP 3
Attach side shelves.

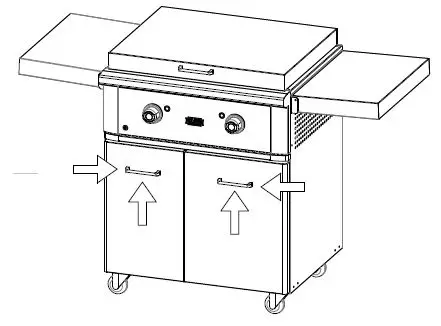

STEP 4
Attach door handles.
CALL US FIRST
For immediate help with installation, product information, or if your product arrives damaged, please call our toll-free number at 602-344-4840
(Monday – Friday, 8:00 AM – 5:00 PM, AZ Mountain Time).
Or email us at:
[email protected].
OUR STAFF IS READY TO PROVIDE ASSISTANCE
