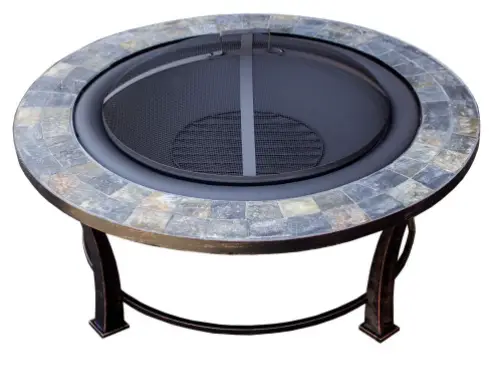

AZ Patio Heaters 40″ Slate Top Wood Burning Firepit
WARNINGS:
- This fire bowl is intended for outdoor use only. Do not use on wooden decks.
- This fire bowl is intended to burn wood logs only. Do not burn coal, leaves, or other combustible materials in the fire bowl.
- Not for use by children. Keep children and pets away from the fire bowl.
- The fire bowl is hot. Use with caution. Do not touch the hot fire bowl with bare hands.
- Never leave any burning fire bowl unattended, always extinguish the fire completely before leaving the fire bowl.
- Do not use near flammable or combustible objects or materials.
- When the fire bowl is in use, the handle on the mesh screen can reach extreme temperatures that can cause serious injury to an unprotected hand. Use a poker or an appropriate heat resistant glove or pad when handling.
- Check local fire regulations and municipal by-laws for safe use.

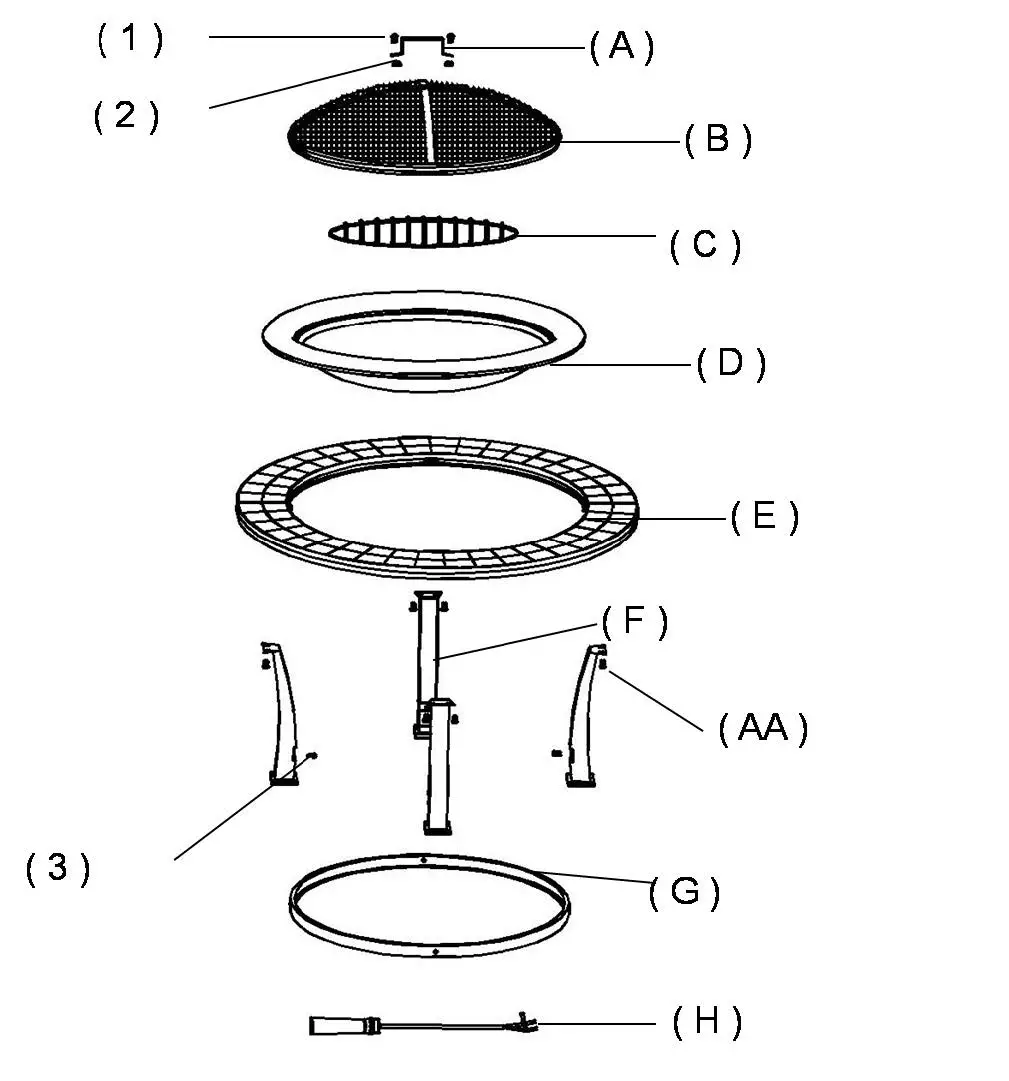

FIRE PIT PARTS LIST
| No. | PARTS | Qty |
| A | Handle | 1 |
| B | Mesh Screen | 1 |
| C | Log Grate | 1 |
| D | Fire Bowl | 1 |
| E | Slate Top | 1 |
| F | Leg | 4 |
| G | Support Ring | 1 |
| H | Poker | 1 |
HARDWARE LIST
| No. | Hardware | Qty |
| 1 | M6*10 bolt | 10 |
| 2 | M6 Nut | 2 |
| 3 | M6*18 bolt | 4 |
Step By Step Assembly Instructions:
Step 1: Choose a level location for assembly. Remove all parts from packaging check parts list for missing parts.

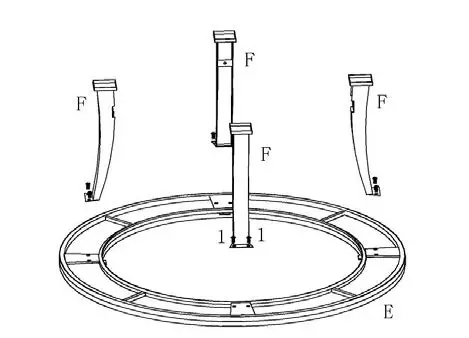

Step 2: Attach Leg (F) to Slate Top (E) by using 8pcs M6*10 bolts (1) Do not fully tighten at first!

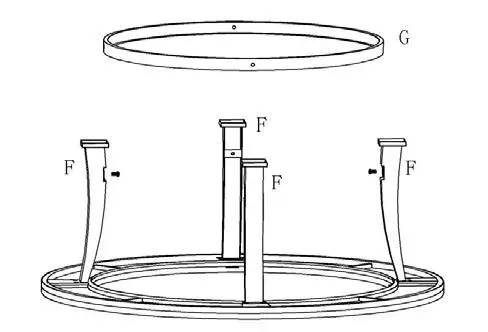

Step 3: Attach Support Ring (G) to 4 Legs (F) by using 4pcs M6*18 bolts(3) tightened, once ring is attached tighten all the bolts.
Step 4: Insert Handle (A) into mid hole of Mesh Screen (B) by using M6*10MM bolts (1) and M6 Nut (2) tightened.
Step 5: Place Log Grate(C) and Mesh Screen (B) into the Fire Bowl. Then put the Fire Bowl (D) into the Slate top.
Now your fire pit is ready for use!
