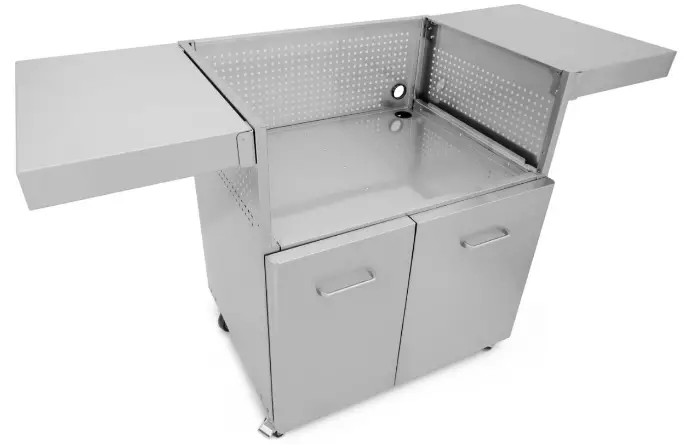

WILDFIRE WF-CART30-CGG 30 Inch Grill Cart

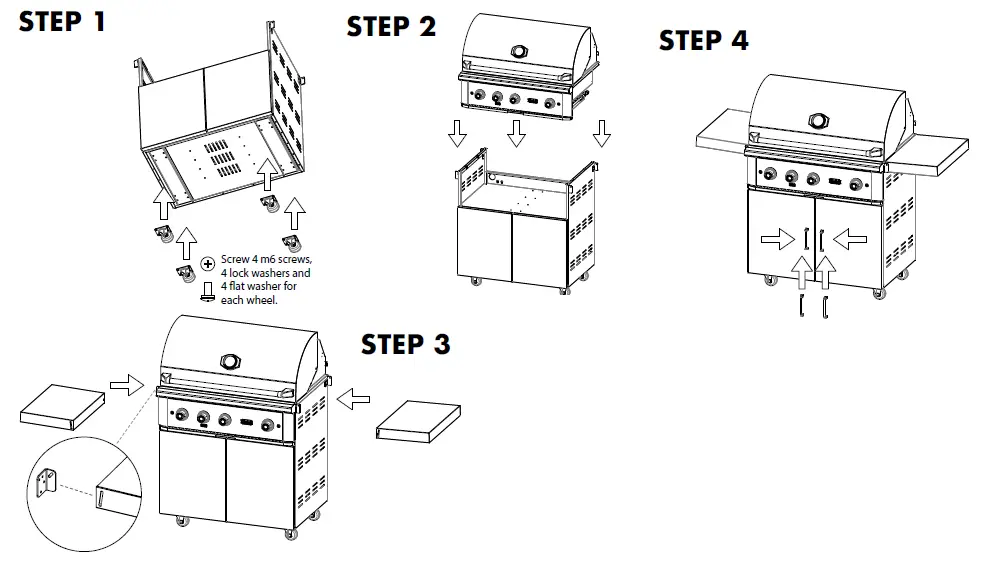

INSTALLATION
- Attach wheels to cart. Wheels with brakes in the front.
- Attach grill head to cart.
- Attach side shelves.
- Attach door handles.
Parts List
| No. | Name | Qty | Part No. | 30″ Grill | 36″ Grill | 42″ Grill |
| 1 | Side Shelf Holder | 2 | 02-00430 | |||
| 2 | Cable Holder | 1 | 02-00431 | |||
| 3 | Left L Bracket | 2 | 02-00432 | |||
| 4 | Right L Bracket | 2 | 02-00433 | |||
| 5 | Bracket Fixture | 4 | 02-00434 | |||
| 6 | Partition Panel | 1 | 02-00451 | |||
| 7 | Rear Panel | 1 | 02-00452 | |||
| 8 | Left Side Panel | 1 | 02-00437 | |||
| 9 | Bottom Panel | 1 | 02-00453 | |||
| 10 | Right Side Panel | 1 | 02-00439 | |||
| 11 | Left Tank Holder Shelf | 1 | 02-00440 | |||
| 12 | Right Tank Holder Shelf | 1 | 02-00441 | |||
| 13 | Gas Tank Holder | 1 | 02-00442 | |||
| 14 | Guide Rail | 2 | 02-00443 | |||
| 15 | Handle | 2 | 02-00444 | |||
| 16 | Door | 2 | 02-00454 | |||
| 17 | Wheel | 4 | 02-00446 | |||
| 18 | Middle Panel | 1 | 02-00455 | |||
| 19 | Reinforce Panel | 1 | 02-00456 |

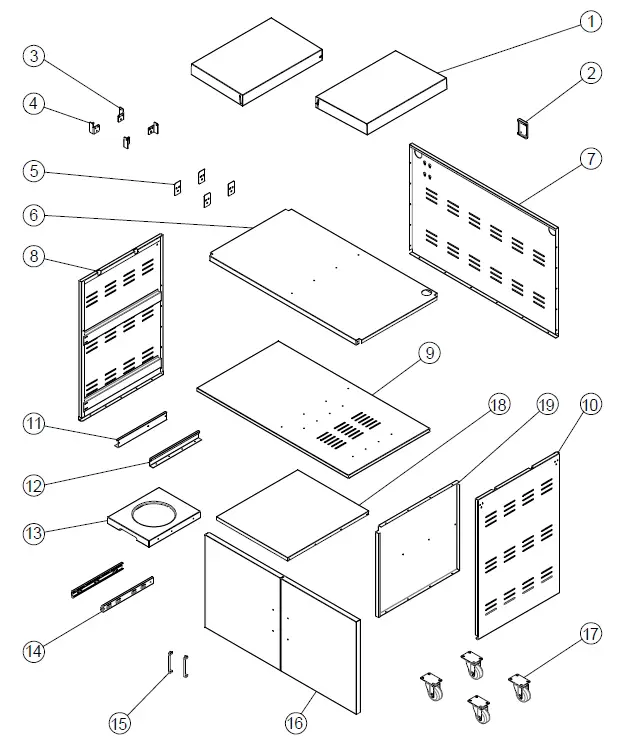

Exploded Parts View
DO NOT RETURN TO STORE
CALL US FIRST
For immediate help with installation, product information or if your product arrives damaged, please call our toll free number at:
602-344-4840
(Monday – Friday, 8:00AM – 5:00PM, AZ Mountain Time) Or email us at: [email protected]
OUR STAFF IS READY TO PROVIDE ASSISTANCE
