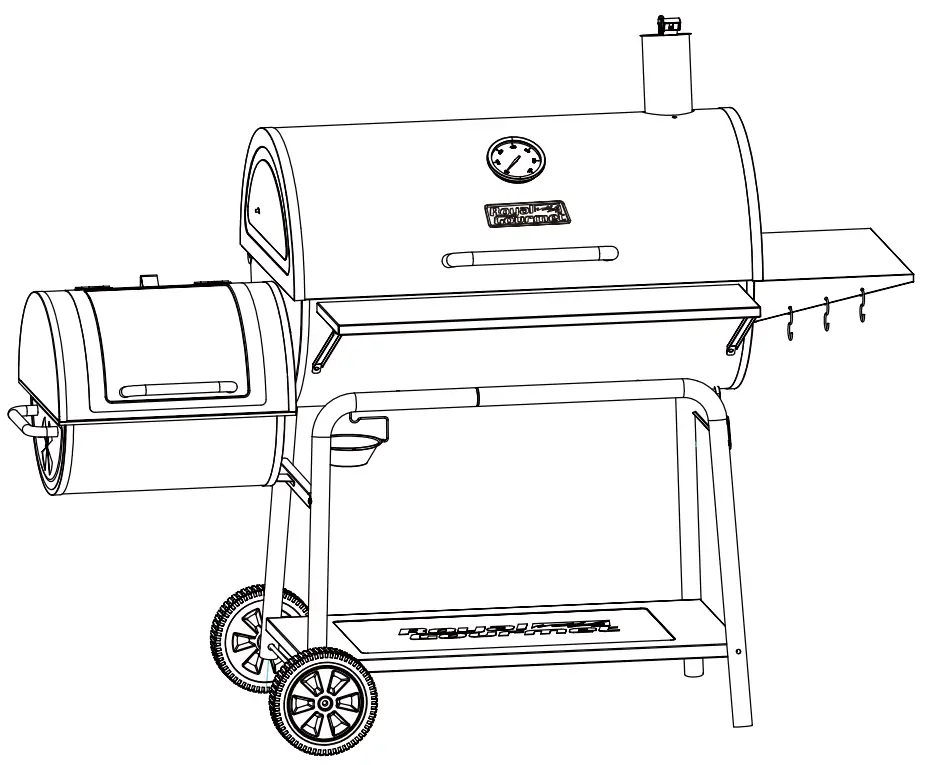

Royal Gourmet CC2036F Deluxe 36-Inch Barrel Charcoal Grill
FOR YOUR SAFETY
Use outdoors only! Read the instructions before assembling and using the appliance.
CONTACT US FIRST
If you have any questions that are not addressed, please contact us first.

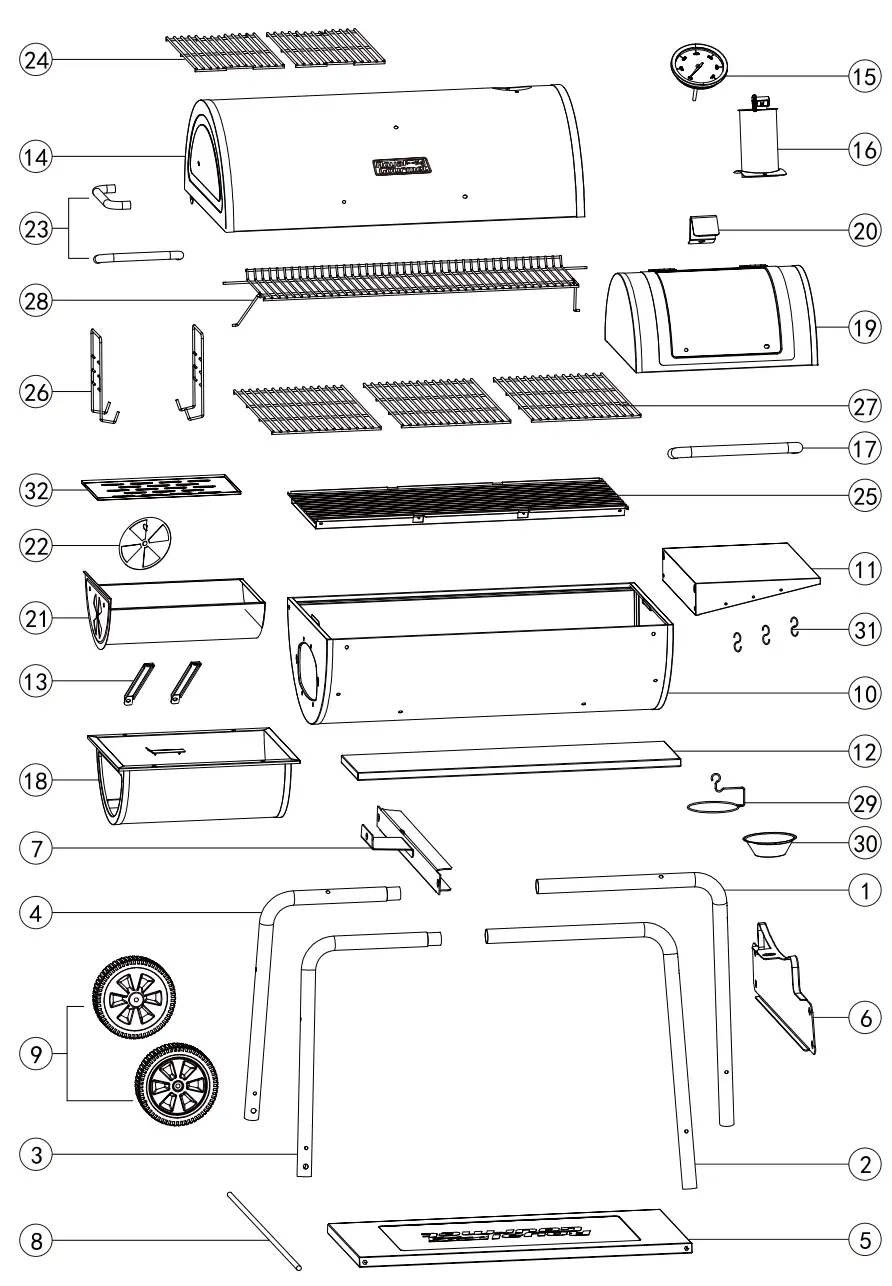

Parts Diagram
Parts List
| No. | # | QY | Description | Image |

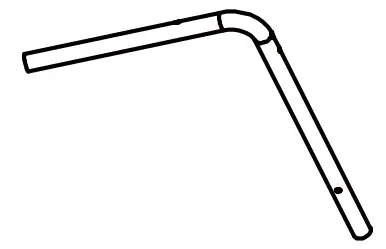

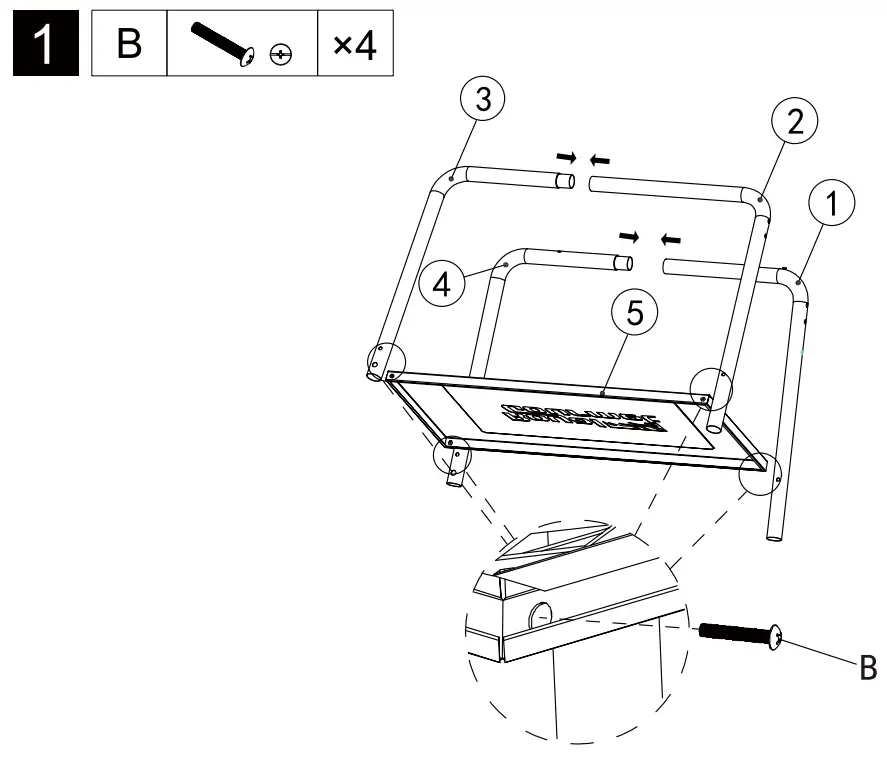

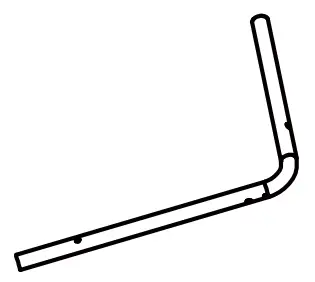

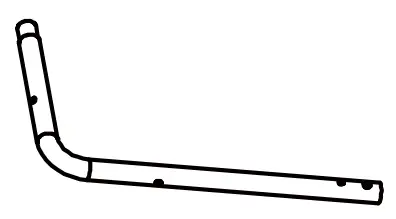

| 1 | Z-2036F032 | 1 | Right back leg |  |
| 2 | Z-2036F033 | 1 | Right front leg |  |
| 3 | Z-2036F034 | 1 | Left front leg |  |
| 4 | Z-2036F035 | 1 | Left back leg |  |

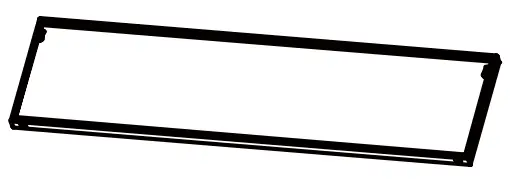

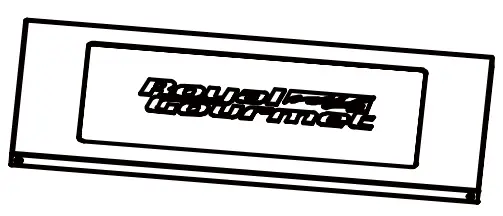

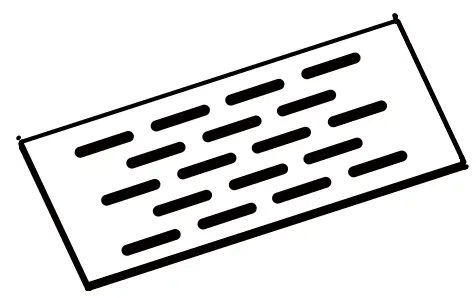

| 5 | Z-2036F036 | 1 | Bottom shelf |  |
| 6 | Z-2036F031 | 1 | Leg brace |  |
| 7 | H-2036F009 | 1 | Smoker brace |  |
| 8 | W-2036F014 | 1 | Wheel axle |  |
| 9 | W-R33005 | 2 | Wheel |  |

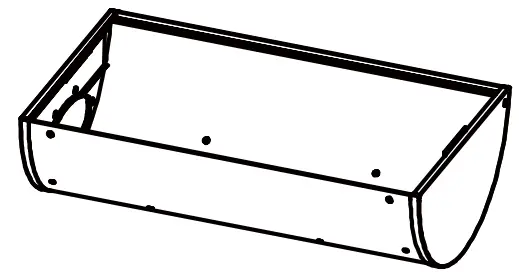

| 10 | H-2036F003 | 1 | Grill chamber |  |

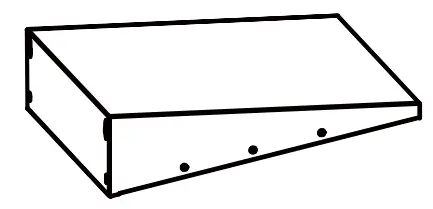

| 11 | H-2036F004 | 1 | Side table |  |
| 12 | Z-2036F014 | 1 | Front table |  |

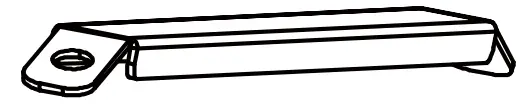

| 13 | Z-CC1830031 | 2 | Front table support beam |  |

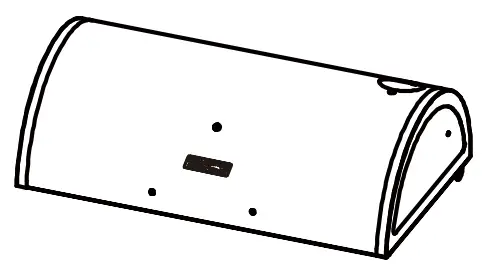

| 14 | H-2036F001 | 1 | Grill chamber lid |  |
| 15 | W-20130049 | 1 | Thermometer |  |
| 16 | H-2036F002 Z-2036F006 | 1 | Stack |  |

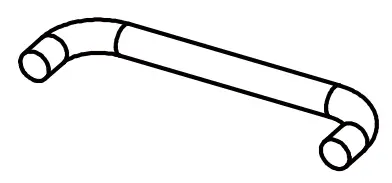

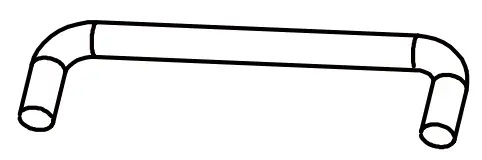

| 17 | W-2036F012 | 1 | Grill chamber handle |  |

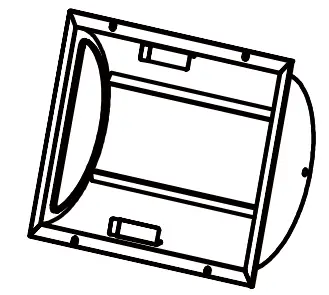

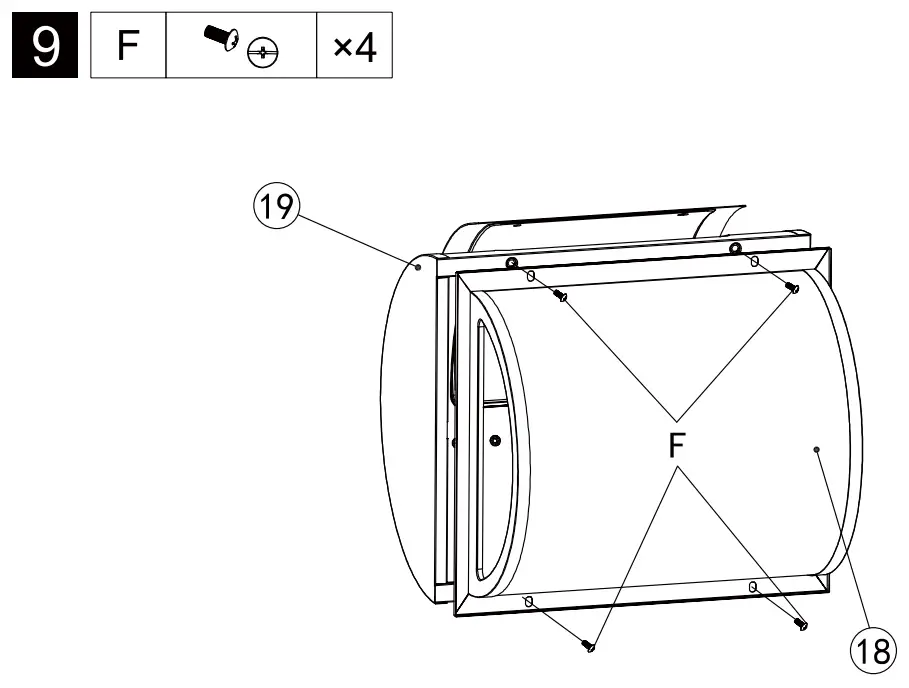

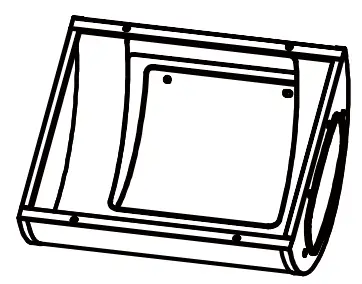

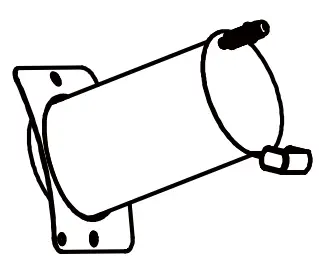

| 18 | H-2036F007 | 1 | Smoker chamber |  |
| 19 | H-2036F005 H-2036F006 | 1 | Smoker chamber top |  |

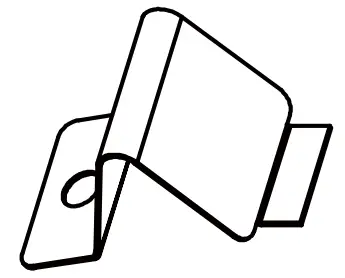

| 20 | Z-CC1830029 | 1 | Smoker lid connector |  |

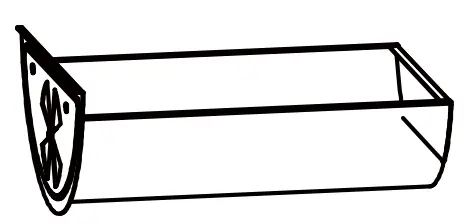

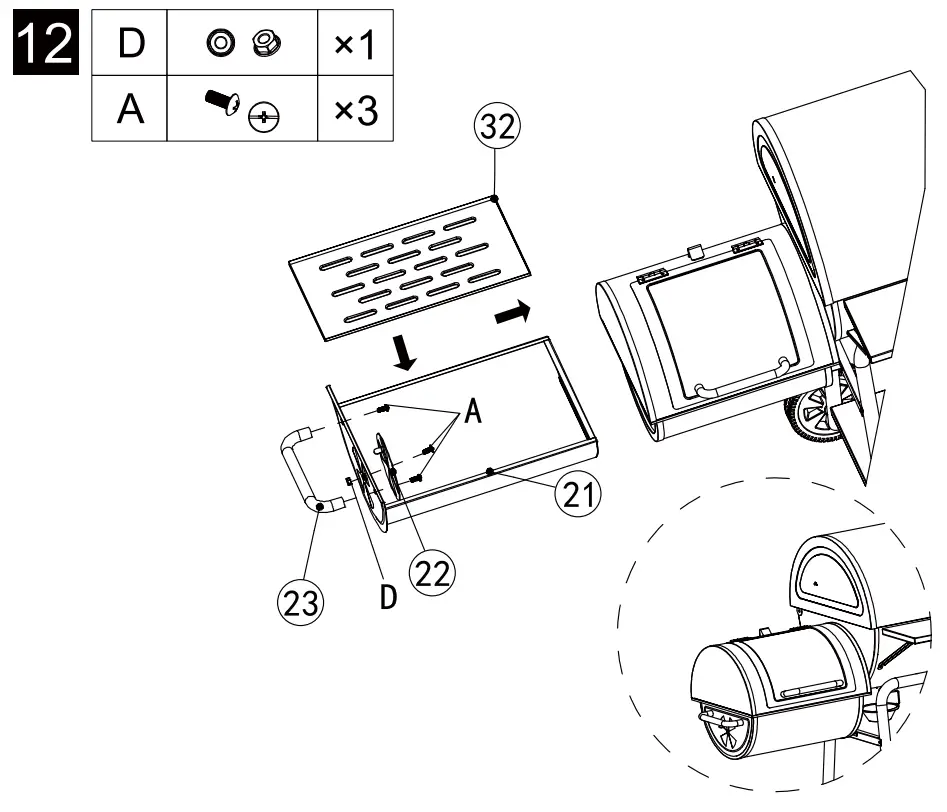

| 21 | H-2036F008 | 1 | Smoker charcoal drawer |  |
| 22 | Z-GC33E028 | 1 | Damper |  |
| 23 | W-2036F013 | 2 | Smoker chamber handle |  |
| 24 | W-2036F004 | 2 | Smoker cooking grate |  |
| 25 | Z-2036F012 W-2036F003 | 1 | Charcoal pan set |  |
| 26 | W-2036F3TS | 2 | Lifting rack |  |

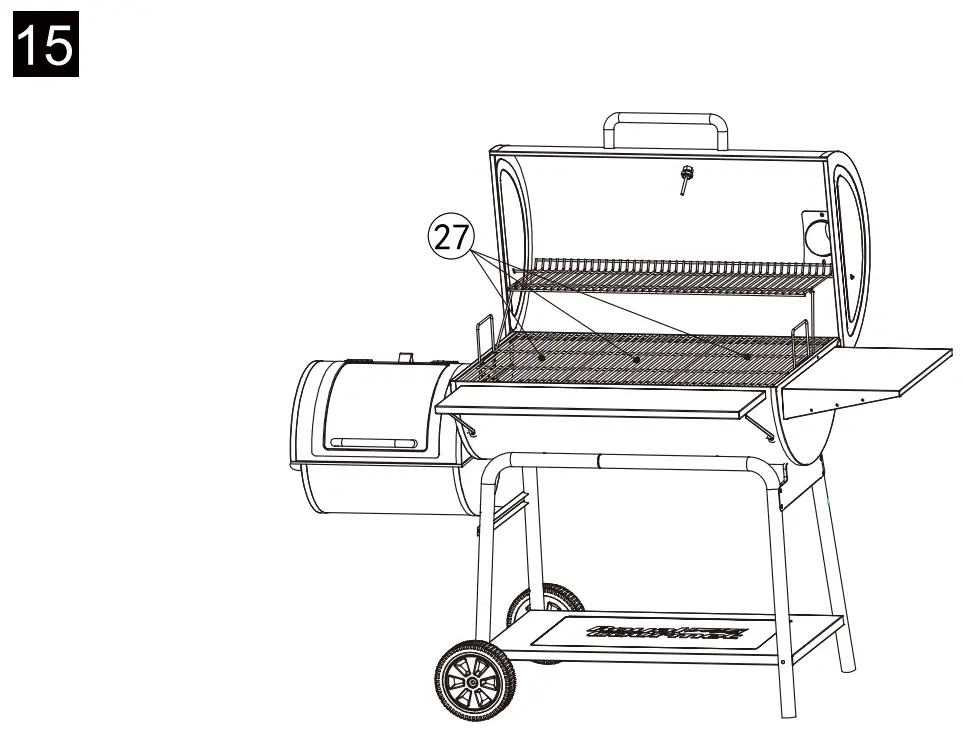

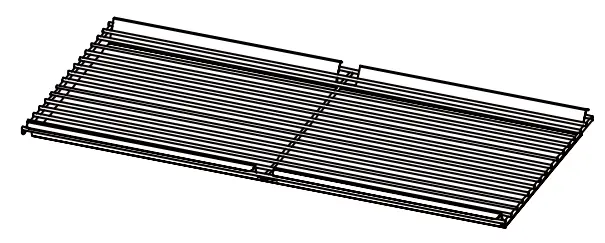

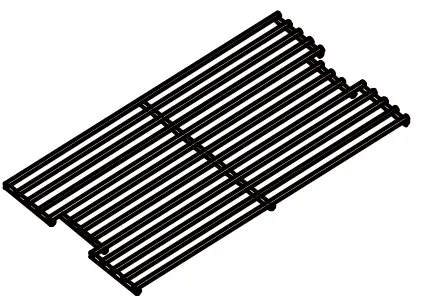

| 27 | W-2036FKW | 3 | Cooking grate |  |

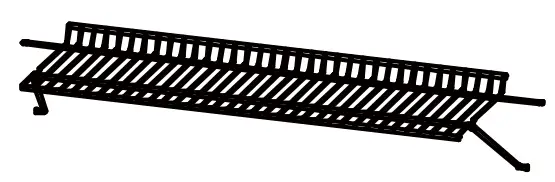

| 28 | W-2036F001 W-2036F002 | 1 | Warming rack |  |

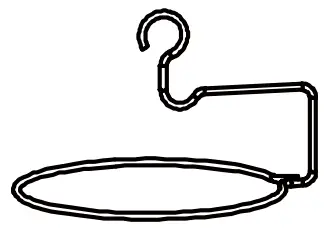

| 29 | YJ001 | 1 | Grease cup holder |
|

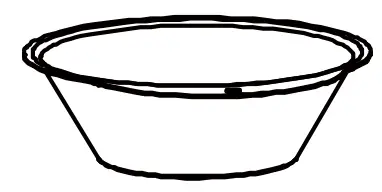

| 30 | YB001 | 1 | Grease cup |  |
| 31 | W-CC115WT008 | 3 | “S” hook |  |
| 32 | Z-2036F026 | 1 | Smoker charcoal pan |  |
Hardware List
| Key | Description | QTY | Image |

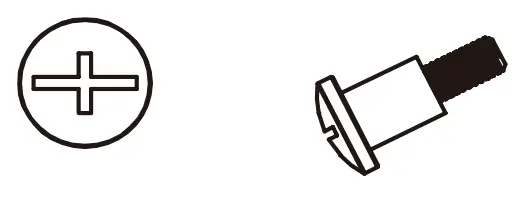

| A | M6x15 | 37 |  |

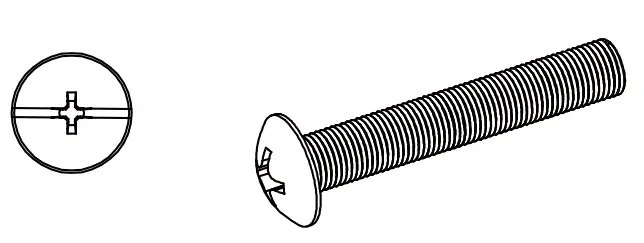

| B | M6x50 | 4 |  |

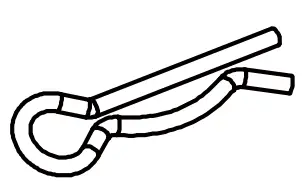

| C | Split pin | 2 |  |

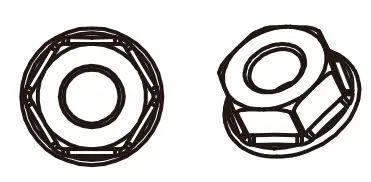

| D | M6 | 6 |  |
| E | M6 | 2 |  |
| F | M5x12 | 5 |  |
| G | Pad | 2 |  |
| H | Washer | 2 |  |

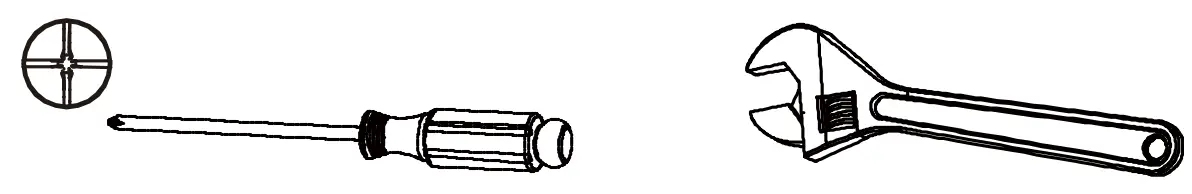

TOOLS REQUIRED
| Description | Image | |
| Phillips screwdriver | Wrench |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver and wrench
- Approximate assembly time: 40 minutes
Note:
- The right and left sides of the grill are designed as if you are facing the front of the grill.
- Model shown for illustration purpose only, specific please in kind prevail.

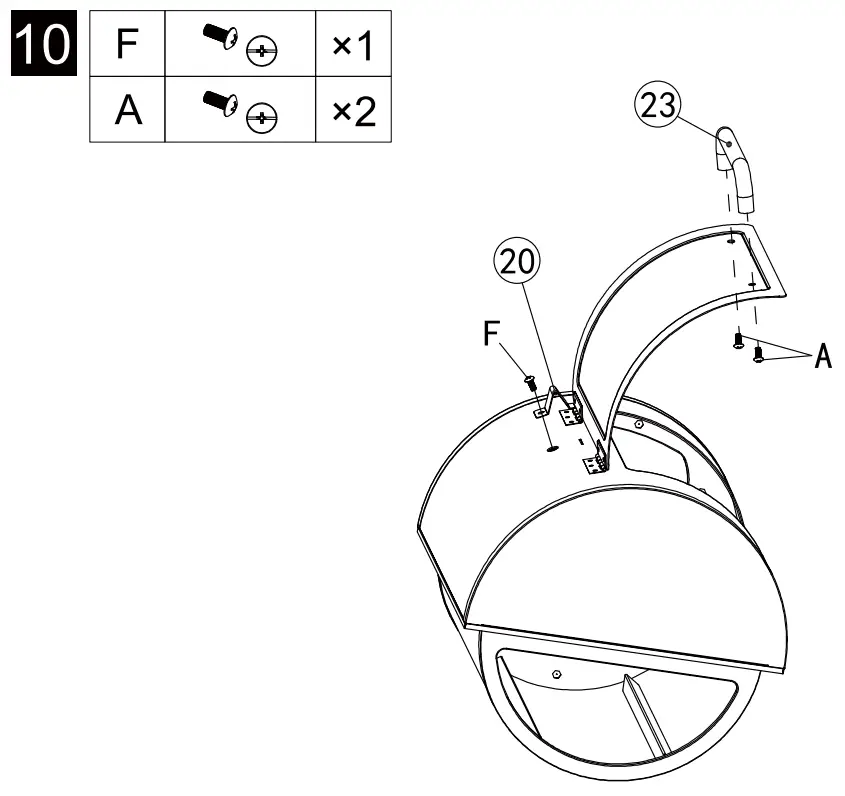

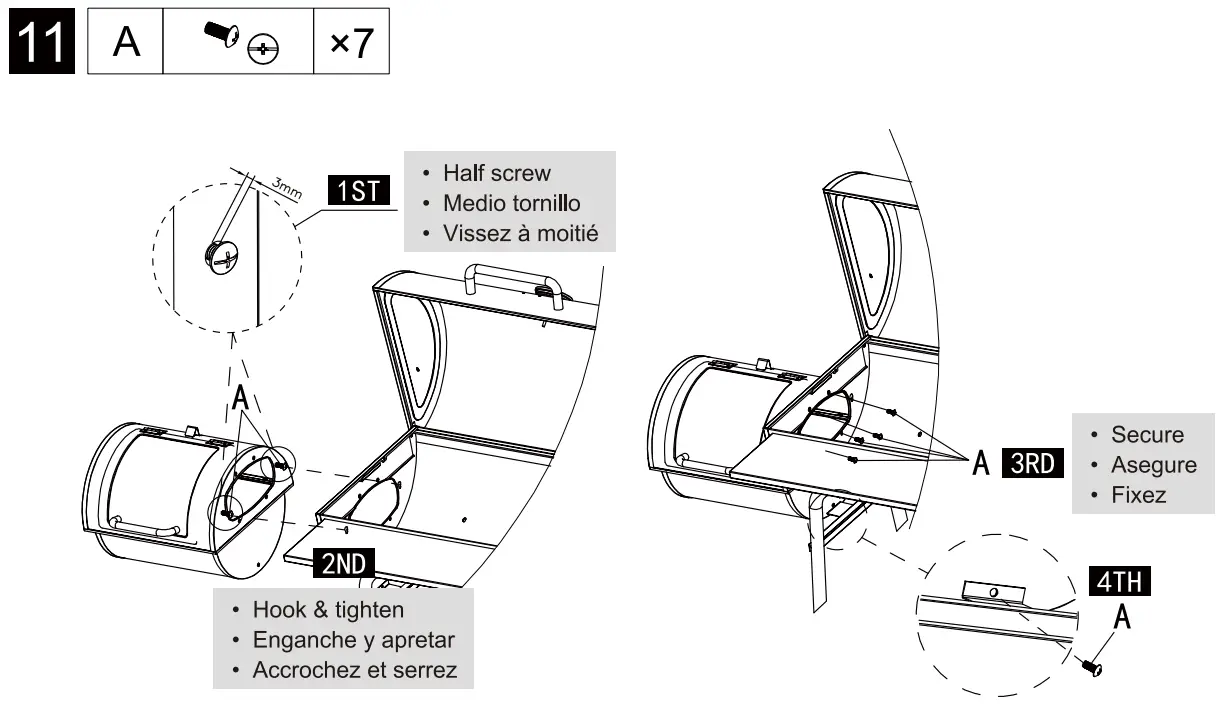

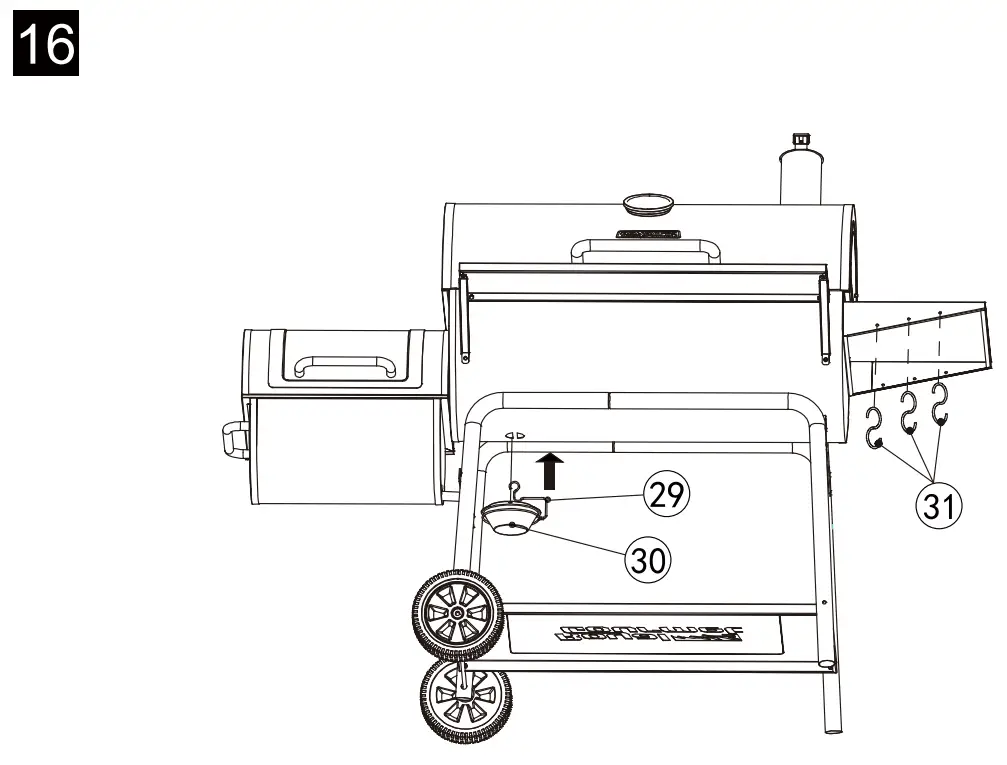

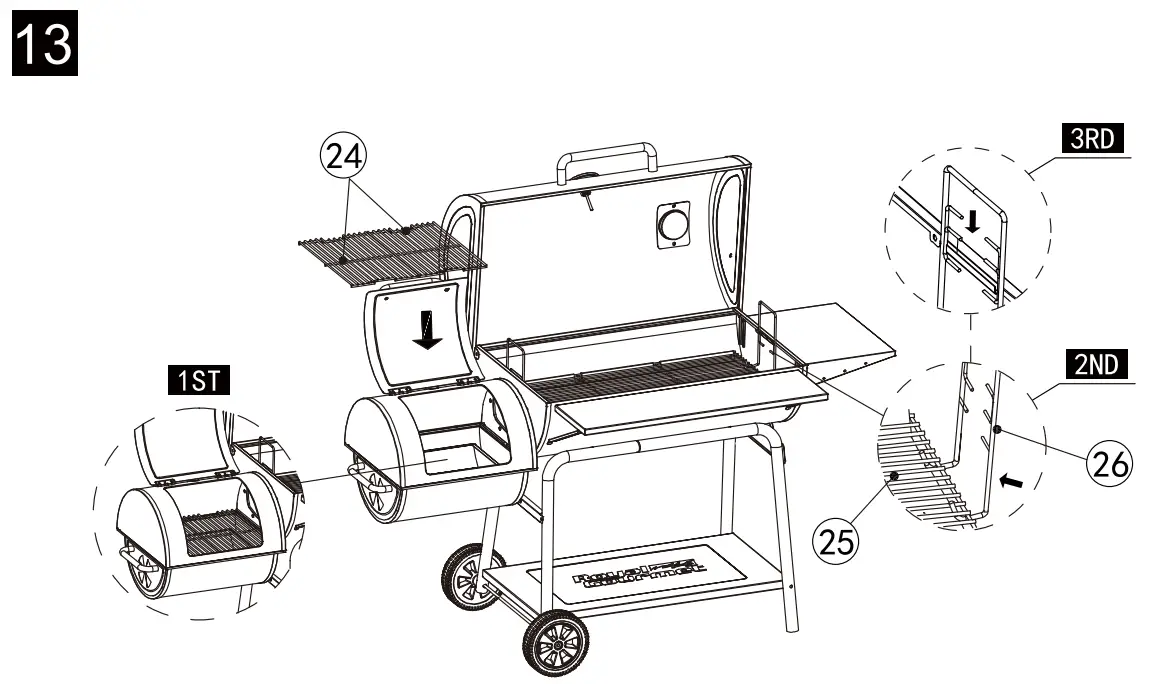

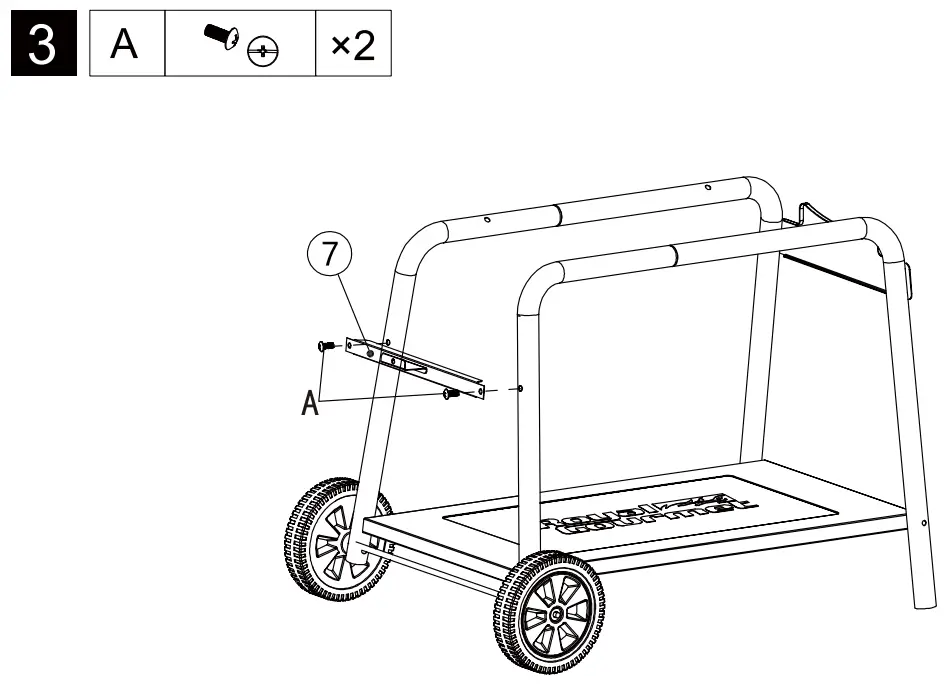

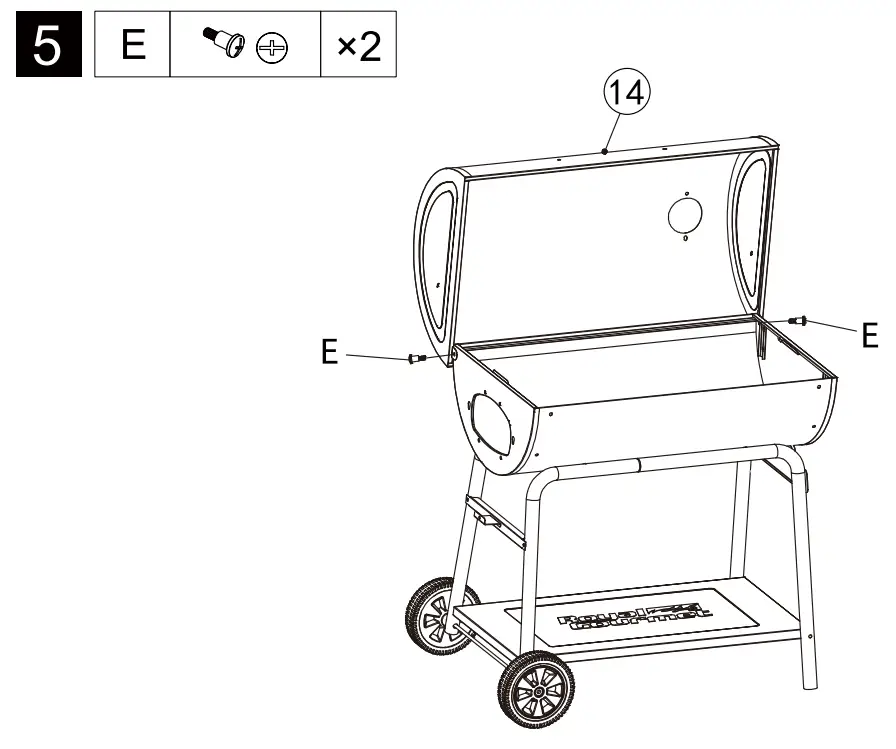

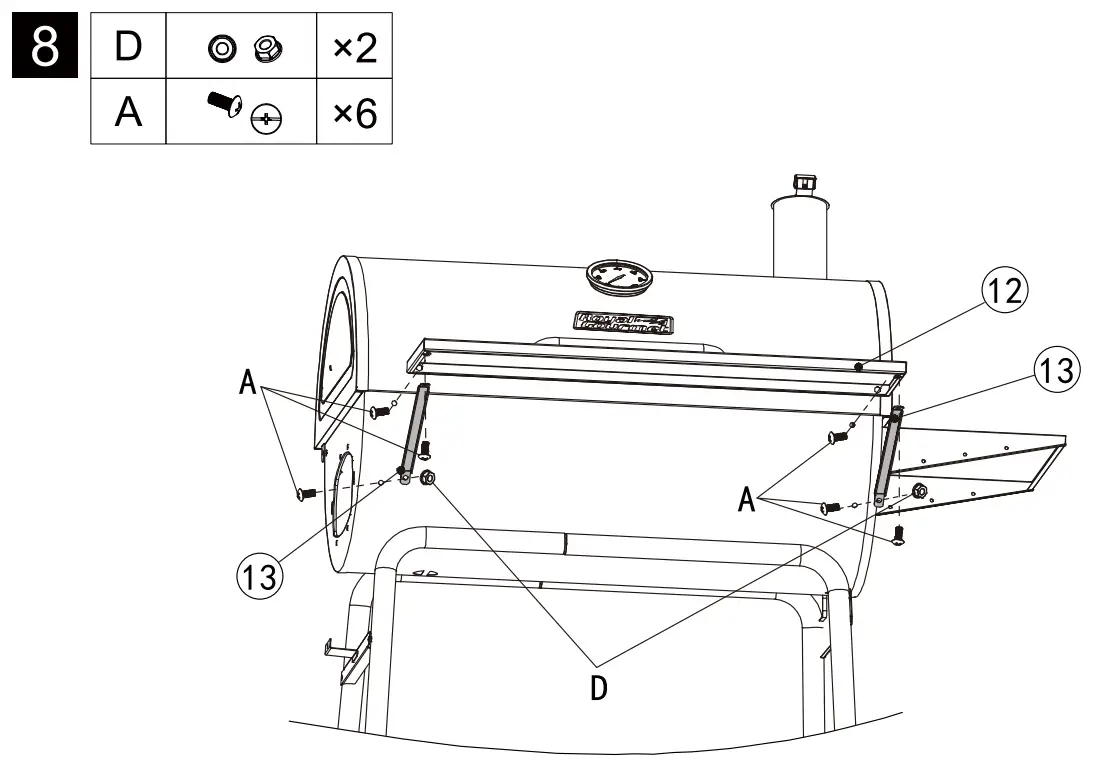

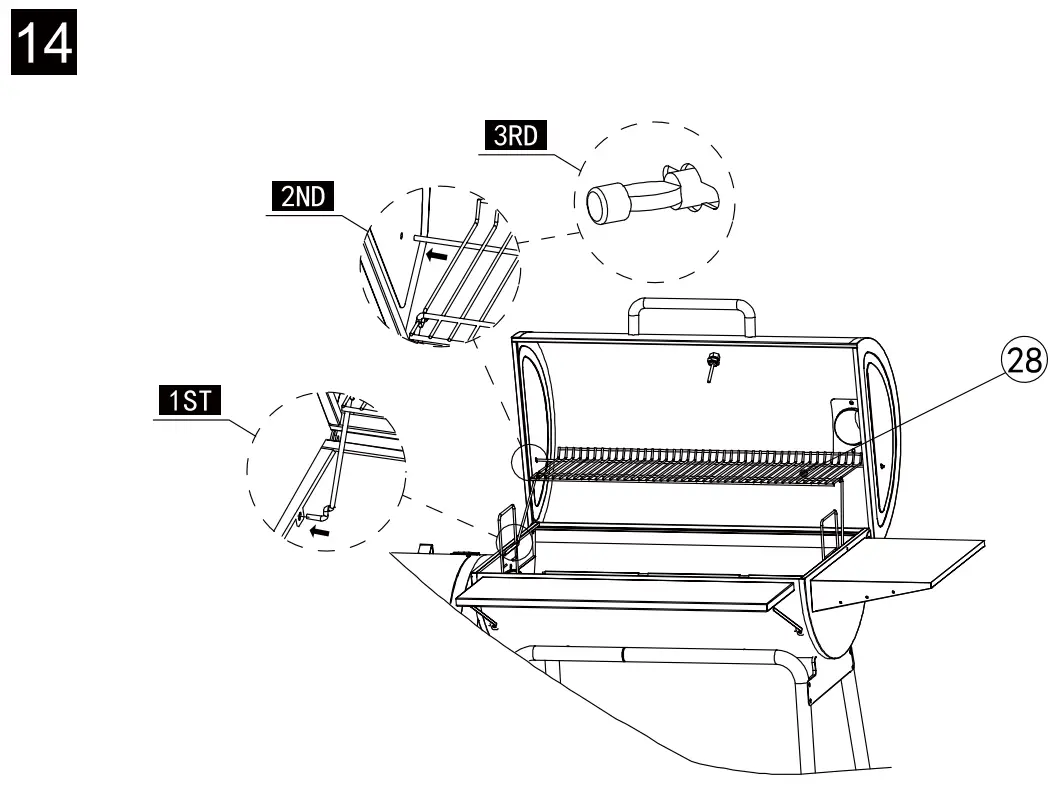

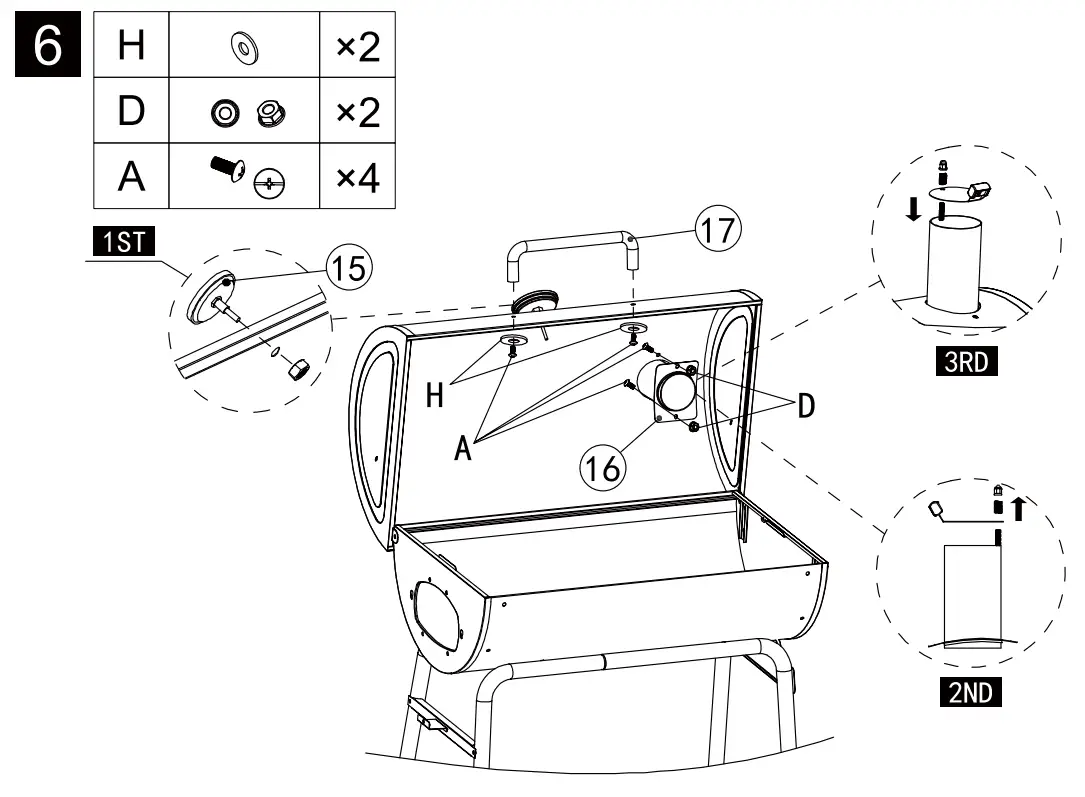

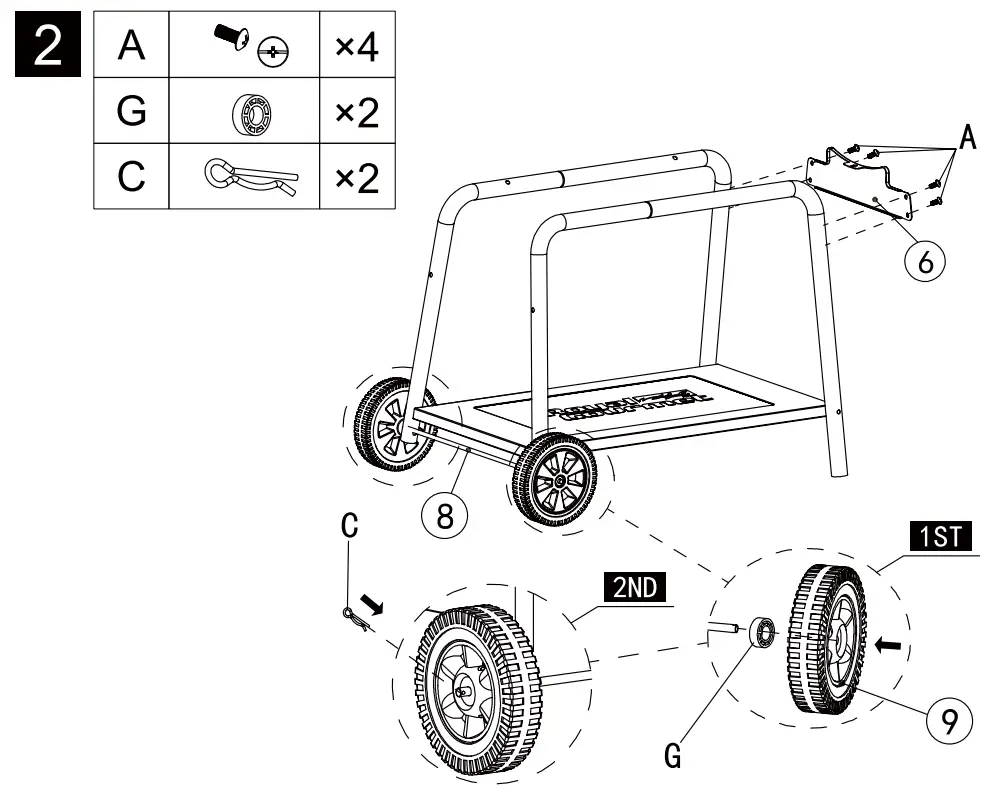

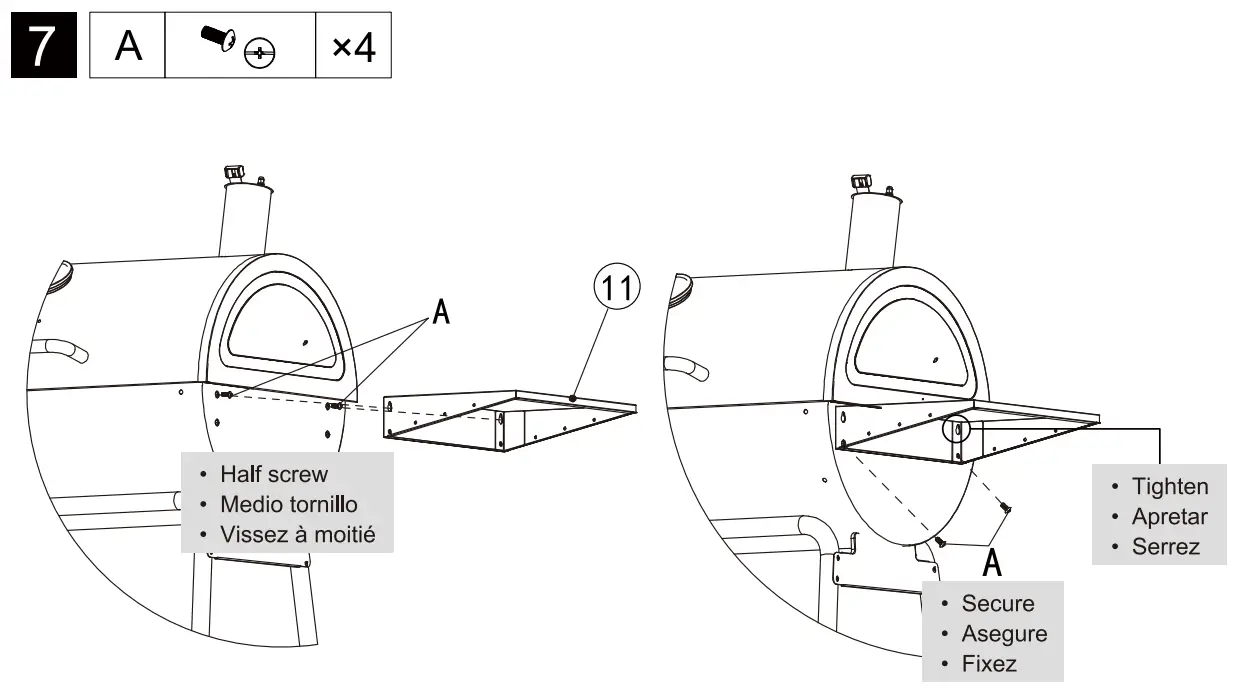

Assembly Instruction
