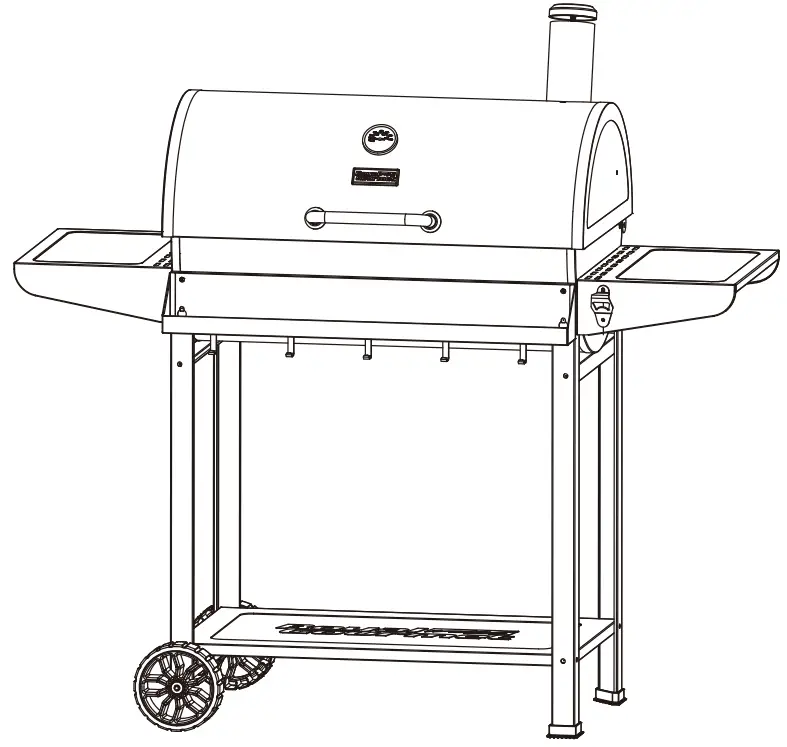

Royal Gourmet CC1830T 30 Inch Charcoal Grill with Front Basket
FOR YOUR SAFETY!
Use outdoors only!
Read the instructions before assembling and using the appliance.
CONTACT US FIRST!
If you have any questions that are not addressed, please contact us first.

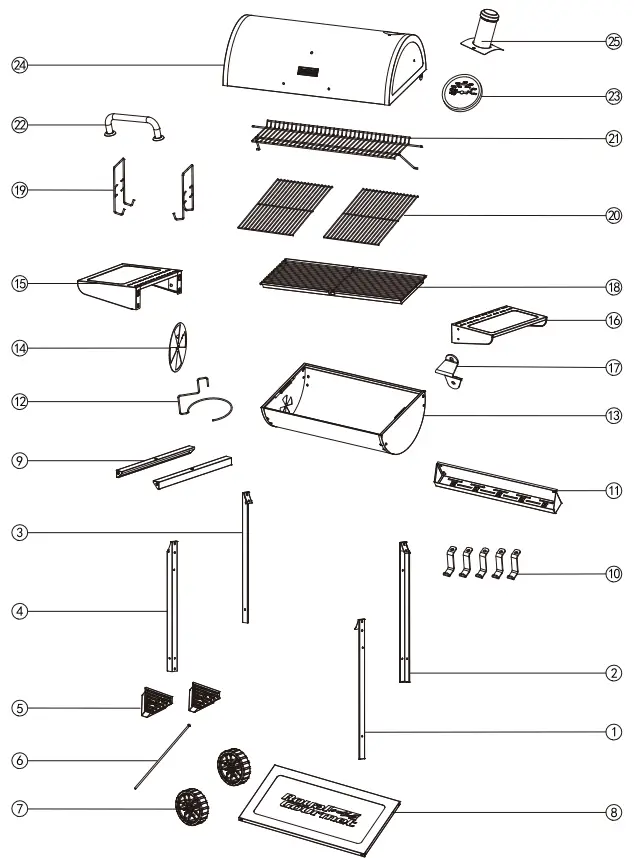

Parts Diagram
Parts List
| No. | # | QYT | Description | Image |
| 1 | CC1830TTGRFH | 1 | Right front leg |  |
| 2 | CC1830TTGRBH | 1 | Right back leg |
|
| 3 | CC1830TTGLBH | 1 | Left back leg |  |
| 4 | CC1830TTGLFH | 1 | Left front leg |  |
| 5 | 05-JSL-71 | 2 | Leg base |  |
| 6 | 06-XZL-1-03A -DY | 1 | Wheel |  |
| 7 | 05 -SLL-27-BK | 2 | Wheel |  |
| 8 | CC1830TJDCB | 1 | Bottom shelf |  |
| 9 | CC1830TJTGCHL | 2 | Cart beam |  |
| 10 | CC1830TQGLGG | 5 | Hook |  |
| 11 | CC1830TQGLH | 1 | Front basket |  |
| 12 | 07-GGL-36 | 1 | Grease cup holder |  |
| 13 | CC1830TLH | 1 | Grill chamber |  |
| 14 | TY-YFMP01 | 1 | Damper |  |
| 15 | CC1830TBZLH | 1 | Side table (L) |  |
| 16 | CC1830TBZRH | 1 | Side table (R) |  |
| 17 | TY-KPQ01-SS4 | 1 | Bottle opener |  |
| 18 | Z-CC1830008 03 – XWJ-C-50- B-PT1 | 1 | Charcoal pan set |  |
| 19 | 06 -TSL-23-DO1 | 2 | Lifting rack |  |

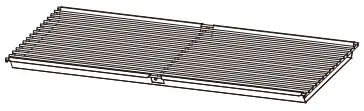

| 20 | 03-XKW-C-09- E-TC3 | 2 | Cooking grate |  |

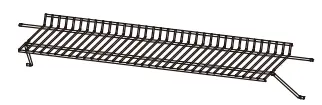

| 21 | 03-BWW-C-05- B-DO1 03-WZJ-C-04- A-DO1 | 1 | Warming rack |  |
| 22 | 04 -GBS-2-02- 200-PG | 1 | Lid handle |  |
| 23 | 06-WDJ-1-09- RGC | 1 | Thermometer |  |
| 24 | H-CC1830001 | 1 | Grill chamber lid |  |
| 25 | CYC10H CYCG01H | 1 | Stack |  |

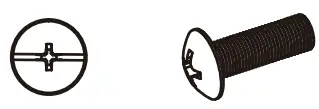

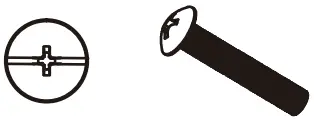

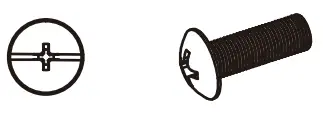

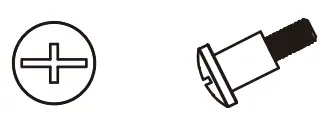

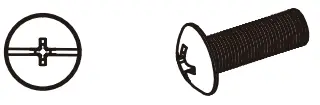

Hardware List
| NO. | # | Image | NO. | # | Image |
| A | M6x12 |
| F | Split pin |
|
| B | M6x25 |
| G | M4x10 |
|
| C | M4x10 |
| H | M4 |
|
| D | M6 |
| I | M6 |
|
| E | M6x15 |
| J | M5x10 |
|
x25
x3
x4
x5
x2
x5
x2
x7
x8
x4TOOLS REQUIRED
| Description | Image | |
| Phillips screwdriver | Wrench |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver and wrench
- Approximate assembly time: 30 minutes
- Note: 1. The right and left sides of the grill are designed as if you are facing the front of the grill.
2. Model shown for illustration purpose only, specific please in kind prevail.

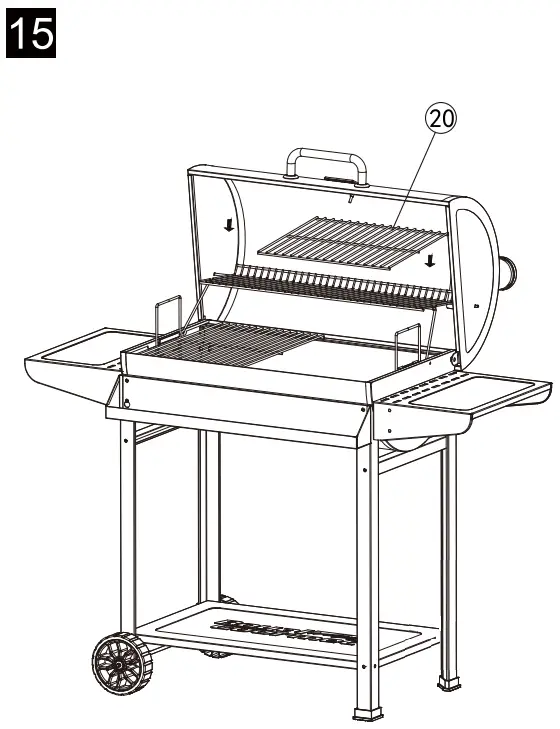

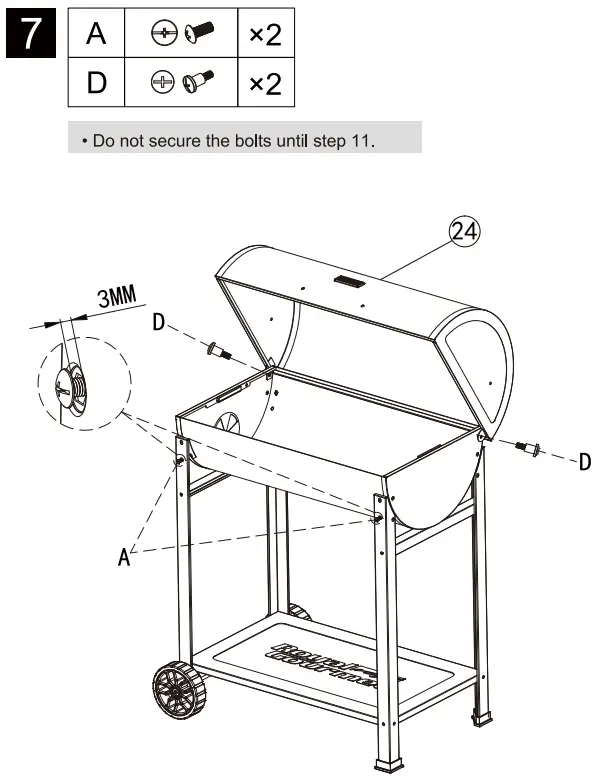

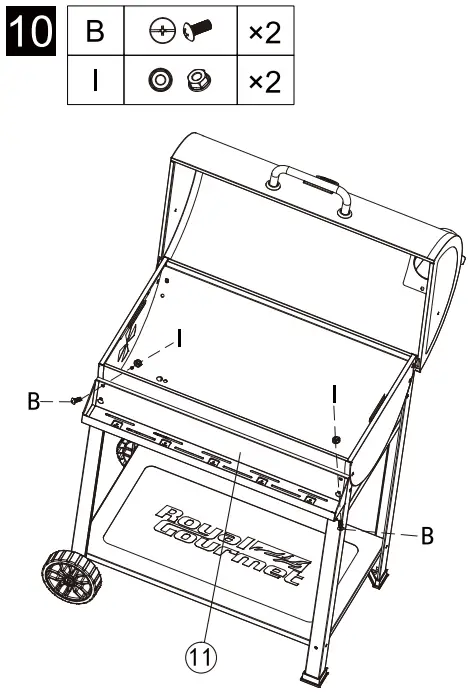

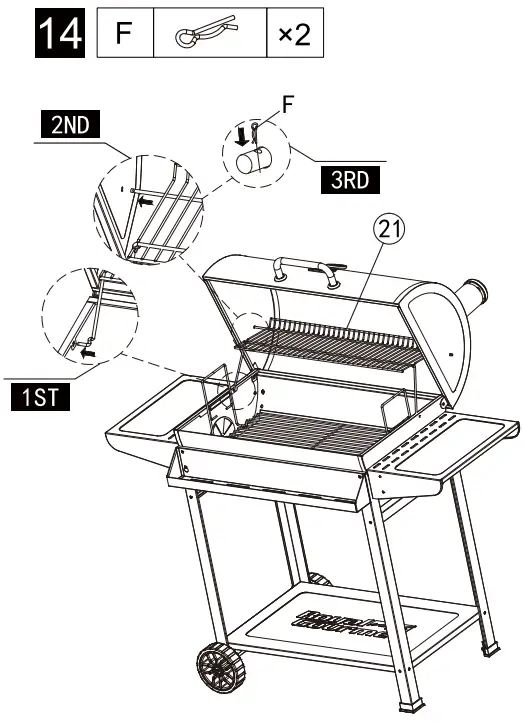

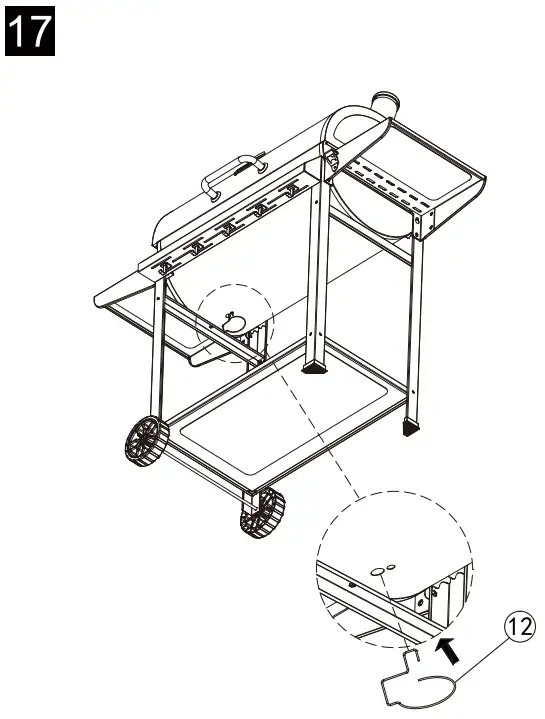

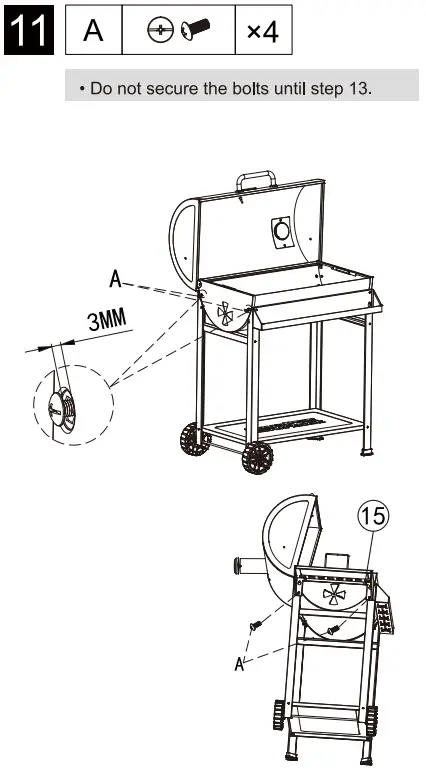

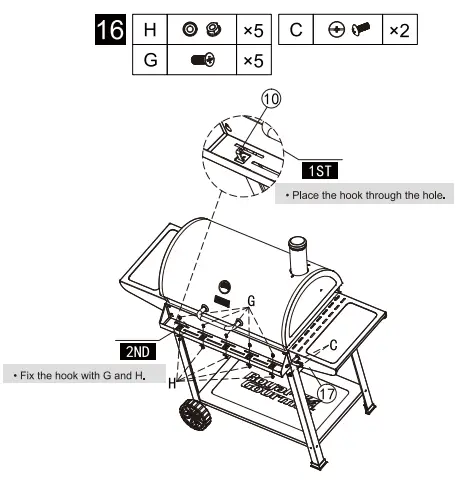

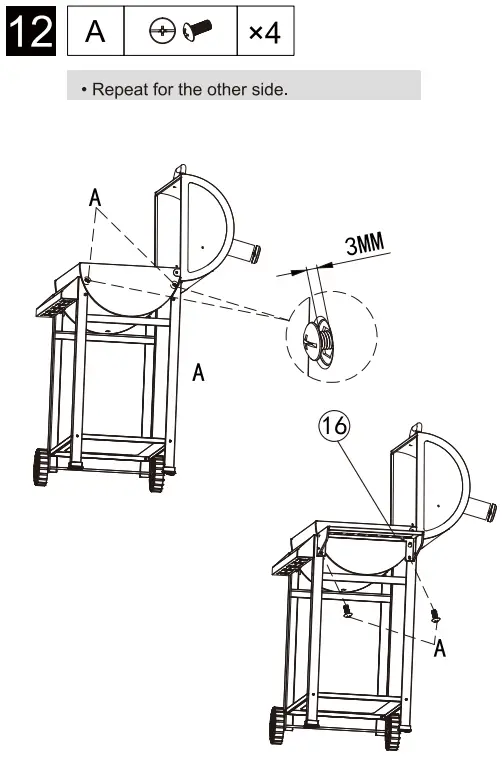

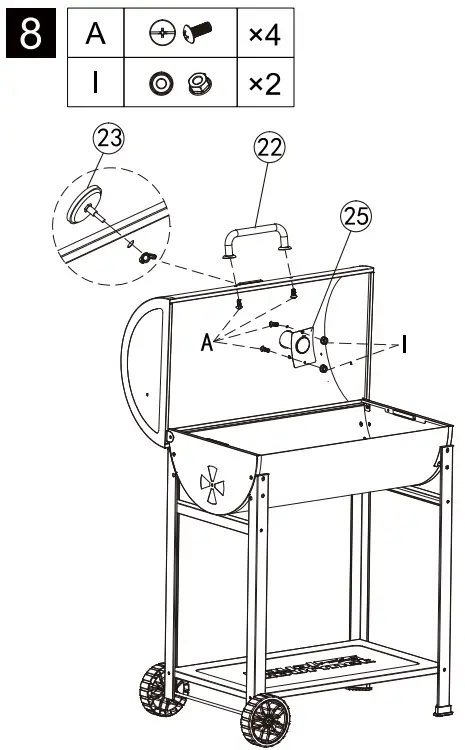

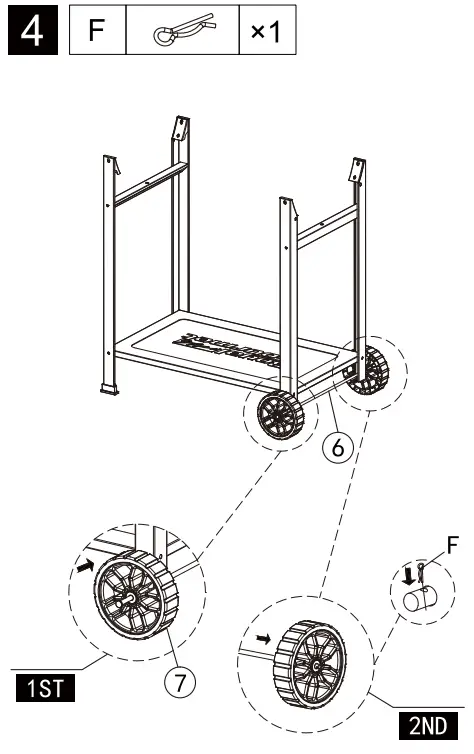

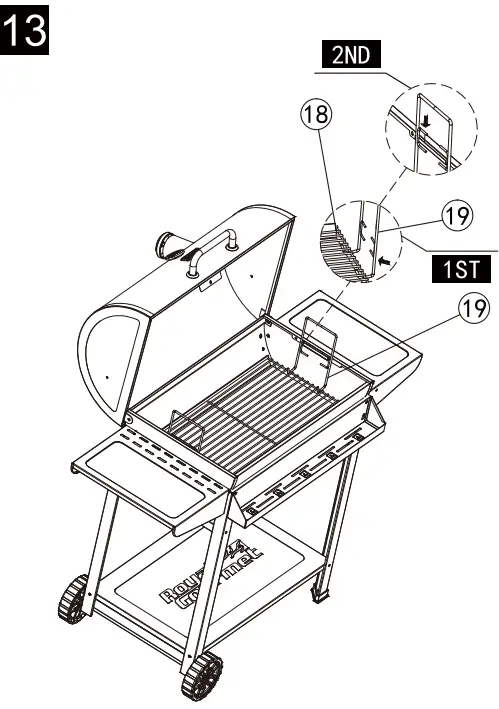

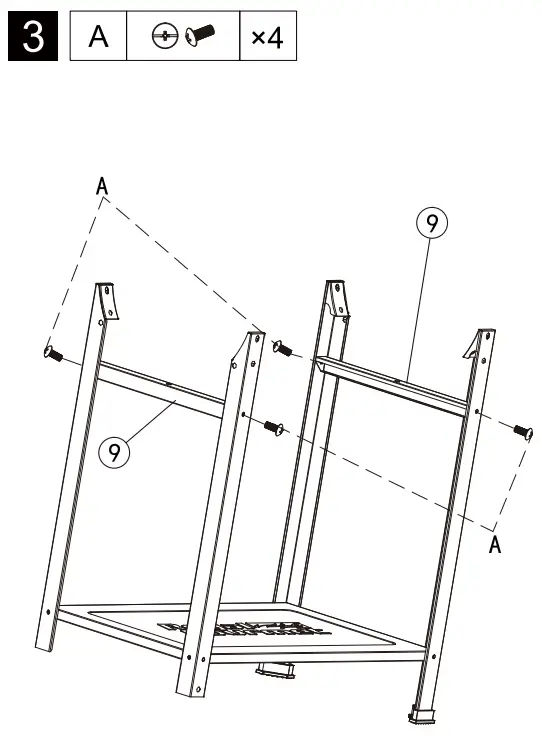

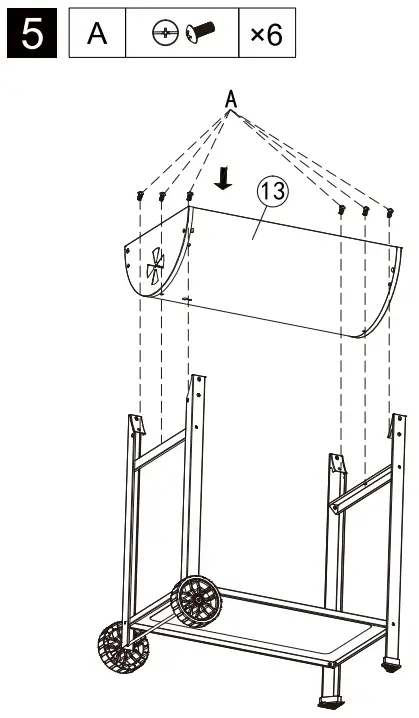

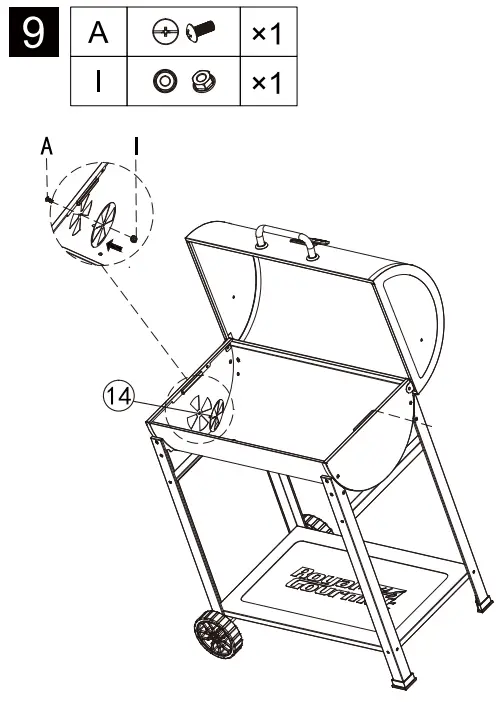

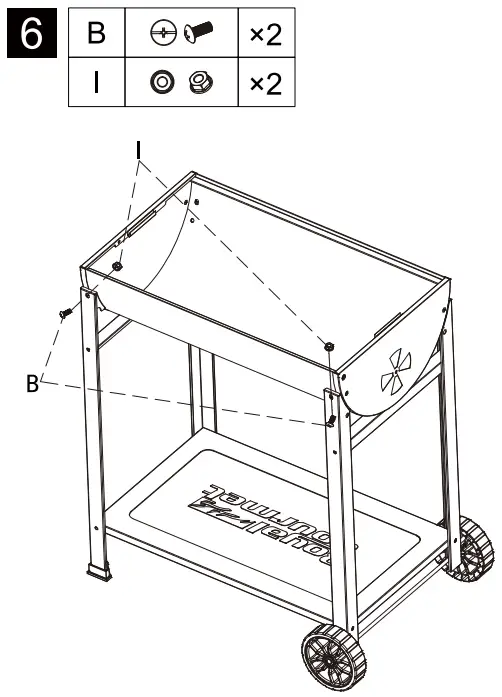

Assembly
