Model
CD1824EN
ASSEMBLY GUIDE

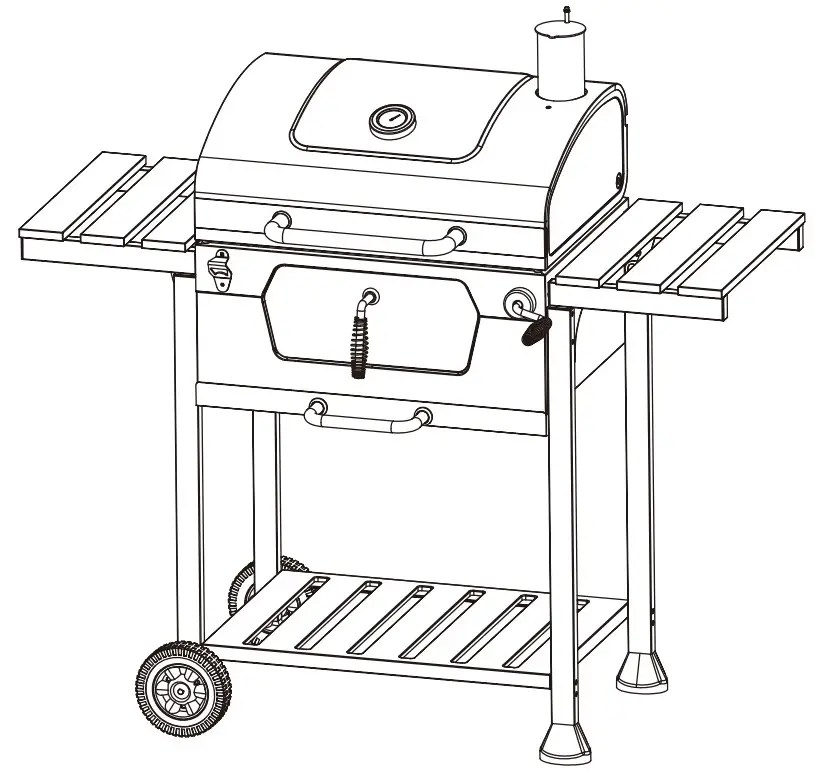

24-INCH CHARCOAL GRILL
FOR YOUR SAFETY!
Use outdoors only!
Read the instructions before assembling and using the appliance.
CONTACT US FIRST!
If you have any questions that are not addressed, please contact us first.
 |  |
| https://www.facebook.com/Royal-Gourmet-879976522153340/ | https://mobile.twitter.com/RoyalGourmetUSA |
Customer Service
1-800-618-6798
[email protected]
Learn more at www.royalgourmetcorp.com

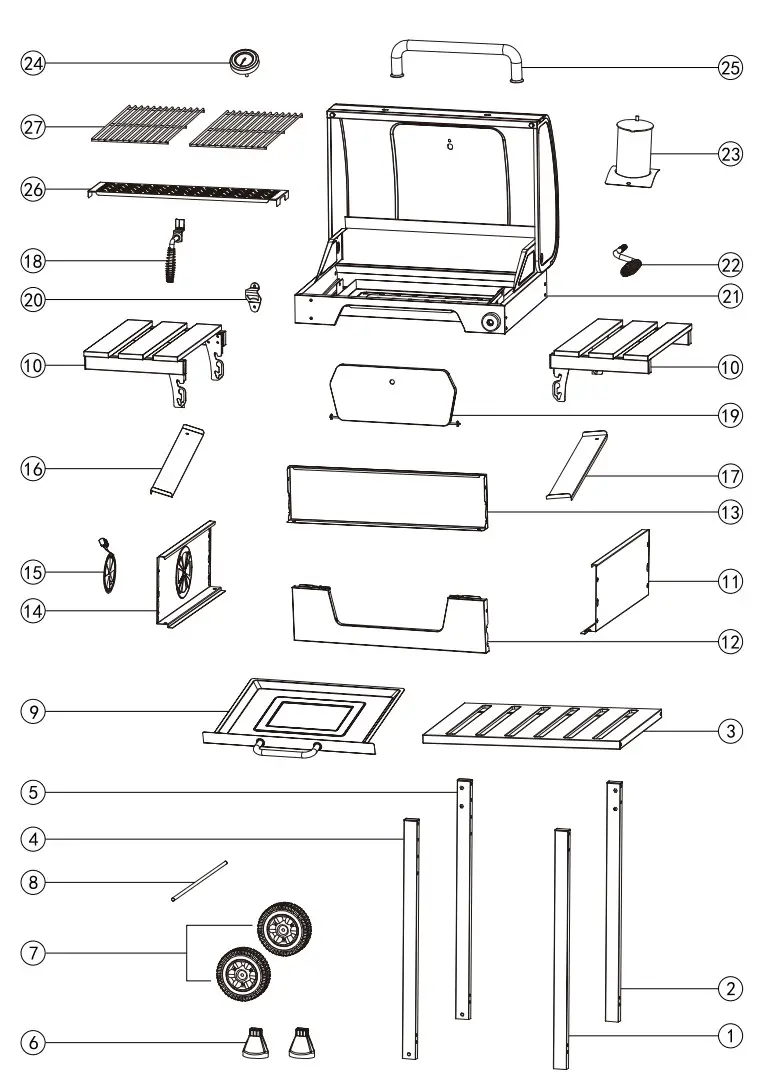

Parts Diagram
Parts List
| No. | # | QTY | Description | Image |
| 1 | ECJ15JGRF | 1 | Right front leg |  |
| 2 | ECJ15JGRB | 1 | Right back leg |  |
| 3 | ECJ15ADB | 1 | Bottom shelf |  |
| 4 | ECJ15JGLF | 1 | Left front leg | |
| 5 | ECJ15JGLB | 1 | Left back leg | |
| 8 | JS203 | 2 | Leg base |  |
| 7 | LZ100 | 2 | Wheel |  |
| 8 | 12004-CA | 1 | Wheel axle |  |
| 9 | ELTTIXJHP | 1 | Ash tray |  |
| 10 | EHCTY | 2 | Side table |  |
| 11 | ELTTIXCBR | 1 | Right panel |  |
| 12 | EHLTTIXQB | 1 | Front panel |  |
| 13 | ELTTIXHB | 1 | Rear panel |  |
| 14 | ELTTIXCBL | 1 | Left panel |  |
| 15 | W-ZH300101+ Z-ZH2302030 | 1 | Damper |  |
| 16 | EHLTTIDYPL | 1 | Grease deflector (L) |  |
| 17 | EHLTTIDYPR | 1 | Grease deflector (R) |  |
| 18 | W-R3003 | 1 | Door handle |  |
| 19 | EHTM | 1 | Charcoal access door |  |
| 20 | K0001 (W-DXL12012) | 1 | Bottle opener |  |
| 21 | 1 | Main body |  | |
| 22 | YZ002 | 1 | Crank handle |  |
| 23 | EHSG13YC | 1 | Stack |  |
| 24 | WJ201 (W-20130020) | 1 | Thermometer |  |
| 25 | SS201 | 1 | Lid handle |  |
| 26 | ELT1BWW3B | 1 | Warming rack |  |
| 27 | W-CD1824020 | 2 | Cooking grate |  |
Hardware List
| Key | Description | QTY | Image |
| A | M5x55 | 12 |  |
| B | M5x10 | 8 |  |
| c | Mdx15 | 4 |  |
| D | Split pin | 2 |  |
| E | Washer | 2 |  |
| F | M6 | 2 |  |
| G | M6x15 | 4 |  |
| H | M6x20 | 8 |  |
| I | M5 | 1 |  |
| J | M5 | 1 |  |
| K | M4x10 | 2 |  |
| L | M5x12 | 1 |  |
Preparation

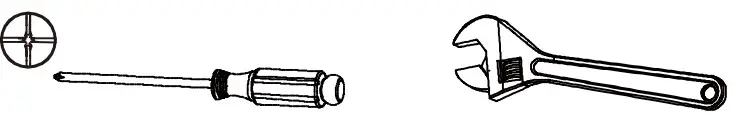

TOOLS REQUIRED
| Description | Image | |
| Phillips screwdriver | Wrench |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver and wrench
- Approximate assembly time: 50 minutes
- Note:
1. The right and left sides of the grill are designed as if you are facing the front of the grill.
2. Model shown for illustration purpose only, specific please in kind prevail.

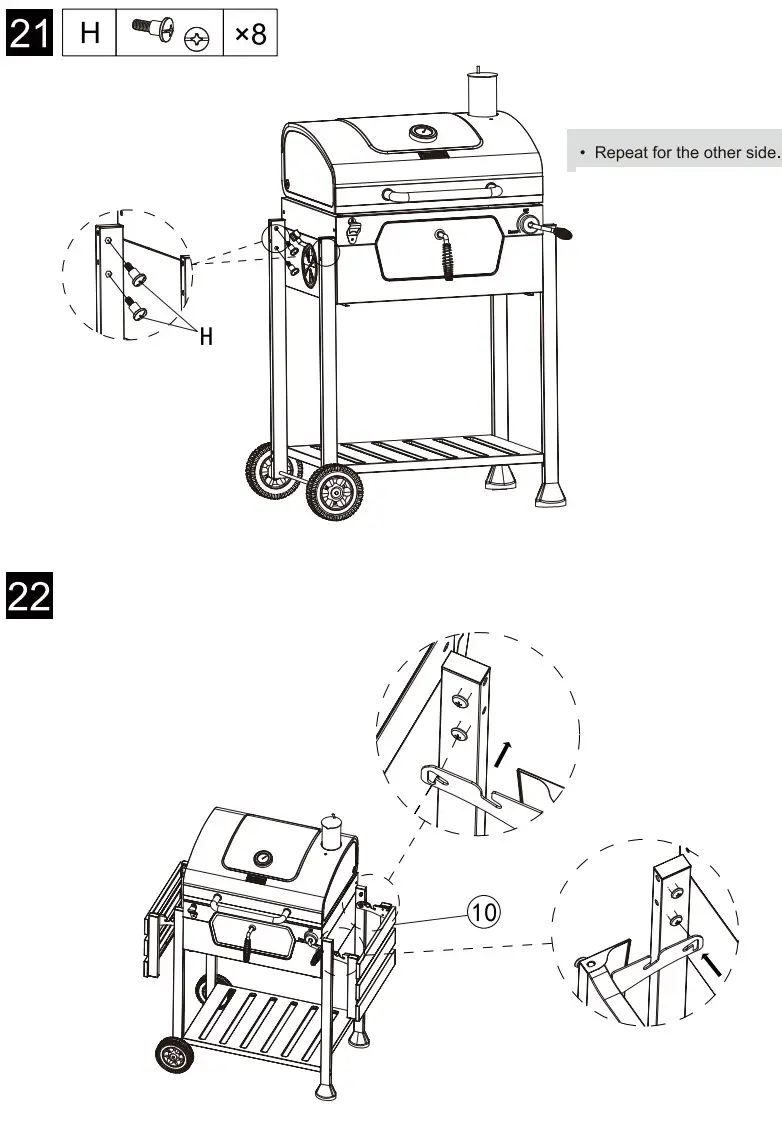

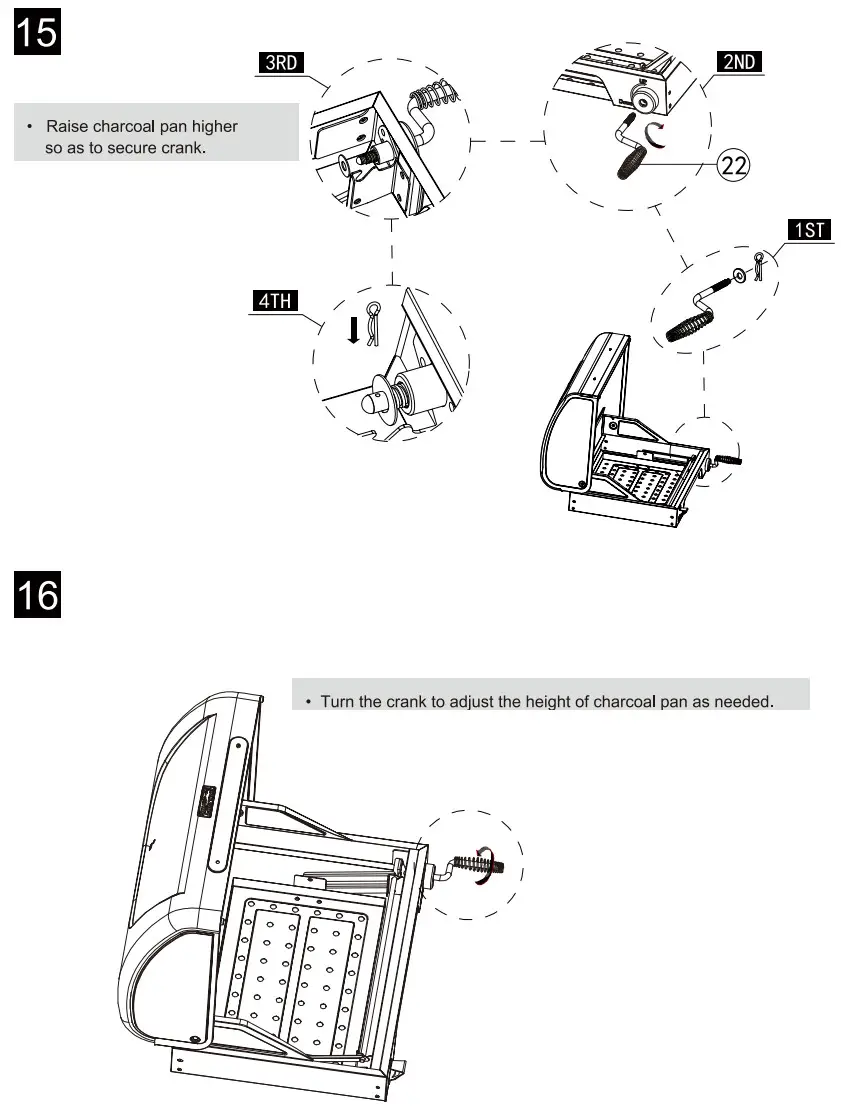

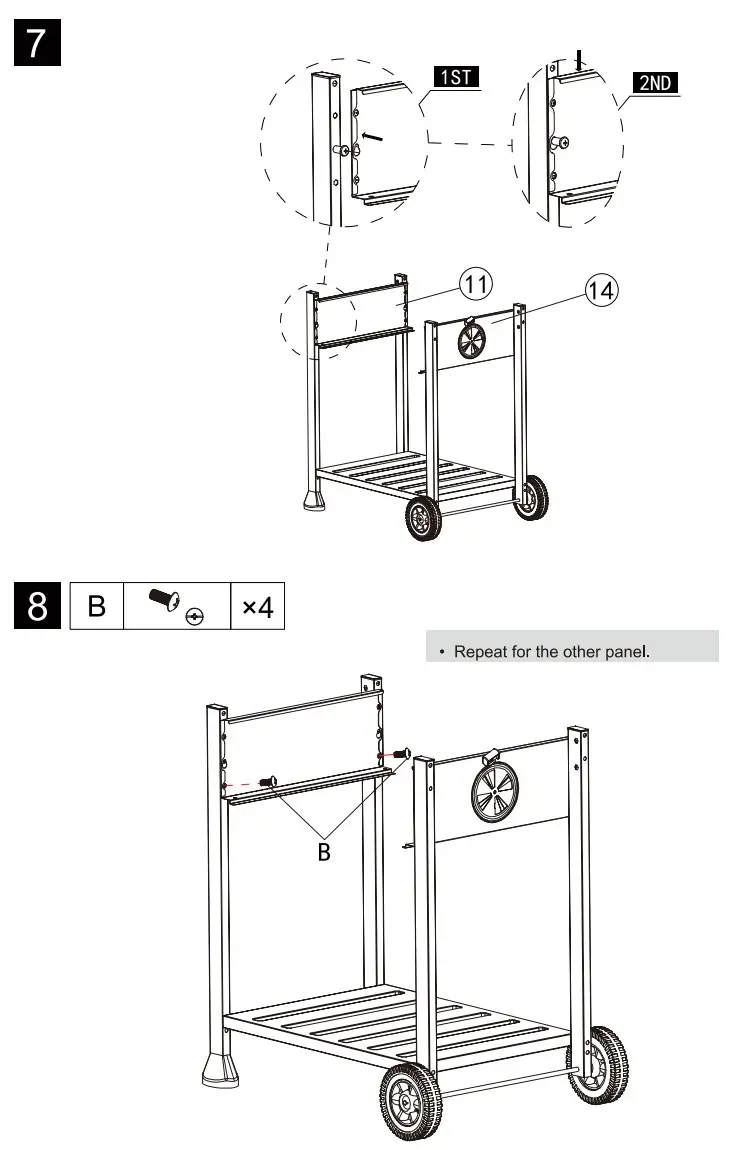

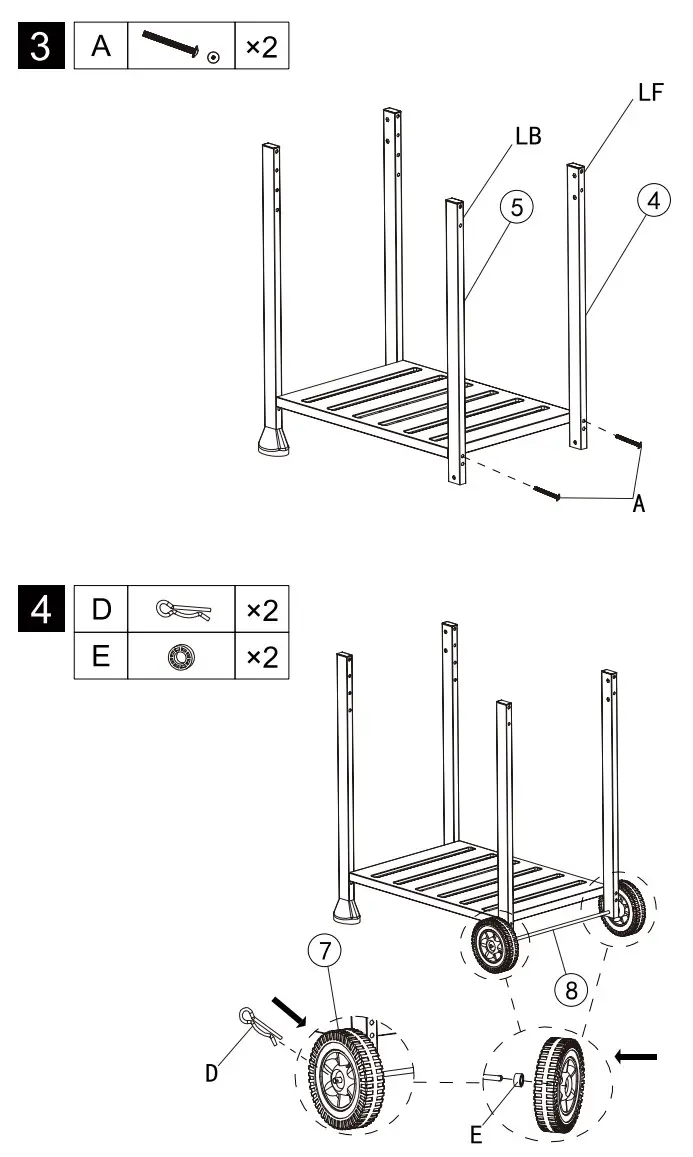

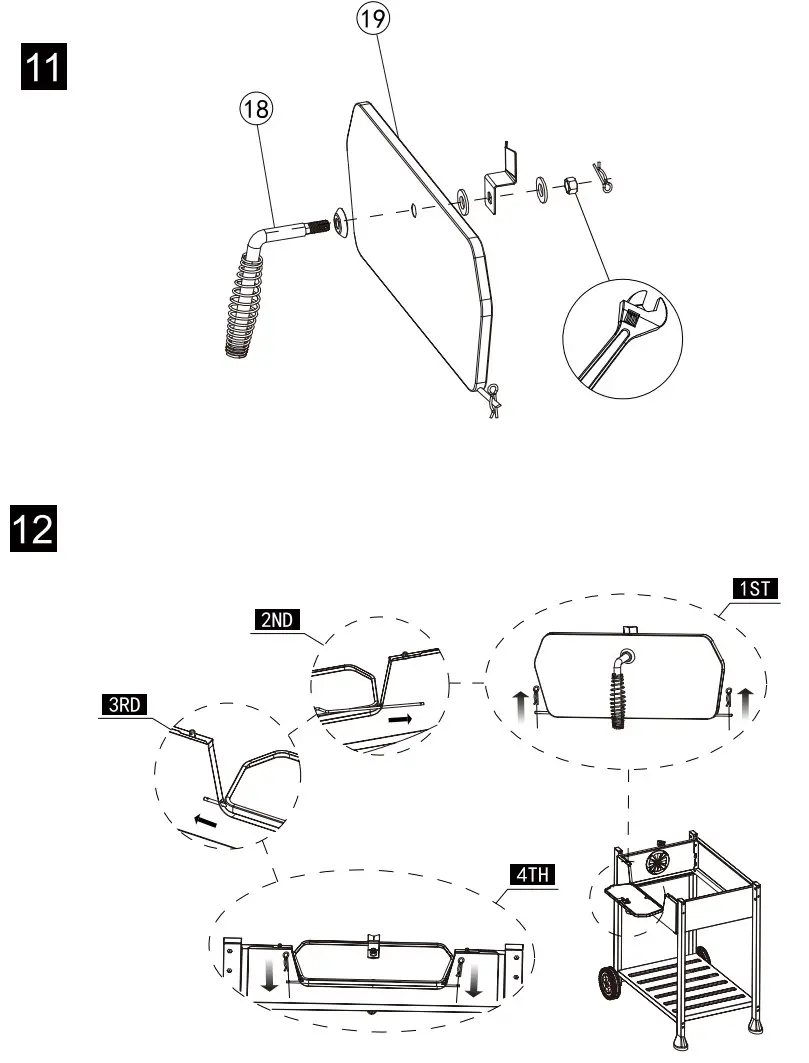

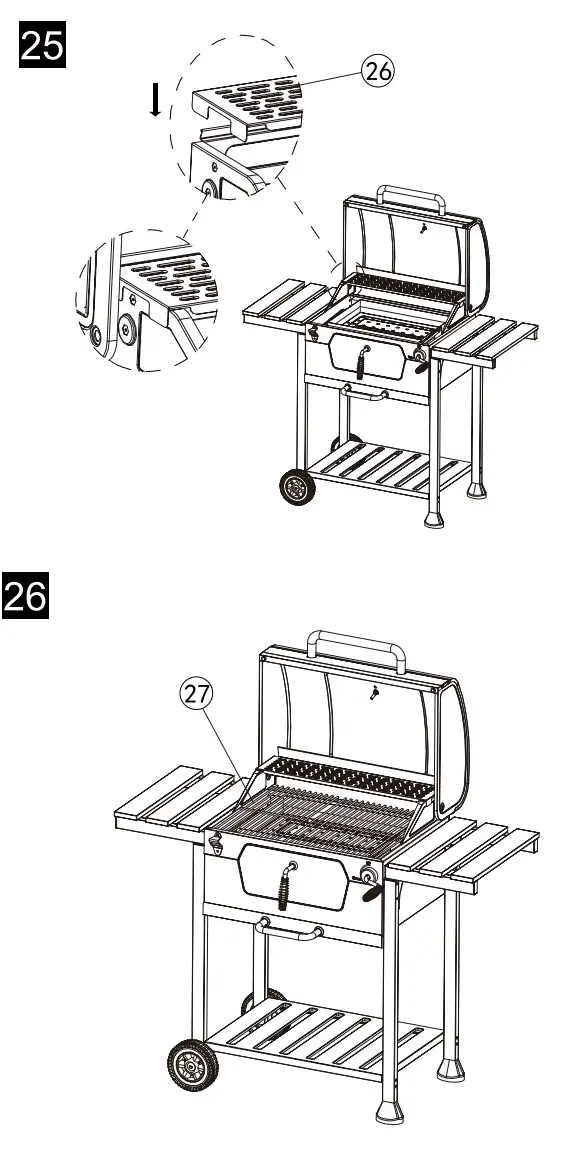

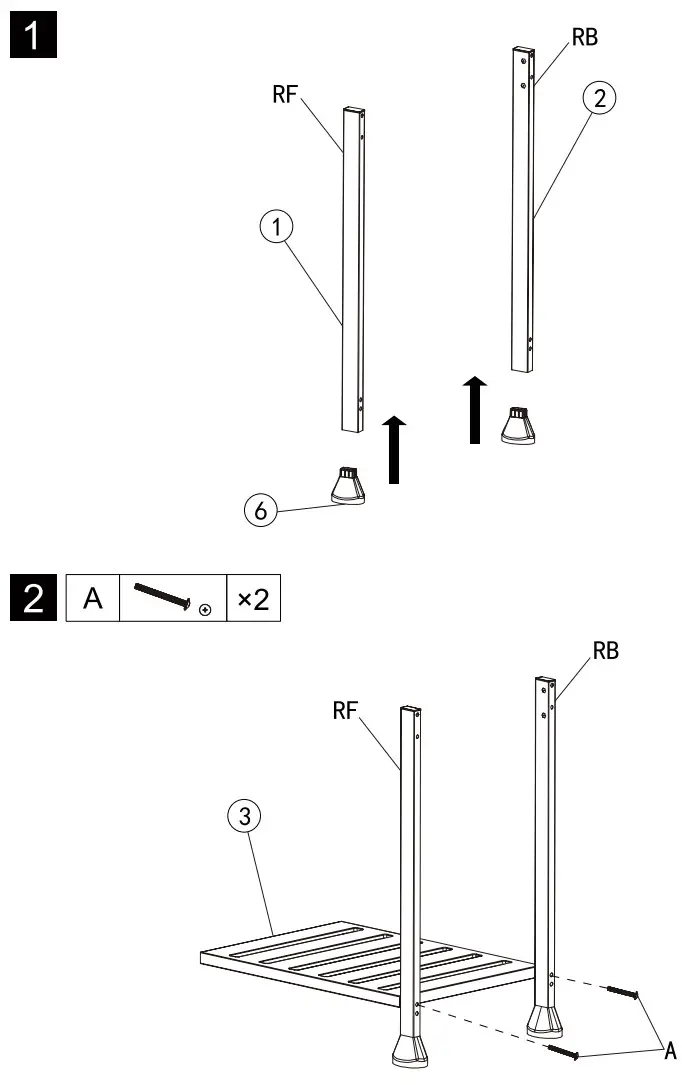

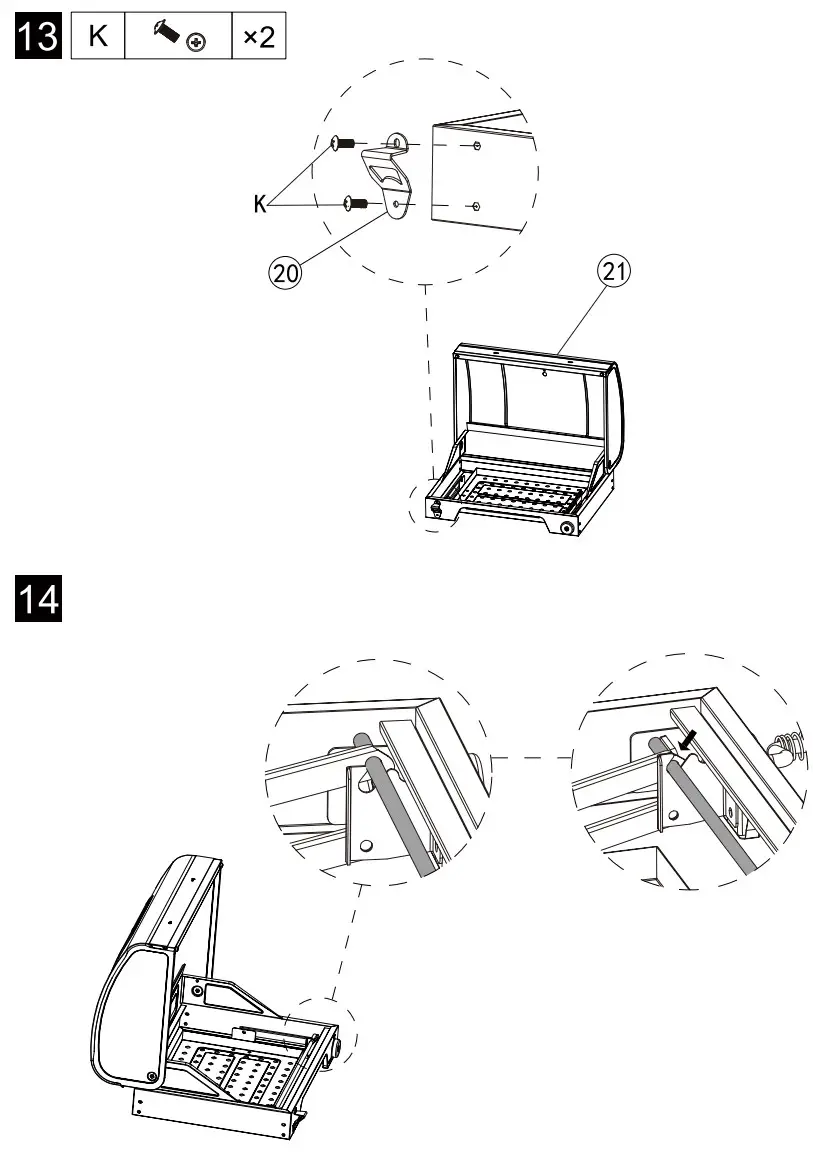

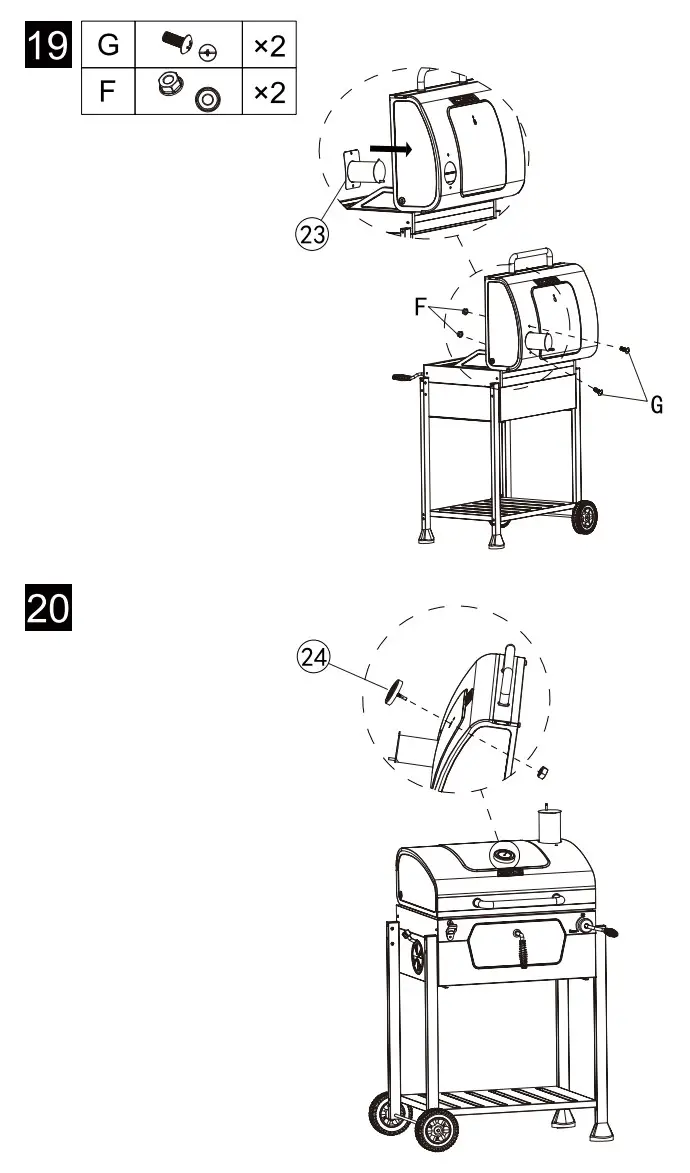

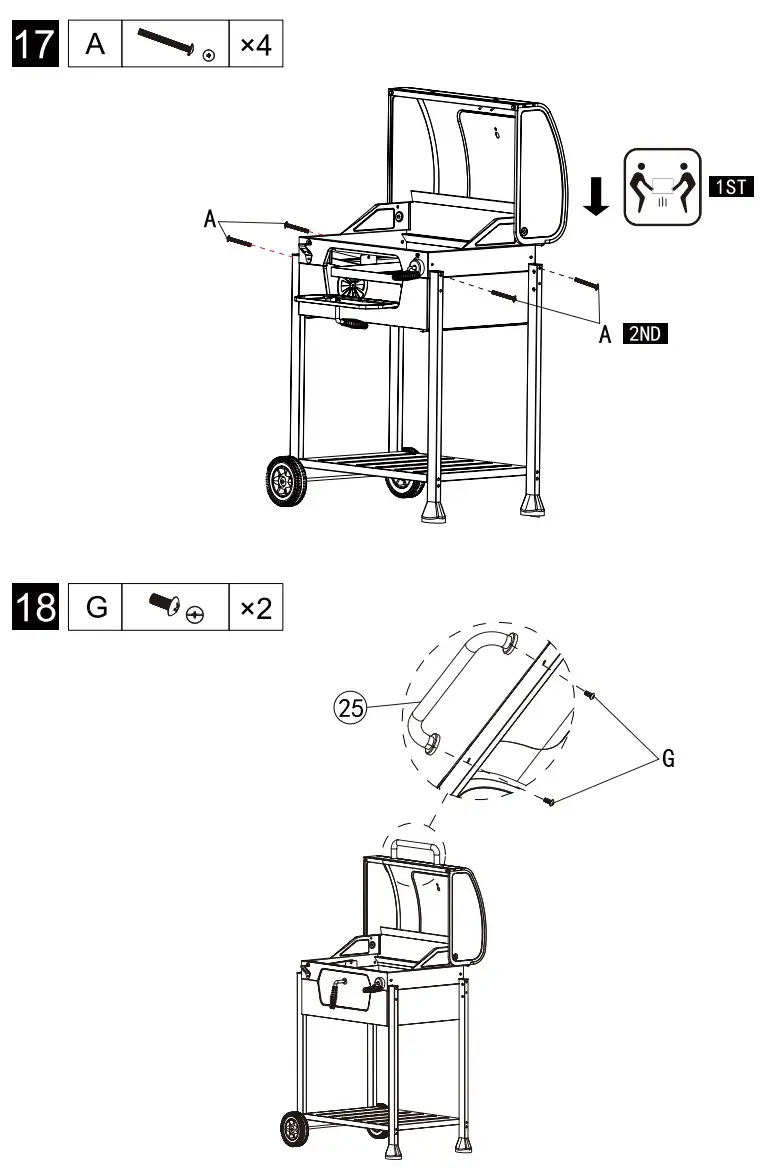

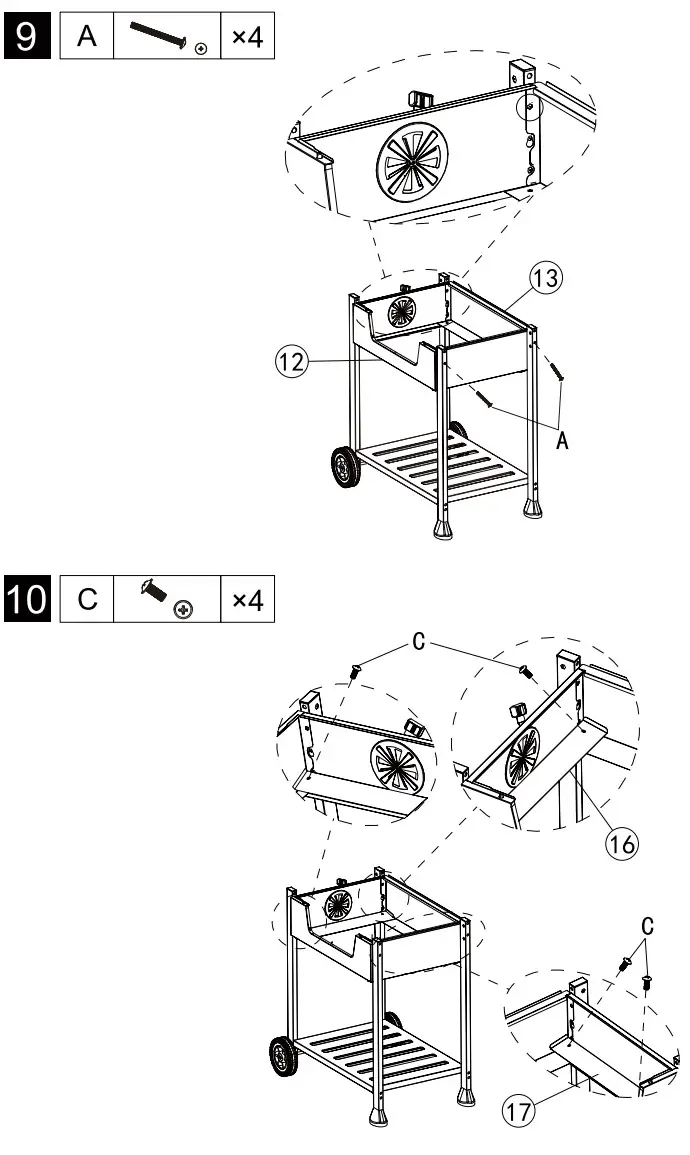

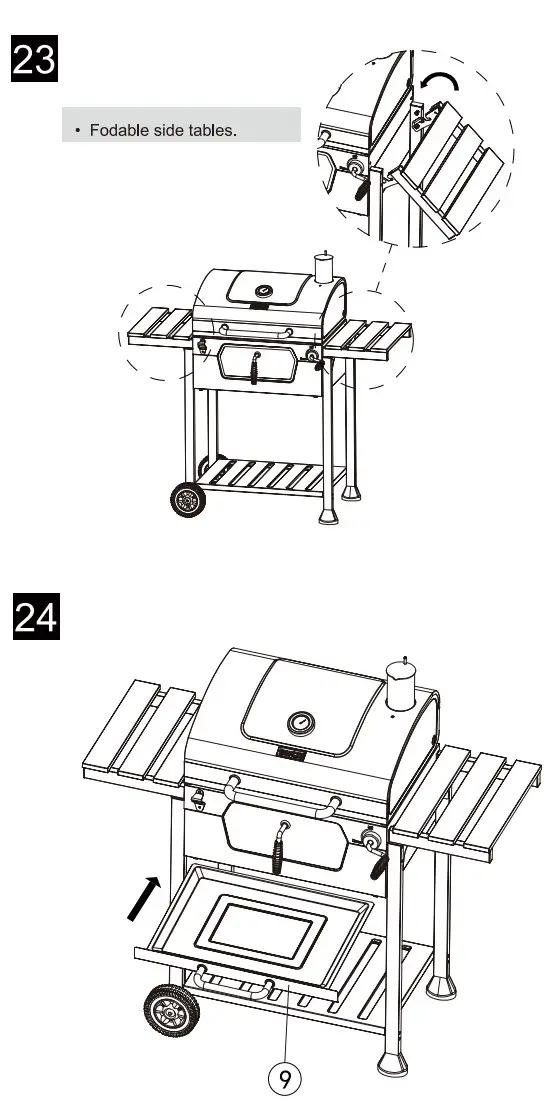

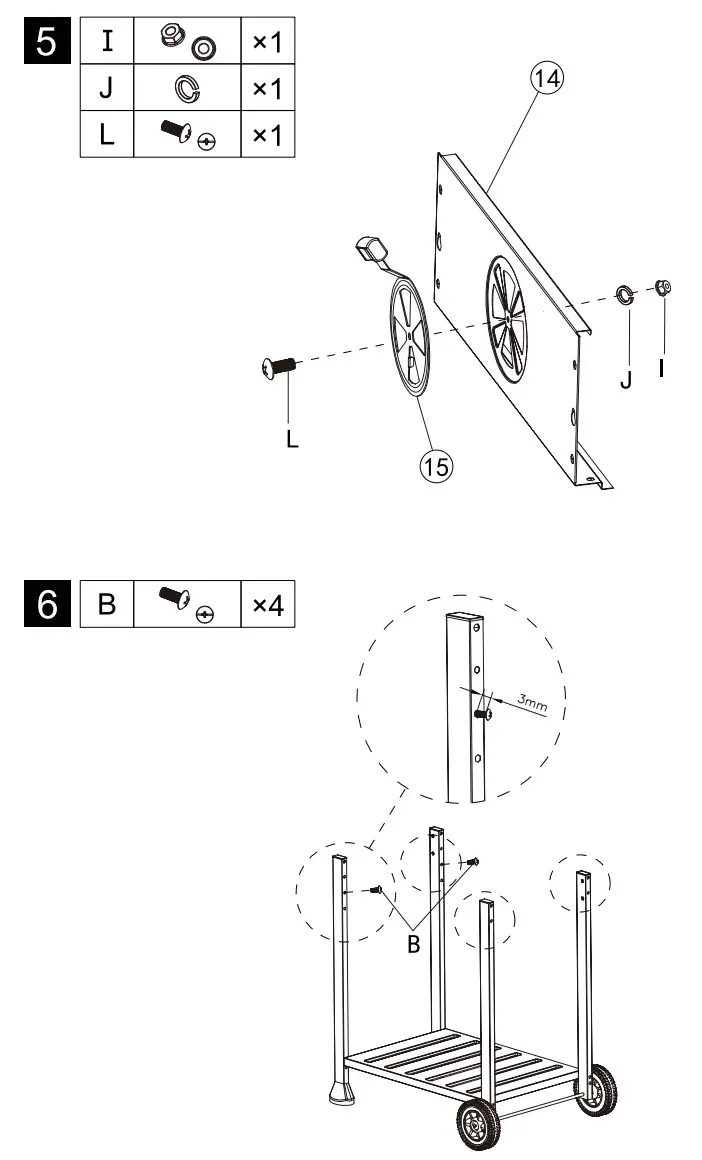

Assembly
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
Thank You
For Choosing Us.
Any Problem!
We Can Help!
Customer Service
1-800-618-6798
Monday to Friday (8:30 am – 5:30 pm EST)
[email protected]
