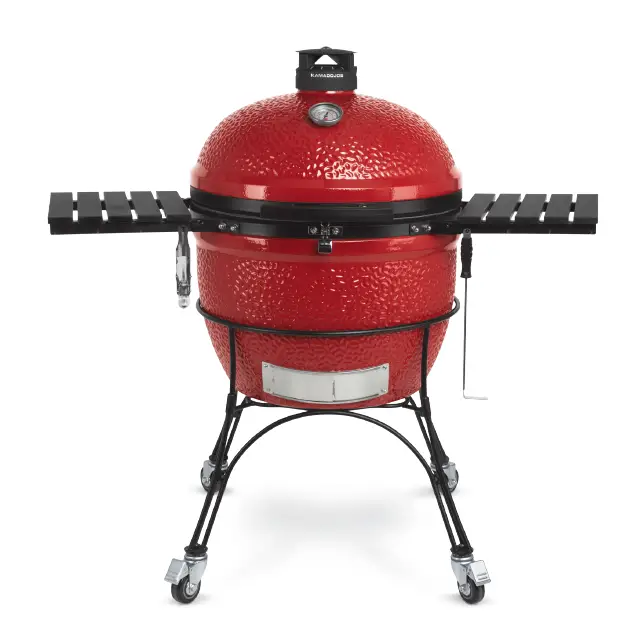

KAMADO JOE B00IIUO9FQ Big Joe 24 Inch Charcoal GrillKAMADO -JOE- B00IIUO9FQ Big -Joe 24- Inch -Charcoal -Grill -product

Big Joe Dimensions & Installation Guide

IMPORTANT DIMENSION NOTES
Please use this as a general guide for installing a Big Joe ceramic grill in a built-in outdoor kitchen or grill table. We highly recommend that the actual grill being installed be measured. Drawing is not to scale.

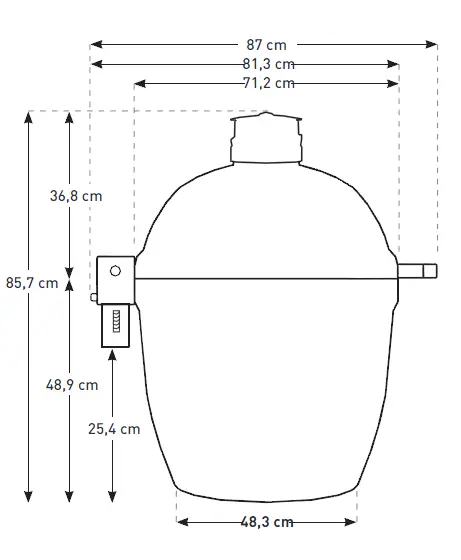

SIDE VIEWKAMADO -JOE- B00IIUO9FQ Big -Joe 24- Inch -Charcoal -Grill -1

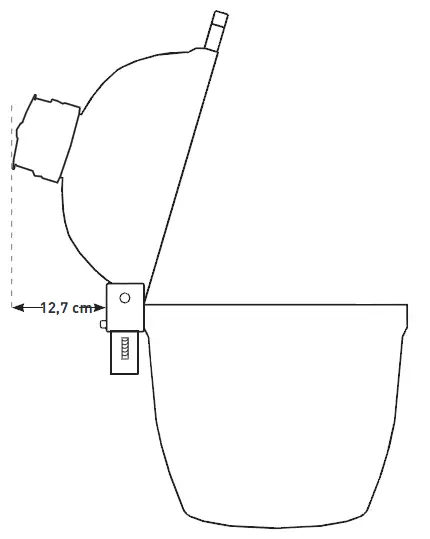

OPEN CLEARANCEKAMADO -JOE- B00IIUO9FQ Big -Joe 24- Inch -Charcoal -Grill -2

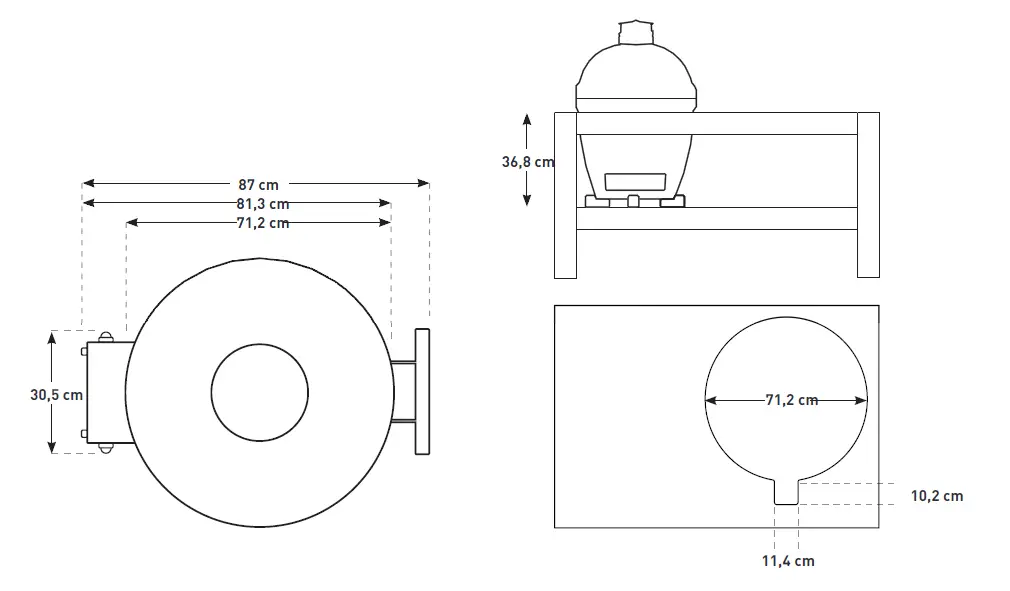

TOP VIEWKAMADO -JOE- B00IIUO9FQ Big -Joe 24- Inch -Charcoal -Grill -3
