Le Griddle GFE75 GF-CART 30 Inch 2 Burner Stainless Gas Griddle INSTALLATION INSTRUCTIONS

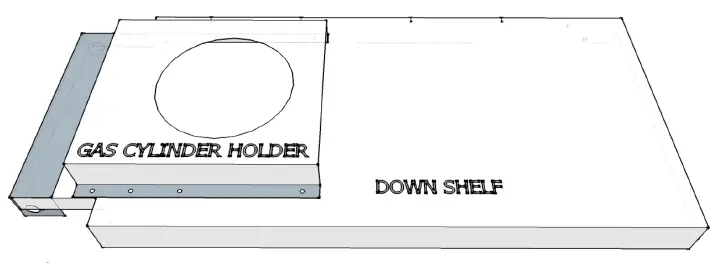

1. Join the Gas Cylinder holder on down shelf with 8 M4 screw

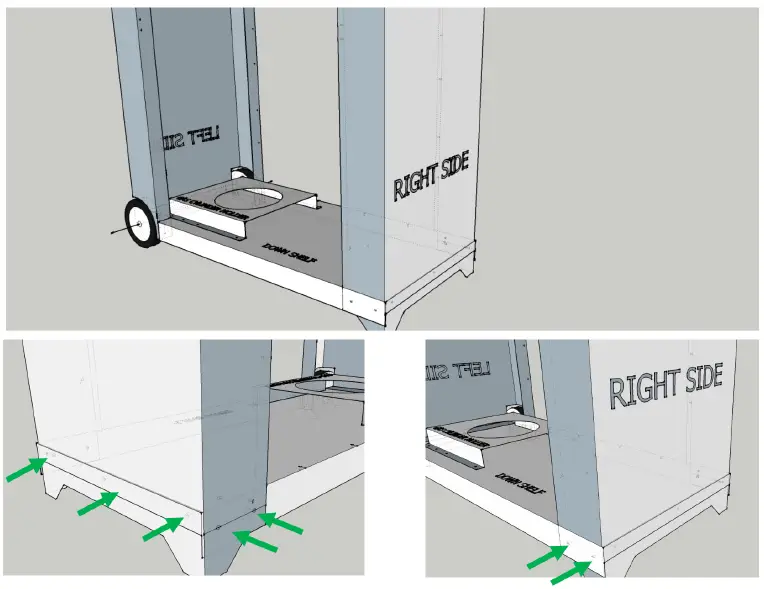

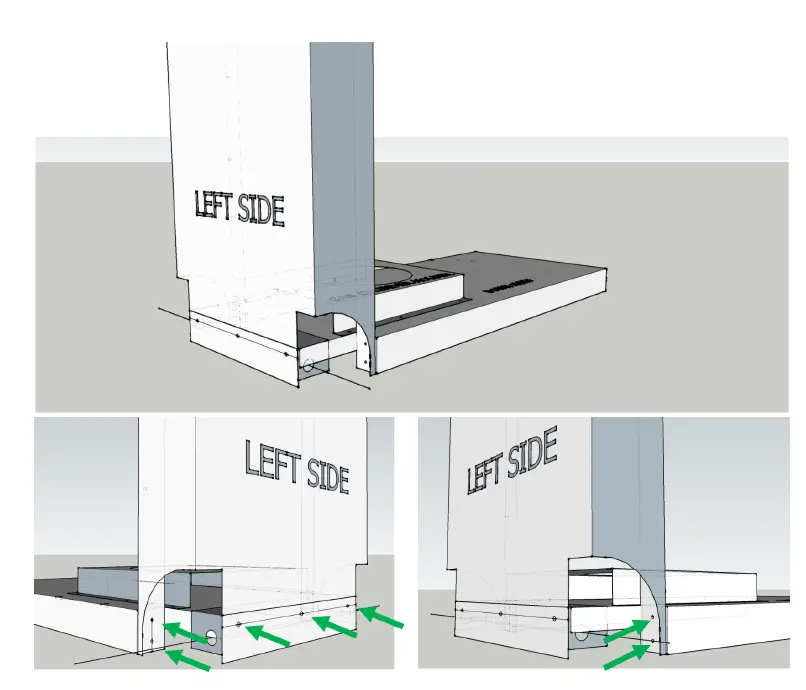

2. LEFT SIDE :use the 7 M

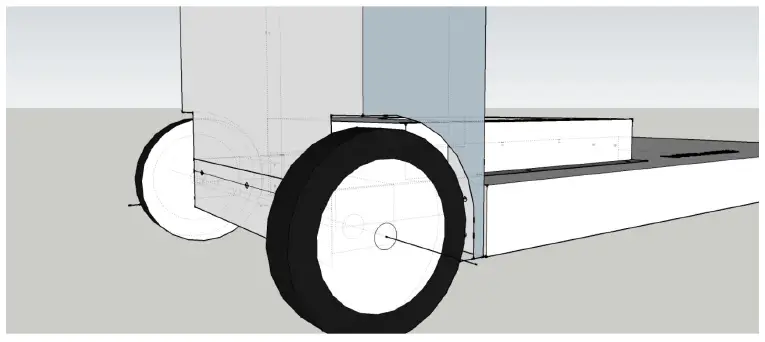

3. WHEELS :fix them with 2 M12x80 screws+ Nut
   Be carreful : Tighten the faster STRONG
4. RIGHT SIDE :use 7 M4 screws

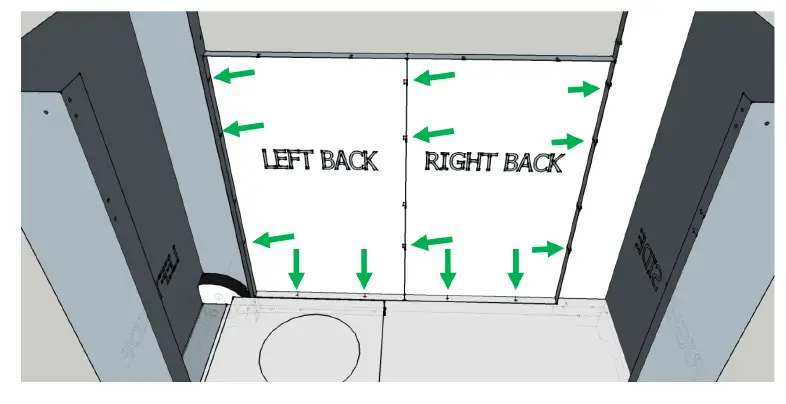

5. BACK :Add left and right back fix them with 13 M4 screws

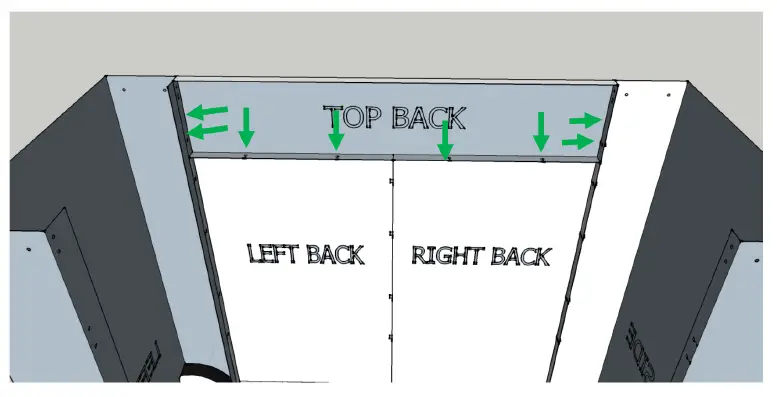

6. BACK :Add the top back, fix it with 8 M4 screws7- BACK :Add the top back, fix it with 8 M4 screws

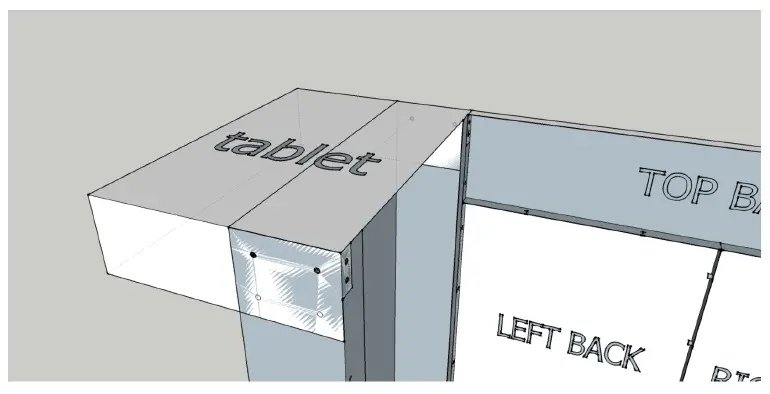

7. TABLET :Add the left tablet, fix it with 10 M4 screws.

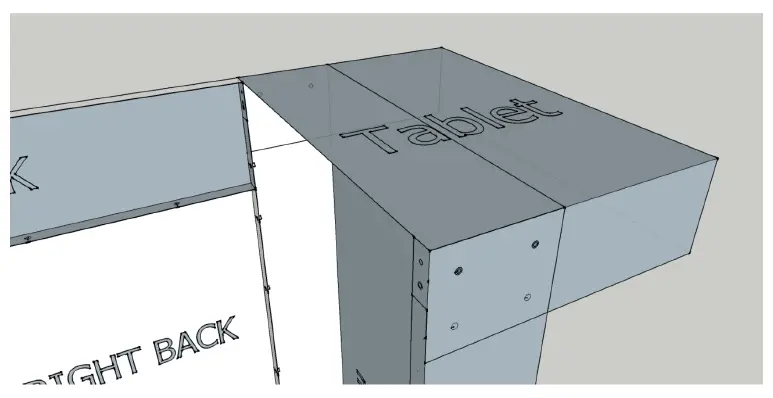

   1. TABLET :Add the right tablet, fix it with 10 M4 screws

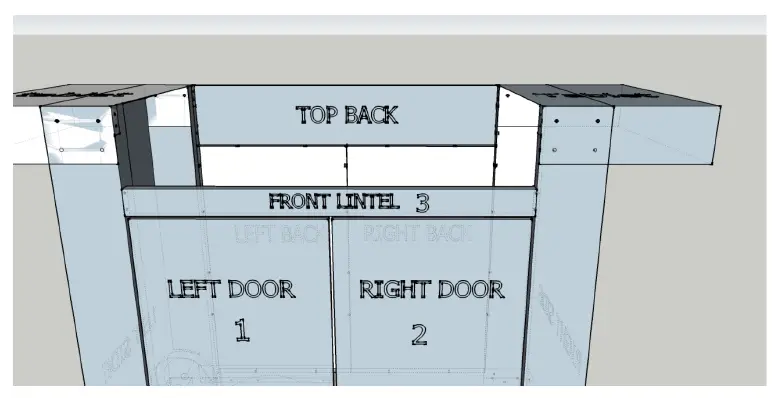

8. FRONT FACE :Add the left door, the right door them front lintel.
   1. Put axis in down shelf and lintel holes
   2. Fix the front lintel with the 2 top M4 screws

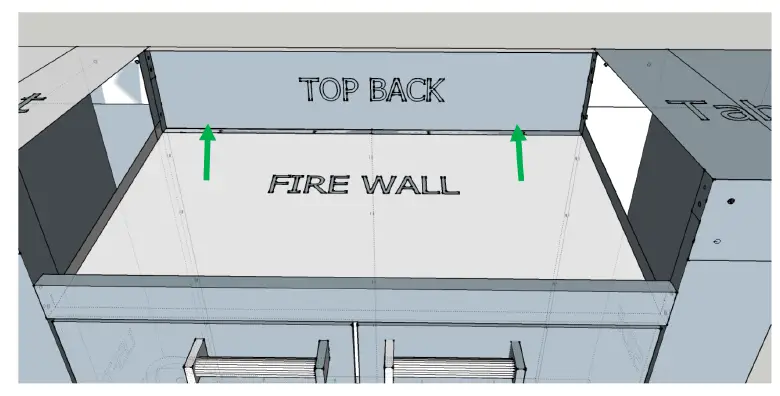

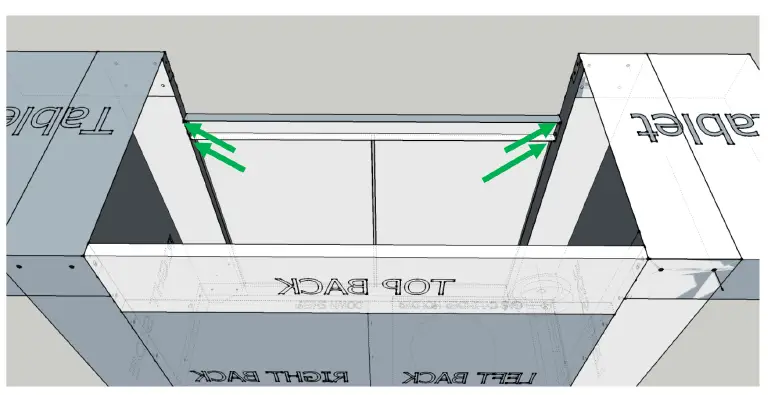

9. FIRE WALL: Fix the fire wallwith the 2 M4 nuts
10. HANDLES AND MAGNET BRACKET:
    Fix the handles on doors with 2×2 M4 screws, fix the Magnet Bracket with 2 M4 screw

Your Le Griddle CART is ready to use!
Please do not hesitate to contact us should you have any suggestions at [email protected].
