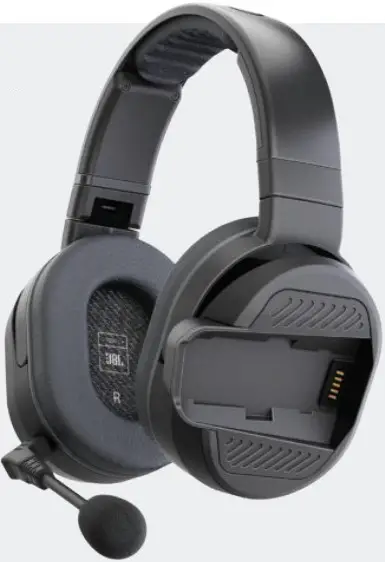

cardo ER28 PACKTALK Edgephones Installation Guide
INSTALLATION VIDEO
Installation Instructions

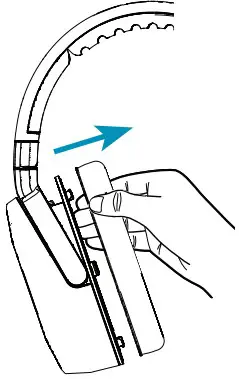

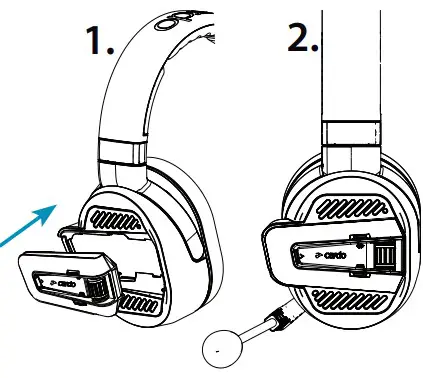

Install unit (sold separately)

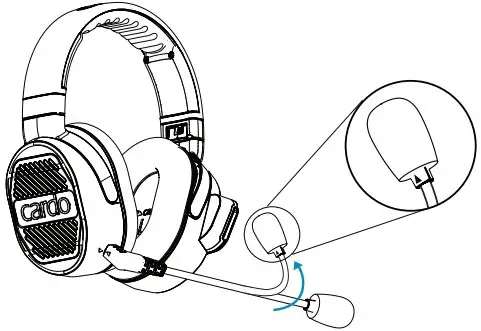

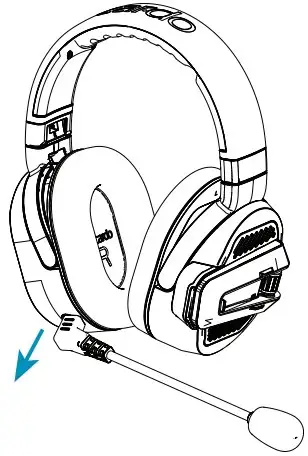

Install Microphone
Arrow faces mouth

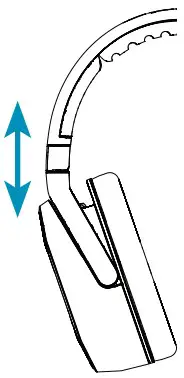

Adjustable headbands

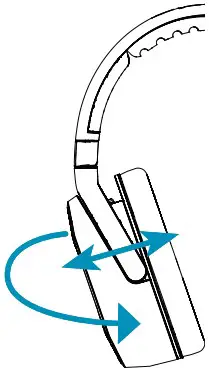

Pivotable earcups
Removable paddings
Removable microphone

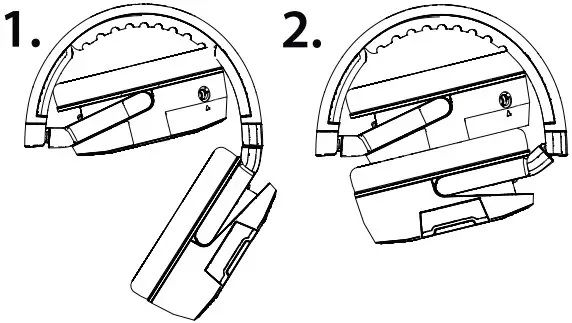

Compact folding
Measurements
| TYPE APPROVAL | |||
| P/N | MAN00696 | ||
| DESCRIPTION | POCKET GUIDE | ||
| FILE NAME | MAN00696_MAN INSTALLATION GUIDE FOR EDGEPHONES_A04 | ||
| LANGUAGE | ALL LANGUAGES | ||
| PRODUCT TYPE | INSTALLATION GUIDE | ||
| MATERIAL | P2 C4+4 130gr | ||
| PRINTING PROCESS | COLOR: CMYK | ||
| SECONDARY PROCESS | glossy artpaper | ||
| ATTACHED FILES | GRAPHIC FILE – PDF | ||
| MEASUREMENT | folded (closed) : 90mm-120mm open:180-120mm | ||
| CLIENTS/ DISTRIBUTOR | |||
| SPECIAL REQUIREMENT | |||
| REVISION | DESCRIPTION | DATE | NAME |
| A04 | FINAL | 18.5.23 | Almog |
| A01 | |||
| A02 | |||
| A03 | 6.2.2023 | Kerry | |
| A04 | change render in front cover ani illustrations inside | 18.5.23 | almog |
