PACKTALK OUTDOOR
INSTALLATION GUIDE

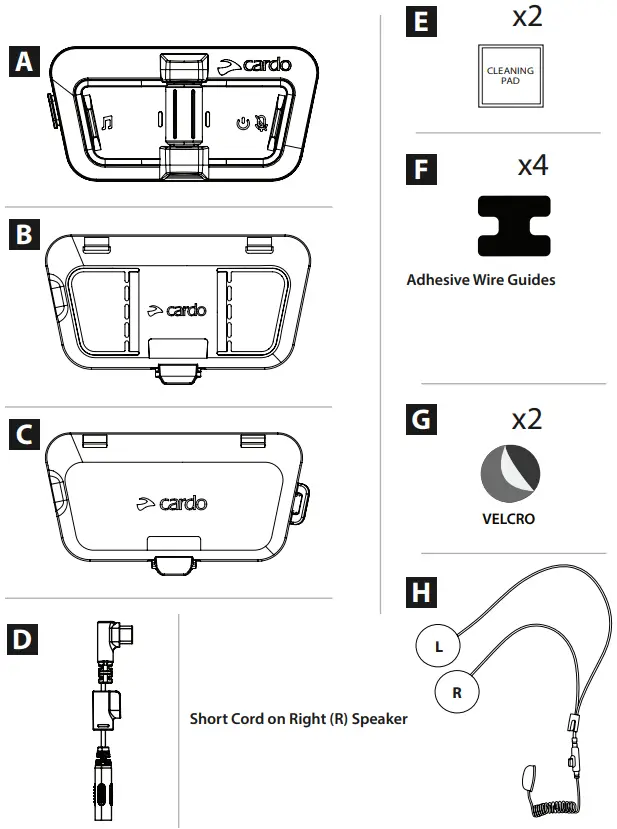

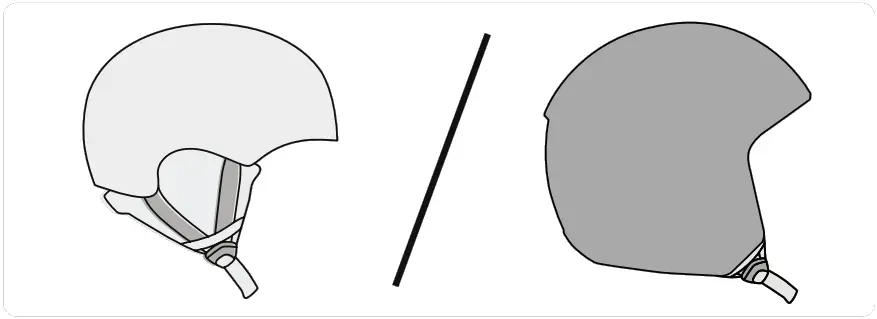

INSTRUCTOR CONTENTS
Installation Video
https://www.cardosystems.com/packtalk-outdoor-consumer-installation/

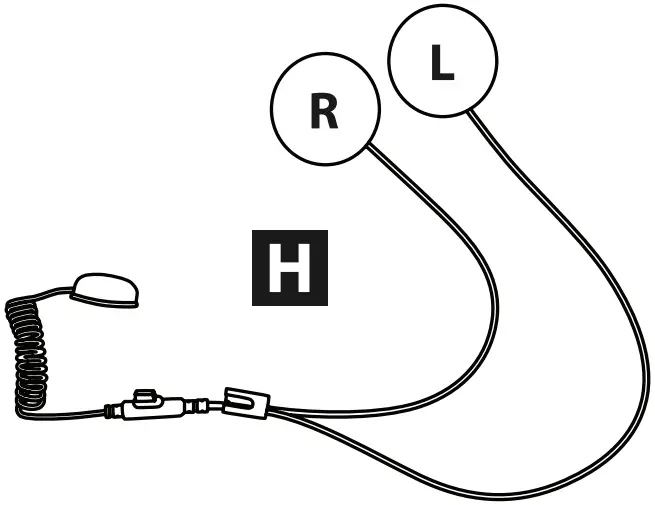

INSTALL THE SPEAKERS

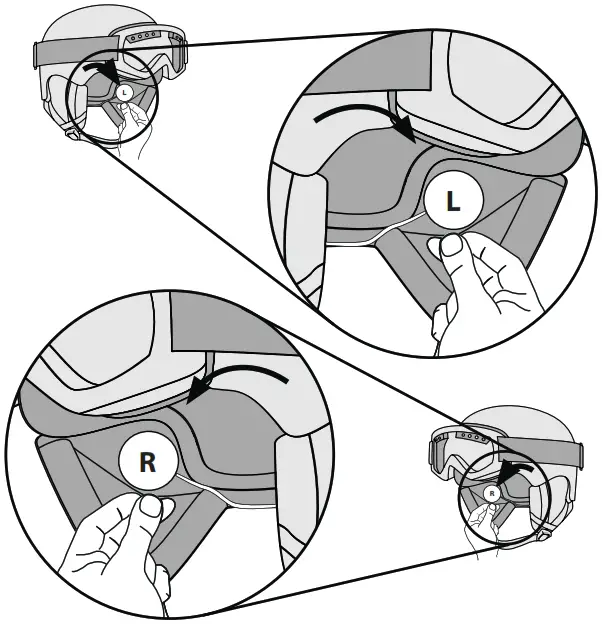

Option 1: In Ear Pockets
Place speakers into ear pockets

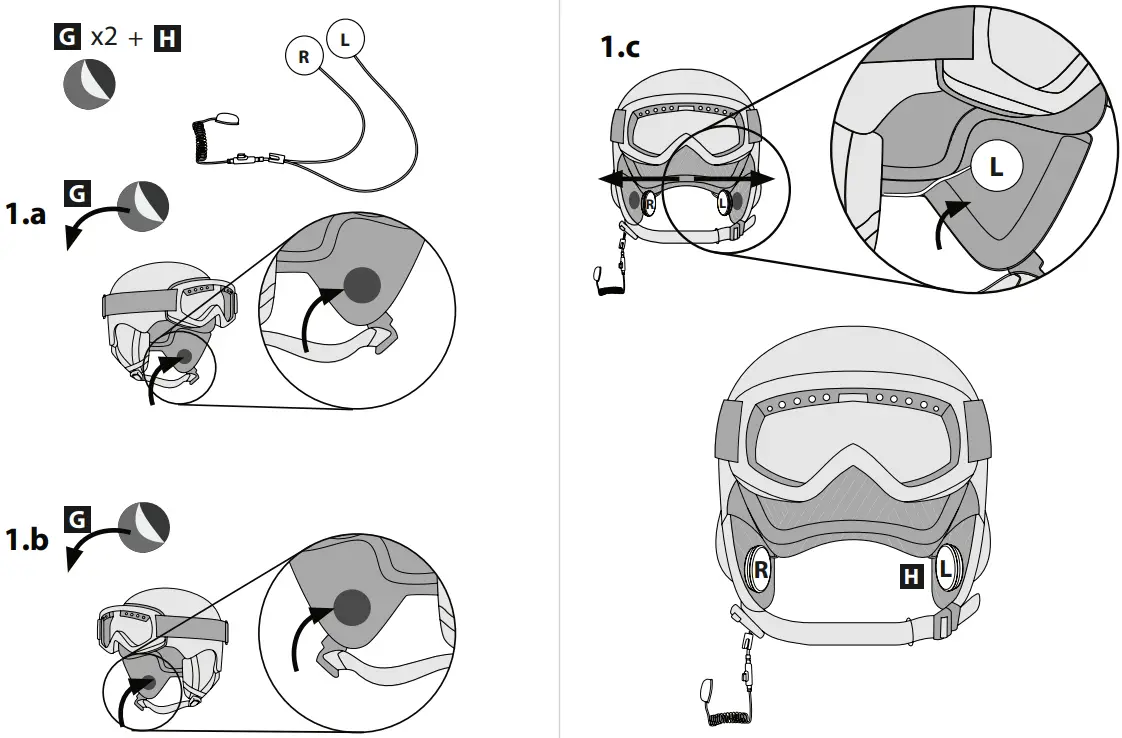

Option 2: Velcro on Inner Padding

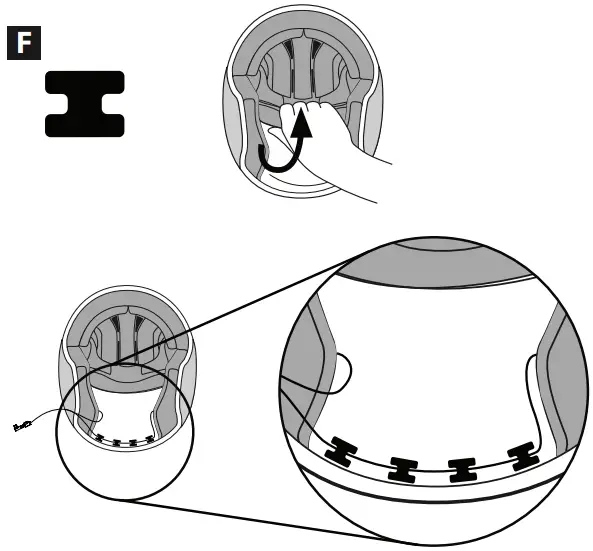

SET WIRE ON HELMET

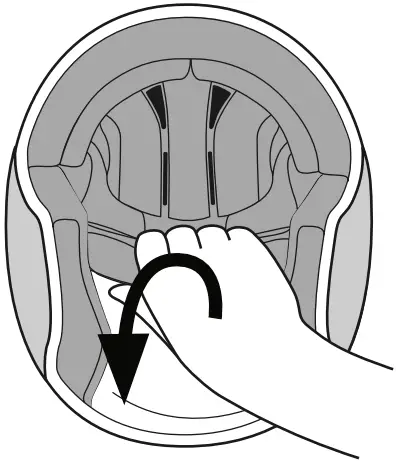

Position wire under padding and place stickers
ATTACH THE MICROPHONE

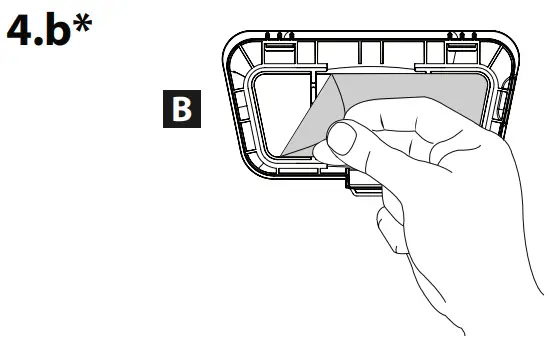

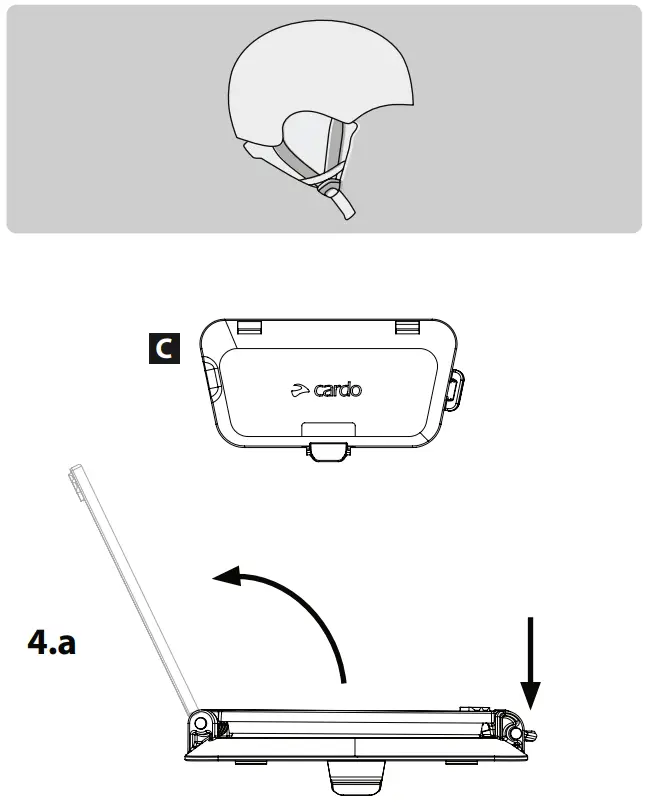

MOUNT THE CRADLE
Option 1
 |  |
Option 2

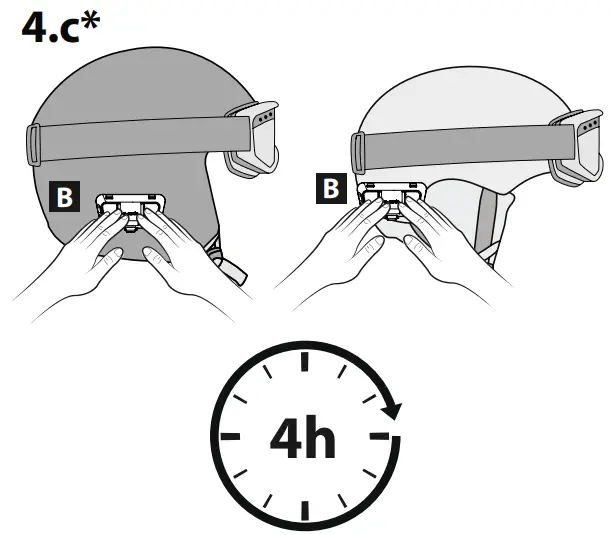

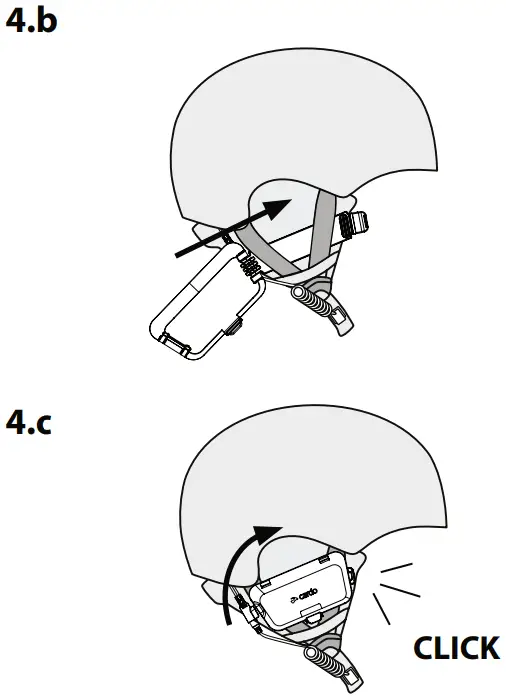

4.c* Place under goggle strap

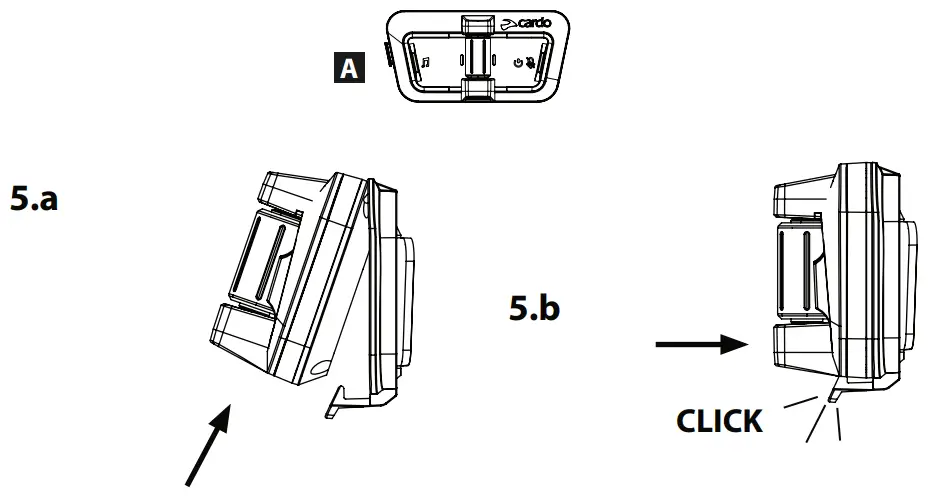

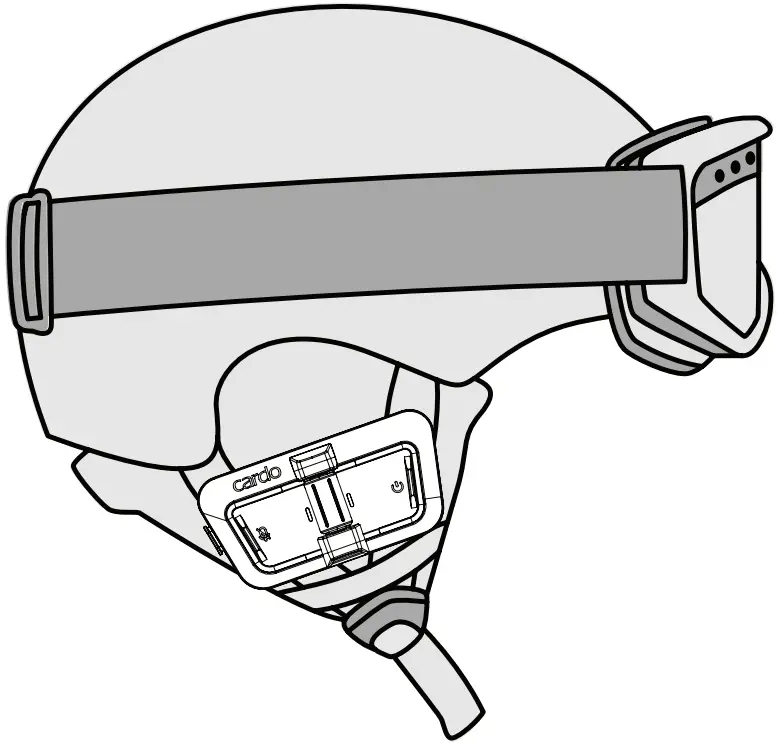

INSERT UNIT

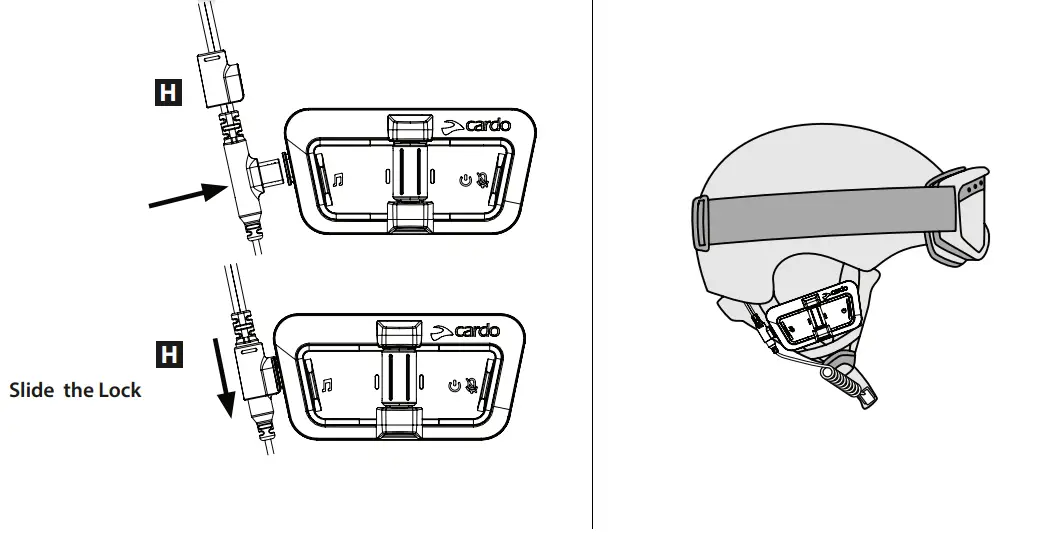

CONNECT AUDIO KIT

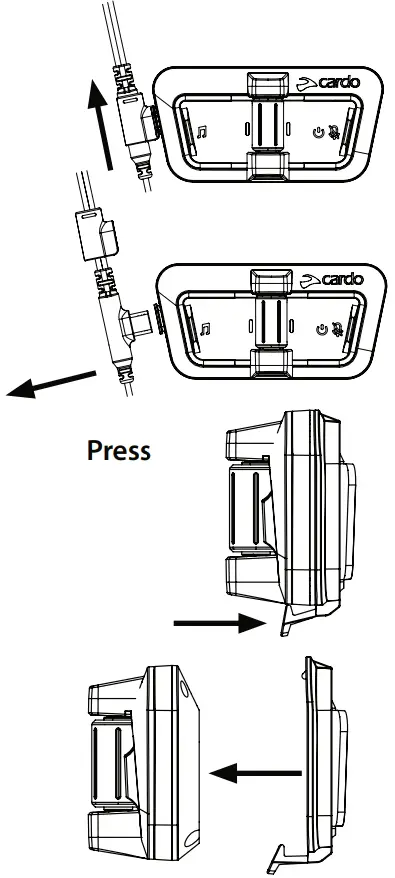

REMOVE THE UNIT
OPTIONAL: CONNECT YOUR OWN HEADPHONES
TYPE APPROVAL
| P/N | MAN00632 | ||
| DESCRIPTION | INSTALLATION GUIDE | ||
| FILE NAME | MAN00632 MAN OUTDOOR CONSUMER INSTALLATION GUIDE_A05 | ||
| LANGUAGE | EN | ||
| PRODUCT TYPE | MANUAL | ||
| MATERIAL | P2 C4+4 80 gr offset folded | ||
| PRINTING PROCESS | COLOR: CMYK | ||
| SECONDARY PROCESS | |||
| ATTACHED FILES | 1. GRAPHIC FILE – PDF | ||
| MEASUREMENT | SPREAD: 145MM-810MM , FOLDED: 145MM-90MM | ||
| CLIENTS/ DISTRIBUTOR | |||
| SPECIAL REQUIREMENT | |||
| REVISION | DESCRIPTION | DATE | NAME |
| A01 | First Version | 11.1.2022 | DANNA |
| A02 | Many Graphics and Text Changes | 27.4.22 | Richard |
| A03 | DVT- FIXED QR CODE AND FILE NAME DESCRIPTION-CUSTOMER TO CONSUMER | 16.2.2022 | Kerry |
| A04 | Many Graphics and Text Changes | 29.5.22 | Richard |
| A05 | Removed arrows and fixed unit drawings | 13.7.22 | Richard |
STAY IN TOUCH
cardosystems.com/outdoor
cardosystems.com/support
Follow Cardo Outdoor
Download:
http://onelink.to/sup9q3
MAN00632 MAN OUTDOOR CONSUMER INSTALLATION GUIDE_A05.indd
