Hama Dit2105sbt Digital Hi-fi Tuner For Internet Radio User Guide

00054251/00054252
(DIT2105SBT)
Digital Hi-Fi Tuner
QUICK GUIDE


Technical Data

Connectivity

Audio Connectors

Further information and features areavailable on /
www.hama.com -> 00054251
www.hama.com -> 00054252

Spotify Connect

Use your phone, tablet, or computer as a remote control for Spotify.Gotospotify.com/connect to learn how.

Quick Reference Guide

Controls and Displays

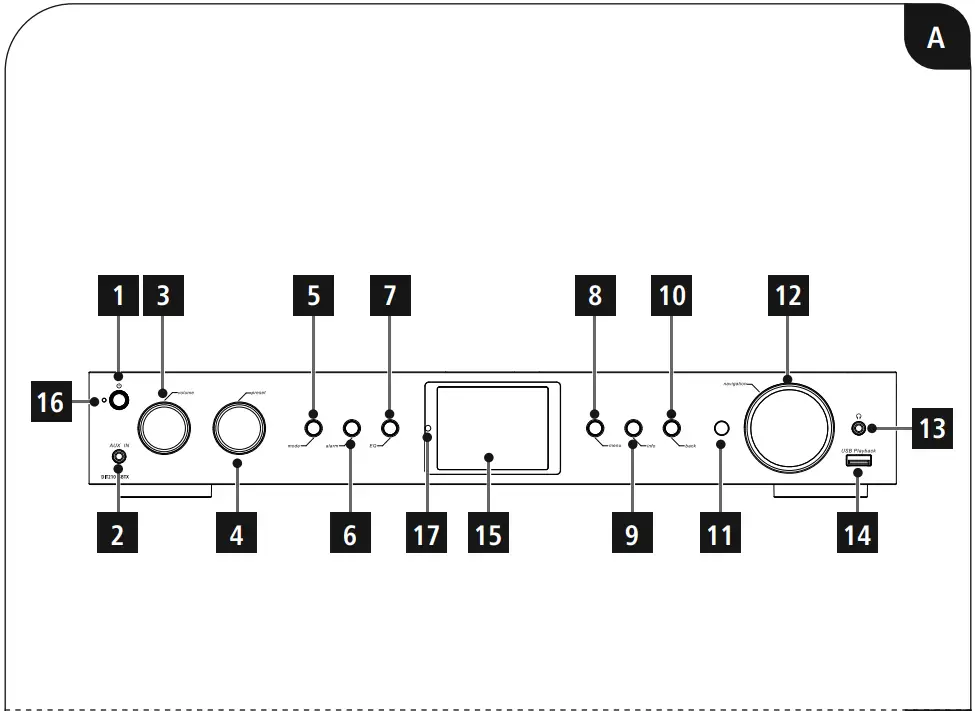

A: Radio Front

1		[POWER] Button
2		AUX-In Socket
3		[VOLUME] +/-
4		[PRESET] Wheel
5		[MODE] Button
6		[ALARM] Button
7		[EQUALIZER] Button
8		[MENU] Button
9		[INFO] Button
10		[BACK] Button
11		IR Sensor
12		[Navigation]
13		Headphone Socket
14		USB connection
15		2.8″ Colour Display
16		LED
17		Brightness Sensor

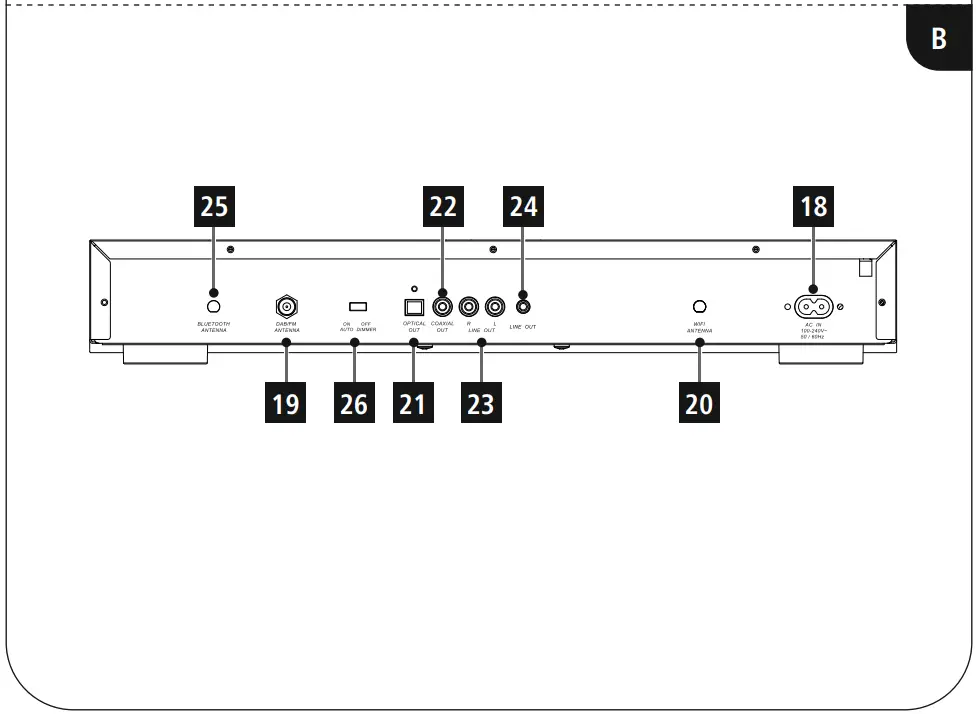

B: Radio Rear

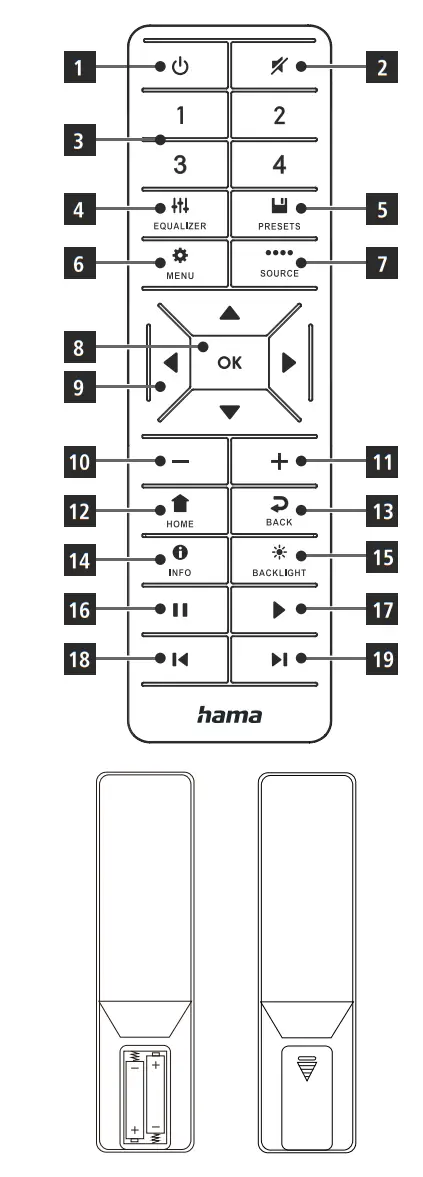

Remote Control

Note
*”DIT2105SBT” has a changeable antenna. You can use an active or passive antenna equipped with a coaxial connection.

Important information -Quick-reference guide

•  This quick-reference guide contains the most important basic information, such as safety instructions and the steps necessary to operate the product.
• To help protect the environment and conserve valuable raw materials, Hama does not issue a printed manual and instead makes this available exclusively as a pdf download.
• The full text of the manual is available at the following internet address: www.hama.com -> 00054251 -> Downloads www.hama.com -> 00054252 -> Downloads
• Save the manual on your computer for reference and print them out if possible.

Explanation of Warning Symbols and Notes

Risk of electric shock
This symbol indicates a risk of electric shock from touching product parts carrying hazardous voltage.
Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
Note
This symbol is used to indicate additional information or important notes.

Package Contents

• Digital-HiFi-Tuner DIT2105SBT
• Telescopic antenna
• 2x Antenna (1x BT;1xWifi)
• RCA cable (for stereo L/R RCA output)
• Remote control
• 2x AAA batteries
• Quick guide

Safety Instructions

• The product is intended for private, non-commercial use only.
• Do not use the product in areas in which electronic products are not permitted.
• Protect the product from dirt, moisture, and overheating and use it in dry rooms only.
• As with all electrical products, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits specified in the technical data.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the device in any way. Doing so voids the warranty.
• Use the product only for the intended purpose.
• Do not use the product in the immediate vicinity of heaters, other heat sources, or in direct sunlight.
• Do not use the product in a damp environment and avoid splashing water.
• Only use the article under moderate climatic conditions.
  Risk of electric shock
• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, the adapter cable, or the main cable are damaged.
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
  Warning –Batteries
• When inserting batteries, note the correct polarity (+ and -markings) and insert the batteries accordingly. Failuretodosocould results in the batteries leaking or exploding.
• Only use batteries (or rechargeable batteries) that match the specified type.
• Before you insert the batteries, clean the battery contacts and the polar contacts.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries, batteries of different types, or from different manufacturers.
• Remove the batteries from products that are not being used for an extended period (unless these are being kept ready for an emergency).
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not burn batteries.
• Keep batteries out of the reach of children.
• Never open, damage, or swallow batteries or allow them to enter the environment. They can contain toxic, environmentally harmful heavy metals.
• Remove spent batteries from the product and dispose of them without delay.
• Avoid storing, charging, or using the device in extreme temperatures and extremely low atmospheric pressure (for example, at high altitudes).

Before First Use

Note
A detailed description of the UNDOK app and all of its functions can be found in our UNDOK guide at:

www.hama.com -> 00054251, 00054252 -> Downloads

Notes on use

• The [OK] button and ► on the remote control corresponding to the [NAVIGATION]button (12) on the front of the radio.
• The ◄ button on the remote control corresponds to the [BACK]button on the front of the radio
• The ▲▼ buttons on the remote control correspond to turning the navigation controller to the left and right on the front of the radio.

Preparing the remote control for use
Open the cover on the battery compartment. This can be found on the back of the remote control and can be opened by sliding in the direction indicated. The extent of delivery includes two AAA batteries which must be inserted into the battery compartment for the remote control to work. When inserting the batteries, ensure that they are inserted with the correct polarity. The relevant polarity (+ /-)is marked inside the battery compartment.

Setting up a network connection WLAN (wireless network)

• Ensure that the router is switched on, is functioning correctly, and that there is a connection to the internet.
• Activate the WLAN function of your router.
• Follow your router‘s operating instructions as regards the correct functioning of the WLAN connection.
• Then proceed directly as described under section 5 ‚Getting started‘.

Getting Started

Note -optimizing reception
“DIT2105SBT” has an antenna connection for external antennas with a coaxial connection. A suitable telescopic antenna that allows DAB, DAB+ and FM reception is included in the extent of delivery. Alternatively, you can use an active or passive antenna to improve the reception or to adapt it to your requirements. Please note:

• Always pull the antenna out completely.
• We recommend you adjust the antenna vertically to ensure optimal reception.

5.1 General Notes on Use
5.1.1 Switch On /Off /Standby

• Press [POWER](1) to switch on the radio.
• Press [POWER](1) to switch the radio on (Standby).
• To completely switch off the device, disconnect it from the power supply.

5.1.2 Navigation and Control

• After pressing a shortcut button, navigate through the menu items using.
• Select the individual menu items by turning [NAVIGATION](12).
• Confirm the selection by pressing [NAVIGATION](12).

5.1.3 Volume Adjustment

• Turn the volume up (right) or down (left) by turning [VOLUME](3) accordingly.

5.2 Switching ON
Warning

• Only operate the product from a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
• Disconnect the product from the power supply using the On/Off switch –if this is not available, unplug the power cord from the socket.
• If using a multi-socket power strip, make sure that the total power consumption of all connected devices does not exceed the power strip’s maximum throughput rating.
• If you will not be using the product for a prolonged period, disconnect it from mains power.
• Connect the power supply to the mains connection (1) on the back of the radio.
• Connect the network cable to a properly installed and easily accessible network socket.
• Wait until the radio has initialized fully.
• Press [POWER](1) to switch on the radio.

Note –switching on for the first time

• The Setup Wizard starts up automatically when the radio is turned on for the first time.
• The language can be set during commissioning. To do this, use the rotary control to select the required language and confirm your choice by pressing [NAVIGATION](12).
• You can skip the wizard.

5.3 Language
To change the radio’s menu language, proceed as follows:

• Press [MENU](8) to access the Settings menu.
• Use [NAVIGATION](12) to navigate to the “Settings” menu item.
• Confirm the selection by pressing [NAVIGATION](12).
• Use [NAVIGATION](12) to navigate to the “Language” menu item. Confirm the selection by pressing [NAVIGATION](12).
• Use [NAVIGATION](12) to select your preferred system language.
• The language setting currently selected is marked with an asterisk (*).

Note

• The following languages are available: English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish, Czech, and Slovak.

6. Care and Maintenance

•  Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not plan to use the product for a prolonged period, turn off the device and disconnect it from the power supply. Storeitinaclean, a dry place away from direct sunlight.

7. Warranty Disclaimer
Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from failureto
observe the operating instructions and/or safety notes.
8. Service and Support
Please contact Hama Product Consulting if you have any questions about this product.
Hotline: +49 9091 502-115 (German/English)
Further support information can be found here: www.hama.com
The full text of the manual is available at the following internet address:
www.hama.com -> 00054251 -> Downloads
www.hama.com -> 00054252 -> Downloads

9. Declaration of Conformity
Hama GmbH &CoKGhereby declares that the radio equipment type [00054251, 00054252] is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address:
www.hama.com -> 00054251 -> Downloads
www.hama.com -> 00054252 -> Downloads

Restrictions or Requirements in
Belgium, Bulgaria, Czech Republic, Denmark, Germany, Estonia, Ireland, Greece, Spain, France, Croatia, Italy, Cyprus, Latvia, Lithuania, Luxembourg, Hungary, Malta, the Netherlands, Austria, Poland, Portugal, Romania, Slovenia, Slovakia, Finland, Sweden, United Kingdom

Note
If channels 36-64 (channels of frequency 5150 MHz -5350 MHz) are used, the device may only be used in closed rooms.
To limit exposure to electromagnetic fields
This device is intended for use at a distance of at least 20 cm from the body of the user or persons nearby. This device must not be worn or carried on the body.

10. Consumption information according to the directive (EU) No. 801/2013 amending the directive (EC) No. 1275/2008

*Press the Power button
** Not networked -“Maintain network connection -NO”. Not available in FM mode, if present.
*** Networked -“Maintain network connection -YES”

Please note that the actual power consumption can be dependent on multiple factors. These include the personal settings, the operating mode, the ambient temperature, and the firmware version of the product used.
The values set out above represent maximum values. The actual reference values can be found at:
www.hama.com -> 00054251 -> Downloads -> Consumption information
www.hama.com -> 00054252 -> Downloads -> Consumption information

Hama GmbH &CoKG
86652 Monheim/Germany
www.hama.com
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted,
and subject to technical changes. Our general terms of delivery and payment are applied.
The Spotify software is subject to third party licenses found here:
https://www.spotify.com/connect/third-party-licenses
