Hama Dit2010mbt Digital Hifim Tuner User Guide

00054833 V2
(DIT2010MBT)
00054842 V2
(DIT2010MBT)
Digital HI-FI Tuner
User Guide

Technical data

Further information and features are available on /
Weitere Informationen und Features finden Sie hier
00054833: www.hama.com/54833#downloads
00054842: www.hama.com/54842#downloads

Spotify Connect

Use your phone, tablet or computer as a remote control for Spotify.Gotospotify.com/connect to learn how.

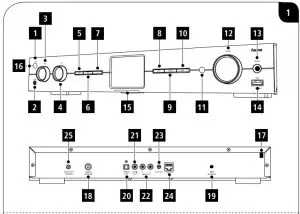

Controls and Displays (Pic.1)

Note
* This radio has a changeable antenna. You can use an active or passive antenna equipped with a coaxial connection.

Important note –Operating instructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
•  For the sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF files /eManuals on www.hama.com.
• Use the search function with the item number of your product to easily find the product documentation.
• Save the operating instructions to your computer hard drive for futurereference or print it out if necessary.

Explanation of Warning Symbols and Notes

Warning
This symbol is used to indicate safety instructions or to draw your attention to specifichazards and risks.
Note
This symbol is used to indicate additional information or important notes.
Risk of electric shock
This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

Package Contents

• Digital-HiFi-Tuner DIT2010MBT
• Antenna (DAB/FM 1,5 m)
• 2x Antenna (1x BT;1xWifi)
• Remote control
• 2x AAA batteries
• Quick guide, brochure

Safety Notes

• The product is intended for private, non-commercial use only.
• Protect the product from dirt, moistureand overheating and use it in dry rooms only.
• As with all electrical devices, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the device in any way. Doing so voids the warranty.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.

Warning –Batteries:

• When inserting batteries note the correct polarity (+ and -markings) and insert the batteries accordingly. Failure to dosocould results in the batteries leaking or exploding.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries or batteries of a different type or make.
• Remove the batteries from products that are not being used for an extended period
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not throw batteries in a fire.
• Keep batteries out of the reach of children.

Before starting

Note
A detailed description of the UNDOK app and the full scope of functions can be found in our UNDOK guide at:

www.hama.com -> 00054833, 00054842 -> Downloads

Notes on Use

• The [OK] and ► button on the remote control have the same function as the [ENTER] button on the front of the radio.
• The ◄ button on the remote control has the same function as the [BACK] button on the front of the radio.
• The ▲▼ buttons on the remote control have the same function as turning the navigation controller on the front of the radio to the left and right. (right controller)

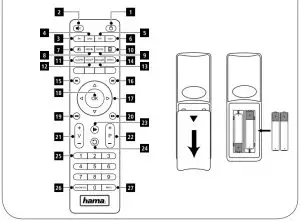

Activating the remote control
Open the battery compartment cover. It is located on the rear of the remote control and can be opened by sliding it in the direction indicated. TwoAAA batteries are included in the delivery, they should be inserted in the battery compartment of the remote control. Observe the correct polarity when inserting batteries. The polarity (+ /-)is indicated in the battery compartment.).

Setting up a network connection

LAN (wired network)

• Connect the LAN connection of your router to the LAN connection on your radio. You will require an ethernet cable, which is not included in the delivery, to do this.
• Make sure that the router is on and working properly, and that you have an Internet connection.
• See the operating instructions for your router regarding a properly functioning LAN connection.
• Then proceed as described in point 5, “Getting Started”.

WLAN (wireless network)

• Ensure that the router is switched on, is functioning correctly, and that there is a connection to the internet.
• Activate the WLAN function of your router.
• Follow your router‘s operating instructions as regards the correct functioning of the WLAN connection.
• Then proceed directly as described under section 5 ‚Getting started‘.

Getting started

Note -Optimal reception

is product is equipped with an antenna connection for external antennas with a coaxial connection. An antenna that enables DAB, DAB+ and FM reception is included in the delivery. Alternatively, you can use an active or passive antenna to improve reception, or according to your requirements. Note the following:

•  Pull the antenna out completely.
•  We recommend you adjust the antenna vertically to ensure optimal reception.

Switching the device on

• connecting the power cable to a properly installed power socket

Warning

1. Only connect the product to a socket that has been approved for the device. The electrical socket must always be easily accessible.
2. Disconnect the product from the power supply using the on/off switch –ifthis is not available, unplug the power cord from the socket.
3. Wait until the radio initialization procedure has finished.
4. Press the [POWER] button to switch the radio on.

Language and setup wizard

The first time the system starts the radio uses English. To change this, proceed as follows:
Press [MENU] > System settings > Language >Select language
Confirm your selection by pressing the [ENTER] or [OK] button.

Note

• You can choose from the following languages: English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish, Czech, and Slovak.

Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the power supply.
  Storeitinaclean, a dry place out of direct sunlight.

Warranty Disclaimer

Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

Service and Support

Please contact Hama Product Consulting if you have any questions about this product.
Hotline: +49 9091 502-115 (German/English)
Further support information can be found here: www.hama.com

Recycling Information

Note on environmental protection:
After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices, as well as batteries, must not be disposed of with household waste. Consumers areobliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual, or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices/Batteries, you aremaking an important contribution to protecting our environment.

Declaration of Conformity

Hereby,Hama GmbH &CoKGdeclares that the radio equipment type [00054833, 00054842] is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address:
www.hama.com -> 00054833 -> Downloads.
www.hama.com -> 00054842 -> Downloads.

Restrictions or Requirements in
Belgium, Bulgaria, Czech Republic, Denmark, Germany, Estonia, Ireland, Greece, Spain, France, Croatia, Italy, Cyprus, Latvia, Lithuania, Luxembourg, Hungary, Malta, the Netherlands, Austria, Poland, Portugal, Romania, Slovenia, Slovakia, Finland, Sweden, United Kingdom

Note
If channels 36–64 (frequency 5.150–5.350 GHz) are used in an a5-GHz WLAN, the product may only be used in closed rooms.

Hama GmbH &CoKG
86652 Monheim/Germany
www.hama.com

The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses
The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hama GmbH &CoKGisunder license. Other trademarks and trade names are those of their respective owners.
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes.  Our general terms of delivery and payment are applied.
