hama 00054245 Digital Radio

OVERVIEW

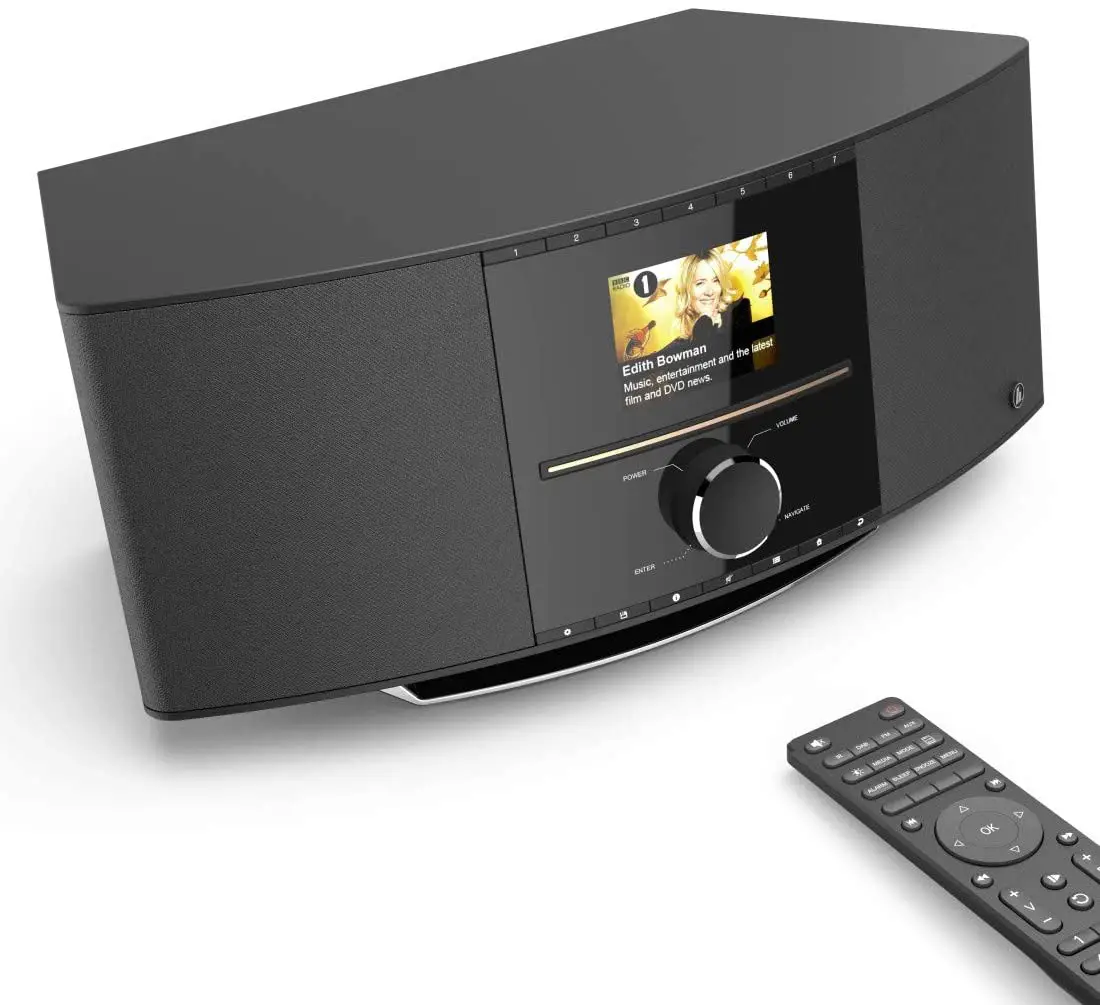

00054245/00054246 (DIR3200SBT)

Technical Data

Connectivity

Audio Connectors

Sources

Further information and features areavailable on /WeitereInformationen und Features finden Sie hier www.hama.com -> 00054245 www.hama.com -> 00054246.

00054247/00054248 (DIR3300SBT)

Further information and features areavailable on /WeitereInformationen und Features finden Sie hier www.hama.com -> 00054247 www.hama.com -> 00054248.

Spotify Connect
Use your phone, tablet or computer as aremote control for Spotify.Gotospotify.com/connect to learn how.

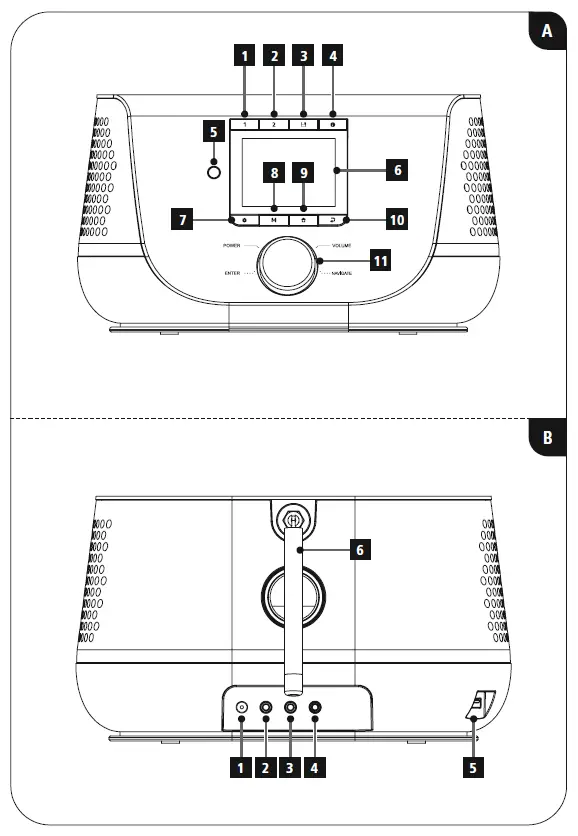

Controls and Displays

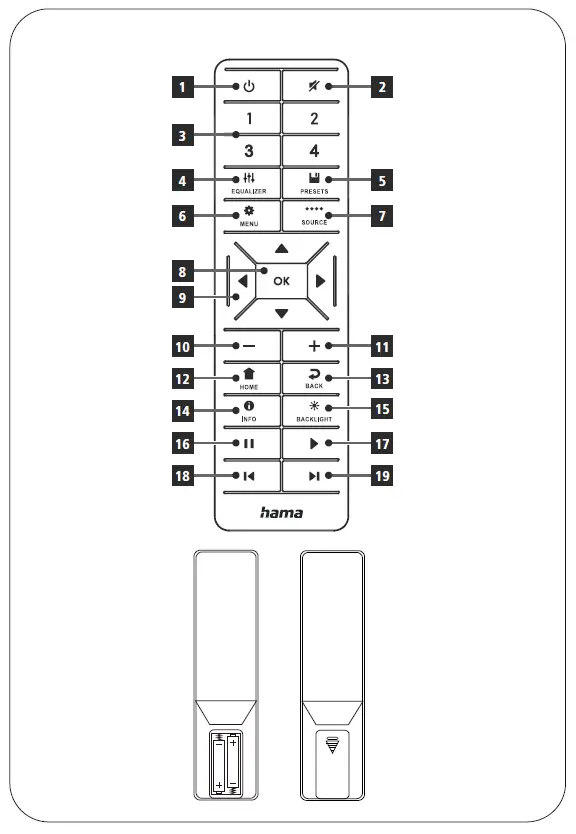

Remote Control

Note

• “DIR3300SBT” has achangeable antenna. Youcan use an active or passive antenna equipped with acoaxial connection.
• The rotary knob has adual function. Turning the controller allows you to change the volume or navigate through the menu structure. Pressing this rotary knob puts the device in standby mode or confirms aselection.

Important information -Quick-reference guide

• This quick-reference guide contains the most important basic information, such as safety instructions and the steps necessary to operate the product.
• To help protect the environmental and conserve valuable rawmaterials, Hama does not issue aprinted manual and instead makes this available exclusively as aPDF download.
• The full text of the manual is available at the following internet address:
  www.hama.com -> 00054245 -> Downloads www.hama.com -> 00054247 -> Downloads. www.hama.com -> 00054246 -> Downloads www.hama.com -> 00054248 -> Downloads.
• Save the manual on your computer for reference and print them out if possible.

xplanation of Warning Symbols and Notes

Risk of electric shock
This symbol indicates arisk of electric shock from touching product parts carrying hazardous voltage.

Warning
This symbol is used to indicate safety instructions or to draw your attention to specifichazards and risks.

Note
This symbol is used to indicate additional information or important notes.

Package Contents

• “DIR3200SBT /DIR3300SBT” Digital /Internet Radio
• Telescope Antenna
• Power Supply
• Remote Control
• 2xAAA (micro) Batteries
• These Operating Instructions

Safety Instructions

• The product is intended for private, non-commercial use only.
• Do not use the product in areas in which electronic products arenot permitted.
• Protect the product from dirt, moistureand overheating and use it in dry rooms only.
• As with all electrical products, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits specified in the technical data.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the device in any way.Doing so voids the warranty.
• Use the product only for the intended purpose.
• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.
• Do not use the product in adamp environment and avoid splashing water.
• Only use the article under moderate climatic conditions.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter,the adapter cable or the mains cable are damaged.
• Do not attempt to service or repair the product yourself.Leave any and all service work to qualified experts.

Warning –Batteries

• When inserting batteries, note the correct polarity (+ and -markings) and insert the batteries accordingly. Failuretodosocould result in the batteries leaking or exploding.
• Only use batteries (or rechargeable batteries) that match the specified type.
• Beforeyou insert the batteries, clean the battery contacts and the polar contacts.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries, or batteries of different types or from different manufacturers.
• Remove the batteries from products that arenot being used for an extended period (unless these arebeing kept ready for an emergency).
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not burn batteries.
• Keep batteries out of the reach of children.
• Never open, damage or swallow batteries or allow them to enter the environment. They can contain toxic, environmentally harmful heavy metals.
• Remove spent batteries from the product and dispose of them without delay.
• Avoid storing, charging or using the device in extreme temperatures and extremely low atmospheric pressure (for example, at high altitudes).

Before First Use

Note
Adetailed description of the UNDOK app and all of its functions can be found in our UNDOK guide at: www.hama.com -> 00054245, 00054246, 00054247, 00054248 -> Downloads.

Notes on use

• The [OK] button and ► on the remote control corresponding to the [POWER/VOLUME/ENTER/NAVIGATE] button (11) on the front of the radio.
• The ◄ button on the remote control corresponds to the [ ] button on the front of the radio
• The ▲▼ buttons on the remote control correspond to turning the navigation controller to the left and right on the front of the radio.

Preparing the remote control for use
Open the cover on the battery compartment. This can be found on the back of the remote control and can be opened by sliding in the direction indicated. The extent of delivery includes two AAA batteries which must be inserted into the battery compartment for the remote control to work. When inserting the batteries, ensure that they are inserted with the correct polarity. The relevant polarity (+ /-)is marked inside the battery compartment.

Setting up a network connection WLAN (wireless network)

• Ensure that the router is switched on, is functioning correctly, and that there is a connection to the internet.
• Activate the WLAN function of your router.
• Follow your router‘s operating instructions as regards the correct functioning of the WLAN connection.
• Then proceed directly as described under section 5 ‚Getting started‘.

Getting Started

Note -optimizing reception
“DIR3300SBT” has an antenna connection for external antennas with a coaxial connection. A suitable telescopic antenna that allows DAB, DAB+ and FM reception is included in the extent of delivery. Alternatively, you
can use an active or passive antenna to improve the reception or to adapt it to your requirements.

Please note:

• Always pull the antenna out completely.
• We recommend you adjust the antenna vertically to ensure optimal reception.

General Notes on Use

Switch On /Off /Standby

• Press [POWER/VOLUME/ENTER/NAVIGATE](11) to switch on the radio.
• Press and hold [POWER/VOLUME/ENTER/NAVIGATE] (11) for 3seconds to switch the radio off (standby).
• To completely switch off the device, disconnect it from the power supply.

Navigation and Control

• After pressing ashortcut button, navigate through the menu items using.
• Select the individual menu items by turning [POWER/VOLUME/ENTER/NAVIGATE](11).
• Confirm the selection by pressing [POWER/VOLUME/ENTER/NAVIGATE](11).

Volume Adjustment

• Turn the volume up (right) or down (left) by turning [POWER/VOLUME/ENTER/NAVIGATE](11) accordingly.

Switching ON

Warning

• Only operate the product from asocket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
• Disconnect the product from the power supply using the On/Off switch –ifthis is not available, unplug the power cordfromthe socket.
• If using amulti-socket power strip, make surethat the total power consumption of all connected devices does not exceed the power strip’s maximum throughput rating.
• If you will not be using the product for aprolonged period, disconnect it from mains power.
• Connect the power supply to the mains connection (1) on the back of the radio.
• Connect the mains cable to aproperly installed and easily accessible mains socket.
• Wait until the radio has initialised fully.
• Press [POWER/VOLUME/ENTER/NAVIGATE](11) to switch on the radio.

Note –switching on for the first time

• The Setup Wizard starts up automatically when the radio is turned on for the first time.
• The default used language is English.
• You can skip the Wizard and start it up again later in German.

Language
The first time it is used, the radio’s default language is English. To change radio’s menu language, proceed as follows:

• Press [ ](7) to access the Settings menu.
• Use [POWER/VOLUME/ENTER/NAVIGATE](11) to navigate to the “Settings” menu item.
• Confirm the selection by pressing [POWER/VOLUME/ENTER/NAVIGATE](11).
• Use [POWER/VOLUME/ENTER/NAVIGATE](11) to navigate to the “Language” menu item. Confirm the selection by pressing [POWER/VOLUME/ENTER/NAVIGATE](11).
• Use [POWER/VOLUME/ENTER/NAVIGATE](11) to select your preferred system language.
• The language setting currently selected is marked with an asterisk (*).

Note

• The following languages areavailable: English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish,Turkish, Czech and Slovak.

Care and Maintenance

• Only clean this product with aslightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not plan to use the product for aprolonged period, turn off the device and disconnect it from the power supply.Storeitinaclean, dry place away from direct sunlight.

Warranty Disclaimer

Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failureto observe the operating instructions and/or safety notes.

Service and Support

• Please contact Hama Product Consulting if you have any questions about this product.
• Hotline: +49 9091 502-115 (German/English)
• Further support information can be found here: www.hama.com
• The fulltext of the manual is available at the following internet address: www.hama.com -> 00054245 -> Downloads. www.hama.com -> 00054246 -> Downloads www.hama.com -> 00054247 -> Downloads www.hama.com -> 00054248 -> Downloads

Declaration of Conformity

Hama GmbH &CoKGhereby declares that the radio equipment type [00054245, 00054246, 00054247, 00054248] is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: www.hama.com -> 00054245 -> Downloads www.hama.com -> 00054246 -> Downloads www.hama.com -> 00054247 -> Downloads www.hama.com -> 00054248 -> Downloads

00054245/00054246 DIR3200SBT

00054247/00054248 DIR3300SBT

Restrictions or Requirements in
Belgium, Bulgaria, Czech Republic, Denmark, Germany, Estonia, Ireland, Greece, Spain, France, Croatia, Italy, Cyprus, Latvia, Lithuania, Luxembourg, Hungary,Malta, the Netherlands, Austria, Poland, Portugal, Romania, Slovenia, Slovakia, Finland, Sweden, United Kingdom.

Note
If channels 36-64 (channels of frequency 5150 MHz -5350 MHz) are used, the device may only be used in closed rooms.

To limit exposure to electromagnetic fields
This device is intended for use at a distance of at least 20 cm from the body of the user or persons nearby. This device must not be worn or carried on the body.

Specifications in accordance with Regulation (EU) 2019/1782

Consumption information according to the directive (EU) No. 801/2013 amending the directive (EC) No. 1275/2008

• rePss the Power button
• Not networked -“Maintain network connection -NO”. Not available in FM mode, if present.
• Networked -“Maintain network connection -YES”

Please note that the actual power consumption can be dependent on multiple factors. These include the personal settings, the operating mode, the ambient temperature and the firmwareversion of the product used.
The values set out above represent maximum values. The actual reference values can be found at: www.hama.com -> 00054245 -> Downloads -> Consumption information www.hama.com -> 00054246 -> Downloads -> Consumption information www.hama.com -> 00054247 -> Downloads -> Consumption information www.hama.com -> 00054248 -> Downloads -> Consumption information.
