Hama 00054896 Digital Radio User Guide

hama 00054896 Digital Radio

Technical Data

Sources		Presets
DAB/DAB+ (174.928 – 239.2 MHz)		30
FM   (87.5 – 108 MHz)		30

Further information and features are available on/ www.hama.com -> 00054896, 00054231

Controls and Displays

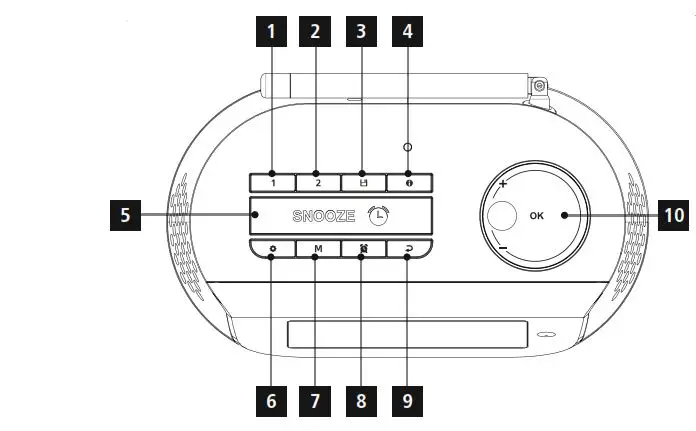

		A: Radio Frontseite
1		[PRESET 1] – button
2		[PRESET 2] – button
3		[PRESET] – button
4		[INFO] – button
5		[SNOOZE/SLEEP] – button
6		[MENU/SETTINGS] – button
7		[MODE] – button
8		[ALARM] – button
9		[BACK] – button
10		[ + / OK / – ]

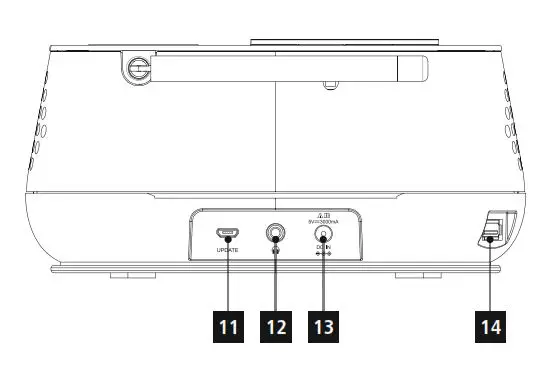

		B: Radio
11		Update port
12		Headphone jack
13		Mains power supply
14		USB interface

Important note – Quick Guide:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
• For the sake of protecting the environment and saving valuable resources, Hama dispenses with a printed instruction manual and provides this only in the form of a PDF file available for download.
• The complete instruction manual is available at: www.hama.com -> 00054896, 00054231 -> Downloads
• Save the instruction manual to your computer’s hard drive for future reference, or print it out if necessary.

Explanation of Warning Symbols and Notes

Risk of electric shock: This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

Warning: This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
Note : This symbol is used to indicate additional information or important notes.

Package Contents

• DR36SBT digital radio
• Power supply unit
• Quick Guide

Safety Notes

• The product is intended for private, non-commercial use only.
• Do not use the product in areas where the use of electronic devices is not permitted.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• As with all electrical devices, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the device in any way. Doing so voids the warranty.
• Use the product for its intended purpose only.
• Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
• Do not use the product in moist environments and avoid splashes.
• Use the item only in moderate climatic conditions.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.

General notes on use

Switch On / Off / Standby

• Press [+/OK/-] (10) to switch on the radio.
• Press and hold [+/OK/-] (10) for about 3 seconds to
• switch off the radio (standby).
• To completely switch off the device, disconnect it from the power supply.

Navigation and control

• After pressing a shortcut button, navigate through the menu items.
• Select among menu items by turning [+/OK/-] (10).
• Confirm the selection by pressing [+/OK/-] (10).

Volume adjustment

• You can turn the volume up (right) or down (left) by turning [+/OK/-] (10) accordingly.

Note – Optimising reception
Please note:

• Always pull the antenna out completely.
• We recommend you adjust the antenna vertically to ensure optimal reception.
• Try various different positions if necessary to get the best reception.

Switching on
Warning

• Only operate the product from a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
• Disconnect the product from the power supply using the On/Off switch – if this is not available, unplug the power cord from the socket.
• If using a multi-socket power strip, make sure that the total power consumption of all connected devices does not exceed the power strip’s maximum throughput rating.
• If you will not be using the product for a prolonged period, disconnect it from mains power.
• Connect the power supply to the mains connection (13) on the back of the radio.
• Connect the network cable to a properly installed and easily accessible network socket.
• Wait until the radio has initialised fully.
• Press the [+/OK/-] button (10) to switch the radio on.

Initial setup

• When you switch the radio on for the first time, the station search is started automatically in DAB operating mode.
• English is the default language for the radio’s menu structure.
• Set up your desired language as described in 5.2 Language.

Language
At initial startup, the language of the radio defaults to English. To change the menu language of the radio, proceed as follows:

• Press [] (6) to access the settings menu.
• Use the navigation buttons (10) to navigate to the ‘Settings’ menu item.
• Use [+/OK/-] (10) to navigate to the ‘System’ menu item.
• Confirm your selection by pressing [+/OK/-] (10).
• Use [+/OK/-] (10) to navigate to the ‘Language’ menu item. Confirm your selection by pressing [+/OK/-] (10).
• Use the [+/OK/-] (10) – button to select your desired system language.
• The language setting currently selected is marked with an asterisk (*).

Note: You can choose from the following languages: English, Danish, French, German, Italian, Norwegian, Finnish, Swedish, Turkish, Polish, Slovak, Czech

Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the power supply. Store it in a clean, dry place out of direct sunlight.

Warranty Disclaimer
Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/
mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

Service and Support
Please contact Hama Product Consulting if you have any questions about this product.
Hotline: +49 9091 502-0 (German/English)
Further support information can be found here: www.hama.com
The complete instruction manual is available at:www.hama.com -> 00054896, 00054231 -> Downloads

Declaration of Conformity
Hereby, Hama GmbH & Co KG declares that the radio equipment type [00054896, 00054231] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.hama.com> 00054896, 00054231 > Downloads.

Hama GmbH & Co KG
86652 Monheim/Germany
www.hama.com

Service & Support
www.hama.com
+49 9091 502-0

The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
