Hama 00054244 Digital Radio User Guide

00054244
(DIR3030BT)
Digital Radio
QUICK GUIDE

00054244 Digital Radio

Further information and features are available on /Weitere Informationen und Features finden Sie hier
www.hama.com->00054244

Quick Reference Guide

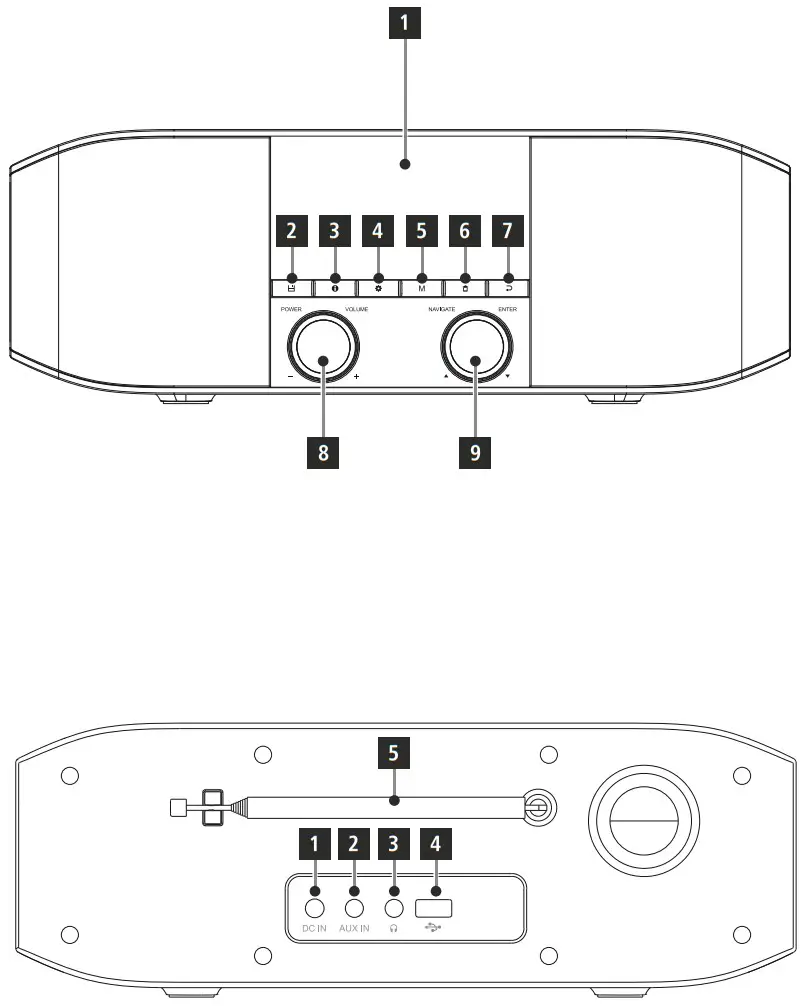

Controls and displays

A: Front
1		Display
2		[PRESET] button
3		[INFO] button
4		[MENU/SETTINGS] button
5		[MODE] button
6		[HOME] button
7		[BACK] button
8		[POWER/VOLUME] button
9		[ENTER/NAVIGATE] button

Important information – Quickreference guide:

• This quick-reference guide contains the most important basic information, such as safety instructions and the steps necessary to operate the product.
• To help protect the environment and conserve valuable raw materials, Hama does not issue a printed manual and instead makes this available exclusively as a PDF download.
• The full text of the manual is available at the following internet address: www.hama.com->00054244->Downloads
• Save the manual on your computer for reference and print it out if possible.

Explanation of warning symbols and notes

Risk of electric shock
This symbol indicates a risk of electric shock from touching uninsulated product parts that may carry hazardous voltage.
Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
Note
This symbol is used to indicate additional information or important notes.

Package contents

• DIR3030BT
• Power supply unit
• These operating instructions
• 3.5 mm audio cable

Safety instructions

• The product is intended for private, non-commercial use only.
• Do not use the product in areas in which electronic products are not permitted.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• As with all electrical products, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the device in any way. Doing so voids the warranty.
• Use the product only for the intended purpose.
• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.
• Do not use the product in a damp environment and avoid splashing water.
• Only use the article under moderate climatic conditions.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the
  AC adapter, the adapter cable or the mains cable are damaged.
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.

Before commissioning

Note
A detailed description of the UNDOK app and all of its functions can be found in our UNDOK guide at:

www.hama.com->00054244->Downloads

Setting up a network connection
4.1 WLAN (wireless network)

• Ensure the router is switched on, is functioning correctly and that there is a connection to the Internet.
• Activate your router’s WLAN function.
• To ensure the correct functioning of your WLAN connection, follow your router’s operating instructions.
• Then proceed as described under point 5, “Getting started”.

Commissioning

Note – optimising reception
Please note:

• Always pull the antenna out completely.
• We recommend you adjust the antenna vertically to ensure optimal reception.

5.1 General notes on use
5.1.1 Switch On / Off / Standby

• Press [POWER/VOLUME] (8) to switch the radio on.
• Press and hold [POWER/VOLUME] (8) for around 3 seconds to switch the radio off (standby)
• To completely switch off the device, disconnect it from the power supply.

5.1.2 Navigation and control

• After pressing a shortcut button, navigate through the menu items using.
• Select individual menu items by turning [POWER/VOLUME] (8).
• Confirm the selection by pressing [POWER/VOLUME] (8).

5.1.3 Volume adjustment

• You can turn the volume up (right) or down (left) by turning [POWER/VOLUME] (8).

5.2 Switching on
Warning

• Only operate the product from a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
• Disconnect the product from the power supply using the On/Off switch – if this is not available, unplug the power cord from the socket.
• If using a multi-socket power strip, make sure that the total power consumption of all connected devices does not exceed the socket strip’s maximum throughput rating.
• If you will not be using the product for a prolonged period, disconnect it from mains power.
• Connect the mains cable to a properly installed and easily accessible mains socket.
• Wait until the radio has initialised fully.
• Press the [POWER/VOLUME] button (8) to switch the radio on.

Note – switching on for the first time

• The Setup Wizard starts up automatically when the device is turned on for the first time.
• The default used language is English.
• You can skip the Wizard and start it up again later in German.

5.3 Language
The first time it is used, the radio’s default language is English. To change radio’s menu language, proceed as follows:

• Press (1) to access the Settings menu.
• Use [POWER/VOLUME] (8) to navigate to the “Settings” menu item.
• Confirm the selection by pressing [POWER/VOLUME] (8).
• Use [POWER/VOLUME] (8) to navigate to the “Language” menu item. Confirm the selection by pressing [POWER/VOLUME] (8).
• Use [POWER/VOLUME] (8) to select your preferred system language.
• The language setting currently selected is marked with an asterisk (*).

Note

• The following languages are available:
  Czech, English, Danish, Dutch, German, Finnish, French, Italian, Norwegian, Polish, Portuguese, Slovak, Spanish, Swedish and Turkish

Care and maintenance

• Only clean this product using a lint-free, slightly damp cloth and do not use any harsh cleaners.
• If you do not plan to use the product for a prolonged period, turn off the device and disconnect it from the power supply. Store it in a clean, dry place away from direct sunlight.

Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from  failure to observe the operating instructions and/or safety notes.

Service and support

Please contact Hama Product Consulting if you have any questions about this product.
Hotline: +49 9091 502-0 (German/English)
Further support information can be found here: www.hama.com
The full text of the manual is available at the following
Internet address: www.hama.com->00054244->Downloads

Declaration of conformity

Hama GmbH & Co KG hereby declares that the radio equipment type [00054244] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of  conformity is available at the following Internet address: www.hama.com->00054244->Downloads.

Restrictions or Requirements in
Belgium, Bulgaria, Czech Republic, Denmark, Germany, Estonia, Ireland, Greece, Spain, France, Croatia, Italy, Cyprus, Latvia, Lithuania, Luxembourg, Hungary, Malta, the  Netherlands, Austria, Poland, Portugal, Romania, Slovenia, Slovakia, Finland, Sweden, United Kingdom

Note
If channels 36-64 (channels of frequency
5150 MHz – 5350 MHz) are used, the device may only be used in closed rooms.

To limit exposure to electromagnetic fields
This device is intended for use at a distance of at least 20 cm from the body of the user or persons nearby. This device must not be worn or carried on the body.

Specifications according to Regulation (EU) 2019/1782

Consumption information according to directive (EU)
No. 801/2013 amending the directive (EC)
No. 1275/2008

* Press the Power button
** Not networked – “Maintain network connection – NO”.
Not available in FM mode, if present.
*** Networked – “Maintain network connection – YES” Please note that the actual power consumption can be dependent on multiple factors. These include the personal settings, the operating mode, the ambient temperature and the firmware version of the product used.
The values set out above represent maximum values.
The actual reference values can be found at: www.hama.com->00054244->Downloads->Consumption information

Hama GmbH & Co KG
86652 Monheim / Germany
Service & Support
www.hama.com
+49 9091 502-0

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hama GmbH & Co KG is under license. Other  trademarks and trade names are those of their respective owners.
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.

00054244/11.22
