Quick Instruction Manual for USB-C to HDMI 4K 60Hz Adapter with HDR Part# X40016
You must have a computer that outputs HDR, as well as an HDR monitor or TV in order to be able to see HDR.
Attention:
Please make sure that you select the correct port from your display INPUT so that your computer display can be shown.
Specification:
- Part Number: X40016
- UPC Code: 694307400160
- Connectors: USB_CTM (USB Type-C) to HDMI 4K 60Hz Female
- Supports: Up to 1080p at 60Hz or UHD (3840 by 2160) at 60Hz
- Length: 21.5cm/8.5 inches
- Power: USB-C/USB Type-C
- Thunderbolt 3 port compatible
- One (11 year warranty

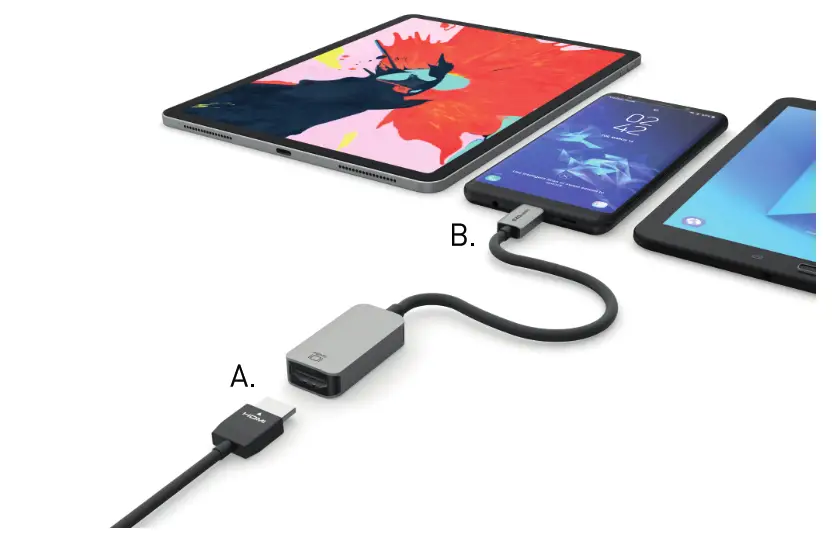

How to connect to smartphones and tablets:
Note: Please make sure that your device has the same type of USB-C connectors. The best way is to compare your charging cable connector that comes with your device to make sure it is a USB-C connector.
Please follow the steps below:
A. Hook up your HDMI cable HDMI Port Cable is not included 1 to your TV or monitor and then to USB-C to HDMI Adaptor.
B. Then Hook up the USB-C connector to your phone or tablet.
C. Restart your smart device.

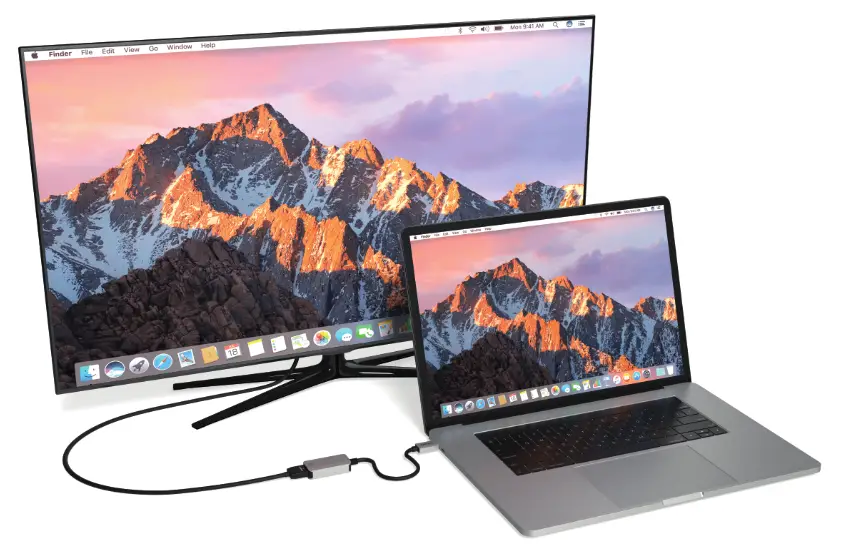

How to connect to the computer:
Connect the USB-C connector to your computer USB-C port and the HDMI side of the Adapter to your HDMI cable that is connected to your monitor.
Please make sure that you select the correct HDMI from your projector, TV or your display INPUT so that your computer display can be shown.
Resolution Setting for Mac
Apple logo>System Preferences> Displays

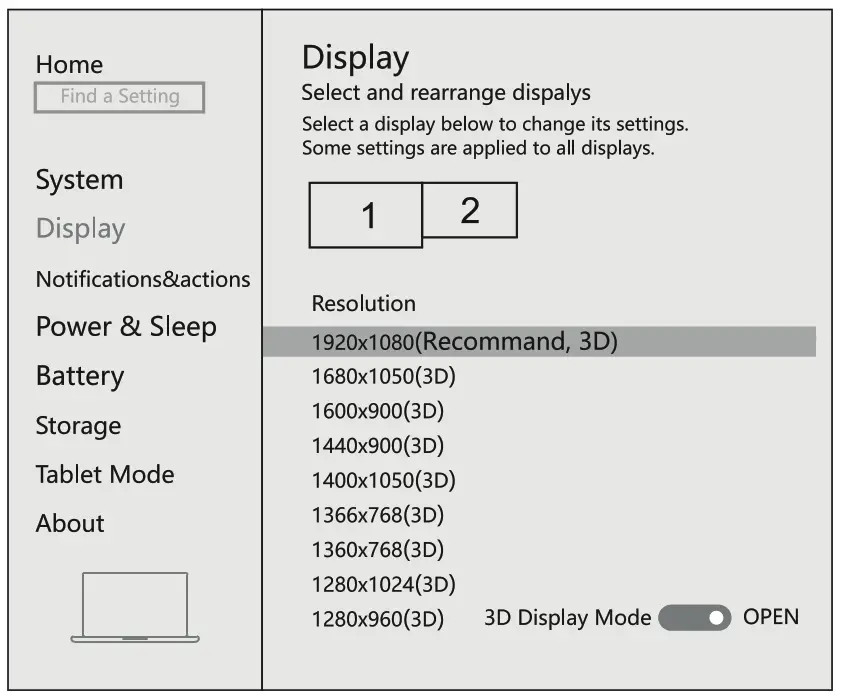

Resolution Setting for Windows
Right-click desktop >Display Settings
Graphics Setting for Mac

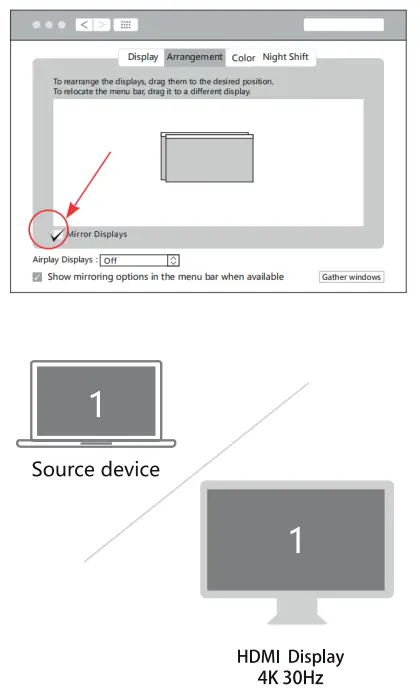

1. Mirror Display Apple logo>System Preferences > Displays

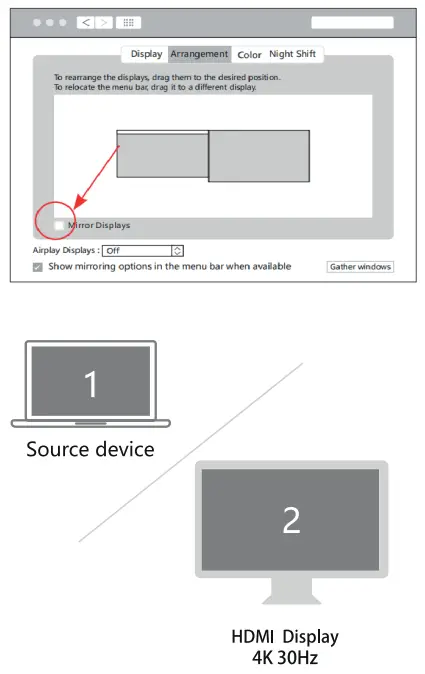

Extend Display
Apple logo>System Preferences >Displays
Graphic Settings for Windows

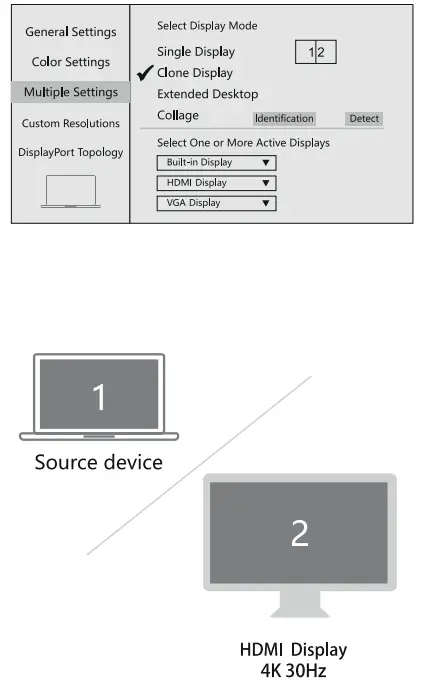

1. Clone Mode Right-click desktop >Graphics Settings >Display

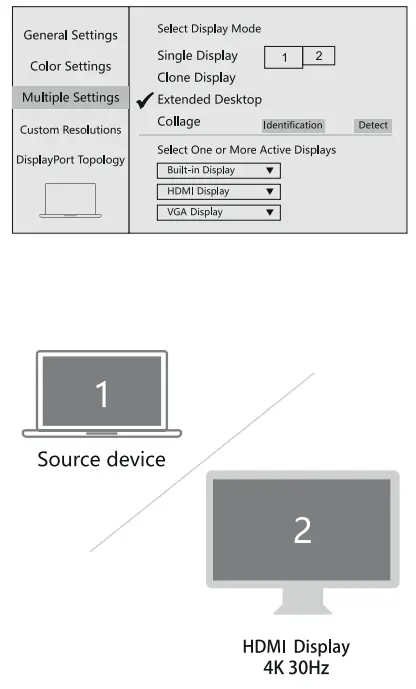

Extended Display
Right click desktop >Graphics Settings >Display

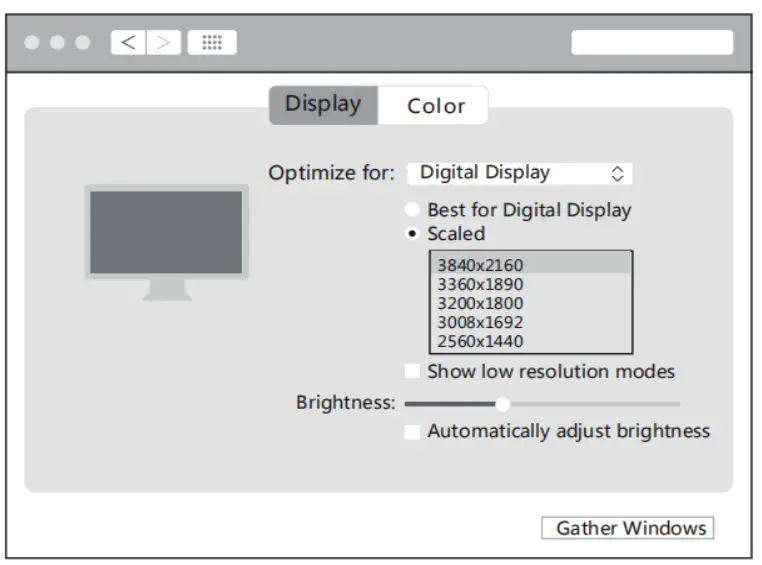

How to Change the Resolution and Refresh Rate on Mac: System Preferences, Click on Display, Under the Display: While holding the Option button down, click on ” Scale ” twice then you can see the range of resolution Then click on the ” Show low-resolution modes” box Then you can choose the Refresh Rate available
Please email us with any questions or feedback you might have about our products to [email protected]. 1 (8001 881 9305
STOP!
If you have any issues with the product please contact our technical support team before returning it.
TECHNICAL SUPPORT
Technical Support : 1 (800) 881 9305 1 (714) 666 1716X2
Email :[email protected] Service Hours : Mon. – Fri. 08:00 AM – 05:00 PM P.S.T
