Audizio Anc110 Headphones Instruction Manual

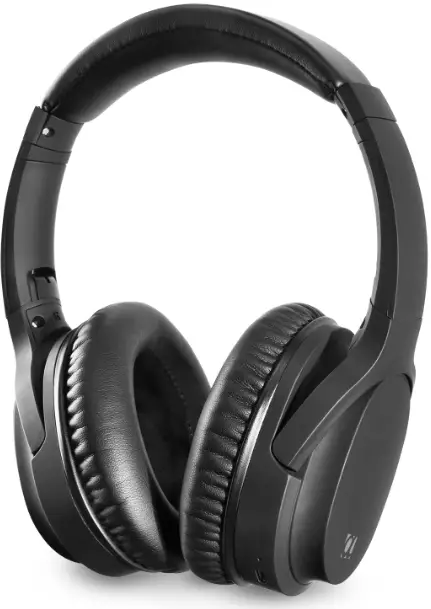

audizio ANC110 Headphones

IMPORTANT INFORMATION

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.
Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

CAUTION: This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
WARNING: This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

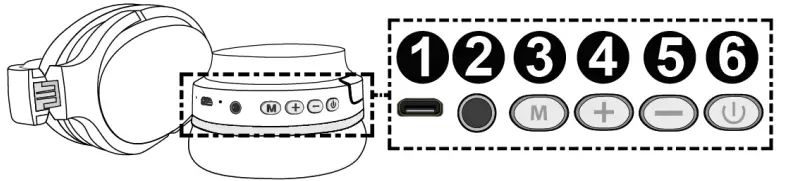

CONTROL

1. USB charge socket
2. 3.5mm input jack
3. Mode Press and hold to switch noise cancelling function on/off. Noise cancelling function can be ‘on’, even if ‘power’ is off.
4. + Press to skip to next song. Press and hold to increase the volume.
5. – Press to go to previous track. Press and hold to decrease the volume.

Power

• Press and hold for 3 seconds to turn the headphones on/off. Press to (re)start or pause play.
• When receiving a phone call, press to accept. Press again to end the call.
• When receiving a phone call, press and hold for 3 seconds to reject the call.
• Double press to redial the last called phone number.

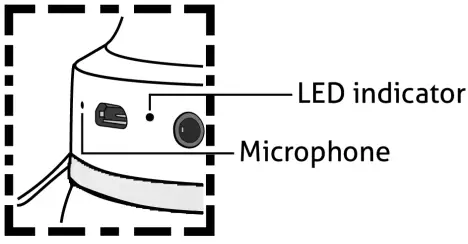

LED INDICATOR

• Red/Blue: Flashes in red and blue under pairing state. When pairing is successful, blue light will blink.
• Green: Steadily on when noise canceling function is turned on.
• Red: Steadily on when charging. Will be off when fully charged.

OPERATION

• Press and hold the power button for 3 seconds to turn the headphones on.
• The red/blue LED will flash, ready to initiate pairing.
• Search for “Audizio ANC110” on your mobile device and initiate pairing. If a password is needed, insert “0000”. When pairing is successful, the blue LED will blink.
• The headphones will now emit the audio of the mobile device.
• Press and hold the M button to turn the noise canceling function on/off.

EXTERNAL LINE AUDIO INPUT
Connect the mobile device and headphones by 3.5mm jack – 3.5mm jack cable to enjoy the headphones in wired guise.

TECHNICAL SPECIFICATION

• Enclosure: Closed back
• Type: Over ear
• Frequency response: 20Hz – 20KHz
• Lead length: 1.5m
• Weight: 0.30kg
• Dimensions: 205 x 150 x 76mm

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union
Tronios B.V.,
Bedrijvenpark Twente Noord 18, 7602KR Almelo, The Netherlands

United Kingdom
Tronios Ltd.,
130 Harley Street,
London W1G 7JU, United Kingdom

Specifications and design are subject to change without prior notice.
www.tronios.com
Copyright © 2022 by Tronios The Netherlands
