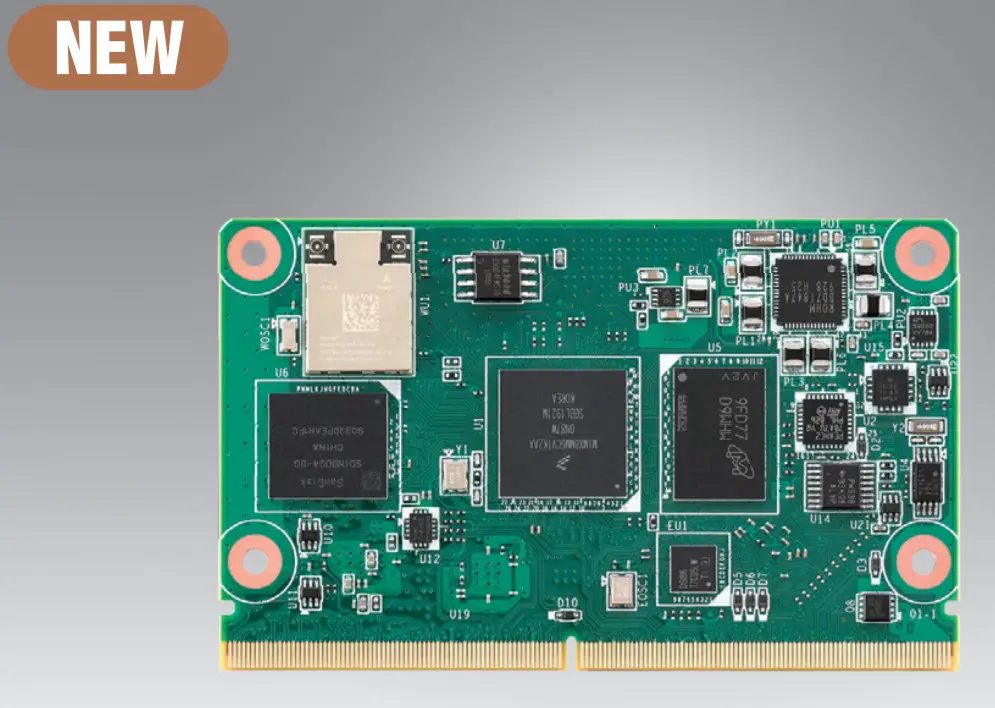

ROM-5721
NXP i.MX8M Mini Cortex®-A53
SMARC 2.0/2.1 Computer-on-Module
Introduction
Advantech ROM-5721 SMARC 2.0/2.1 Computer-on-Module is powered by NXP i.MX8M Mini SOC which includes up to 4 Arm Cortex-A53 cores in combination with one Cortex-M4 real-time processor and Vivante GC320, GC NanoUltra 3D graphics engine. It provides USB2.0, Gigabit Ethernet, MIPI-CSI, PCI Express, Dual-channel LVDS shared with MIPI-DSI for embedded applications.
ROM-5721 is paired with Advantech ROM-DB5901 carrier board for faster end product peripheral integration and time-to-market. The reference schematics and layout checklists documentation for carrier board development will be provided along with the open-sourced Linux BSP, test utilities, hardware design utilities, and reference drivers.
Features
- NXP i.MX 8M Mini processor with up to 4 Arm Cortex A53 cores
- 1 x Arm Cortex-M4 cores
- Onboard LPDDR4 memory and eMMC
- 1 x 4 lane MIPI-CSI,1 x Dual channel LVDS or 1 x Display Port
- 4 x USB2.0, 1 x USB 2.0 OTG, 4 x UART, 4 x I2C, 12 x GPIO, 1 x PCIe2.0,1x Gigabit LAN
- Support OpenGL ES 2.0/1.1 by hardware accelerators
- Low power consumption design
- Support Linux and Android BSP
Specifications
| Form Factor | SMARC2.0 & SMARC2.1 compliance | |
| Processor System | CPU | NXP i.MX 8M Mini up to 4 Arm Cortex A53 cores, up to 1.8GHz |
| MCU | 1 x Arm Cortex-M4 core | |
| Memory | Technology | LPDDR4-1866 |
| Capacity | Onboard 1GB/2GB LPDDR4 | |
| Flash | 8/16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR Flash for board information | |
| Graphics | LVDS/MIPI DSI | 1 x 4 lane MIPI-CSI,1 x Dual channel LVDS or 1 x Display Port up to 1080P |
| HDMI | – | |
| Parallel RGB | – | |
| VGA | – | |
| Graphics Engine | Vivante GC320, GC NanoUltra 3D GPU Support OpenGL ES 2.0, VG 1.1 | |
| H/W Video Codec | Decoder: H.265, H.264, VP8/9 1080p Encoder:H.264, VP8 1080p | |
| Ethernet | Chipset | 1 x NXP i.MX8M Mini GbE controller |
| Speed | 10/100/1000 Mbps | |
| RTC | RTC | Yes |
| WatchDog Timer | Yes | |
| Security | TPM 2.0 | |
| I/O | PCIe | 1 x PCIe 2.0 |
| SATA | – | |
| USB | 4 USB 2.01 USB 2.0 OTG | |
| Audio | 2 ×I²S | |
| SPDIF | – | |
| SDIO | 1 | |
| Serial Port | 2 x 4-wire UART and 2 x 2-wire UART | |
| SPI | 2 | |
| CAN | – | |
| GPIO | 12 | |
| I²C | 4 | |
| Camera Input | 1 x 4-lane MIPI CSI | |
| System Bus | – | |
| Touch | – | |
| Keypad | – | |
| Power | Power Supply Voltage | Fixed 5V DC source and allow 3.3 V ~ 5.25 V to operate directly from single level Lithium-Ion cells |
| Power Consumption | TBD | |
| Environment | Operating Temperature | 0 ~ 60 °C/ -40 ~ 85 °C |
| Operating Humidity | 5 ~ 95% relative humidity, non-condensing | |
| Mechanical | Dimensions (W x D) | 82 x 50 mm |
| Operation System | Linux & Android | |
| Certifications | CE/FCC Class B | |

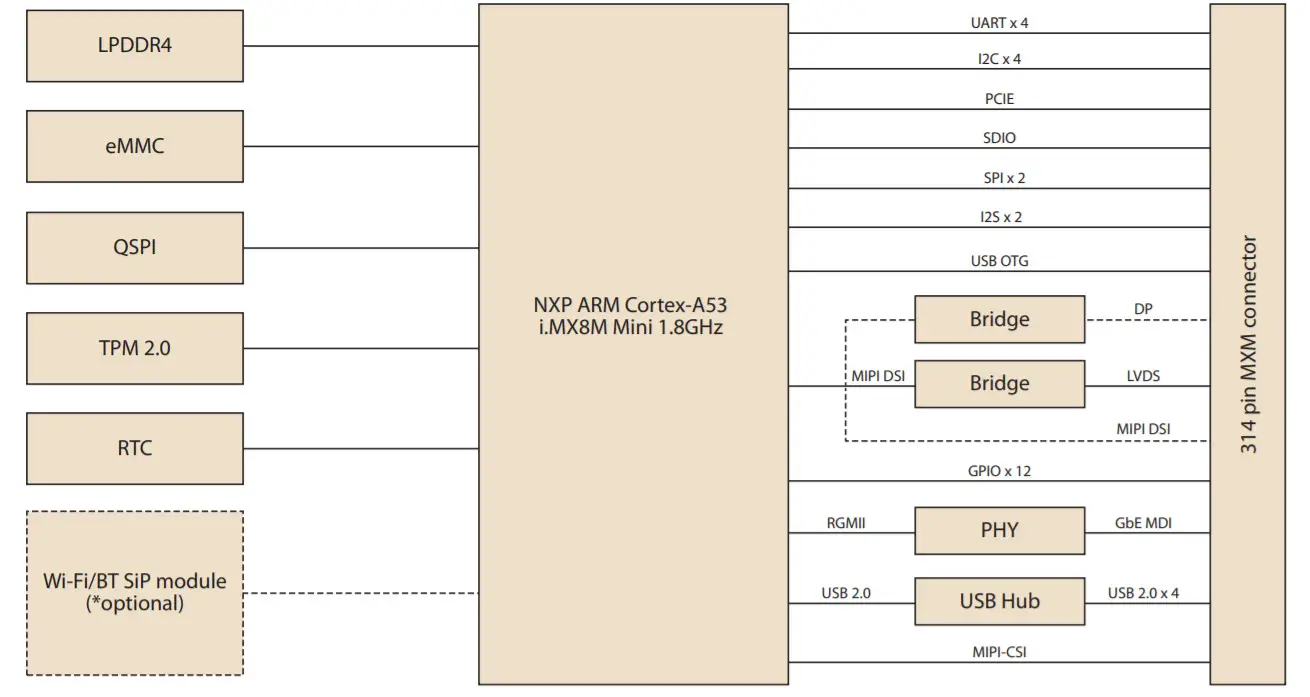

Block Diagram
Ordering Information
| Part No. | CPU | Memory | Flash Memory | UART | LAN | USB 2.0 | Display | PCIe | SD | I2S | I2C | SPI | WiFi/ | Size | Power input | Operating Temperature |
| ROM-5721CQ-REA1E | i.MX8M Mini Quad | 2GB | 16GB | 4 | 1 | 5 | 1 x Dual ch LVDS | 1 | 1 | 2 | 4 | 2 | BT | 82 x 50 x 5 mm | 3 ~ 5.25V | 0 ~ 60 °C |
| ROM-5721CD-RDA1E | i.MX8M Mini Dual | 1GB | 8GB | 4 | 1 | 5 | 1 x MIPI DSI | 1 | 1 | 2 | 4 | 2 | – | 82 x 50 x 5 mm | 3 ~ 5.25V | 0 ~ 60 °C |
| ROM-5721CS-RDA1E | i.MX8M Mini Solo | 1GB | N/A | 4 | 1 | 1 | 1 x MIPI DSI | 1 | 1 | 2 | 4 | 2 | – | 82 x 50 x 5 mm | 3 ~ 5.25V | 0 ~ 60 °C |
Development Board
| Part No. | Description |
| ROM-DB5901-SWA1 | Development Board for SMARC 2.0 Module |
Optional Accessories
| Part No. | Description |
| 1.7E+09 | Debug port cable for ROM-5721 |
| 1.7E+09 | D-SUB 9P(F)/D-SUB 9P(F) RS232/RS485 100c |
| 1970004648T001 | Heat Spreader |
| 1960063089N001 | Semi Heat Sink |
| 193B021490 | Screw for Heat Spreader and Semi Heat Sink |
| 96PSA-A36W12R1-3 | ADAPTER 100-240V 36W 12V 3A |
| 1.7E+09 | Power Cord 3P UL 10A 125V 180cm |
| 170203183C | Power Cord 3P Europe (WS-010+WS-083) 183cm |
| 170203180A | Power Cord 3P UK 2.5A/3A 250V 1.83M |
| 1.7E+09 | Power Cord 3P PSE 183cm |
| SQF-ISDM1-16G-21C | SQF SD Card I-SD UHS-I MLC 16G (0~70°C) |
| SQF-ISDM1-16G-21E | SQF I-SD UHS-I MLC 16G (-40~85°C) |
| EWM-W163M201E | 802.11 a/b/g/n/ac,QCA6174A,2T2R,w/BT4.1,M.2 2230 |
| 1750008717-01 | Dipole Ant. D.B 2.4/5G WIFI 3dBi SMA/M-R BLK |
| 1750007965-01 | Antenna Cable R/P SMA (M) to MHF4, 300mm |
| EWM-C117FL06E* | LTE 4G,3G WCDMA/DC-HSPA+, 2G module, MPCI-L280H |
| 1750007990-01 | Antenna 4G/LTE full band L=11 cm 50 Ohm |
| 1.75E+09 | Antenna Cable SMA (F) to MHF 1.32 25cm |
OS Specification
| Operating System | Version Support |
| Linux | Yocto 2.5 |
| Android | Android 9.0 |
Please visit https://advt.ch/aim-linux-download to know our latest software update
SW Specification
| Software Application | Function Support |
| SUSI API | I2C, GPIO, SPI, WDT, RTC, Backlight Control |
| WISE-PaaS/DeviceOn | Built-in |

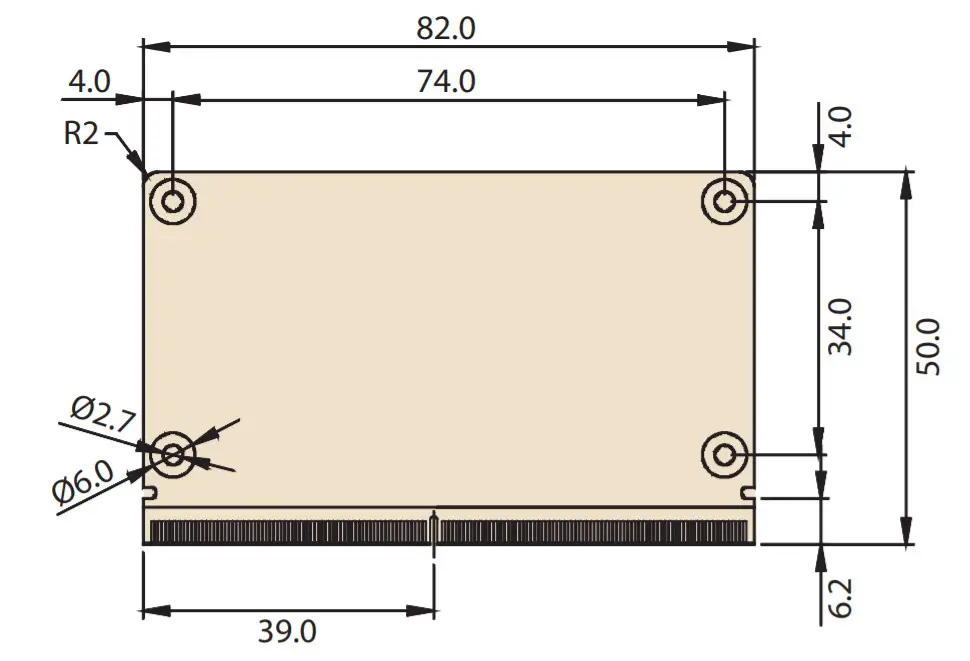

Dimensions
Embedded Linux Support and Design-in Services

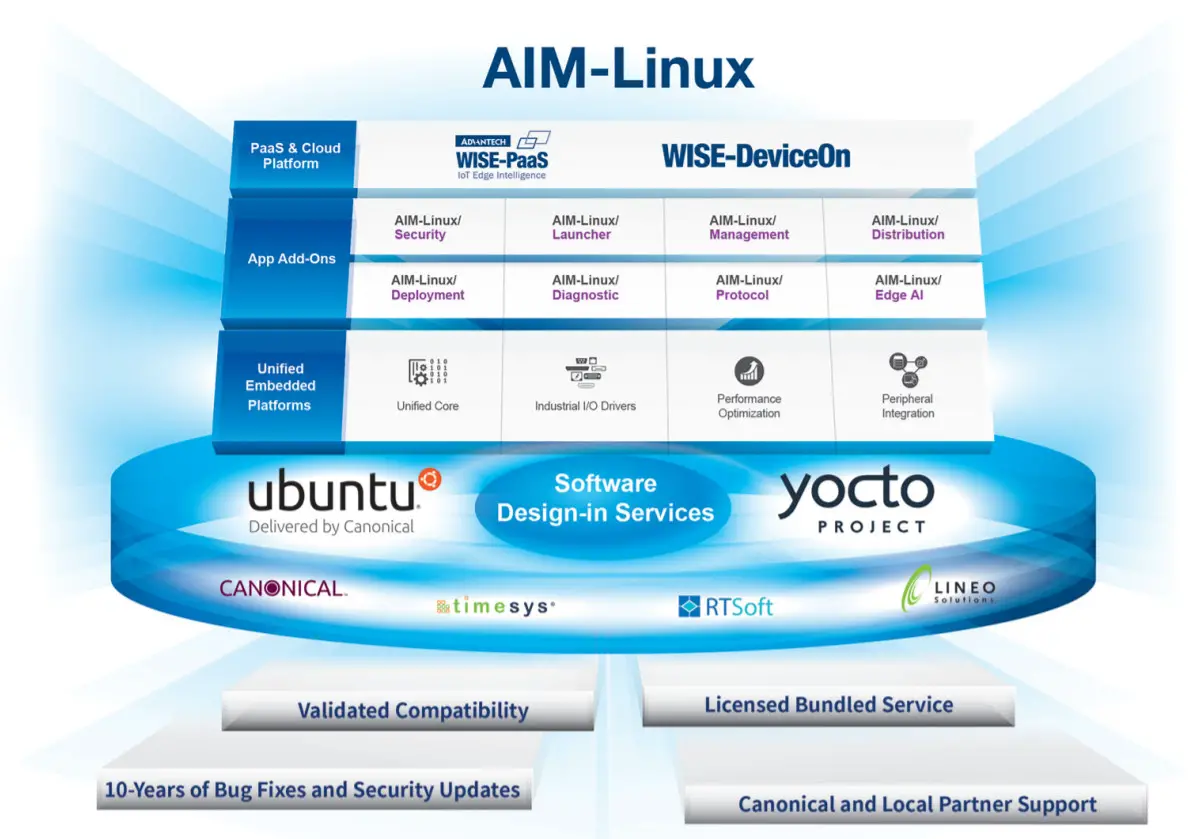

Hardware Certified Ubuntu and Yocto with Eco Partner Services
