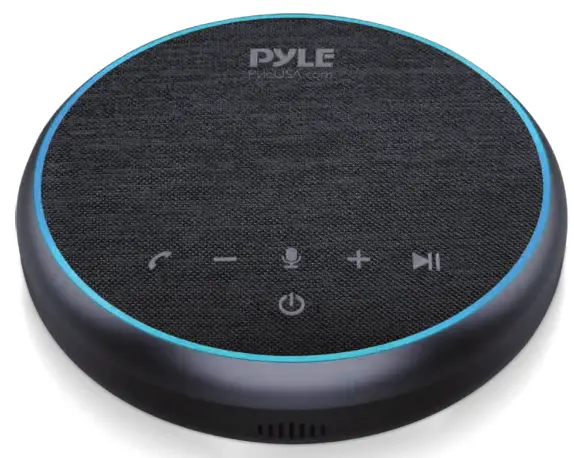

PSCN42 Portable Conference Speakerphone
Multifunctional Wireless BT Streaming Speaker
with USB-C Data Cable and 3.5mm Aux Cable
User Guide

Please read these operating instructions before using the unit and save them for future reference.

Contents hide

6 Status LED behaviors

7 Charging

8 Wireless BT Streaming:

9 Features:

10 Technical Specs:

11 12-Hour Call Time (under max volume)

12 Documents / Resources

12.1 References

13 Related Posts

Introduction

This is a multifunctional Wireless BT speaker with professional quality for meetings at home, in the office, or on the go. You can use it as a basic Wireless BT speaker too.
If you want to have a better experience, please read this instruction carefully.

Important:
Your speakerphone is shipped from the factory in a deep sleep mode to conserve battery. Activate your speakerphone by connecting the USB cable to a power source before first use.

What’s in the Box:

Conference Speakerphone
Protective Carrying Case
USB-C Data Cable
3.5mm Aux Cable

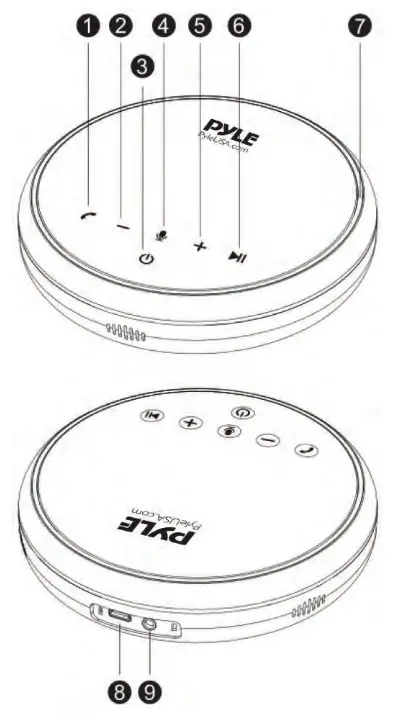

At a Glance

1. Phone call button	6. Pause/Play
2. Volume down	7. Status LED
3. Power button	8. USB port (type-C) for charging
4. Mute button	9. Audio Input port
5. Volume up

Connecting

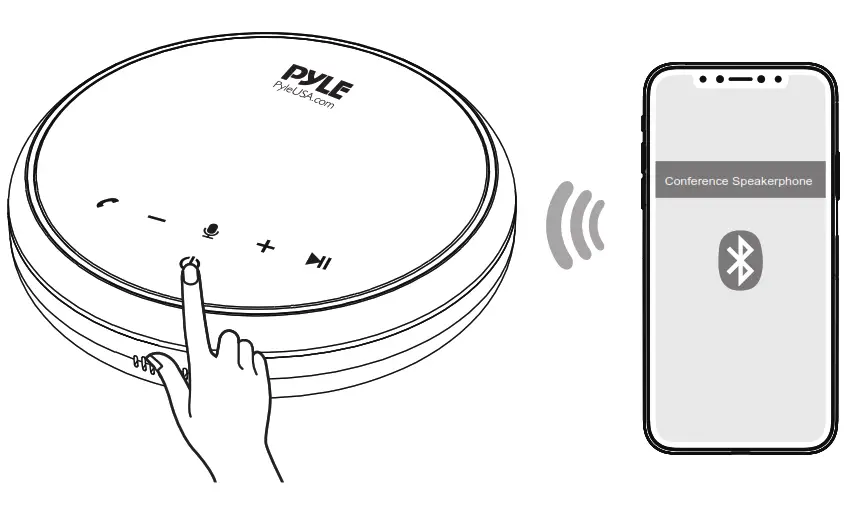

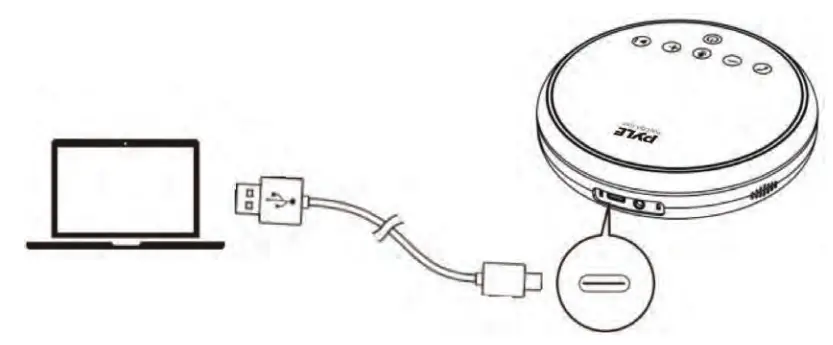

a. Connect to your computer by using a USB-C data cable. b. Connect to your computer or mobile device via Wireless BT pairing.
Power ON this product for the first time, and it will automatically enter the Wireless BT pairing mode.
Note: in our sample, usually the Wireless BT pairing name is PYLE Conference Speaker

	Flashes blue quickly	Enter Wireless BT pairing mode
	Flashes blue every 5 seconds	Wireless BT paired

Each time you power on the product, it will automatically connect with the last successfully connected device if available.

Powering ON/OFF

Press and hold the power button for 2 seconds to power it ON. The status LED will light on counterclockwise and then fade out. To power OFF, press and hold the power button for 2 seconds.

Power LED behavior

	Flashes light purple slowly and turn blue and ashes quickly in circles	Power ON
	Flashes red in circles and light o	Power OFF

Once connected to your computer, it will automatically power ON.
It will automatically power off after 4 minutes of inactivity when the Wireless BT is not paired.

Button Controls

	Press to increase and decrease Volume
	Press to Answer/End a call Press and hold for 2 seconds to reject a call
	Press to Mute or restore the microphone
	Press to Play/Pause music

Status LED behaviors

Steady purple: USB connection to a computer
No LED Flash but a “beep”: Incoming call
Lights up light purple counterclockwise or counterclockwise:

Increase or decrease volume

Steady red: Muted
Lights up red: Press the Power button to check the battery level
Steady blue: Aux connected
Flashes blue every 5 seconds: Wireless BT paired

Charging

Power LED behavior

Steady purple: Being charged
Light of: Fully charged
Flashes red: Low battery

Audio Input

Connect an external audio source to the AUX jack of this product by using an AUX cable (included). The audio will be played through the speakerphone.

Wireless BT Streaming:

Built-in BT for Wireless Music Streaming
Simple & Hassle-Free Pairing
Works with All of Today’s Latest Devices
Smartphones, Tablets, Laptops, Computers, etc.
Wireless BT Version: V5.1
Wireless BT Pair Name: “PYLE Conference Speaker“
Wireless Range: Up to 32’ ft

Features:

Easy to use with Dedicated Answer/End, Volume Control, and mute buttons
Compatible with Windows Microsoft Team
HD Voice for conversations in High-Definition sound quality,
Supports USB TO Mobile/PC, AUX TO Mobile/PC, and Bluetooth TO Mobile/ PC
Optimizes the Voices on the other end to Enable To Hear Clearer
Powered by Qualcomm Bluetooth A2DP Technology for Crystal Sound
Universal Compatibility, Services such as Skype, Zoom, Microsoft Teams, WebEx, etc.
Private Acoustic Algorithm “SWISS” to Provide a Truly Wireless Immersive Sound System

Technical Specs:

Microphone: Omni-directional MIC (3PCS)
Microphone Sensitivity: -27dB;
Microphone Distortion: ≤3%;
Microphone SNR:70dB;
Microphone Coverage: 10 meters ( 33 feet);
Microphone Frequency Response: 100Hz-7.5KHz;
Talk Time: Up to 12 hours
Music streaming: Up to 10 hours
Rechargeable Lithium-ion Battery: 2600mAh
Charging Time: 3 hours
Speaker: Φ 2.05” x 0.91” -inches, 4 Ω , 3 Watts;
Speakerphone Dimensions: 5.12” x 1.4” -inches

12-Hour Call Time (under max volume)

2600mAh battery powers meeting in wireless mode

California Prop 65 Warning L.
WARNING: This product contains Lead (Pb) which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest. For more info go to: www.P65warnings.ca.gov
