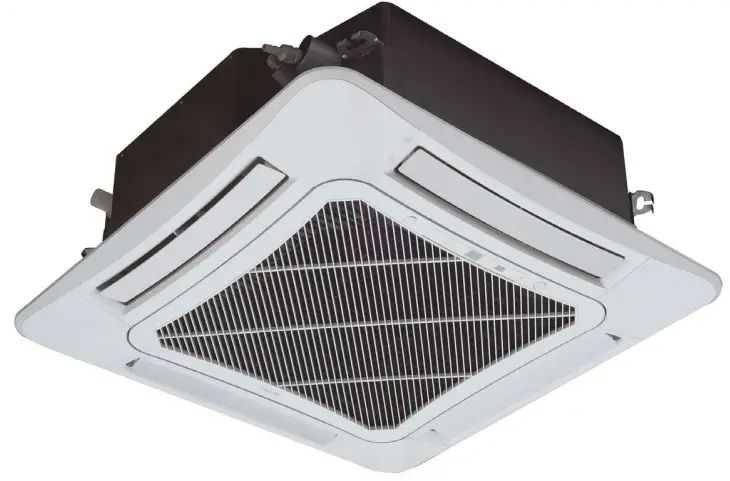

CAS12HP230V1BC Cassette Fan Coil
Installation Guide
Parts Manual
Cassette B Series
MODELS: CAS12HP230V1BC ,CAS18HP230V1BC, CAS24HP230V1BC
Thank you for choosing our product. Please read this Installation & Owner’s Manual carefully before operation and retain it for future reference.
If you lose this Manual, please contact your local distributor visit www.greecomcomfort.com/resources now to download and file the electronic version.
CAS12HP230V1BC
CAS12HP230V1BC Cassette Fan Coil

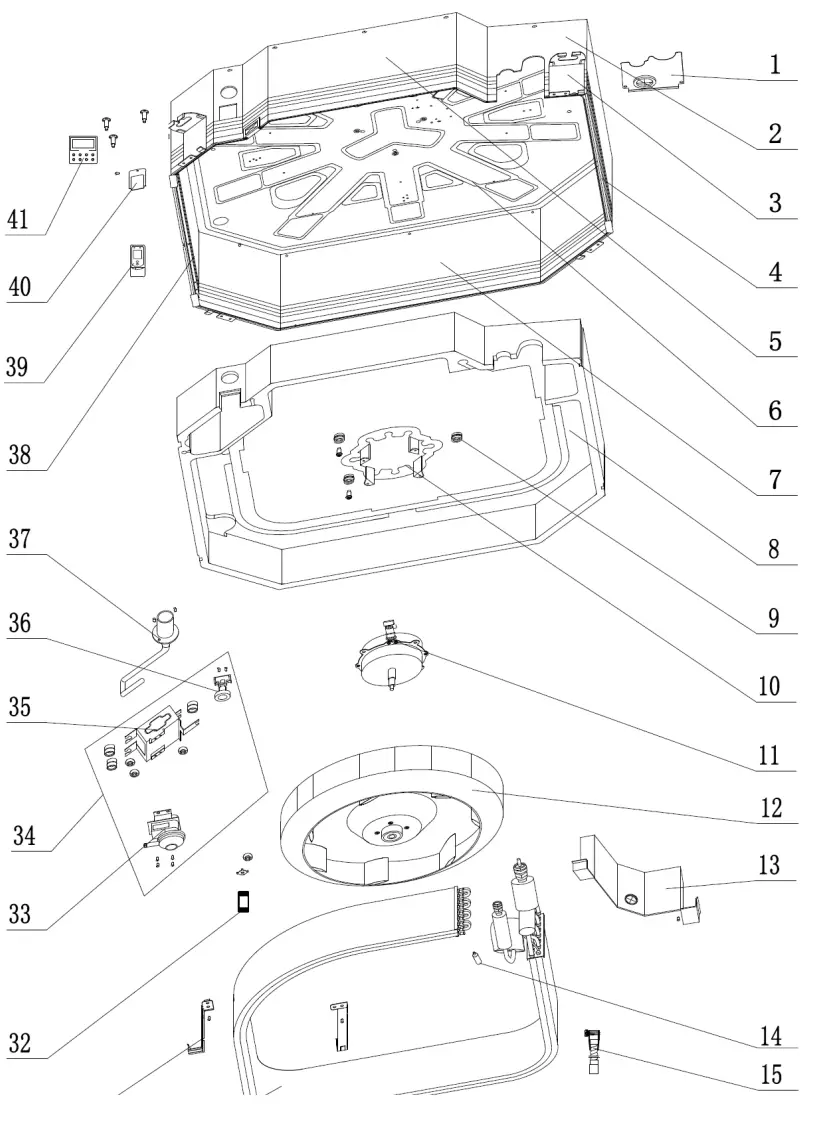

EXPLODED VIEW
CAS12HP230V1BC
| NO. | Part Description | Qty | Part Code |
| 1 | Rear Grill | 1 | 26909400007 |
| 2 | Fan Motor -FN35B-ZL | 1 | 1570940000401 |
| 3 | Water Tray Assy | 1 | 1289400004 |
| 4 | Water Pump DC | 1 | 4313800005801 |
| 5 | Liquid Level Switch | 1 | 450102013 |
| 6 | Pump Drainpipe | 1 | 26909400069 |
| 7 | Water Pump Assy | 1 | 15409400008 |
| 8 | Right Side Plate Sub-Assy | 2 | 1319400013 |
| 9 | Bottom Foam Assy | 1 | 01319400013 |
| 10 | Base Plate Assy | 1 | 2229400007 |
| 11 | Body Installing Support | 4 | 12509400004 |
| 12 | Left Side Plate Sub-Assy | 1 | 1319400012 |
| 13 | Connected Board(Front Panel) | 4 | 1349400006 |
| 14 | Cover Plate Sub-Assy | 1 | 1269400006 |
| 15 | Electric Box Assy | 1 | 01269400006 |
| 16 | Terminal Board (3 Post) | 1 | 100002066221 |
| 17 | Clamp | 8 | 420001000002 |
| 18 | Main Board | 1 | 0220410000501 |
| 19 | Electric Box Cover | 1 | 300002060012 |
| 20 | Front Side Plate Sub-Assy | 1 | 1319400014 |
| 21 | Drain Hose Sub-Assy | 1 | 7008000001 |
| 22 | Room Sensor | 1 | 39000191 |
| 23 | Tube sensor | 1 | 3900012128 |
| 24 | Remote Controller YAP1FFB | 1 | 30510599 |
| 25 | Evaporator Assy | 1 | 1029400058 |
| 26 | Supporter | 3 | 1809400007 |
| 27 | Centrifugal Fan | 1 | 10429400001 |
| 28 | Diversion Circle | 1 | 10479400001 |
ASSEMBLIES
| 7 | Water Pump Assy | 1 | 15409400008 |
| 4 | Water Pump DC | 1 | 4313800005801 |
| 5 | Liquid Level Switch | 1 | 450102013 |
| 6 | Pump Drainpipe | 1 | 26909400069 |
| 7 | Water Pump Assy | 1 | 15409400008 |
| 15 | Electric Box Assy | 1 | 100002066221 |
| 16 | Terminal Board (3 Post) | 1 | 420001000002 |
| 17 | Clamp | 8 | 0220410000501 |
| 18 | Main Board | 1 | 300002060012 |
| 19 | Electric Box Cover | 1 | 142940000301 |
CAS12HP230V1BC

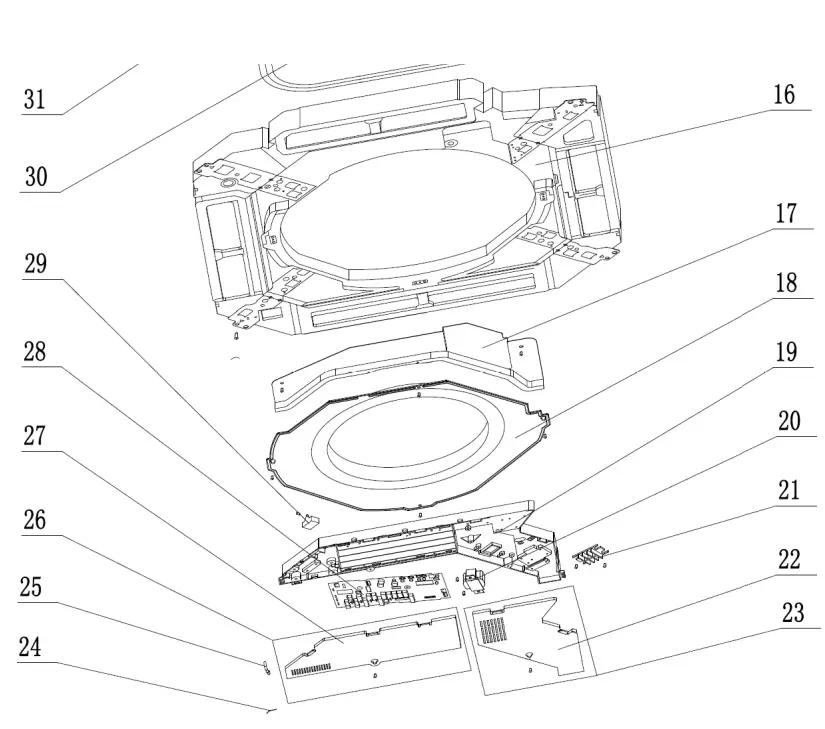

EXPLODED VIEW
CAS24HP230V1BC
CAS24HP230V1BC
| NO. | Part Description | Qty | Part Code |
| 1 | Tube Exit Plate Assy | 1 | 0138271503 |
| 2 | Shell Assy | 1 | 01432703 |
| 3 | Body Installing Plate | 4 | 01332701 |
| 4 | Front Side Plate assy | 1 | 01302718 |
| 5 | Left Side Plate Assy | 1 | 01302715 |
| 6 | Base Plate Assy | 1 | 01222701 |
| 7 | Rear Side Plate Assy | 1 | 01302714 |
| 8 | Bottom Foam Assy | 1 | 52012722 |
| 9 | Motor Gasket | 4 | 76712711 |
| 10 | Motor Support | 0 | none |
| 11 | Fan Motor FN35B-ZL | 1 | 1570940000401 |
| 12 | Centrifugal Fan | 1 | 10312705 |
| 13 | Connected Board Assy of Evaporator | 1 | 01074042 |
| 14 | Filter Sub-Assy (Mesh) | 0 | none |
| 15 | Drain Hose Sub-Assy | 1 | 05339400001 |
| 16 | Water Tray Assy | 1 | 000069000104 |
| 17 | Electric Base Plate | 1 | 01412721 |
| 18 | Diversion Circle | 1 | 10372701 |
| 19 | Electric Box Assy | 1 | 100002066223 |
| 20 | Transformer | 0 | none |
| 21 | Terminal Board | 1 | 420001000002 |
| 22 | Electric Box Cover | 1 | 0142410004801A |
| 23 | Electric Box Cover Sub-Assy1 | 0 | none |
| 24 | Temperature Sensor | 1 | 390001921 |
| 25 | Temperature Sensor | 1 | 390000457 |
| 26 | Electric Box Cover Sub-Assy2 | 0 | none |
| 27 | Cover of Electric Box II | 0 | none |
| 28 | Main Board | 1 | 300002060012 |
| 29 | Capacitor CBB61 | 0 | none |
| 30 | Evaporator Assy | 1 | 011001060292 |
| 31 | Evaporator Support Assy | 2 | 01072703 |
| 32 | Magnetic Ring | 1 | 49010104 |
| 33 | Water Pump DC | 1 | 43138000058 |
| 34 | Water Pump Assy | 1 | 15409400009 |
| 35 | Pump Support | 0 | none |
| 36 | Water Level Switch | 1 | 45020216 |
| 37 | Pump Drainpipe | 1 | 26909400068 |
| 38 | Right Side Plate Assy | 1 | 01302716 |
| 39 | Remote Controller YAP1FFB | 1 | 30510599 |
| 40 | Pump Cover Board Assy | 1 | 01252713 |
| 41 | Display Board | 0 | none |
