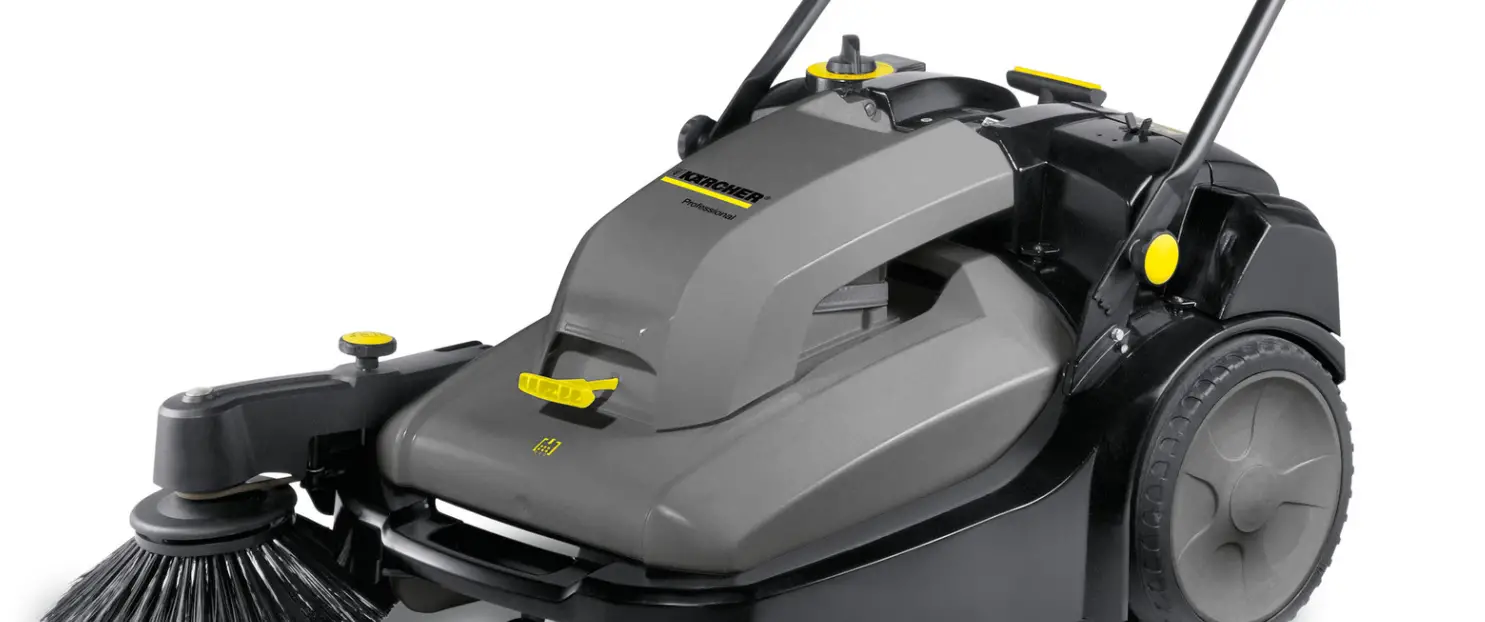

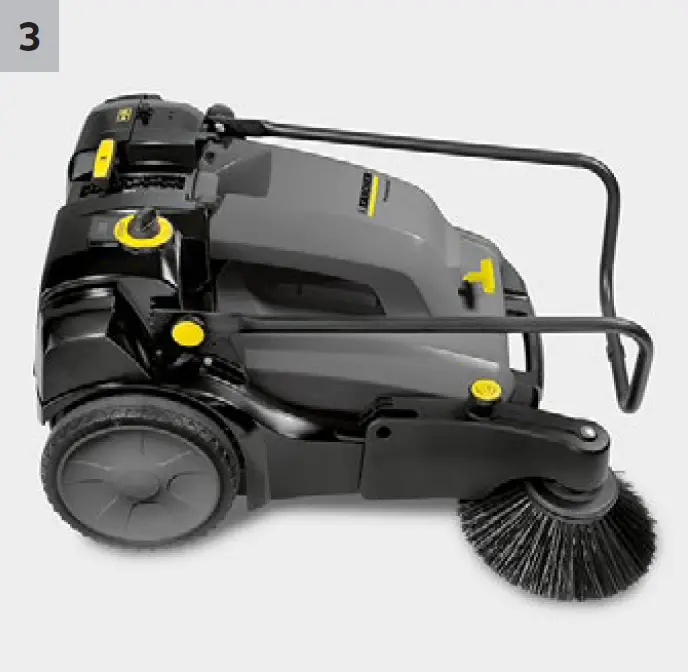

KARCHER KM 70/30 C Bp Pack Adv Manual Sweeper with Electric Sweeper Roller and Side Brush Drive

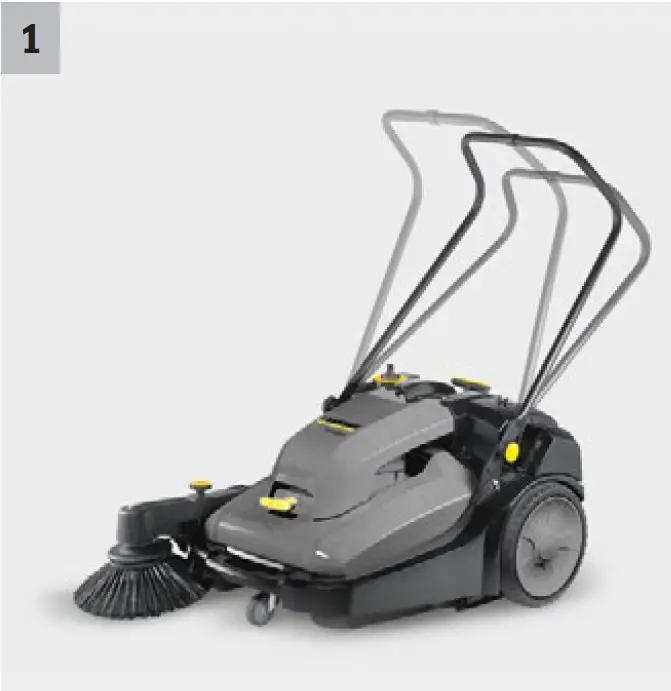

Adjustable push handle
- Excellent ergonomics thanks to three height positions.
- Foldable for space-saving storage.

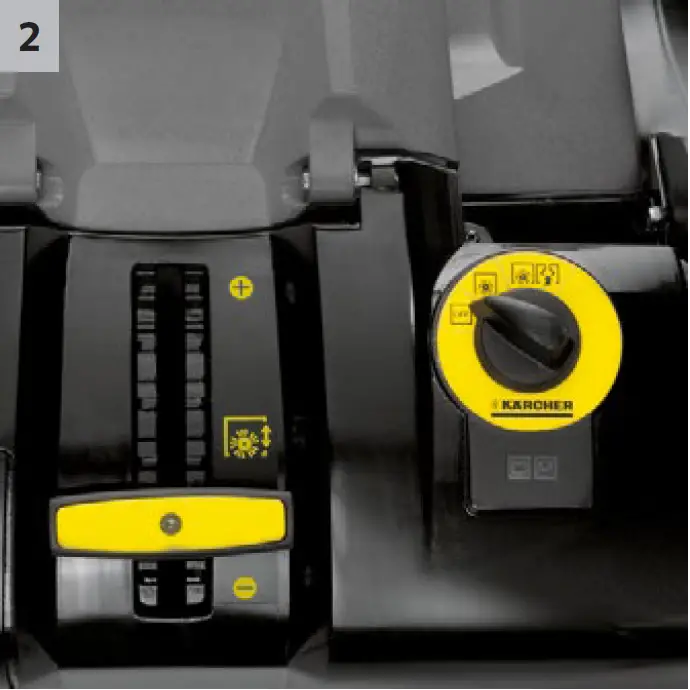

EASY Operation operating concept
- Easy to use programme selector switch.
Easy to transport
- Front and rear carrying handles for easy transport and loading into a car
- Wheels protruding to the rear make transporting the unit over steps easier

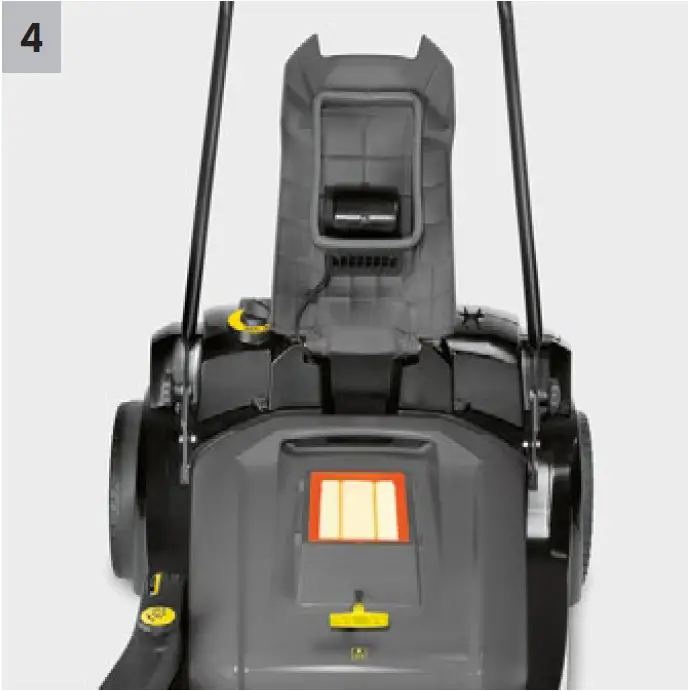

Fine dust suction (Adv version only)
- Electric suction fan for the suction of fine dust from the waste container.
- Can be switched off for sweeping wet floors.
TECHNICAL DATA AND EQUIPMENT
- With charger and batteries (Bp Pack version)
- Electrically powered main sweeper roller and side brush
- Roller brush and side brushes continuously adjustable
ًTechnical data
| Order no. | 1.517-213.0 | |||
| EAN code | 4039784718098 | |||
| Drive type | manual | |||
| Drive– performance | V / W | 12 / 195 | ||
| Max. area performance | m²/h | 2800 | ||
| Working width | mm | 480 | ||
| Working width with 1 side brush | mm | 700 | ||
| Tank volume, gross/net | l | 42 / 30 | ||
| Filter areas | m² | 0.61 | ||
| Weight | kg | 48 | ||
| Dimensions (L x W x H) | mm | 1200 × 770 | × | 1050 |
| Package weight | kg | 54.91 | ||
| Battery charging time | h | 12 | ||
| Operating time | h | 2.5 | ||
| Battery runtime | h | max. 2.5 | ||
| Equipment | ||||
| Fine dust filter | ■ | |||
| Flat pleated filter | ■ | |||
| Sweeper drive, electric | ■ | |||
| Main sweeper roller adjustable | ■ | |||
| Filter cleaning manual | ■ | |||
| Foldable push handle | ■ | |||
| Battery and built-in charger included | ■ | |||
| Dustpan principle | ■ | |||
| Suction | ■ | |||
| Outdoor use | ■ | |||
| Indoor use | ■ | |||
KM 70/30 C BP PACK ADV 1.517-213.0
| Order no. | Quantity | Price | Description | ||||||
| Flat pleated filter, paper | |||||||||

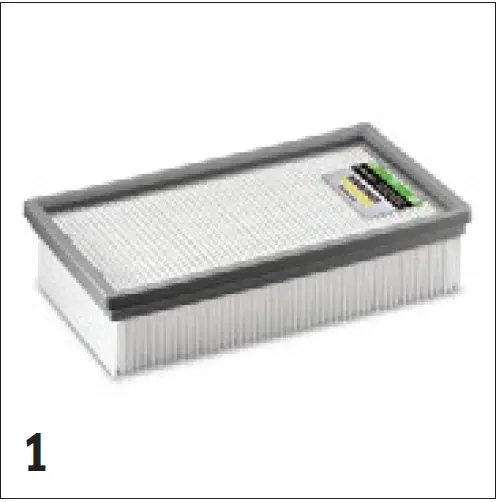

| Dry flat pleated filter | 1 | 6.904-367.0 | 1 piece(s) | Dry flat pleated filter made from cellulose fibre material with a green label. Suitable for vacuuming fine dust and coarse dirt from dust classes L and M. | ■ | ||||

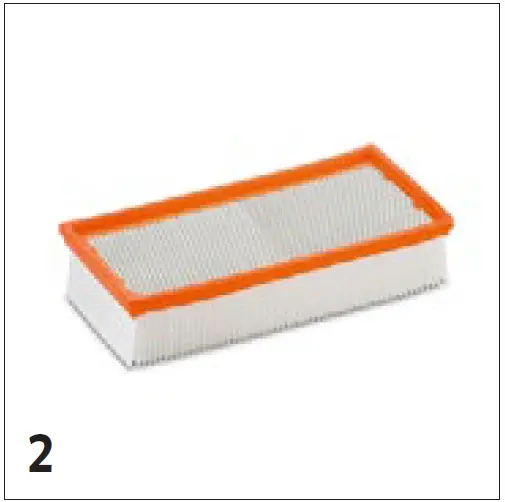

| Flat pleated filter, PES | |||||||||
| Flat-pleated filter packaged neutrally m | 2 | 6.904-080.0 | 1 piece(s) | | |||||
- Included in the scope of supply.
- Available accessories.
KM 70/30 C BP PACK ADV 1.517-213.0
| Order no. | Installation ex works | Battery volt- age | Battery capaci- ty | Battery type | Price | Description | |||
| Traction batteries | |||||||||
Battery | 1 | 6.654-202.0 | 12 V | 26 Ah | mainte-nance- free | Traction battery. | ■ | ||
| Chargers | |||||||||

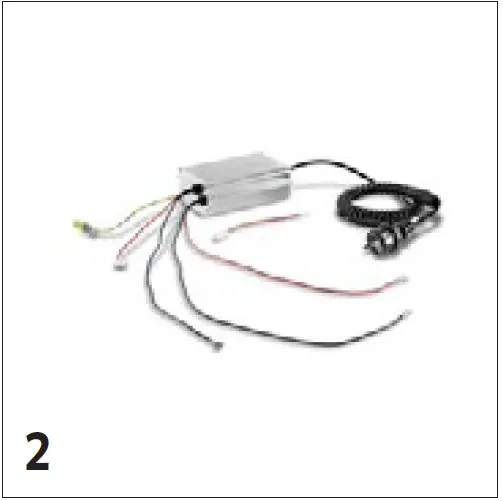

Charger | 2 | 6.654-203.0 | 12 V | built-in | For charging battery 6.654-202.0. | ■ | |||
- Included in the scope of supply.
- Available accessories.

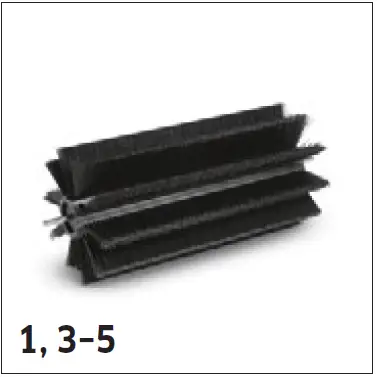

Order no. Installation ex works Length / width Diameter Price Description Standard roller brush Standard roller brush 1 6.906-041.0 480 mm Tough standard roller brush with moisture-proof universal bristles for normal soiling on all surfaces. Extremely durable. ■

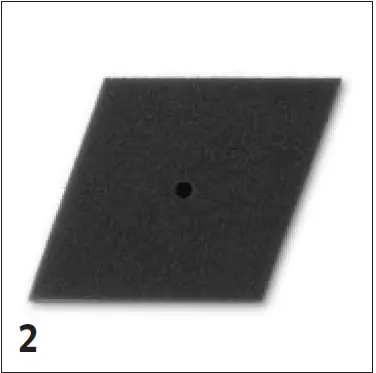

Foam filter Filter inlay 2 5.731-625.0 Plastic filter, water-resistant, washable, reduces maintenance costs. ■ Main sweeper roller, soft Main sweeper roller, soft 3 6.903-995.0 480 mm Sweeps fine dust on all surfaces indoors and outdoors Main sweeper roller, hard Main sweeper roller, hard 4 6.903-999.0 480 mm For the removal of stubborn dirt outdoors Main sweeper roller, antistatic Main sweeper roller, antistatic 5 6.907-023.0 480 mm For sweeping surfaces subject to static build up (e.g. carpets, artificial turf) - Included in the scope of supply.
- Available accessories.

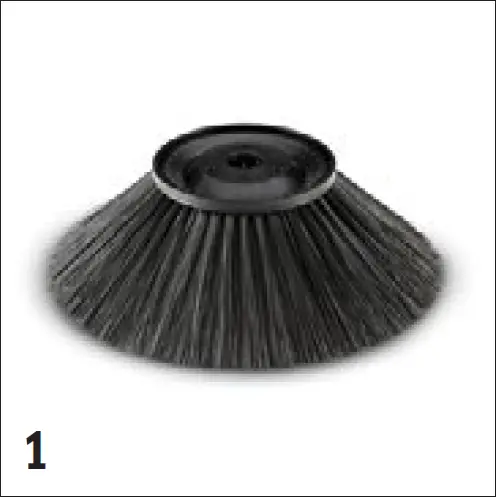

Order no. Installation ex works Length / width Diame- ter Price Description Standard side brushes Spare parts set side broom 1 2.884-935.0 330 mm Standard side brush with moisture-proof universal bristles for normal soiling on all surfaces. Extremely durable. ■ - Included in the scope of supply.
- Available accessories.

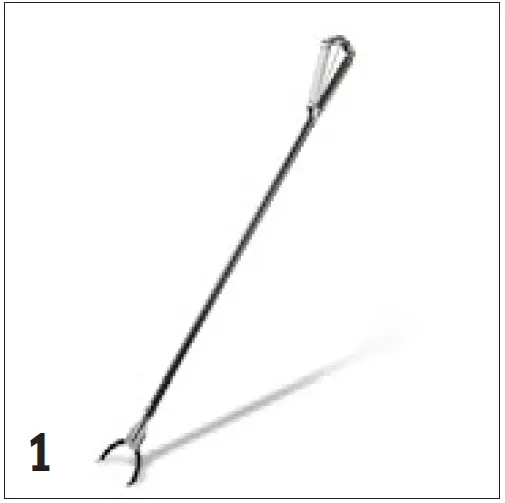

Order no. Length Colour Quantity Price Description Home Base accessories ABS litter picker set 1 2.640-908.0 For picking up refuse. - Included in the scope of supply.
- Available accessories.
